DCSR2688-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> DCSR2688-5

DCSR2688-5: DescriptionVOLTAGE CONTROLLED OSCILLATOR; CategoryPassive components oscillator; File Size291KB，3 Pages; ManufacturerSYNERGY; Websitehttp://www.synergymwave.com/

Download Datasheet Parametric View All

DCSR2688-5 Overview

VOLTAGE CONTROLLED OSCILLATOR

DCSR2688-5 Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT PACKAGE-16
Reach Compliance Code	compli
Maximum control voltage	8 V
Minimum control voltage	0.5 V
Modulation sensitivity	2.6 MHz/V
Installation features	SURFACE MOUNT
offset frequency	10 kHz
Maximum operating frequency	2688.651 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	3 dBm
phase noise	-114 dBc/Hz
physical size	12.7mm x 12.7mm x 4.57mm
Maximum slew rate	30 mA
Nominal supply voltage	5 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

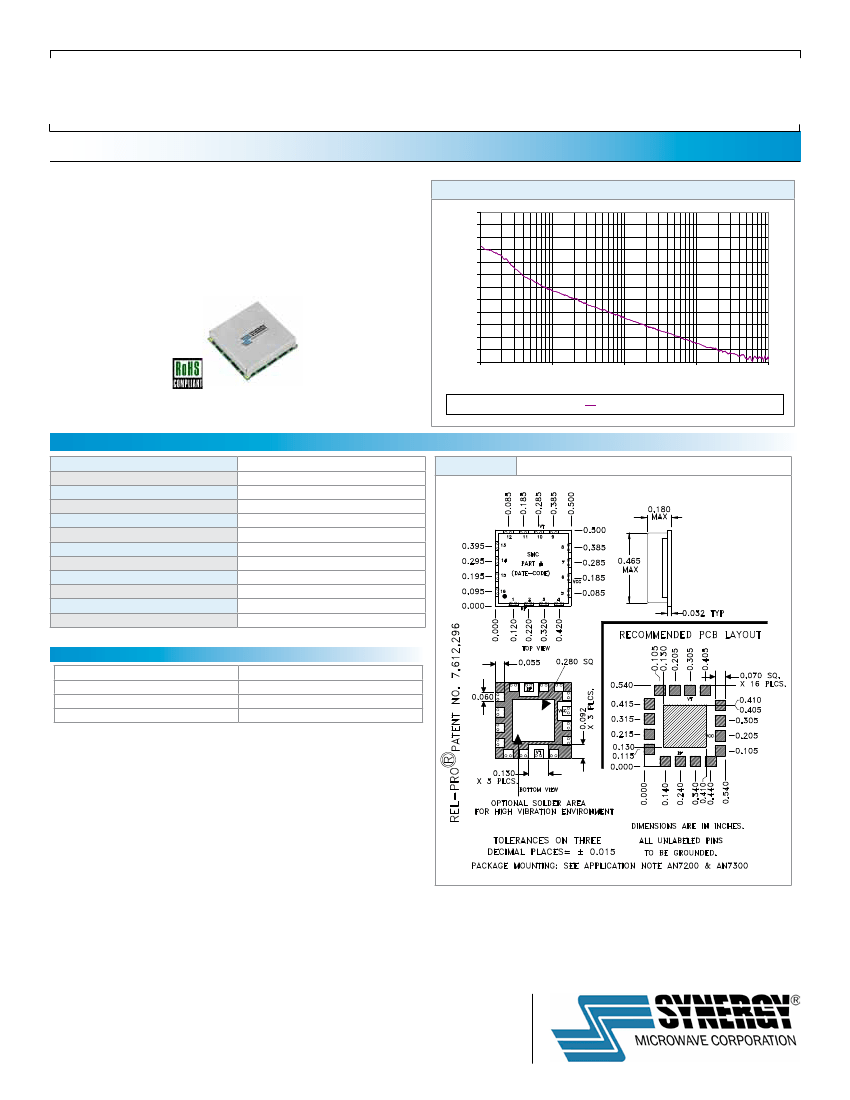

VOLTAGE CONTROLLED OSCILLATOR

SURFACE MOUNT MODEL:

DCSR2688-5

OPTIMIZED banDwIDTh

FEATURES:

►

Optimized Tuning Frequency band

►

Exceptional Phase noise Performance

►

Small Size, Surface Mount

►

Lead Free Patented REL-PRO

Technology

►

Planar Resonator Construction

Phase noise

-50

-60

-70

-80

-90

-100

-110

-120

-130

-140

-150

-160

-170

1000

10000

100000

Offset Frequency (Hz)

2688.03 MHz

1000000

2688.651 MHz

Phase Noise (dBc/Hz)

10000000

SPECIFICATIONS (Rev. B 01/12/12)

Frequency

Tuning Voltage

bias Voltage

Output Power

Tuning Sensitivity

Output Impedance

harmonic Suppression

Frequency Pulling

Frequency Pushing

Tuning Port Capacitance

Phase noise @ 10 khz

Operating Temperature Range

Absolute Maximum Ratings

Storage Temp. Range

bias Voltage

Tuning Voltage

DC Voltage applied to RF Out

-55 to +125 ºC

+5.5 V

+10 V

± 25 V

2688.651 MHz

0.5 - 8 VDC

+5 VDC @ 38 mA (Max.)

+4 dBm (Min.)

6.5 - 8.5 MHz/V (Typ.)

50 Ohms (Nom.)

14 dB (Typ.)

3 MHz (Typ. @ 1.75:1 VSWR)

0.5 MHz/V (Typ.)

25 pF (Typ.)

-112 dBc/Hz (Typ.)

-40 to +85 °C

Package #

278LF

This product is manufactured under one or more of the following patents. Approved: 5,160,810; 5,122,621; 5,390,349; 5,416,449; 5,650,754; 5,805,431; 6,525,623; 6,850,575;

7,088,189; 7,180,381; 7,196,591; 7,262,670; 7,265,642; 7,292,113; 7,365,612; 7,495,525; 2,548,311; 2,548,317; 7,545,229; 7,580,693; 7,586,381; 7,605,670; 7,636,021; 2,533,623

| Pending: 60/493075; 60/501371 & 60/501790; 60/527957 & 60/528670; 60/563481; 60/564173; 60/589090; 60/601823; 60/605791; EV31369834; 11/259766; 60/622485 &

60/710310; 10/937525/60/736901; 60/732787; 7,495,525; 2,548,311; 2,548,317; 7,545,229; 2,563,174; 7,580,693; 7,612,296; 2,524,751

201 McLean Boulevard • Paterson, New Jersey 07504 USA • Tel: (973) 881-8800 • Fax: (973) 881-8361

E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com

[ 1 of 3 ]
