ECCM5B6DB-18-FREQ2 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECCM5B6DB-18-FREQ2

ECCM5B6DB-18-FREQ2: DescriptionQUARTZ CRYSTAL RESONATOR, 24.001 MHz - 32 MHz, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size192KB，3 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

ECCM5B6DB-18-FREQ2 Overview

QUARTZ CRYSTAL RESONATOR, 24.001 MHz - 32 MHz, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 2 PIN

ECCM5B6DB-18-FREQ2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECLIPTEK
package instruction	ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 2 PIN
Reach Compliance Code	unknown
Other features	AT CUT CRYSTAL; BULK
Ageing	2 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	50 ppm
load capacitance	18 pF
Manufacturer's serial number	ECCM5B
Installation features	SURFACE MOUNT
Maximum operating frequency	32 MHz
Minimum operating frequency	24.001 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
physical size	L6.0XB3.5XH1.0 (mm)/L0.236XB0.138XH0.039 (inch)
Series resistance	40 Ω
surface mount	YES

Preview

Download Datasheet

View All

Marketing Bulletin

DATE:

TO:

FROM:

RE:

January 15

, 2007

All Sales Personnel

Isaac Gonzalez

Product Termination

To all concerned parties,

This bulletin is to notify all customers of the discontinuation of the following Ecliptek

series effective January 15

, 2008:

Series

ECCM5B

Description

3.5x6.0mm Ceramic 2Pad SMD Crystal

Recommended Replacement

ECCM5A

In compliance with our End of Life (EOL) policy, this will serve as advanced notice of

product termination. New orders will not be accepted after January 1

, 2009, with

delivery to conclude by April 1

, 2009.

If there are any questions pertaining to this bulletin, please feel free to contact me.

Thank you again for your cooperation.

Best Regards,

Isaac Gonzalez

Configuration Manager

Ecliptek Corporation

3545 CADILLAC AVENUE

•

COSTA MESA, CA 92626-1401

•

(714) 433-1200

•

Fax (714) 433-1234

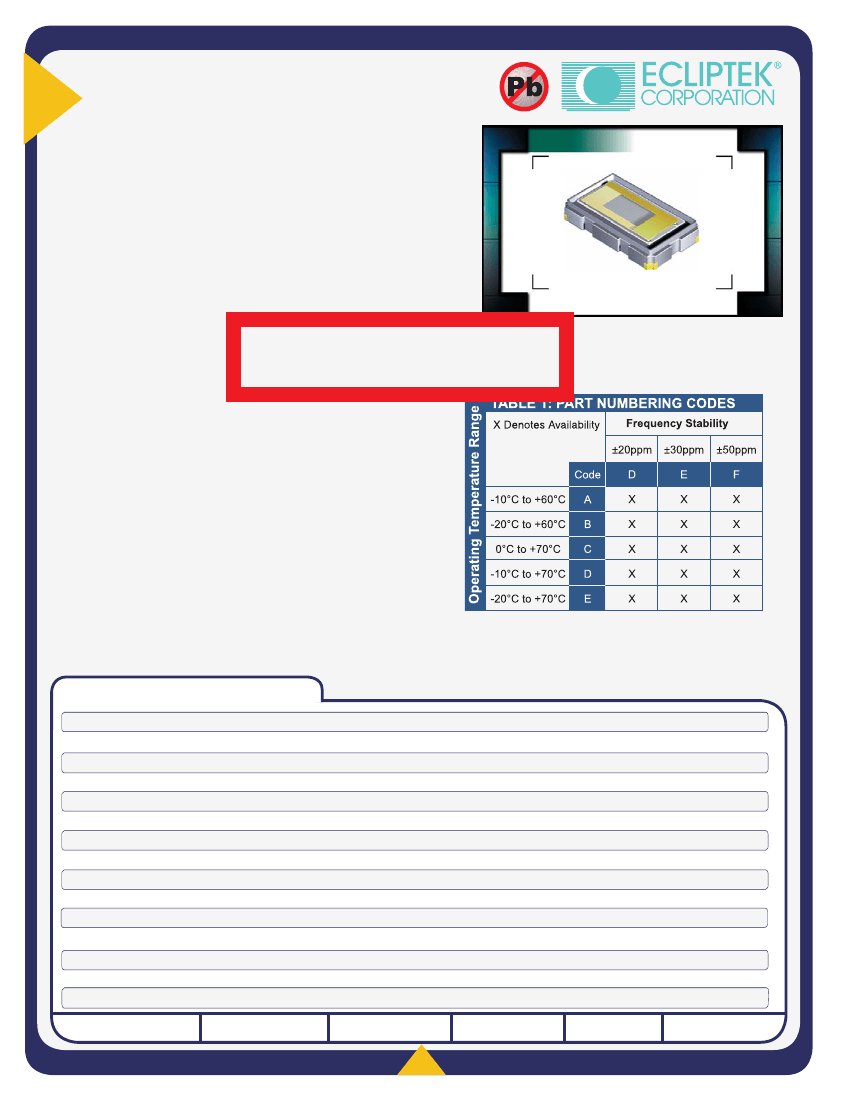

ECCM5B

Series

• RoHS Compliant (Pb-Free)

• Miniature two pad ceramic

surface mount package

• AT cut

• Tight tolerance/stability

• Frequencies to 32.000MHz available

• Tape and reel available

NOTES

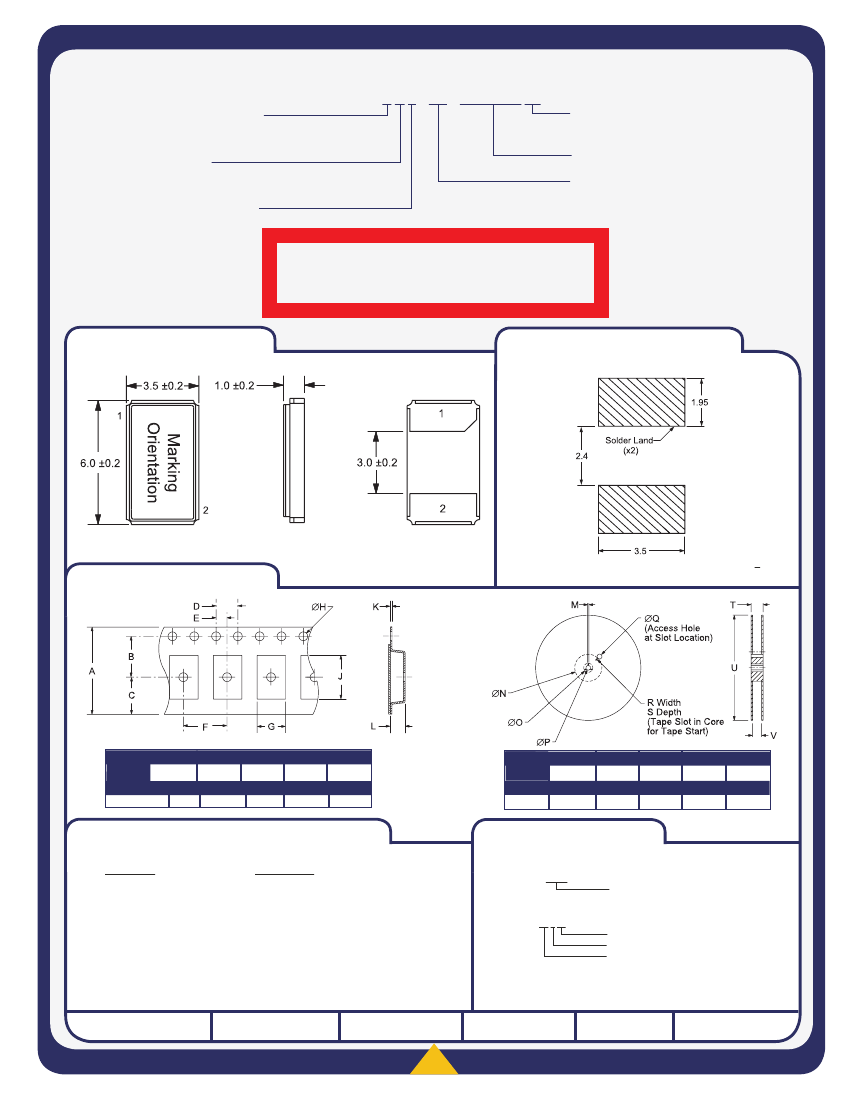

ECCM5B

1.0

6.0

3.5

CRYSTAL

_______________________________________________________________________________________________

______________________________________________________________________________________________

OBSOLETE
