SDR955CTP datasheet, PDF - EEWORLD Datasheet

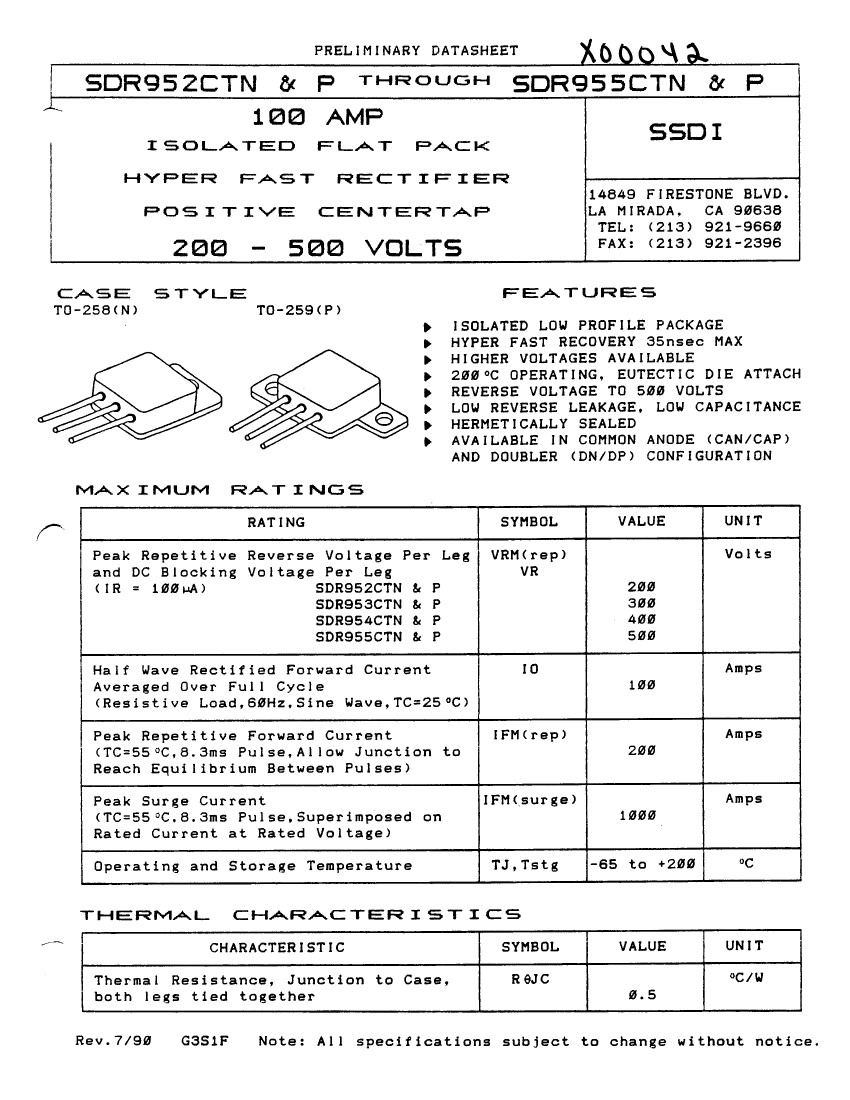

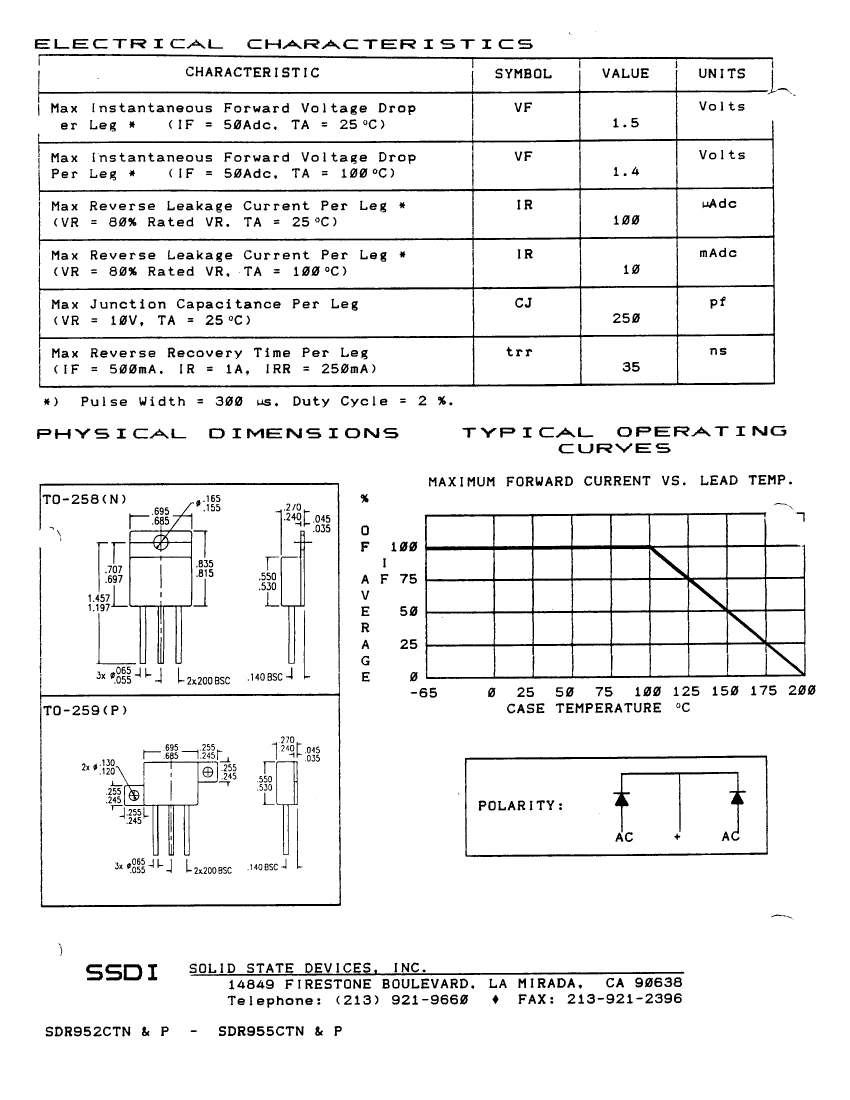

SDR955CTP: DescriptionRectifier Diode, 1 Phase, 2 Element, 50A, 500V V(RRM), Silicon, TO-259, TO-259, 3 PIN; CategoryDiscrete semiconductor diode; File Size201KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

SDR955CTP Overview

Rectifier Diode, 1 Phase, 2 Element, 50A, 500V V(RRM), Silicon, TO-259, TO-259, 3 PIN

Parameter Name	Attribute value
Maker	SSDI
Parts packaging code	TO-259
package instruction	R-XSFM-P3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JEDEC-95 code	TO-259
JESD-30 code	R-XSFM-P3
Maximum non-repetitive peak forward current	1000 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Maximum output current	50 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	500 V
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE

	SDR955CTP	SDR952CTP
Description	Rectifier Diode, 1 Phase, 2 Element, 50A, 500V V(RRM), Silicon, TO-259, TO-259, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 100A, 200V V(RRM), Silicon, TO-259,
Maker	SSDI	SSDI
package instruction	R-XSFM-P3	R-MSFM-P3
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
application	ULTRA FAST RECOVERY	HYPER FAST RECOVERY
Shell connection	ISOLATED	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V	1.4 V
JEDEC-95 code	TO-259	TO-259
JESD-30 code	R-XSFM-P3	R-MSFM-P3
Maximum non-repetitive peak forward current	1000 A	1000 A
Number of components	2	2
Phase	1	1
Number of terminals	3	3
Maximum operating temperature	200 °C	200 °C
Minimum operating temperature	-65 °C	-65 °C
Maximum output current	50 A	100 A
Package body material	UNSPECIFIED	METAL
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	500 V	200 V
Maximum reverse recovery time	0.035 µs	0.035 µs
surface mount	NO	NO
Terminal form	PIN/PEG	PIN/PEG
Terminal location	SINGLE	SINGLE
