SAFEB1G88KA0F00R14 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> SAFEB1G88KA0F00R14

SAFEB1G88KA0F00R14: DescriptionSAW Filter, 1 Function(s), 1880MHz; CategoryAnalog mixed-signal IC filter; File Size227KB，4 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

SAFEB1G88KA0F00R14 Overview

SAW Filter, 1 Function(s), 1880MHz

SAFEB1G88KA0F00R14 Parametric

Parameter Name	Attribute value
Maker	Murata
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Center frequency or cutoff frequency (fo/fc)	1880 MHz
filter type	SAW FILTER
high	0.6 mm
input resistance	50 OHM
Maximum insertion loss	4 dB
length	1.35 mm
Manufacturer's serial number	SAFEB1G88KA0F00
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Output impedance	50 OHM Ω
physical size	L1.35XB1.05XH0.6 (mm)/L0.053XB0.041XH0.024 (inch)
width	1.05 mm

SAFEB1G88KA0F00R14 Preview

SAW FILTER FOR CDMA1900/UMTS BC2 Rx

Murata part number : SAFEB1G88KA0F00

Package Dimensions

Specification

Item

Nominal Center Frequency(f c)

1.35±0.05

Specif ication

-30 to 85°C

25±2°C

1880MHz

typ.

Insertion Loss

(1850 to 1910MHz)

Dot Marking(φ0.3)

1.05±0.05

4.0 dB max.

3.4 dB max.

2.4 dB

A bsolute A ttenuation

(0.20)

L U

0.1 to

869 to

894 to

1574 to

1930 to

3690 to

5540 to

7390 to

869 MHz

894 MHz

1500 MHz

1577 MHz

1990 MHz

3830 MHz

5740 MHz

7650 MHz

28 dB min.

30 dB min.

14 dB min.

34 dB min.

25 dB min.

28 dB min.

30 dB min.

18 dB min.

34 dB min.

25 dB min.

31 dB

33 dB

37 dB

46 dB

33 dB

0.6max.

5-0.325±0.050

2-0.25±0.05

(2)

(1)

(5)

(3)

(0.075)

(0.05)

2-0.25±0.05

(4)

5-0.25±0.05

2-0.25±0.05

Ripple Deviation

(1850 to 1910MHz)

V SWR

(1850 to 1910MHz)

Input/Output Impedance (nominal)

Marking

: Laser Printing

(1) : Input

(4) : Output

Others : Ground

Unit : mm

3.1dB max.

2.5dB max.

1.9 dB

1.9 max.

1.8 max.

Ω

1.7

Input Signal Level

20mW (+13dBm), 2000 hours

Jan. 23, 2007

1/4

SAW FILTER FOR CDMA1900/UMTS BC2 Rx

Murata part number : SAFEB1G88KA0F00

Frequency Performance

Insertion Loss

I.L.(½B)

1650 1690 1730 1770 1810 1850 1890 1930 1970 2010 2050

frequency(MHz)

Insertion Loss

I.L.(½B)

1000

2000

3000

frequency(MHz)

4000

5000

6000

Jan. 23, 2007

2/4

SAW FILTER FOR CDMA1900/UMTS BC2 Rx

Murata part number : SAFEB1G88KA0F00

4.0±0.1

2.00±0.05

+0.1

φ1.5-0.0

1.75±0.10

3.50±0.05

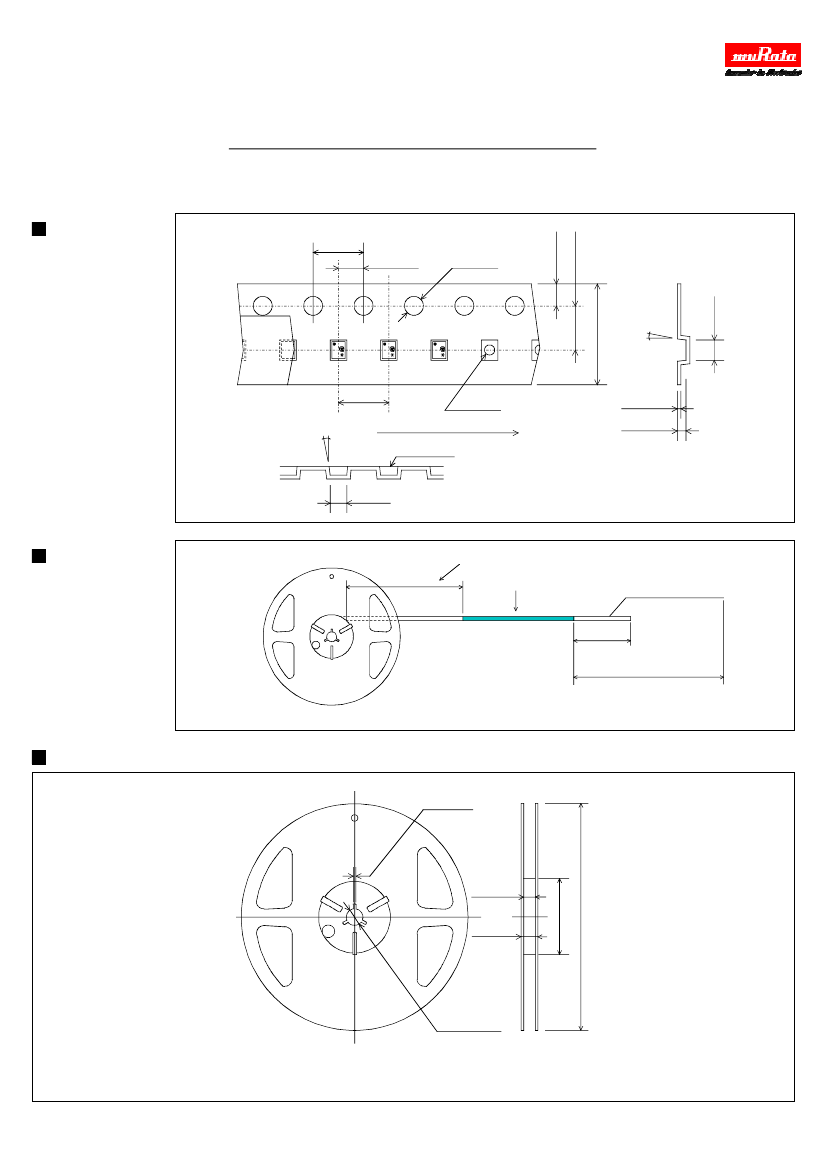

Dimensions of

Carrier Tape

4.0±0.1

3°max.

+0.1

φ0.8-0.0

Direction of Feed

Cover Tape

8.0±0.2

0.30±0.05

0.70±0.10

1.3±0.1

3°max.

1.6±0.1

Unit: mm

L U

Dimensions

of Tape

Trailer tape

160...190

Components

80...120

Leader Cavity

400...560

Unit: mm

Dimensions of Reel

2.0±0.5

9.0±0.5

(φ178)

(φ60)

13.5max.

φ13.0±0.5

Unit: mm

SAFEB1G88KA0F00R14 … 4000pcs/reel

SAFEB1G88KA0F00R12 … 2000pcs/reel

Jan. 23, 2007

3/4

SAW FILTER FOR CDMA1900/UMTS BC2 Rx

Murata part number : SAFEB1G88KA0F00

Recommended Land Pattern

0.25

0.425

0.25

0.425

0.325

0.525

0.325

0.525

0.25

1.6

0.325

0.25

: Land Pattern

Unit : mm

Test Circuit

50Ω

1.3

S.S.G.

50Ω

Voltmeter

•

This PDF Datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications

are subject to change or our products in it may be discontinued without advance notice. Please check with our sales

representatives or product engineers before ordering.

•

This PDF Datasheet has only typical specifications because there is no space for detailed specifications. Therefore,

please approve our product specifications or transact the approval sheet for product specifications before ordering.

Jan. 23, 2007

4/4

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SAFEB1G88KA0F00R14 Related Products

	SAFEB1G88KA0F00R14	SAFEB1G88KA0F00R12	SAFEB1G88KA0F00	SAFEB1G88KA0F00R1S
Description	SAW Filter, 1 Function(s), 1880MHz	SAW Filter, 1 Function(s), 1880MHz	SAW Filter, 1 Function(s), 1880MHz,	Passive Filter,
Maker	Murata	Murata	Murata	Murata
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	-
Center frequency or cutoff frequency (fo/fc)	1880 MHz	1880 MHz	1880 MHz	-
filter type	SAW FILTER	SAW FILTER	SAW FILTER	-
high	0.6 mm	0.6 mm	0.6 mm	-
input resistance	50 OHM	50 OHM	50 OHM	-
Maximum insertion loss	4 dB	4 dB	4 dB	-
length	1.35 mm	1.35 mm	1.35 mm	-
Manufacturer's serial number	SAFEB1G88KA0F00	SAFEB1G88KA0F00	SAFEB1G88KA0F00	-
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
Number of functions	1	1	1	-
Maximum operating temperature	85 °C	85 °C	85 °C	-
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-
Output impedance	50 OHM Ω	50 OHM Ω	50 OHM Ω	-
physical size	L1.35XB1.05XH0.6 (mm)/L0.053XB0.041XH0.024 (inch)	L1.35XB1.05XH0.6 (mm)/L0.053XB0.041XH0.024 (inch)	L1.35XB1.05XH0.6 (mm)/L0.053XB0.041XH0.024 (inch)	-
width	1.05 mm	1.05 mm	1.05 mm	-
