UPD42272AGF-3BE datasheet, PDF

UPD42272AGF-3BE: DescriptionPicture-In-Picture IC, CMOS, PQFP64, PLASTIC, QFP-64; CategoryOther integrated circuit (IC) Consumption circuit; File Size611KB，24 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

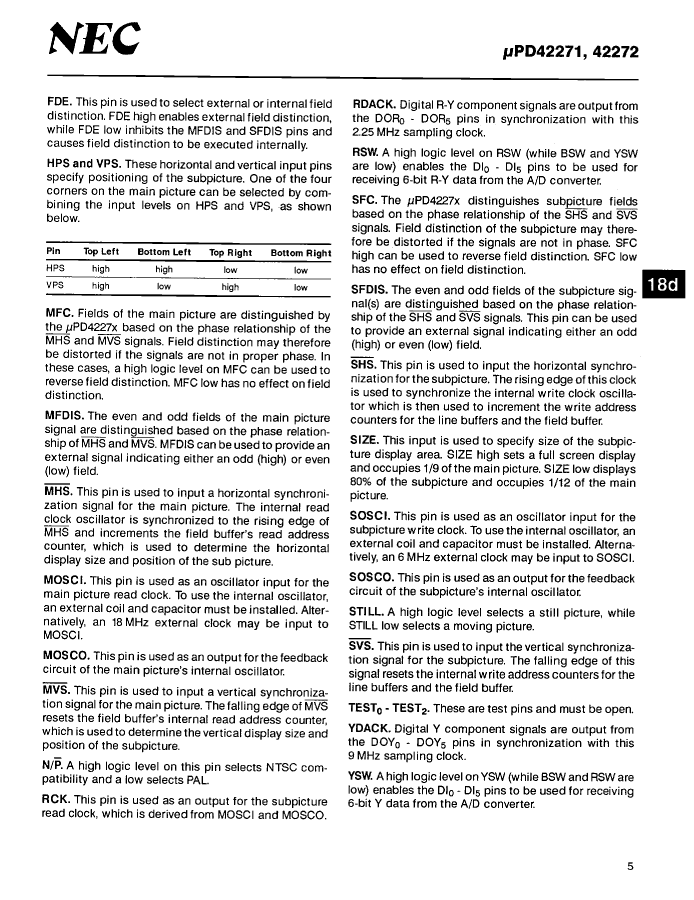

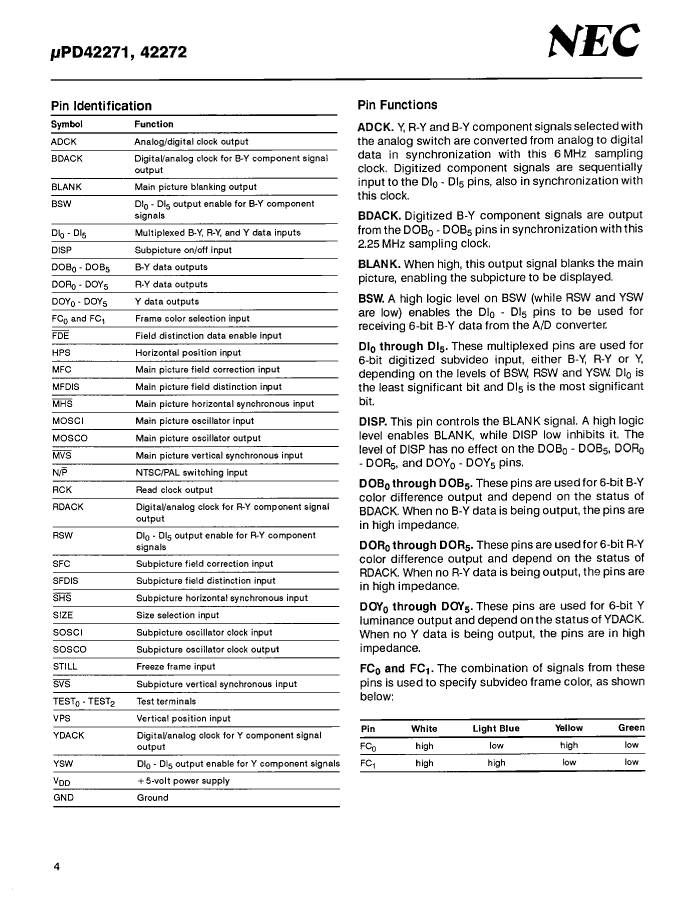

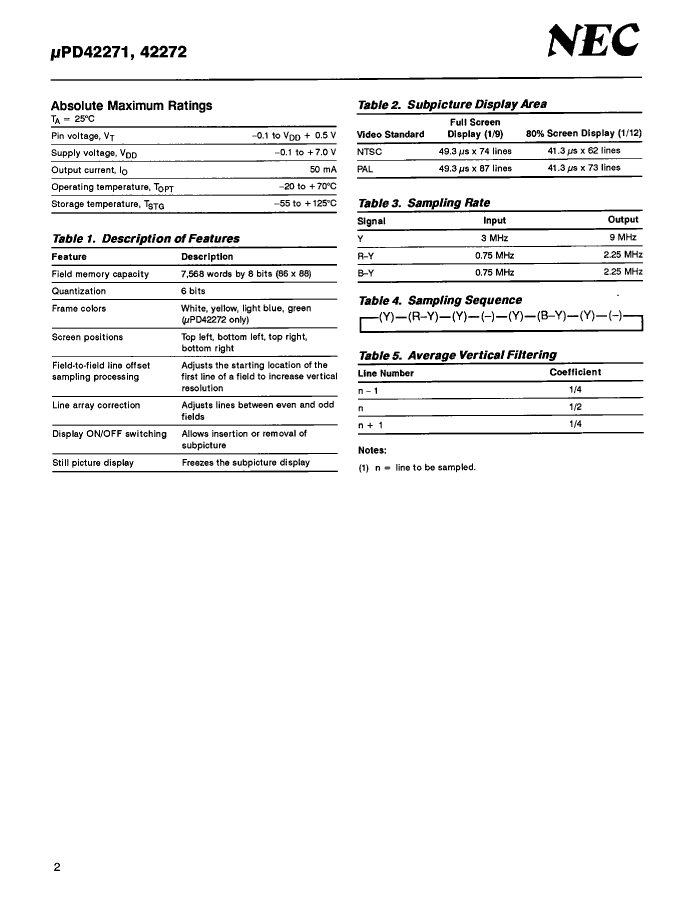

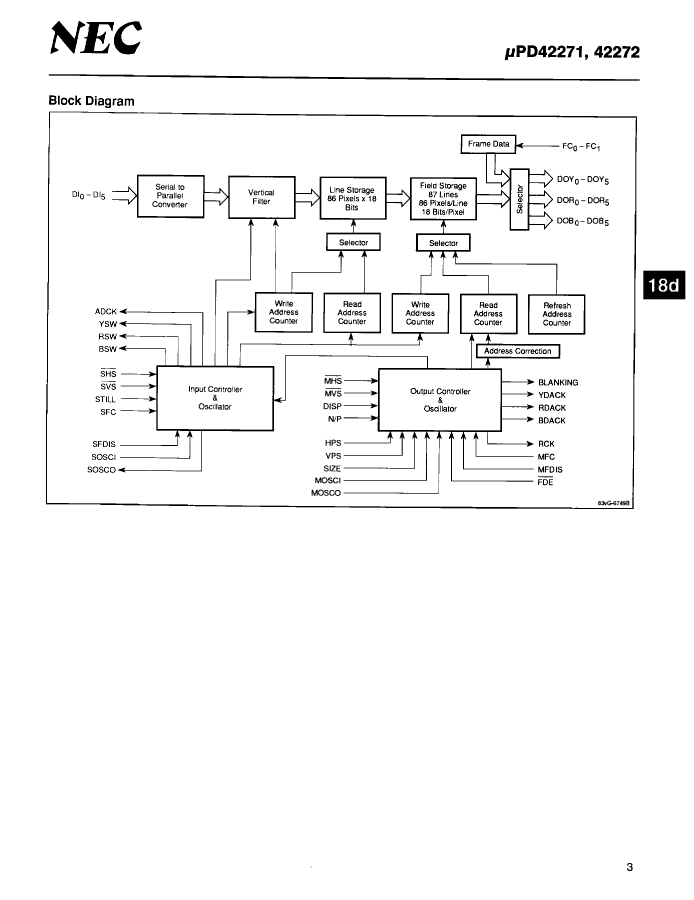

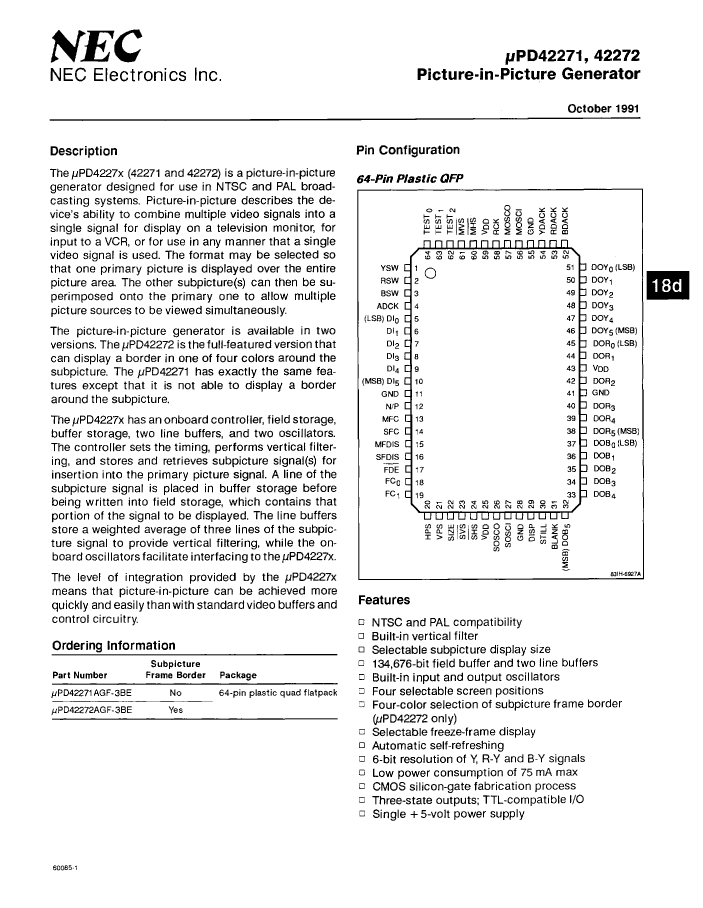

UPD42272AGF-3BE Overview

Picture-In-Picture IC, CMOS, PQFP64, PLASTIC, QFP-64

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	NEC Electronics
Parts packaging code	QFP
package instruction	QFP,
Contacts	64
Reach Compliance Code	compliant
application	TV
Commercial integrated circuit types	PICTURE-IN-PICTURE IC
Lock live broadcast screen	YES
JESD-30 code	R-PQFP-G64
JESD-609 code	e0
length	20 mm
Number of functions	1
Number of terminals	64
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	3 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
video standards	PAL; NTSC
width	14 mm

	UPD42272AGF-3BE	UPD42271AGF-3BE
Description	Picture-In-Picture IC, CMOS, PQFP64, PLASTIC, QFP-64	Picture-In-Picture IC, CMOS, PQFP64, PLASTIC, QFP-64
Is it Rohs certified?	incompatible	incompatible
package instruction	QFP,	PLASTIC, QFP-64
Reach Compliance Code	compliant	compliant
application	TV	TV
Commercial integrated circuit types	PICTURE-IN-PICTURE IC	PICTURE-IN-PICTURE IC
Lock live broadcast screen	YES	YES
JESD-30 code	R-PQFP-G64	R-PQFP-G64
JESD-609 code	e0	e0
length	20 mm	20 mm
Number of functions	1	1
Number of terminals	64	64
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum seat height	3 mm	3 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING
Terminal pitch	1 mm	1 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
video standards	PAL; NTSC	PAL; NTSC
width	14 mm	14 mm
