GQ2171
Description
C M O S P o s i t i v e Vo l t a g e R e g u l a t o r
The GQ2171 series of positive, linear regulators feature low quiescent current (50 A typ.) with low dropout
voltage and excellent PSRR, thus making them ideal for Telecommunications and other battery applications.
These rugged devices have both Thermal Shutdown, and Current Fold-back to prevent device failure under
the “Worst” of operating conditions.
As an additional feature, the GQ2171 is stable with an output capacitance of just extended 0.22 F or greater.
Features
&
Low Dropout Voltage
Very

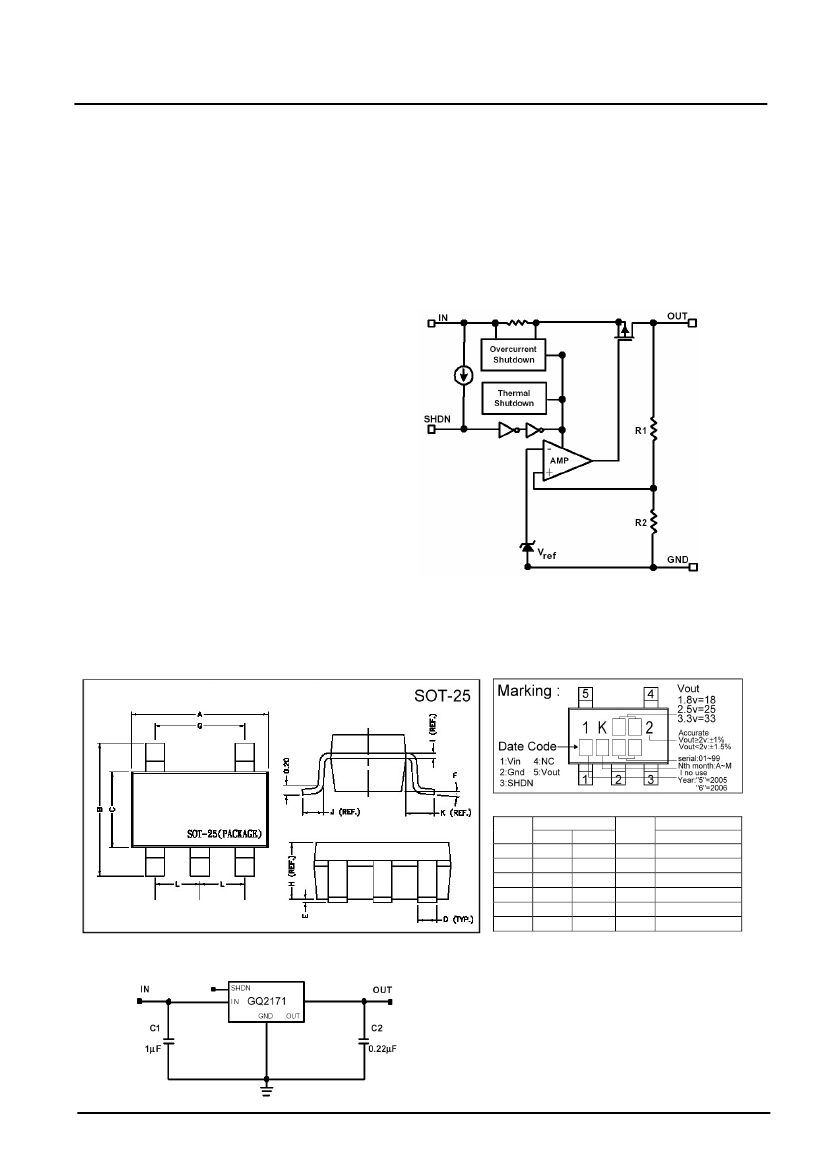

Functional Block Diagram
Applications
&
Battery Powered Widgets
&Instrumentation
&Wireless Devices
&PC Peripherals
&Portable Electronics
&Cordless Phones
&Electronic Scales
&Cellular Phones
&Cameras
&Telecommunications
&Guaranteed 150mA output
&Over-Temperature Shutdown
&Current Limiting
&Short Circuit Current Fold-back
&Excellent PSRR Type 70dB
&Noise Reduction Bypass Capacitor
&Power-saving Shutdown Mode
&Factor Pre-set Output Voltage
Package Dimensions
REF.
A
B
C
D
E
F
Millimeter
Min.
Max.
2.70
3.10
2.60
3.00
1.40
1.80
0.30
0.55
0
0.10
0°
10°
REF.
G
H
I
J
K
L
Dimensions
Millimeter
1.90 REF.
1.20 REF.
0.12 REF.
0.37 REF.
0.60 REF.
0.95 REF.
Typical Application Circuit
1/5
ISSUED DATE :2005/12/12
REVISED DATE :
Absolute Maximum Ratings
Parameter
Input
Max Voltage
Output Current
Output Voltage
Operating Ambient Temperature
Junction Temperature
Maximum Junction Temperature
Power Dissipation( T=100 : )
EDS Classification
Symbol
V
IN
I
OUT
V
OUT
Topr
Tj
Tj
Max
PD
Ratings
6
P
D
/( V
IN-
V
O)
1.5~3.3
-40 ~ +85
-40 ~ +125
150
380
B
Unit
V
mA
V
:
mW
Electrical Characteristics T
A
=25
Parameter
Output Voltage
Current Limit
Fold-back Current
Load Regulation
Symbol
V
OUT
(E)
(Note1)
unless otherwise noted
Condition
I
O
=0.1mA, V
OUT
(T) 2.0V
I
O
=0.1mA, V
OUT
(T)<2.0V
I
O
=150mA
V
O
>800mV
V
O
=0V
I
O
=0.1 to 150mA
V
OUT
>2.0V
V
IN
=V
OUT
(T)+0.5V
V
OUT
2.0V
V
IN
=V
OUT
(T)+1V
V
OUT
(T) 2.0V
1.8V V
OUT
(T)<2.0V
1.5V V
OUT
(T)<1.8V
(V
OUT
(T)>2.0V V
IN
=V
OUT
(T)+0.5V; V
OUT
(T) 2.0V V
IN
=V
OUT
(T)+1V; V
SHDN
=V
IN
, C
IN
=C
OUT
=1uF)
Min
-1.0
-1.5
-2.0
150
-
-1
-2
-
-
-
-
-
-0.2
-0.4
Note3
-
-
-
TYP
V
OUT
(T)
(Note2)
Max
1.0
1.5
2.0
-
-
1
Unit
%
mA
A
%
I
LIM
I
FB
REG
LOAD
200
80
0.5
-
300
700
900
60
50
0.1
-
-
137
23
30
70
30
-
-
0.01
0.5
-
2
500
1000
1300
-
-
0.2
%
0.4
5.5
-
-
-
-
-
V
IN
0.6
-
1
0.4
V
:
:
ppm/ :
dB
Vrms
V
V
A
A
V
A
A
mV
Dropout Voltage
Quiescent Current
Ground Pin Current
Line Regulation
Input
Voltage
Over Temperature Shutdown
Over Temperature Hysterisis
V
DROPOUT
I
Q
I
GND
REG
LINE
V
IN
OTS
OTH
TC
PSRR
eN
V
SHDNH
V
SHDNL
I
SD
V
O,SD
I
O
=150mA
V
O
=V
OUT
(E)-2%
V
IN
=5V,
I
O
=0mA
V
IN
=5V,
I
O
=1mA to150mA
I
O
=0.1mA, V
OUT
>2.0V
V
IN
=V
OUT
(T)+0.5V to 5.5V
I
O
=0.1mA, V
OUT
2.0V
V
IN
=V
OUT
(T)+1V to 5.5V
Output Voltage
Temperature Coefficient
Power Supply Rejection
Output Voltage Noise
SHDN
Input
Threshold
SHDN
Input
Bias Current
Shutdown Supply Current
Shutdown Output Voltage
Ro=100
,Co=2.2mF, f=1kHz
f=10Hz~100kHz,
Io=10mA,
Co=2.2 F
V
SHDN
=0.8* V
IN
V
SHDN
=0.6V
V
IN
=5V, EN=0v, or 5V
V
IN
=5V, V
O
=0V
Output Loading 1200 , Vo=0V
-
-
0.8* V
IN
0
-
-
0
Note 1: V
OUT
(E) =Effective Output Voltage (i.e. the output voltage when “V
OUT
(T)>2.0V V
IN
=V
OUT
(T)+0.5V; V
OUT
(T) 2.0V V
IN
=V
OUT
(T)+1V;
V
SHDN
=V
IN
” is provided at the V
IN
pin while maintaining a certain I
OUT
value).
2: V
OUT
(T) =Specified Output Voltage
3: V
IN
(MIN)
=V
OUT
+V
DROPOUT
2/5
ISSUED DATE :2005/12/12
REVISED DATE :
Ordering Information ( contd. )
Part Number
GQ2171-15
GQ2171-20
GQ2171-27
GQ2171-2H
GQ2171-32
XXXX
XXXX
XXXX
XXXX
XXXX
Marking
1K152
1K202
1K272
1K2H2
Output Voltage
1.5V
2.0V
2.7V
2.85V
3.2V
Part Number
GQ2171-18
GQ2171-25
GQ2171-28
GQ2171-30
GQ2171-33
XXXX
XXXX
XXXX
XXXX
XXXX
Marking
1K182
Output Voltage
1.8V
2.5V
2.8V
3.0V
3.3V
1K252
1K282
1K302
1K332
1K322
The GQ2171 series of COMS regulators contain a PMOS pass transistor, voltage reference, error amplifier,
over-current protection, and thermal shutdown.
The P-channel pass transistor receives data from the error amplifier, over-current shutdown, and thermal
protection circuits. During normal operation, the error amplifier compares the output voltage to a precision
reference. Over-current and Thermal shutdown circuits become active when the junction temperature exceeds
150 : , or the current exceeds 150mA. During thermal shutdown, the output voltage remains low. Normal
operation is restored when the junction temperature drops below 120 : .
The GQ2171 switches from voltage mode to current mode when the load exceeds the rated output current.
This prevents over-stress. The GQ2171 also incorporates current fold-back to reduce power dissipation when
the output is short circuited. This feature becomes active when the output drops below 0.8 volts, and reduces
the current flow by 65%. Full current is restored when the voltage exceeds 0.8 volts.
The GQ2171 is stable with an output capacitance to ground of 0.22 F or greater. Ceramic capacitors have the
lowest ESR, and will offer the best AC performance. Conversely, Aluminum Electrolytic capacitors exhibit the
highest ESR, resulting in the poorest AC response.
A second capacitor is recommended between the input and ground to stabilize Vin. The input capacitor should
be at least 1 F to have a beneficial effect.
A large capacitor improves the AC ripple rejection, but also makes the output come up slowly. This “Soft”
turn-on is desirable in some applications to limit turn-on surges.
All capacitors should be placed in close proximity to the pins. A “Quiet” ground termination is desirable. This
can be achieved with a “Star” connection.
When actively, pulled low, the PMOS pass transistor shuts off, and all internal circuits are powered down. In
this state, the quiescent current is less than 1 A. This pin behaves much like an electronic switch.
Detailed Description
External Capacitors
Shutdown

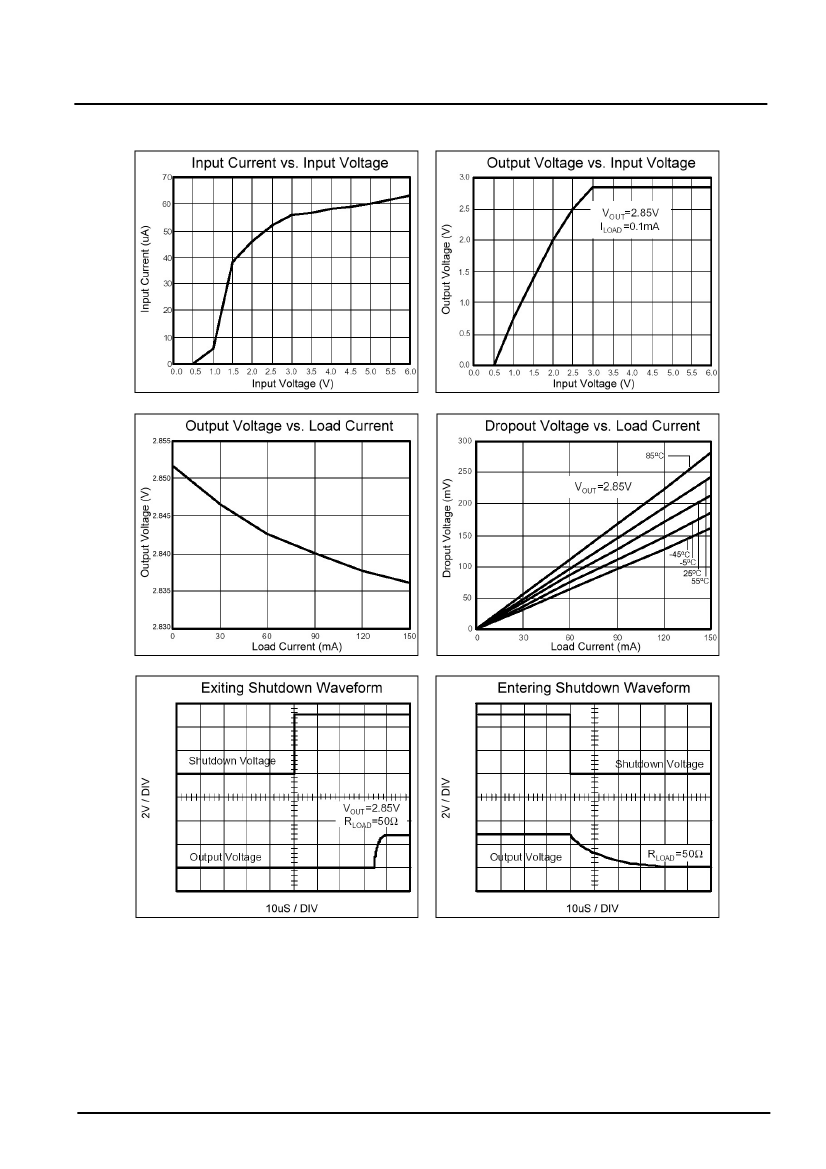

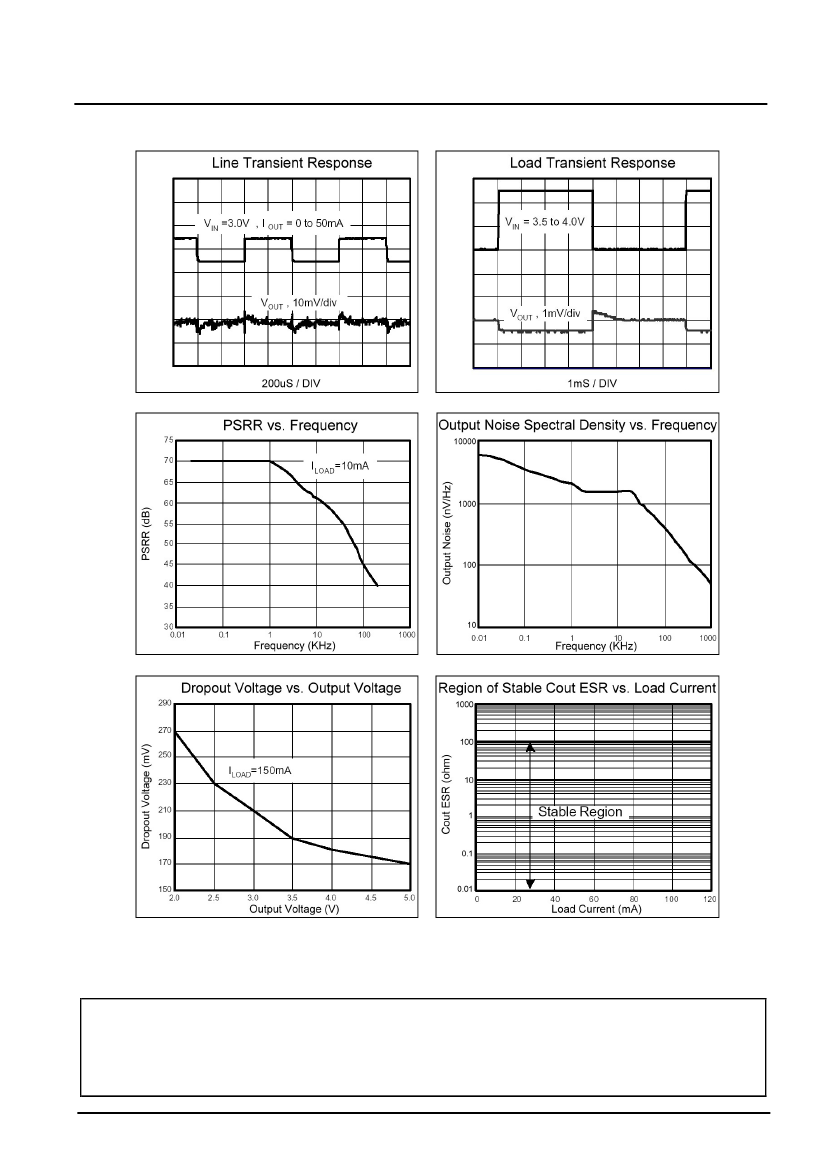

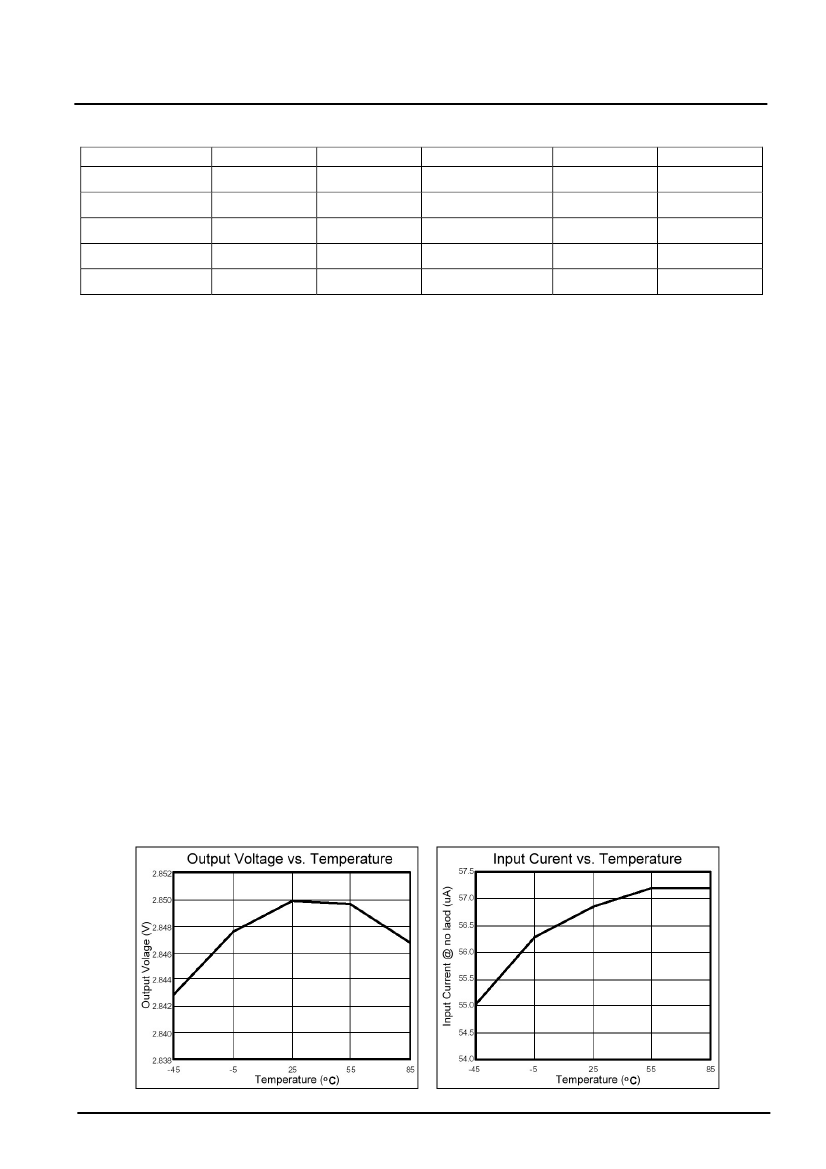

Characteristics Curve
3/5
ISSUED DATE :2005/12/12
REVISED DATE :
4/5
ISSUED DATE :2005/12/12
REVISED DATE :
