MDC5100R2

Description
RF/Microwave Antenna, ANTENNA SUPPORT CIRCUIT, PLASTIC, MICRO-8, 8 PIN
CategoryWireless rf/communication    Radio frequency and microwave
File Size98KB,8 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric View All

MDC5100R2 Overview

RF/Microwave Antenna, ANTENNA SUPPORT CIRCUIT, PLASTIC, MICRO-8, 8 PIN

MDC5100R2 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerON Semiconductor
Reach Compliance Codenot_compliant
applicationPCS/WLAN/MOBILE SYSTEM
structureCOMPONENT
JESD-609 codee0
OmnidirectionalNO
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
polarizationLINEAR
RF/Microwave Device TypesANTENNA SUPPORT CIRCUIT
Terminal surfaceTin/Lead (Sn/Pb)

MDC5100R2 Preview

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document
by MDC5100/D
Advance Information

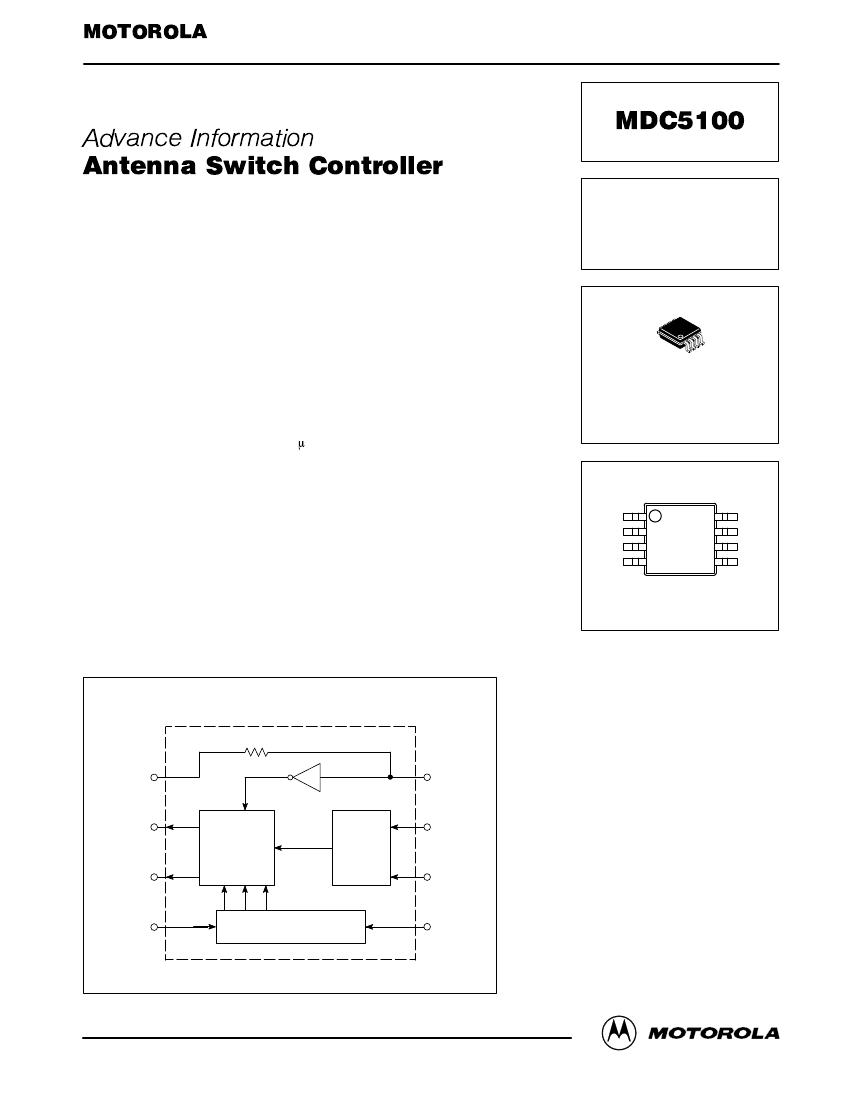

Antenna Switch Controller
The MDC5100 is designed to control GaAs RF switches which require positive and
negative going control voltages to select the switch path. All input control signals are
3 V CMOS–logic compatible to allow for direct interface to a microcontroller. The
device also has an accessory detect pin for use in applications where there is a
portable handset to mobile adapter. The device is designed to interface directly with
Double Pull–Double Throw (DPDT) switches such as the M/A–Com SW 363.
This device in combination with a GaAs RF switch can be used to achieve duplex
isolation in many Time Division Duplex Radios like DECT or in Frequency Division
Duplex Radios employing time division multiple access with staggered Transit/Re-
ceive time slots such as GSM. It can also be used to control an RF switch in dual band
radio applications. The device is housed in a miniature Micro–8 for minimum space
utilization.
Features
Micro–miniature Low Profile Micro 8 Package
3 V CMOS Logic Control Inputs
Ultra–low Quiescent Current of 400
m
A Typical
Wide Operating Temperature Range of –40 to 85°C
Applications
GSM and PCS Portable Phones
Mobile to Portable Accessories
Wireless LAN Modems
Specialized TDD and TDMA Radios
Dual Band Phones
MDC5100
ANTENNA
SWITCH
CONTROLLER
PLASTIC PACKAGE
CASE 846A–02
(Micro–8)
VCC
V2out
V1out
TxE
1
2
3
4
8
7
6
5
Acc
GND
VEE
RxE
(Top View)
Functional Block Diagram
VCC
Acc
V2out
State
Logic
&
Switches
GND
V–
Gen
VEE
V1out
TxE
Control and V+ Generation
RxE
This document contains information on a product under development. Motorola reserves the
right to change or discontinue this product without notice.
Analog/Interface
©
Motorola, Inc. 1999
Integrated Circuit Device Data
REV 0
1
MDC5100
ABSOLUTE MAXIMUM RATINGS
Rating
Positive Supply Voltage
Negative Supply Voltage
Differential Supply Voltage
Voltage Range at Any Input Pin (TxE, RxE, Acc)
Junction Temperature
Storage Temperature Range
Symbol
VCC
|VEE|
VCC–VEE
Vin
TJ
Tstg
Value
6
12
15
–1 to VCC
150
–65 to +150
Unit
V
V
V
V
°C
°C
THERMAL CHARACTERISTICS
Characteristic
Total Power Dissipation
Derate above 25°C
Thermal Resistance, Junction to Ambient
Symbol
PD
R
θJA
Value
510
4
245
Unit
mW
mW/°C
°C/W
DEVICE MARKING
5100
ORDERING INFORMATION
MDC5100R2
13 inch Reel, 4000 units
TRUTH TABLE
Input Logic
RxE
0
0
0
0
1
1
1
1
TxE
0
0
1
1
0
0
1
1
ACC
0
1
0
1
0
1
0
1
Output Logic
V1out
GND
GND
V–
V+
V+
V–
V+
V+
V2out
GND
GND
V+
V–
V–
V+
V+
V+
Invalid state, should be
prohibited in control
logic/software
Note 1: ACC “0” = Open, ACC “1” = 10 k
W
to GND
Note 2: V+ is nominally VIH – 0.1
Note 3: V– is nominally VEE – 1 V
PIN DESCRIPTION
Pin
1
2
3
4
5
6
7
8
Name
VCC
V2out
V1out
TxE
RxE
VEE
GND
Acc
Positive Supply
Antenna Control Output 1, V+ is referenced to the VIH of TxE, RxE and V– is referenced to the VEE Voltage
Antenna Control Output 2, V+ is referenced to the VIH of TxE, RxE and V– is referenced to the VEE Voltage
Transmit Enable Input
Receive Enable Input
Negative Supply
Ground
Accessory Present Input
Functional Description
2
Analog/Interface Integrated Circuit Device Data
MDC5100
ELECTRICAL CHARACTERISTICS
(VCC = 2.75 V, VEE = –10 V, TA = 25°C)
Characteristic
Symbol
Min
Typ
Max
Unit
RECOMMENDED OPERATING CONDITIONS
Positive Supply Voltage
Negative Supply Voltage
Voltage Range at Any Input Pin (TxE, RxE, Acc)
Ambient Operating Temperature Range
VCC
VEE
Vin
TA
1.8
–10
0
–40
5.0
–5.0
VCC
85
V
V
V
°C
DC ELECTRICAL CHARACTERISTICS
Positive Supply Current (Acc connected to GND)
Negative Supply Current (Acc, V1, V2 unterminated)
RxE or TxE Input High State for V1 or V2 = V+
RxE or TxE Input Low State for V1 or V2 = V–
V1, V2 Output High State – TxE or RxE = VIH, IOH = –25
m
A (1)
V1, V2 Output Low State – TxE or RxE = VIL, IOL = 25
m
A (1)
Accessory Resistance for V1 = V–, V2 = V+ (TxE = VIH, RxE = VIL)
Accessory Resistance for V1 = V+, V2 = V– (TxE = VIH, RxE = VIL)
ICC
IEE
VIH
VIL
V+
V–
Racc
Racc
100
2.65
0.4
2.50
–5.75
800
12
k
W
V
400
500
–200
m
A
V
AC ELECTRICAL CHARACTERISTICS
Propagation Delay – RxE/TxE to V1/V2 (Racc = 800 k
W
to GND)
Propagation Delay – RxE/TxE to V1/V2 (Racc = 12 k
W
to GND)
Propagation Delay – Acc to V1/V2 through 12 k
W
Transition Time of V1/V2 from RxE or TxE (Racc = 800 k to GND)
Transition Time of V1/V2 from RxE or TxE (Racc = 12 k to GND)
Transition Time of V1/V2 from Acc Input
TPLH (2)
TPHL (2)
TPLH
TPHL
TPLH
TPHL
Trise (3)
Tfall (3)
Trise
Tfall
Trise
Tfall
0.016
0.004
0.35
0.005
0.4
0.1
0.3
0.3
0.3
0.2
0.3
0.3
0.5
1.4
4.0
1.4
7.5
5.0
7.4
4.4
16
4.0
4.1
4.1
m
sec
m
sec
m
sec
m
sec
m
sec
m
sec
m
sec
m
sec
m
sec
m
sec
m
sec
m
sec
NOTES:
1 Refer to truth table for input test states
2. TPLH and TPHL are measured from the 50% point of input waveform to 50% of the output waveform
3. Trise and Tfall are measured from the 10% point to the 90% point of the output
Analog/Interface Integrated Circuit Device Data
3
MDC5100
tr
90%
90%
tf
VCC
50%
50%
Input (RxE, TxE) 10%
tPLH
90%
10%
GND
tPHL
90%
50%
50%
Output (V1out, V2out)
tTLH
10%
10%
tTHL
Figure 1.
V1 or V2
330 k
W
1 M
W
Scope
Probe
1.5 pF
Scope
Probe
8.5 pF
Test
Fixture
820 k
W
MBD301
Figure 2. AC Test Load
4
Analog/Interface Integrated Circuit Device Data
MDC5100
Antenna
A
Antenna
B
XMTR
PA
Tx In
GaAs FET
DPDT
Antenna
Switch
(SW–363)
Rx Out
RCVR
LNA
VDD
V1
V2
TxE
RxE
Accessory
Plug
10 k
VCC
MDC5100
Antenna
Switch
Interface IC
MCU
VEE
Figure 3. Diversity Antenna Application
Antenna
XMTR
PA
Tx In
GaAs FET
SPDT
Antenna
Switch
Rx Out
RCVR
LNA
NC
V1
MDC5100
Antenna
Switch
Interface IC
V2
TxE
RxE
VDD
NC
Accessory
Plug
MCU
VCC
VEE
Figure 4. TDD or Half–Duplex Handie–Talkie Application
Analog/Interface Integrated Circuit Device Data
5
