BU208D datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BU208D

Preview

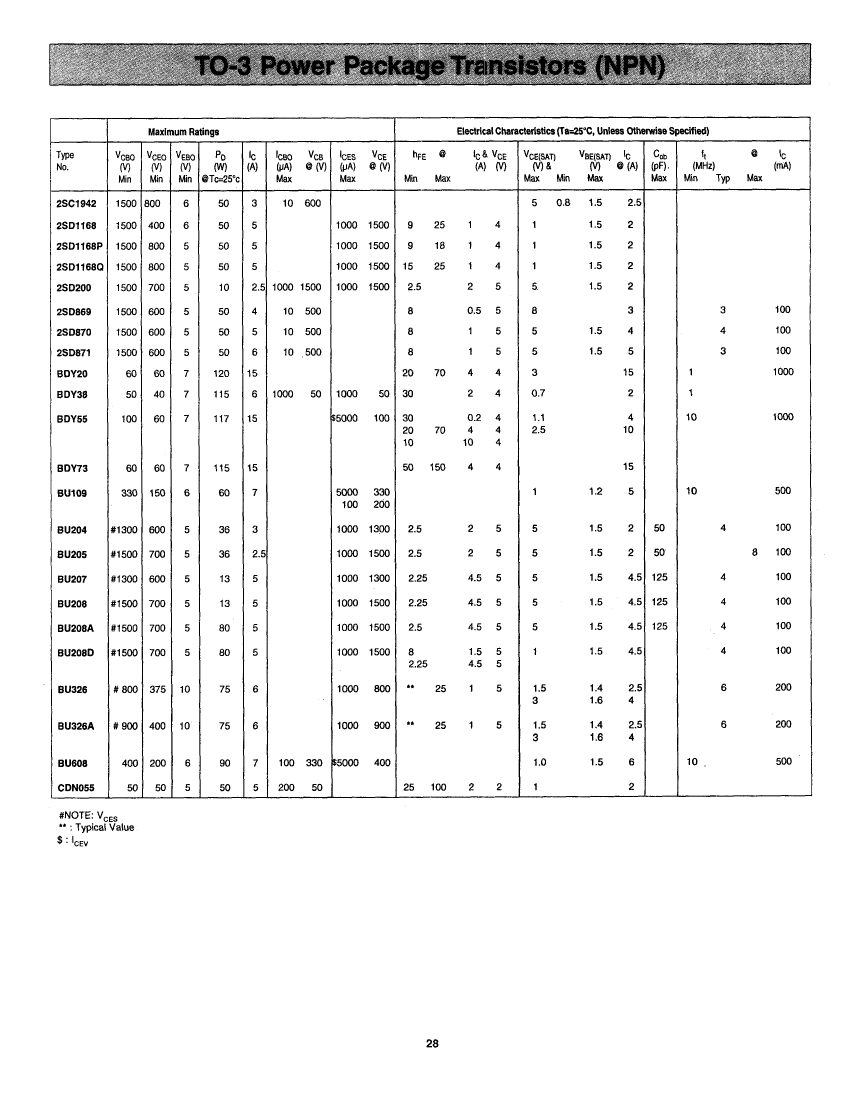

BU208D: DescriptionPower Bipolar Transistor, 5A I(C), 700V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin; CategoryDiscrete semiconductor The transistor; File Size92KB，1 Pages; ManufacturerCDIL[Continental Device India Pvt. Ltd.]; Environmental Compliance

Download Datasheet Parametric Compare View All

BU208D Overview

Power Bipolar Transistor, 5A I(C), 700V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin

BU208D Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	CDIL[Continental Device India Pvt. Ltd.]
Reach Compliance Code	compliant
Shell connection	COLLECTOR
Maximum collector current (IC)	5 A
Collector-emitter maximum voltage	700 V
Configuration	SINGLE
Minimum DC current gain (hFE)	2.25
JEDEC-95 code	TO-3
JESD-30 code	O-MBFM-P2
Number of components	1
Number of terminals	2
Maximum operating temperature	115 °C
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power consumption environment	60 W
Maximum power dissipation(Abs)	60 W
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Nominal transition frequency (fT)	4 MHz
VCEsat-Max	1 V

Preview

Download Datasheet

View All

BU208D Related Products

	BU208D	2SD1168	2SD869	BDY73	BDY38	BU326	BU205	BDY20	CDN055
Description	Power Bipolar Transistor, 5A I(C), 700V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin	Power Bipolar Transistor, 5A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin	Power Bipolar Transistor, 4A I(C), 600V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin	Power Bipolar Transistor, 15A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin	Power Bipolar Transistor, 6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin	Power Bipolar Transistor, 6A I(C), 325V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin	Power Bipolar Transistor, 3A I(C), 700V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin	Power Bipolar Transistor, 15A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin	Power Bipolar Transistor, 5A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-3, Metal, 2 Pin
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	conform to	incompatible	incompatible	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compli	compliant	compliant	compliant	compliant	compliant	compliant
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	5 A	5 A	4 A	15 A	6 A	6 A	3 A	15 A	5 A
Collector-emitter maximum voltage	700 V	400 V	600 V	60 V	40 V	325 V	700 V	60 V	50 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
JEDEC-95 code	TO-3	TO-3	TO-3	TO-3	TO-3	TO-3	TO-3	TO-3	TO-3
JESD-30 code	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2
Number of components	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN
Maximum power consumption environment	60 W	50 W	50 W	115 W	115 W	75 W	10 W	120 W	50 W
Maximum power dissipation(Abs)	60 W	50 W	50 W	117 W	115 W	75 W	10 W	115 W	50 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maker	CDIL[Continental Device India Pvt. Ltd.]	-	-	-	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]
Minimum DC current gain (hFE)	2.25	9	8	50	30	-	2.5	20	25
Maximum operating temperature	115 °C	-	140 °C	175 °C	175 °C	200 °C	115 °C	175 °C	-
Nominal transition frequency (fT)	4 MHz	-	3 MHz	0.8 MHz	1 MHz	6 MHz	8 MHz	1 MHz	4 MHz
VCEsat-Max	1 V	1 V	8 V	-	-	3 V	5 V	3 V	1 V
package instruction	-	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2
