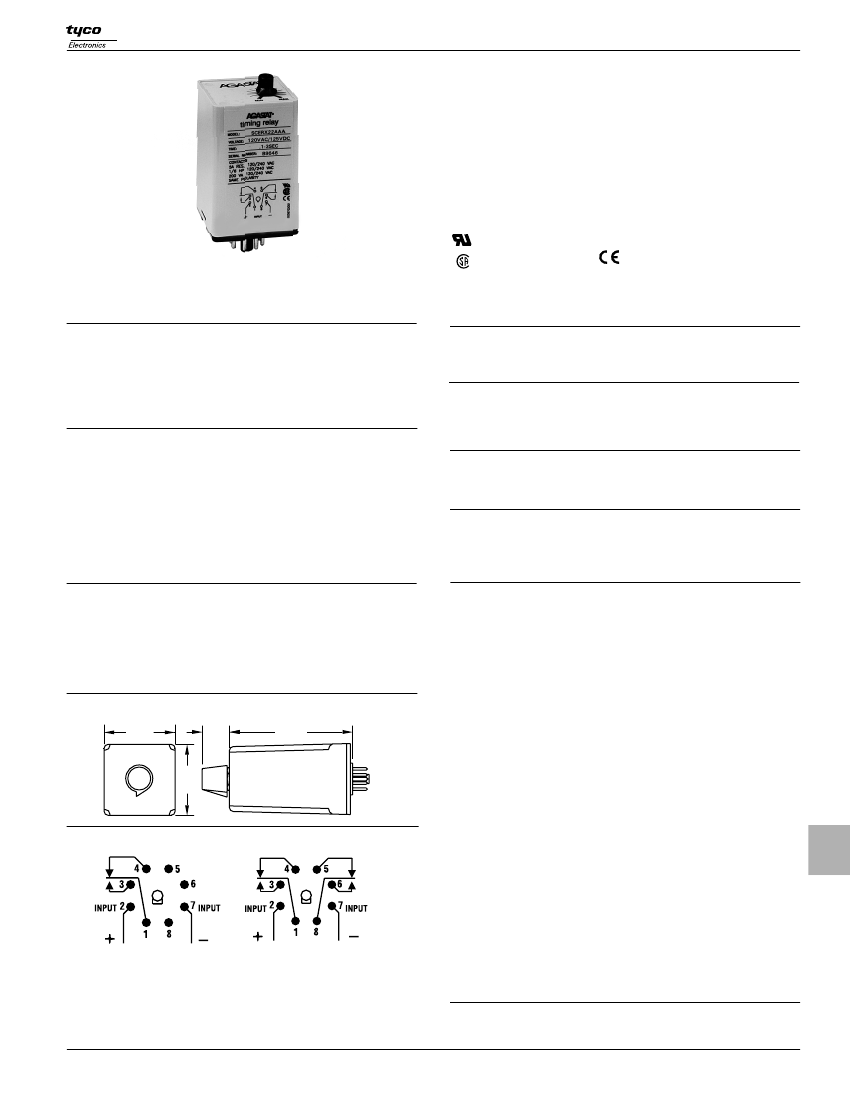

Catalog 1308242
Issued 3-03
AGASTAT
SCE
series
Specification Grade Discrete Plug-in
True Off-Delay Time Delay Relay
•
•
•
•
•
True Off-Delay timing modes
Six time delays from 0.1 sec. to 10 min.
10A SPDT or 5A DPDT output contacts.
Excellent repeat accuracy – typically better than
±
1%.
8--pin octal plug.
®
File E15631
File LR51332
CAUTION:
If unit has not been energized for several months, apply operating
voltage for 20 minutes prior to initial time delay.
Users should thoroughly review the technical data before selecting a product part
number. It is recommended that user also seek out the pertinent approvals files of
the agencies/laboratories and review them to ensure the product meets the
requirements for a given application.
Timing Modes
True Off-Delay – Upon application of operating voltage (min. 100ms),
output relay contacts transfer. When operating voltage is removed, the
time delay period is initiated. At the end of the delay period, output relay
contacts release. If operating voltage is reapplied prior to expiration of the
delay period, the delay will be cancelled and output relay contacts will
remain transferred.
Initial Dielectric Strength
Between Terminals and Case and relay contacts and active circuitry:
1,480VAC for one minute.
Input Data @ 25°C
Voltage:
See Ordering Information section for details.
Power Requirement:
750mw.
Transient Protection:
1,000V plus twice rated voltage for 0.1 ms.
Timing Specifications
Timing Ranges:
0.1 to 3 / 0.5 to 15 / 1 to 30 / 4 to 120 / 10 to 300 sec.;
0.33 to 10 min.
Timing Adjustment:
Knob adjustment - Internal potentiometer with
external knob adjustment. Maximum time calibrated
with +10%, –0% of values shown below at rated
voltage, at 68°F. Fixed time – internal fixed resistor.
Accuracy: Repeat Accuracy:
±
1.
Overall Accuracy:
±
5%.
Reset Time:
30 ms. min.
Relay Operate Time:
30 ms.
Environmental Data
Temperature Range: Storage:
-40°C to +85°C.
Operating:
-30°C to +65°C.
Mechanical Data
Mounting/Termination:
8-pin octal plug fits either 27E122 or 27E891
(snap-on) socket (order separately).
Weight:
4 oz. (112g) approximately.
Contact Data @ 25°C
Arrangements:
1 Form C (SPDT) and 2 Form C (DPDT).
Rating:
1 Form C: 10A @ 120/240VAC, resistive; 1/3 HP @ 120VAC; 345VA
@ 120VAC; 1/4 HP @ 240VAC; 275VA @ 240VAC. Same polarity.
2 Form C: 5A @ 28VDC or 120/240VAC, resistive; 1/6 HP @ 120/
240VAC; 200VA @ 120/240VAC. Same polarity.
Expected Mechanical Life:
10 million operations.
Expected Electrical Life:
200,000 operations, min., at rated resistive load.
Ordering Information
Outline Dimensions
1.97
(50)
.60
(15)
3.25
(83)
R
X
2
2
|
|
|
|
Series SCE
|
Output Rating
|
Output
True
|
W = 10A (SPDT)
|
1 = SPDT (W)
Off-delay
|
X = 5A (DPDT)
|
2 = DPDT (W)
Timer
|
|
Agency
Recognition
R = UL recognized
Operating
Mode
2 = True
Off-Delay
SCE
|
A
|
|
|
|
|
|
|
|
|
C
|
Timing Range
A =0 .1 to 3 sec.
B = 0.5 to 15 sec.
C = 1 to 30 sec.
E = 4 to 120 sec.
G = 10 to 300 sec.
L = 0.33 to 10 min.
1.97
(50)
Wiring Diagrams (Bottom Views)
Operating Voltage
(+10%, –15%)
A = 120VAC, 50/60
Hz. / 125VDC
E = 24VAC, 50/60
Hz. / 24VDC
Timing Adjustment
F = 48VAC, 50/60
A = Knob Adjust
Hz. / 48VDC
F = Fixed Times –
Specify time delay
in seconds per the
following examples:
XF9.000 = 9 sec.
XF99.00 = 99 sec.
XF999.0 = 9999 sec.
XF1000 = 1000 sec.
A
|
|
|
|
|
|
|
|
|
|
|
|
|
Fixed Time
Or Knob Adjust
Fixed Time
Or Knob Adjust
Authorized distributors are likely to stock the following:
None at present.
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
1239
Refer to inside back cover.
