TV14-8LF-XV Overview

Fork Terminal,

TV14-8LF-XV Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	compliant
ECCN code	EAR99
Terminal and terminal strip types	FORK TERMINAL

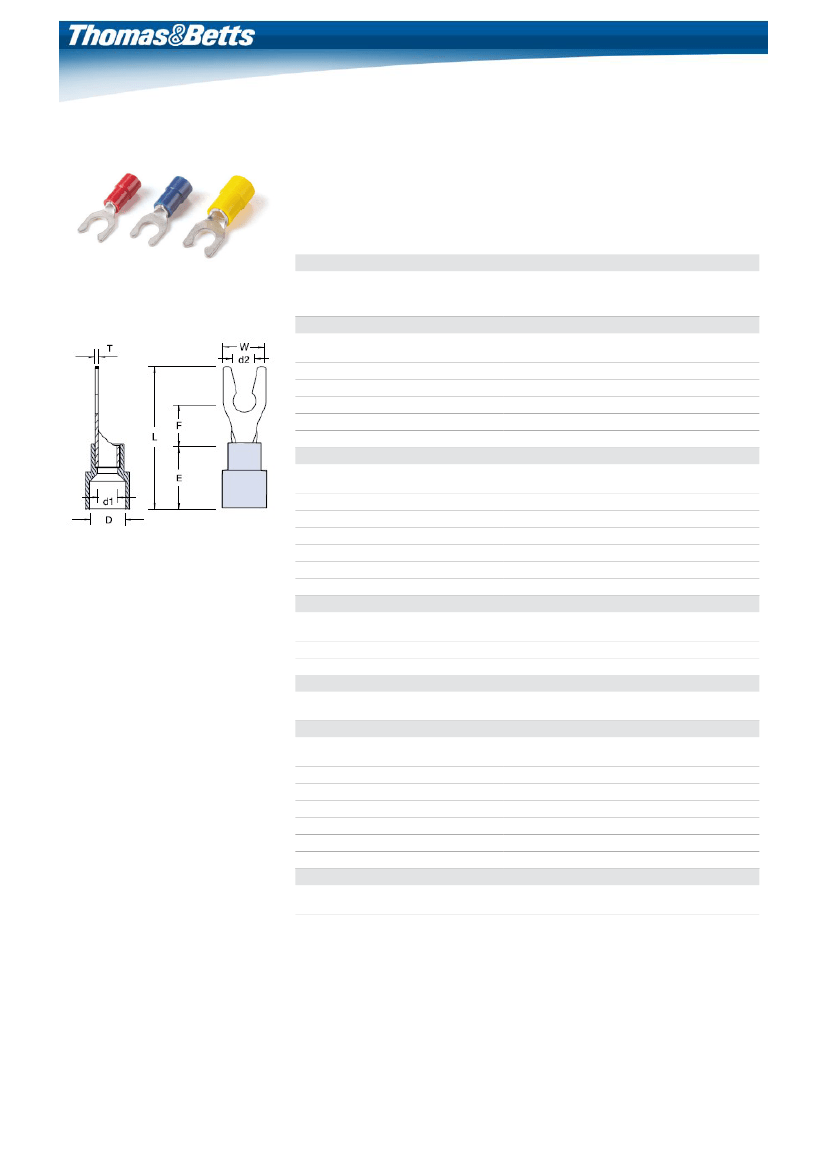

TV14-8LF-XV Preview

Locking Fork Terminal

T&B Catalog Number:

TV14-8LF-XV

UPC Number:

Status:

Description:

72849414456

Active

Insulated Vinyl Locking Fork Terminal for Wire Range 16-14 Stud Size #8,

Blue, Canister

Features

Molded Funnel Entry Insulator. Brazed Seam. Inter-

nal Barrel Serrations.

General

Insulation Type

Material

Finish

Color

Wire Range

Stud Size

Insulated Vinyl

Copper

Electro -Tin Plated

Blue

16-14

#8

Dimension Information

d1 (inches)

D (inches)

E (inches)

F (inches)

L (inches)

T (inches)

W (inches)

.091

.177

.433

.256

.866

.031

.283

Specifications

Temperature Rating

Voltage Rating

Flammability Rating

75°C

600V

UL 94 V-0

Tooling

Application Tools

WT112M, CM2000A

Packaging

T&B Order Multiple

T&B Inner Pack

Package in Units

Package Type

T&B Sold in UOM

T&B Weight Per UOM

Alternate Package Qty

75

900

Canister

Each

0.26 lbs. per 100

TV148LFL

Certifications

RoHS Compliance

Yes

For further technical assistance, please contact us...

Thomas & Betts - USA

8155 T&B Blvd.

Memphis, TN 38125

www.tnb.com

T&B Technical Support

MS 3B-50

8155 T&B Blvd.

Memphis, TN 38125

Hours: 7AM - 6PM CDT

Monday-Friday

Phone: (888) 862-3289

Fax: (901) 252-1321

Email:techsupport@tnb.com
