55454-0410 datasheet, PDF - EEWORLD Datasheet

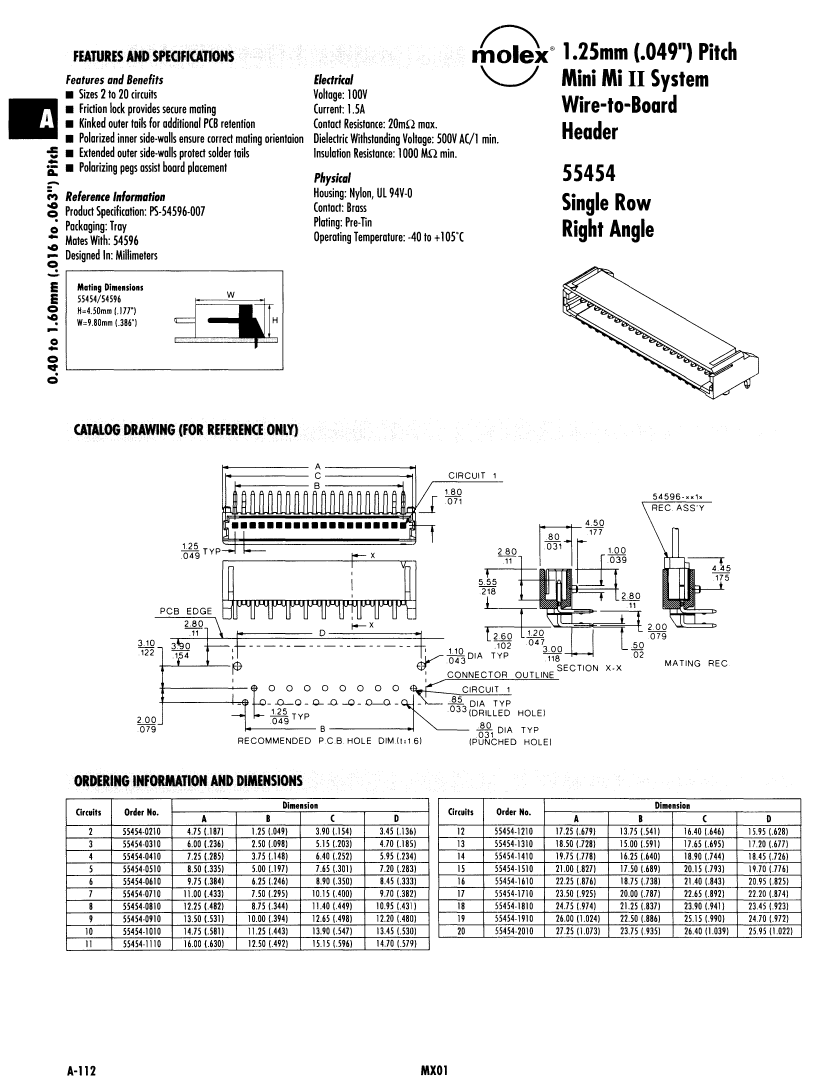

55454-0410: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Solder Terminal, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size84KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

55454-0410 Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Solder Terminal, Natural Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED, STAGGERED CONFIGURATION
Board mount options	PEG
body width	0.177 inch
subject depth	0.321 inch
body length	0.285 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	8.0064 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	55454
Plug contact pitch	0.049 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Evacuation force-minimum value	.695 N
