MAGIC LED
PLW11A090 Series
Advanced Product Information
Description
Plessey MAGIC PLW11A090 SMT LEDs are designed for ambient decorative lighting
and automotive interior applications. The light is emitted close to a Lambertian
distribution and hence this SMT package is naturally suitable for backlighting panels
and symbols. The LEDs are packed in reels containing 2000 pieces; every reel will be
shipped in single intensity and colour bin, to provide close uniformity.
Features
•
•
•
•
•
5630 footprint
High reliability PLCC packaging
Diffused pale yellow resin
120 degree wide viewing angle
GaN-on-Si die technology
Applications
•
•
•
•
•
Decoration Lighting
Instrument panel backlighting
Illumination symbols
General lighting
Signage lighting
Variant
PLW11A090-WW
PLW11A090-NW
PLW11A090-CW
Colour
Warm White
Neutral White
Cool White
CCT
Min.
2870K
3710K
5310K
Max.
3220K
4260K
6020K
Datasheet No 292877 Issue 2
1 of 11
15/04/2014
PLW11A090 Series
| Advanced Product Information
Absolute Maximum Ratings
T
amb
= +25
o
C unless otherwise stated
Parameter
DC Forward Current
Peak Pulse Forward Current
[1]
Reverse Voltage
Storage Temperature
Junction Temperature
[1]
Symbol
I
F
I
FP
V
R
T
stg
T
j
Minimum
-
-
-
-40
-
Maximum
150
180
5
+100
+120
Unit
mA
mA
V
o
o
C
C
Pulse width
≤10ms,
duty cycle
≤10%
Electro-optical Characteristics
T
amb
= +25
o
C unless otherwise stated
Parameter
Forward Voltage
Reverse Current
Correlated Colour
Tempertaure
Symbol
V
F
I
R
CCT
I
F
= 100mA
CRI
R
thj-sp
2Θ
1/2
I
F
= 100mA
I
F
= 100mA
Condition
I
F
= 100mA
V
R
= 5V
Min.
2.8
-
2870
3710
5310
Colour Rendering Index
Thermal Resistance
Half-Intensity Angle
70
-
-
tbd
120
Typ.
3.2
-
Max.
3.4
10
3220
4260
6020
80
-
-
%
K/W
deg
K
Unit
V
µA
Recommended Operating Conditions
In typical applications, for optimum LED performance
Parameter
Operating Ambient Temperature
Symbol
T
opr
Minimum
-40
Maximum
+85
Unit
o
C
Datasheet No 292877 Issue 2
Page 2 of
11
15/04/2014
PLW11A090 Series
| Advanced Product Information
Intensity Bin Groups
I
F
= 100mA, T
amb
= +25
o
C, unless otherwise stated
Group
1A
2A
[1]
Luminous flux
[1]
(lm)
Min.
13.2
16.6
Max.
16.6
20.7
Tolerance ±10%
Forward Voltage Bin Groups
I
F
= 100mA, T
amb
= +25
o
C, unless otherwise stated
Group
Min.
V1
V2
V3
V4
V5
V6
[1]
V
F [1]
(V)
Max.
2.9
3.0
3.1
3.2
3.3
3.4
2.8
2.9
3.0
3.1
3.2
3.3
Tolerance ±0.05V
Datasheet No 292877 Issue 2
Page 3 of
11
15/04/2014
PLW11A090 Series
| Advanced Product Information

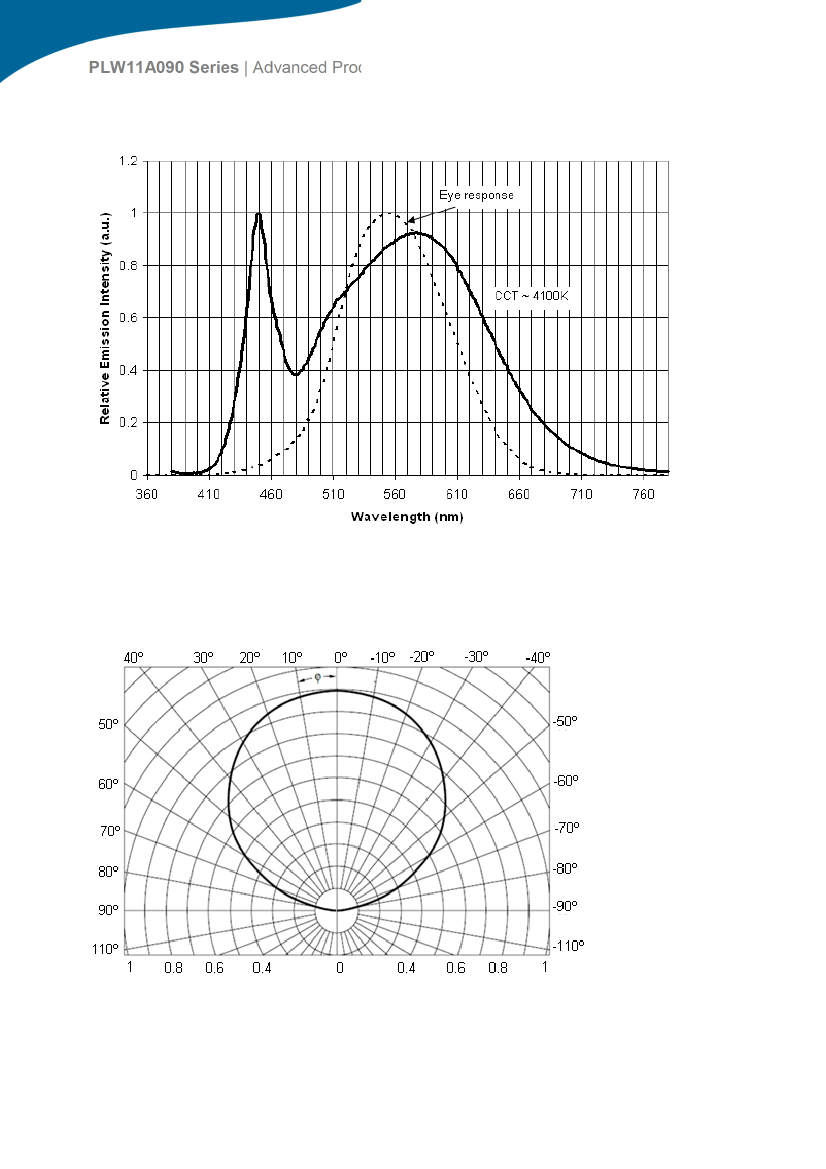

Relative Spectral Emission (Typical)
Figure 1. Normalised spectral power distribution (Neutral white)
Angular Light Distribution
Figure 2. Angular distribution pattern of emitted light
Datasheet No 292877 Issue 2
Page 4 of
11
15/04/2014
PLW11A090 Series
| Advanced Product Information
Colour Chromaticity – Warm White
Warm White 2870-3220 K
3SW
x
0.4345
0.4223
0.4147
0.4260
y
0.4033
0.3990
0.3814
0.3854
x
0.4562
0.4431
0.4345
0.4468
3NE
y
0.4260
0.4213
0.4033
0.4077
x
0.4431
0.4299
0.4223
0.4345
3NW
y
0.4213
0.4165
0.3990
0.4033
x
0.4468
0.4345
0.4260
0.4373
3SE
y
0.4077
0.4033
0.3854
0.3893
Chromaticity co-ordinate tolerance for each bin is ±0.01

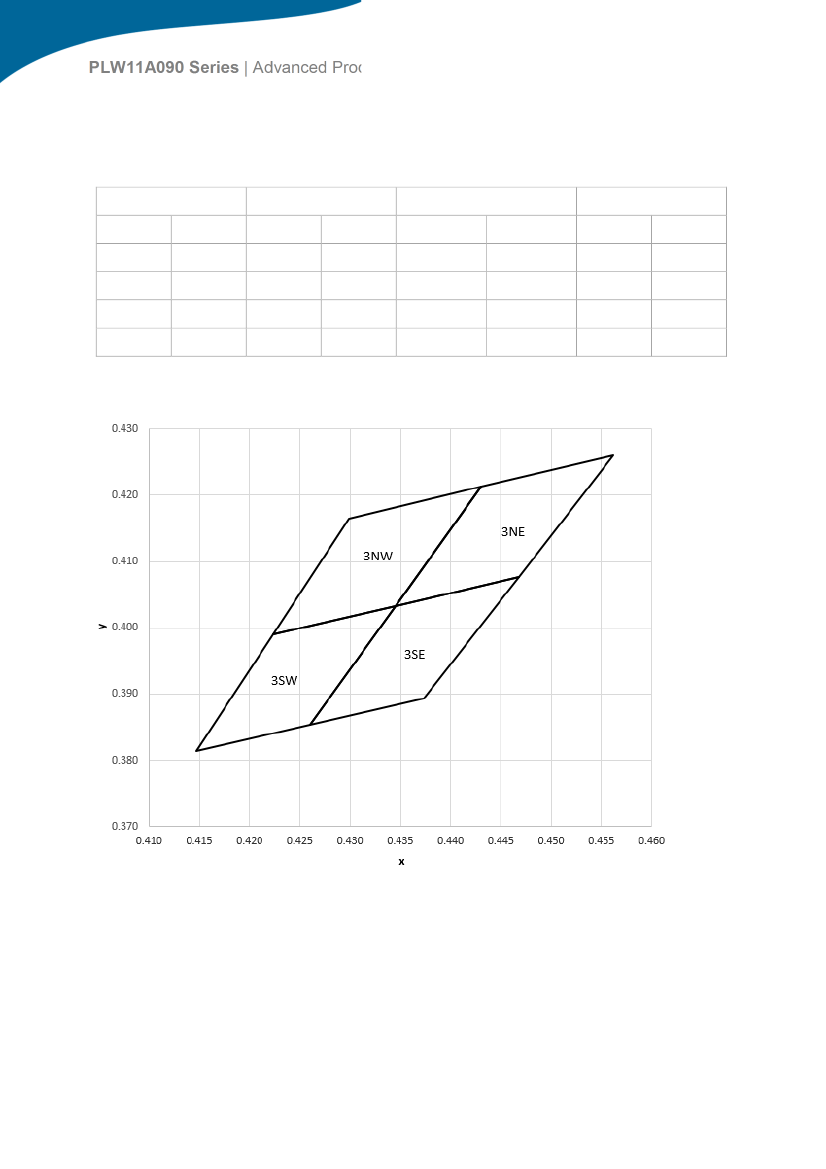

Figure 3A. CIE1931 chromaticity diagram (ANSI standard C78.377-2008)
