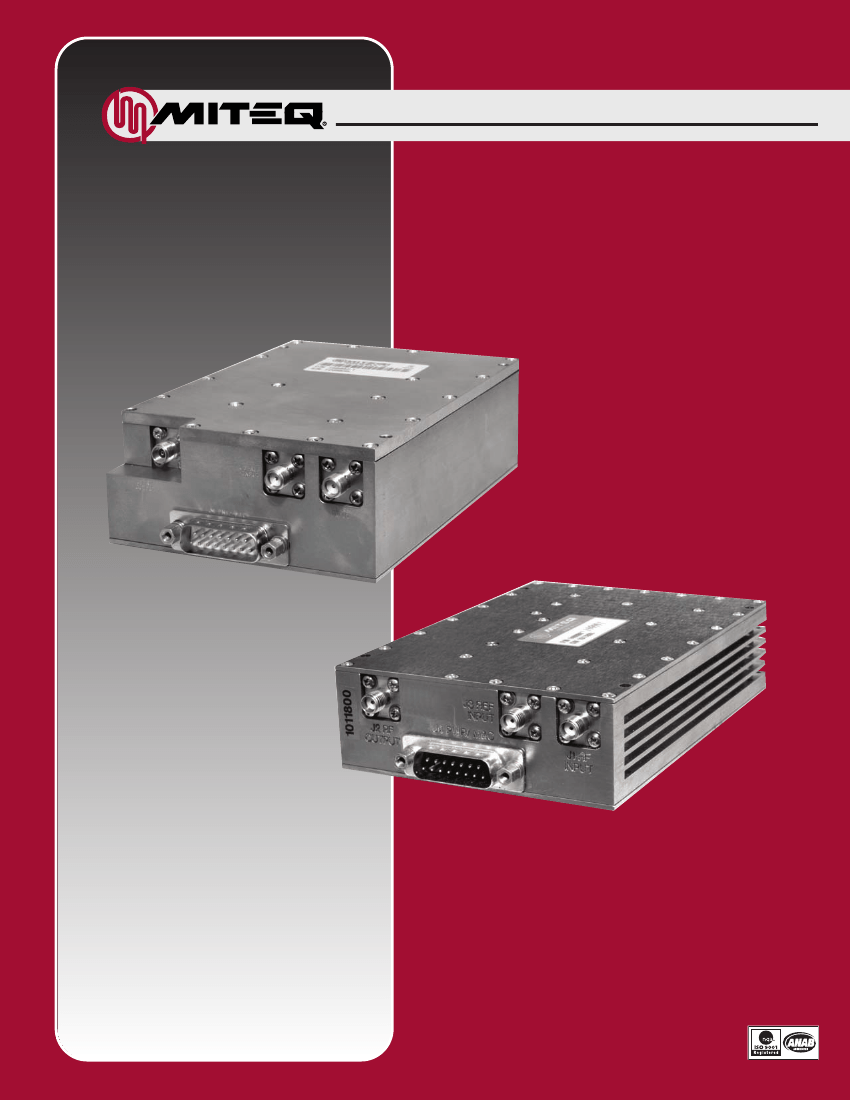

BLOCK
UPCONVERTERS
FOR INTEGRATION
IN HIGH POWER
AMPLIFIERS
Ka-Band Model
C-, X-, Ku- and
DBS-Band Models
FEATURES
• 32 dB attenuation control
• 10 MHz reference input on RF input
or external reference input connector
• Analog and RS485 remote control
• RF output power detector
• Mute for external command or
excess output power
• Extended operating temperature
• Low phase noise
This series of block upconverters are designed to be
used in place of the typical solid state pre-amplifier found
in a high power amplifier. Status and control can be ac-
complished either by discrete lines for existing controllers
or by RS485.
SPECIFICATIONS
Model
Number
UPBA-6.25
UPBA-8.15
UPBA-13
UPBA-14.25
UPBA-14.125
UPBA-17.85
UPBA-28.475
UPBA-29.375
UPBA-29.5
UPBA-29.625
UPBA-29.75
UPBA-30.5
Input Frequency
(GHz)
0.95 - 1.75
0.95 - 1.45
0.95 - 1.45
0.95 - 1.45
0.95 - 1.7
0.95 - 2.05
Output Frequency
(GHz)
5.85 - 6.65
7.9 - 8.4
12.75 - 13.25
14 - 14.5
13.75 - 14.5
17.3 - 18.4
LO Frequency
(GHz)
4.9
6.95
11.8
13.05
12.8
16.35
27.4
28.3
28
28.3
28.55
29
Ka-Band Models
0.95 - 1.2
0.95 - 1.2
1-2
0.95 - 1.7
0.95 - 1.45
1-2
28.35 - 28.6
29.25 - 29.5
29 - 30
29.25 - 30
29.5 - 30
30 - 31
Type......................................................................... Single conversion
Frequency sense..................................................... No inversion
Input characteristics
Impedance ........................................................... 50 ohms
VSWR .................................................................. 1.25:1 maximum
Non-damage ........................................................ +15 dBm minimum
External reference characteristics
Location................................................................ Input center conductor or reference connector
Frequency ............................................................ 10 MHz
Level..................................................................... -5 to +7 dBm
Output characteristics
Impedance ........................................................... 50 ohms
VSWR .................................................................. 1.25:1 maximum
Power output (1 dB compression)........................ +13 dBm minimum,
Ka-Band models ............................................... +16 dBm minimum
Transfer characteristics
Noise figure .......................................................... 15 dB typical (minimum attenuation)
Gain...................................................................... 26 ±1 dB at 23°C,
Ka-Band models ............................................... 30 ±2 dB at 23°C
Gain flatness ........................................................ ±0.2 dB/any 40 MHz, ±0.25 dB/any 80 MHz, ±0.5 dB/RF-band
Gain stability
Constant temperature ....................................... ±0.25 dB/24 hours
-40 to +80°C...................................................... 2 dB maximum after 1/2 hour warm-up
Attenuation control ............................................... 32 dB/0.1 dB step remote control or 0 to 10 volts DC
Group delay
Slope (any 80 MHz segment) ........................... 0.0125 ns/MHz
Parabolic (any 80 MHz segment)...................... 0.000625 ns/MHz
2
Ripple (any 80 MHz segment) .......................... 0.5 ns
Total .................................................................. 1 ns peak-to-peak over RF-band
Spurious output
Signal related .................................................... 65 dBc minimum
Ka-Band models ............................................ 60 dBc minimum
IF signal second harmonic (Ka-Band models)...... -55 dBc maximum at 0 dBm output power
Signal independent (inband) ............................. -100 dBm maximum
Signal independent (out-of-band) ..................... -70 dBm maximum,
Ka-Band models ............................................ -65 dBm maximum
Image rejection ........................................................ 60 dB minimum
Second harmonic output (P1 dB) ............................ -40 dBc maximum
Intermodulation distortion ........................................ With two inband output signals at 0 dBm, third order
intermodulation products are less than 46 dBc
Mute......................................................................... 60 dB minimum

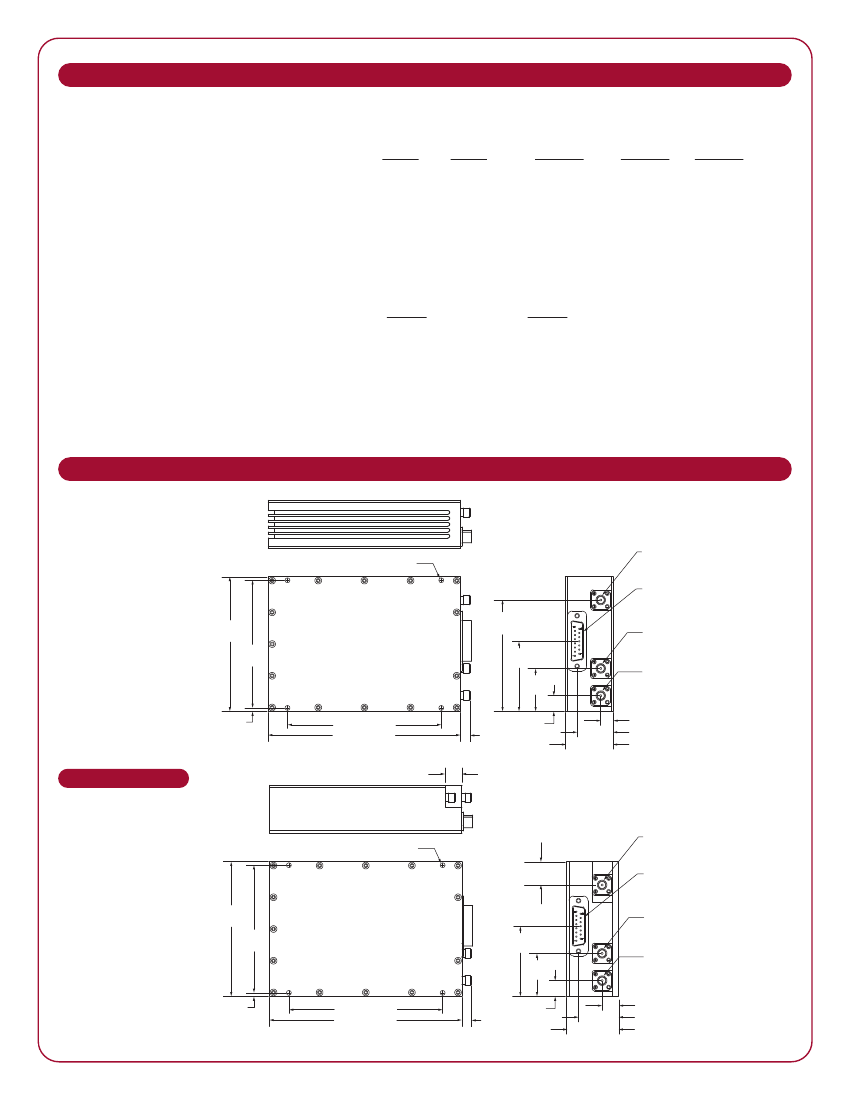

BLOCK UPCONVERTERS FOR
INTEGRATION IN HIGH POWER
AMPLIFIERS
GENERAL SPECIFICATIONS
PRIMARY POWER REQUIREMENTS
Voltage ................................................................. 12–18 VDC
Voltage ripple/noise.............................................. 50 mV peak-to-peak, typical (20 MHz BW)
Current ................................................................. 650 mA typical
Ka-Band models............................................... 1.3A typical
PHYSICAL
Weight .................................................................. 1.5 pounds nominal
Connectors
RF .................................................................... SMA female
Power/monitor and control interface ................ 15 pin D-type male
ENVIRONMENTAL
Operating
Ambient temperature........................................ -40 to +80°C
Relative humidity.............................................. Up to 95% at 30°C
Atmospheric pressure ...................................... Up to 10,000 feet
Nonoperating
Ambient temperature........................................ -40 to +85°C
Relative humidity.............................................. Up to 95% at 40°C
Atmospheric pressure ...................................... Up to 50,000 feet
Shock ............................................................... 30 g’s, 10 rms
Vibration ........................................................... 20 to 2000 Hz random to 0.04G
2
/Hz
BLOCK DIAGRAM
J1
RF AND
REFERENCE
INPUT
FREQUENCY
DIPLEXER
J2
RF OUTPUT
J3
REFERENCE
INPUT
POWER
DIVIDER
LOCAL
OSCILLATOR
OUTPUT
DETECTOR
D-301B
100 Davids Drive, Hauppauge, NY 11788
TEL.: +1-631-436-7400 • FAX: +1-631-436-7431
www.miteq.com
01•07
