82DA272M035HA2DE3 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 82DA272M035HA2DE3

82DA272M035HA2DE3: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35V, 2700uF, THROUGH HOLE MOUNT, ROHS COMPLIANT; CategoryPassive components capacitor; File Size186KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

82DA272M035HA2DE3 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35V, 2700uF, THROUGH HOLE MOUNT, ROHS COMPLIANT

82DA272M035HA2DE3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	2700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	120 mΩ
JESD-609 code	e3
leakage current	1.2296 mA
Manufacturer's serial number	82DA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	1910 mA
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

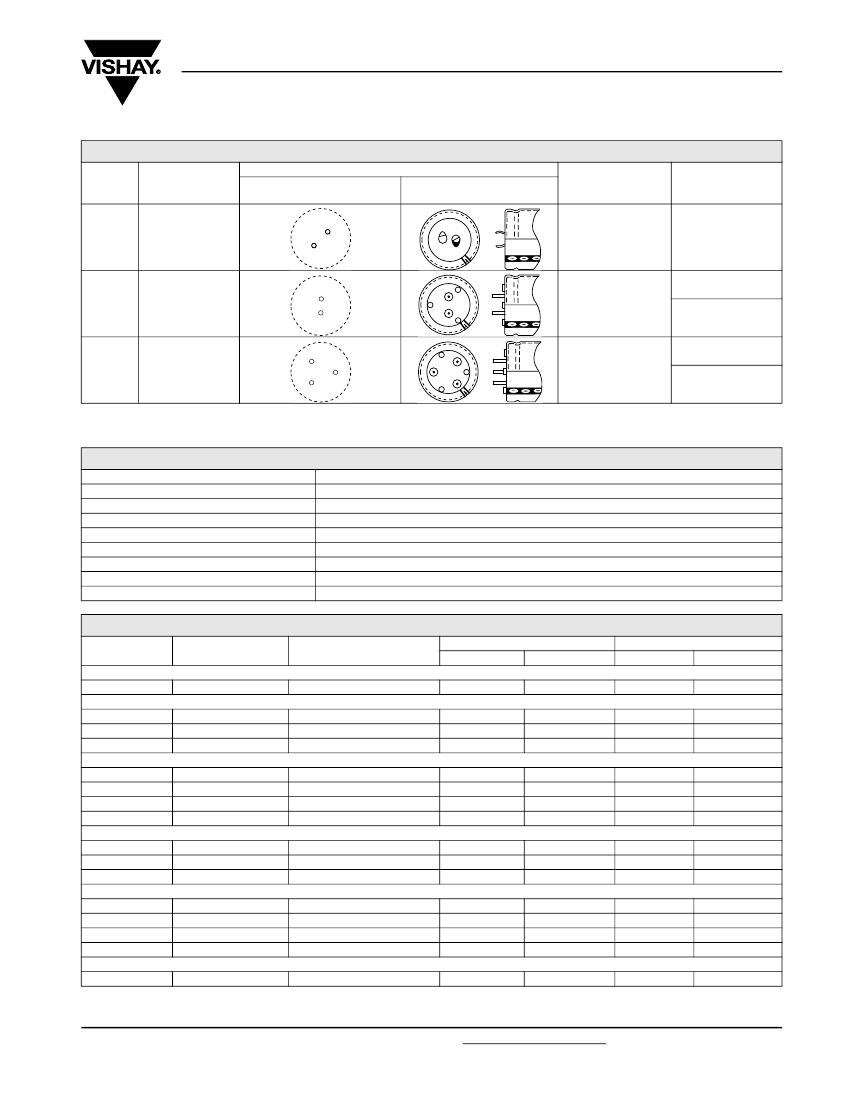

82DA

Vishay Sprague

Aluminum Capacitors

+ 85 °C, Snap-In, General Purpose

FEATURES

•

Maximum CV

Pb-free

•

General purpose design

•

Wide voltage range

Available

•

Molded cover available in 2 or 3 terminal design with

standoffs

•

Replaces type 82D

Fig.1 Component Outlines

QUICK REFERENCE DATA

DESCRIPTION

Nominal case size

Ø D x L in inches (mm)

Operating temperature

Rated capacitance

range, C

Tolerance on C

Rated voltage range,

Termination

Life validation test

at 85 °C

VALUE

0.87 x 1.00 (22.0 x 25.0)

to 1.57 x 3.18 (40.0 x 80.0)

- 40 °C to + 85 °C

33 µF to 270 000 µF

± 20 %

6.3 WVDC to 500 WVDC

Snap-in

2000 h:

ΔCAP ≤

15 % from initial

measurement.

ΔESR ≤

1.5 x initial

specified limit.

ΔDCL ≤

initial specified

limit

500 h:

ΔCAP ≤

15 % from initial

measurement.

ΔESR ≤

1.3 x initial

specified limit.

ΔDCL ≤

2 x initial

specified limit

I = K CV

K = 4.0 at + 25 °C

I in µA, C in µF, V in Volts

RIPPLE CURRENT MULTIPLIERS

TEMPERATURE

AMBIENT TEMPERATURE

+ 55 °C

+ 65 °C

+ 75 °C

+ 85 °C

FREQUENCY (Hz)

WVDC

16 to 49

50 to 199

200 to 400

50 TO 60

0.85

0.83

0.80

300 TO 1000

1.10

1.15

1.30

1000 AND UP

1.15

1.20

1.40

MULTIPLIERS

2.0

1.7

1.4

1.0

Shelf life at 85 °C

DC leakage current

5 min charge time

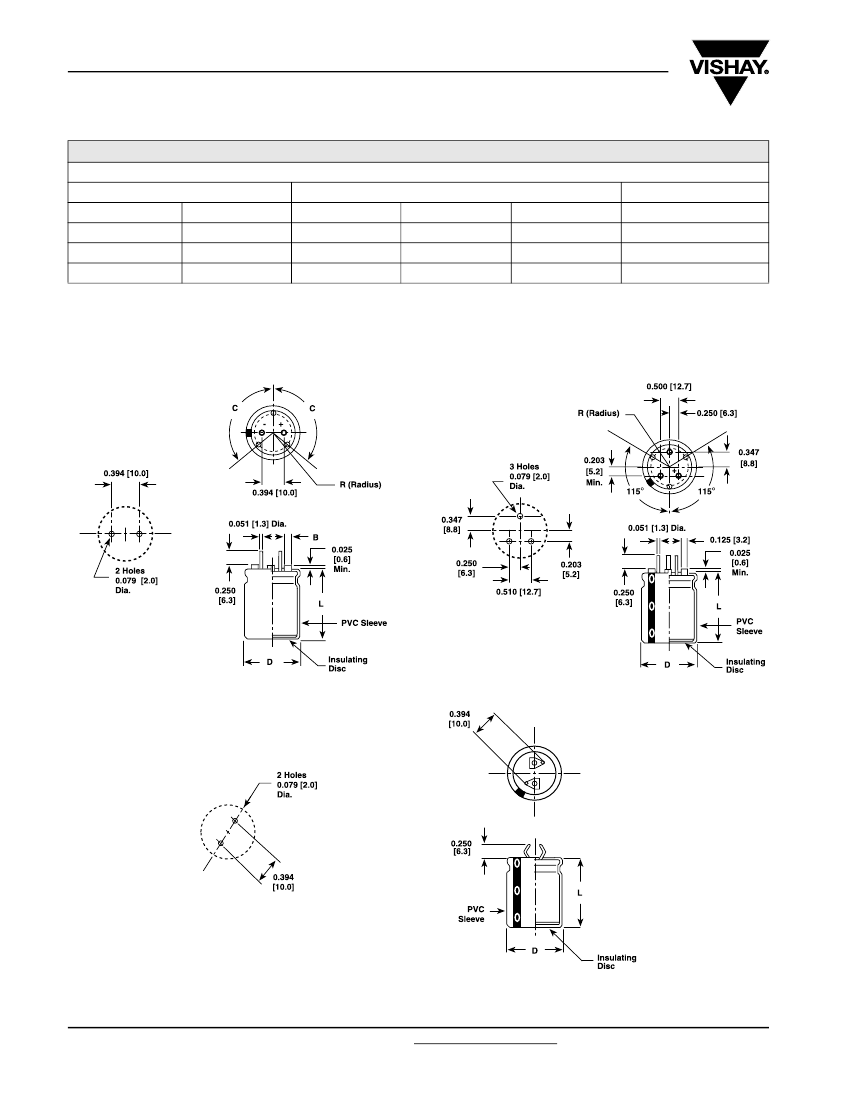

DIMENSIONS

in inches (millimeters)

DIAMETER

CASE

CODE

D + 0.04 - 0 (+ 1.0 - 0)

0.87 (22.0)

1.00 (25.0)

1.18 (30.0)

LENGTH

L ± 0.08 (2.0)

1.00 (25.0)

1.18 (30.0)

1.57 (40.0)

1.00 (25.0)

1.18 (30.0)

1.38 (35.0)

1.57 (40.0)

2.00 (50.0)

1.00 (25.0)

1.18 (30.0)

1.38 (35.0)

1.57 (40.0)

2.00 (50.0)

STYLE 2

TYPICAL

WEIGHT

(g)

16.0

19.0

24.0

20.0

24.0

27.0

31.0

38.0

30.0

35.0

39.0

44.0

53.0

DIAMETER

CASE

CODE

D + 0.04 - 0 (+ 1.0 - 0)

1.38 (35.0)

1.58 (40.0)

LENGTH

L ± 0.08 (2.0)

1.18 (30.0)

1.38 (35.0)

1.57 (40.0)

2.00 (50.0)

2.50 (63.0)

3.18 (80.0)

1.00 (25.0)

1.18 (30.0)

1.38 (35.0)

1.57 (40.0)

2.00 (50.0)

2.50 (63.0)

3.18 (80.0)

STYLE 2

TYPICAL

WEIGHT

(g)

48.0

54.0

61.0

74.0

91.0

113.0

48.0

58.0

66.0

81.0

103.0

128.0

183.0

www.vishay.com

227

Document Number: 42064

Revision: 29-Aug-08

For technical questions, contact: aluminumcaps4@vishay.com

82DA272M035HA2DE3 Related Products

	82DA272M035HA2DE3	82DA332M050HB2DE3	82DA221M250HD2DE3	82DA682M025HB2DE3	82DA222M050HA2DE3
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35V, 2700uF, THROUGH HOLE MOUNT, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50V, 3300uF, THROUGH HOLE MOUNT, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 220uF, THROUGH HOLE MOUNT, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25V, 6800uF, THROUGH HOLE MOUNT, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50V, 2200uF, THROUGH HOLE MOUNT, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	2700 µF	3300 µF	220 µF	6800 µF	2200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
ESR	120 mΩ	86 mΩ	558 mΩ	73.5 mΩ	115 mΩ
JESD-609 code	e3	e3	e3	e3	e3
leakage current	1.2296 mA	1.6248 mA	0.93808 mA	1.6492 mA	1.3266 mA
Manufacturer's serial number	82DA	82DA	82DA	82DA	82DA
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	35 V	50 V	250 V	25 V	50 V
ripple current	1910 mA	2380 mA	1120 mA	2570 mA	1940 mA
surface mount	NO	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN
