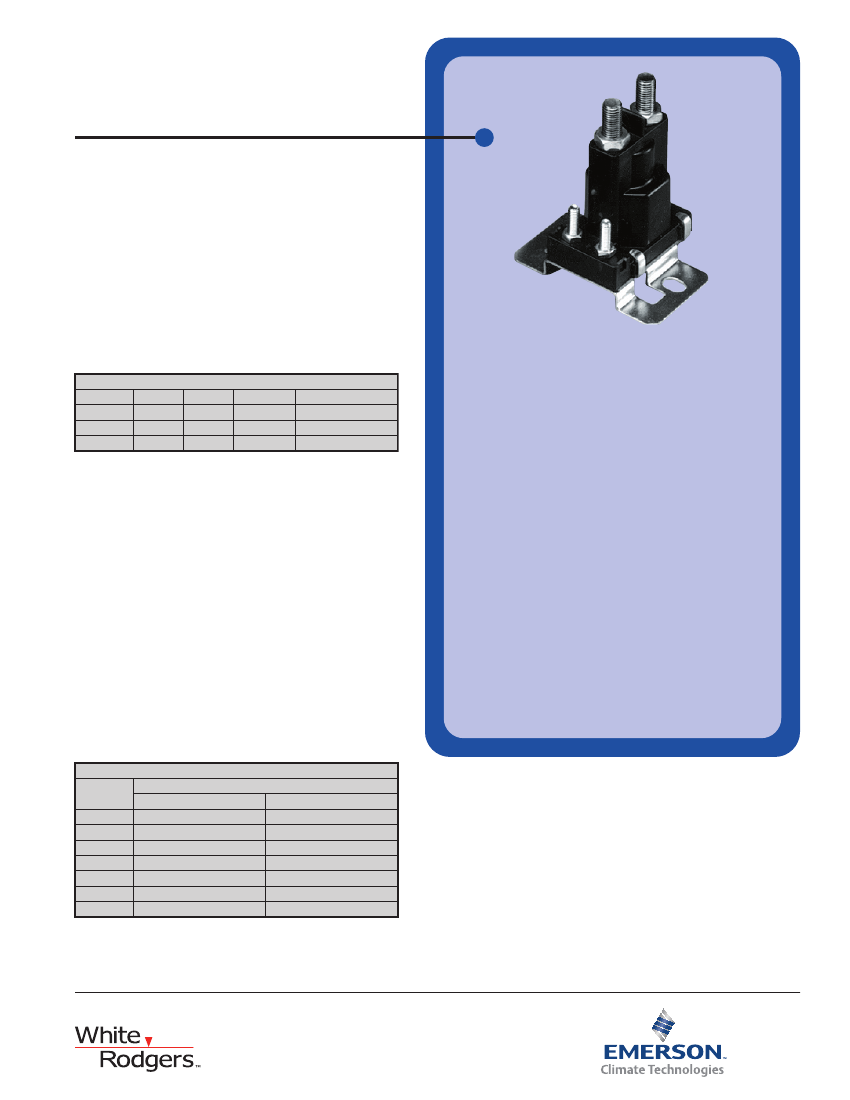

WHITE-RODGERS

DC PRODUCTS

Type 120

solenoid

FEATURES

• Water resistant

• Capable of handling low and high current requirements

• Versatile mounting and termination

ENGINEERING DATA

Contacts

• Pole form–SPNO

• Material–silver alloy or copper

• Termination–

”-24 UNF-2A thread or

”-20 UNC-2A thread

Volts DC

12 VDC

36 VDC

Cont.

80A

100 A

RATINGS

Inrush Elec. Life

400 A

10,000

400 A

50,000

400 A

25,000

Contact Material

Copper

Silver Alloy

GENERAL DATA

Dielectric Strength

• 500 Volts

Temperature Range

• -20°F to 150°F (-28.9°C to 65.6°C) (Inter-

mittent)

• -20°F to 120°F (-28.9°C to 48.9°C) (Con-

tinuous)

Mechanical Life (no load)

• 100,000 cycles

Mounting Position

• Recommended mounting is coil terminals

up or horizontal

Weight (approximate)

• SPNO–6.0 oz.

Duty Cycle

• Continuous

• Intermittent–30 seconds “on” maximum

and minimum 6 minutes “off”

Hardware Torque Specification

• Contact Terminal: 45-55 inch-lbs.

• Coil Terminal: 12-18 inch-lbs.

Consult factory for additional ratings.

Coils

• Voltage–6 VDC through 48 VDC

• Termination–#8-32 UNC-2A,

#10-32 UNF-2A thread or

” quick-connect

• Power (approximate)

Continuous 8.1 watts

Intermittent 14.4 watts

• Connections

1. Coil isolated (two terminals)

2. One coil lead grounded to bracket

(one terminal)

• Operate (77°F/25°C)

67% of nominal (Int.)

75% of nominal (Cont.)

110% max. safe of nominal coil voltage

COIL DATA

Resistance in Ohms

Intermittent

Continuous

4.0

6.0

16.0

26.0

9.4

23.0

24.0

64.0

54.0

160.0

256.0

Volts DC

* SPECIAL COILS AVAILABLE UPON REQUEST

St. Louis, Missouri Markham, Ontario

314-553-3600 905-948-3411

www.white-rodgers.com

The Emerson logo is a

trademark and a service mark

of Emerson Electric Co.

R-4002C

1233
