SBLB20L15-31 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SBLB20L15-31

SBLB20L15-31: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 20A, 15V V(RRM), Silicon, TO-263AB, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor diode; File Size69KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

SBLB20L15-31 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 20A, 15V V(RRM), Silicon, TO-263AB, PLASTIC PACKAGE-3

SBLB20L15-31 Parametric

Parameter Name	Attribute value
Maker	Vishay
Parts packaging code	D2PAK
package instruction	R-PSSO-G2
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-263AB
JESD-30 code	R-PSSO-G2
Maximum non-repetitive peak forward current	340 A
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	20 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	15 V
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	SINGLE

Preview

Download Datasheet

View All

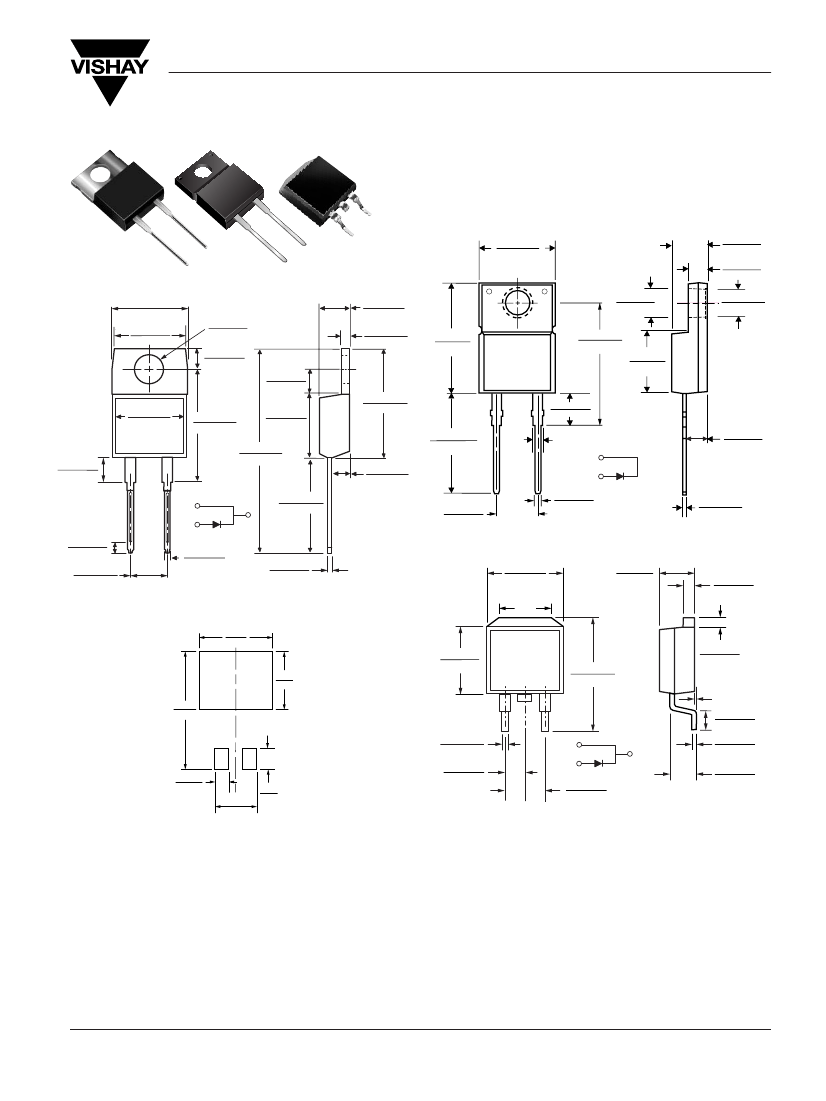

SBL20L15, SBLF20L15, SBLB20L15

New Product

Vishay Semiconductors

formerly General Semiconductor

Reverse Voltage

15V

Forward Current

20A

Low V

Schottky OR-ing Rectifier

ITO-220AC (SBLF20L25)

0.405 (10.27)

0.383 (9.72)

0.188 (4.77)

0.172 (4.36)

0.110 (2.80)

0.100 (2.54)

0.140 (3.56)

DIA.

0.130 (3.30)

0.131 (3.39)

DIA.

0.122 (3.08)

TO-220AC (SBL20L15)

0.415 (10.54) MAX.

0.154 (3.91)

0.370 (9.40)

0.360 (9.14)

0.148 (3.74)

0.113 (2.87)

0.103 (2.62)

0.145 (3.68)

0.135 (3.43)

0.410 (10.41)

0.390 (9.91)

0.160 (4.06)

0.140 (3.56)

1.148 (29.16)

1.118 (28.40)

0.110 (2.79)

0.100 (2.54)

0.560 (14.22)

0.530 (13.46)

CASE

0.185 (4.70)

0.175 (4.44)

DIA.

0.055 (1.39)

0.045 (1.14)

0.600 (15.5)

0.580 (14.5)

0.676 (17.2)

0.646 (16.4)

0.350 (8.89)

0.330 (8.38)

0.635 (16.13)

0.625 (15.87)

0.350 (8.89)

0.330 (8.38)

0.603 (15.32)

0.573 (14.55)

0.191 (4.85)

0.171 (4.35)

0.560 (14.22)

0.530 (13.46)

0.060 (1.52)

PIN 1

PIN 2

0.110 (2.80)

0.100 (2.54)

PIN 1

PIN 2

0.205 (5.20)

0.195 (4.95)

0.037 (0.94)

0.027 (0.69)

0.022 (0.55)

0.014 (0.36)

0.105 (2.67)

0.095 (2.41)

0.205 (5.20)

0.195 (4.95)

0.037 (0.94)

0.027 (0.68)

0.022 (0.56)

0.014 (0.36)

TO-263AB (SBLB20L25)

0.411 (10.45)

0.380 (9.65)

0.245 (6.22)

MIN

0.190 (4.83)

0.160 (4.06)

0.055 (1.40)

0.045 (1.14)

Mounting Pad Layout TO-263AB

0.42

(10.66)

0.360 (9.14)

0.320 (8.13)

0.33

(8.38)

0.63

(17.02)

0.055 (1.40)

0.047 (1.19)

0.624 (15.85)

0.591 (15.00)

0-0.01 (0-0.254)

0.110 (2.79)

0.090 (2.29)

Dimensions in inches

and (millimeters)

0.08

(2.032)

0.24

(6.096)

0.027 (0.686)

0.037 (0.940)

0.105 (2.67)

0.095 (2.41)

PIN 1

PIN 2

K - HEATSINK

0.021 (0.53)

0.014 (0.36)

0.140 (3.56)

0.110 (2.79)

0.12

(3.05)

0.205 (5.20)

0.195 (4.95)

Features

• Plastic package has Underwriters Laboratory

Flammability Classifications 94V-0

• Metal silicon junction, majority carrier conduction

• Low power loss, high efficiency

• Guardring for overvoltage protection

• For use in low voltage, high frequency inverters, free

wheeling, and polarity protection applications

• Optimized for OR-ing applications

Mechanical Data

Case:

JEDEC TO-220AC, ITO-220AC & TO-263AB mold-

ed plastic body

Terminals:

Plated leads, solderable per

MIL-STD-750, Method 2026

High temperature soldering guaranteed:

250°C/10 seconds, 0.25" (6.35mm) from case

Polarity:

As marked

Mounting Position:

Any

Mounting Torque:

10 in-lbs maximum

Weight:

0.08 oz., 2.24 g

www.vishay.com

Document Number 88729

02-Jul-02

SBLB20L15-31 Related Products

	SBLB20L15-31	SBLB20L15-81	SBLB20L15-45	SBL20L15-45	SBLF20L15-45
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 20A, 15V V(RRM), Silicon, TO-263AB, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 1 Phase, 1 Element, 20A, 15V V(RRM), Silicon, TO-263AB, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 1 Phase, 1 Element, 20A, 15V V(RRM), Silicon, TO-263AB, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 1 Phase, 1 Element, 20A, 15V V(RRM), Silicon, TO-220AC, PLASTIC PACKAGE-2	Rectifier Diode, Schottky, 1 Phase, 1 Element, 20A, 15V V(RRM), Silicon, TO-220AC, PLASTIC, ITO-220AC, 2 PIN
Parts packaging code	D2PAK	D2PAK	D2PAK	TO-220AC	TO-220AC
package instruction	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSFM-T2	R-PSFM-T2
Contacts	3	3	3	3	3
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	TO-263AB	TO-263AB	TO-263AB	TO-220AC	TO-220AC
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	340 A	340 A	340 A	340 A	340 A
Number of components	1	1	1	1	1
Phase	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum output current	20 A	20 A	20 A	20 A	20 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	15 V	15 V	15 V	15 V	15 V
surface mount	YES	YES	YES	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	Vishay	-	-	Vishay	Vishay
