GT2610
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
BV
DSS
R
DS(ON)
I
D
60V
90m
3A
Description
The GT2610 utilized advanced processing techniques to achieve the lowest possible on-resistance, extremely
efficient and cost-effectiveness device.
The GT2610 is universally used for all commercial-industrial applications.
Features
*Simple Drive Requirement
*Small Package Outline

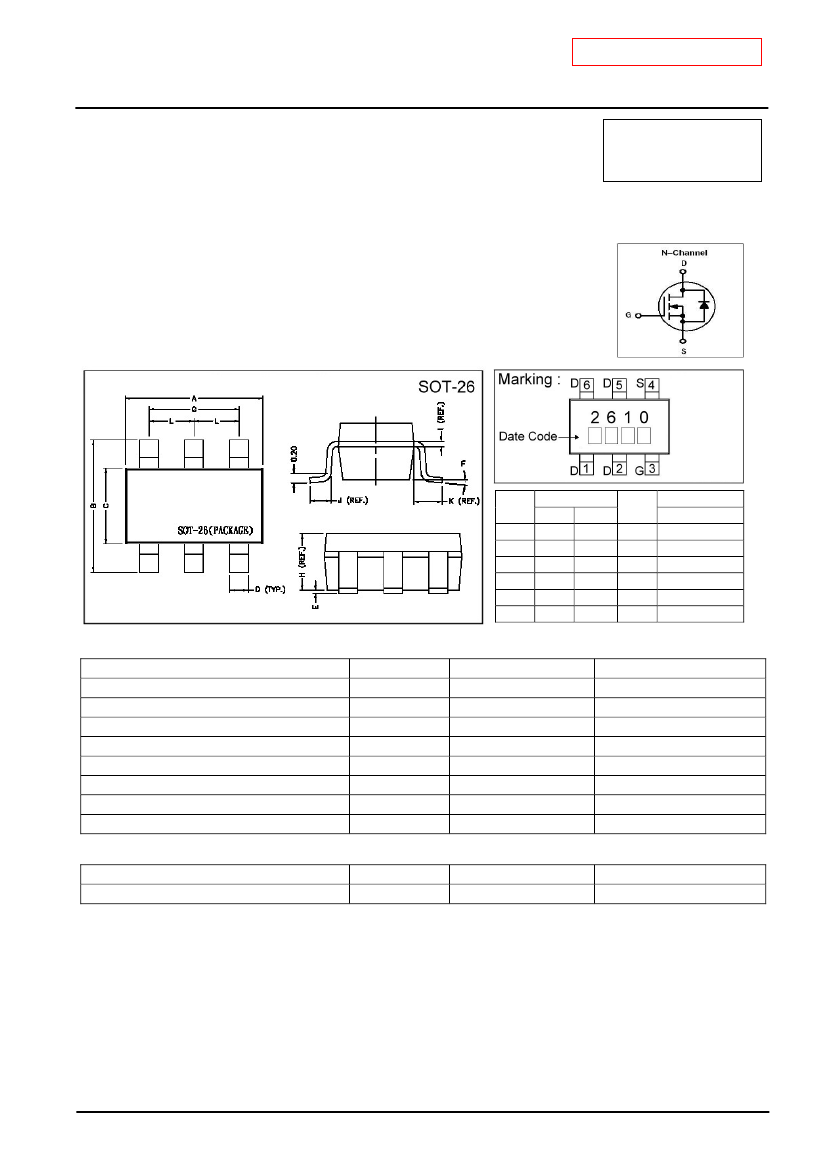

Package Dimensions
REF.
A
B
C
D
E
F
Millimeter
Min.
2.70
2.60
1.40
0.30
0
0°
Max.
3.10
3.00
1.80
0.55
0.10
10°
REF.
G
H
I
J
K
L
Dimensions
Millimeter
1.90 REF.
1.20 REF.
0.12 REF.
0.37 REF.
0.60 REF.
0.95 REF.
Absolute Maximum Ratings
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
3
, V
GS
@4.5V
Continuous Drain Current
3
, V
GS
@4.5V
Pulsed Drain Current
1,2
Power Dissipation
Linear Derating Factor
Operating Junction and Storage Temperature Range
Symbol
V
DS
V
GS
I
D
@T
A
=25 :
I
D
@T
A
=70 :
I
DM
P
D
@T
A
=25 :
Tj, Tstg
Symbol
Rthj-a
Ratings
60
±20
3.0
2.3
10
2
0.016
-55 ~ +150
Ratings
62.5
Unit
V
V
A
A
A
W
W/ :
:
Unit
:
/W
Thermal Data
Parameter
Thermal Resistance Junction-ambient
3
Max.
GT2610
Page: 1/4
ISSUED DATE :2006/06/13
REVISED DATE :
Electrical Characteristics (Tj = 25 : unless otherwise specified)
Parameter
Drain-Source Breakdown Voltage
Breakdown Voltage Temperature Coefficient
Symbol
BV
DSS
BV
DSS
/
Tj
Min.
60
-
1.0
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Typ.
-
0.05
-
5.0
-
-
-
-
-
6
1.6
3
6
5
16
3
490
55
40
Max.
-
-
3.0
-
±100
10
25
90
120
10
-
-
-
-
-
-
780
-
-
Unit
V
V/ :
V
S
nA
uA
uA
m
Test Conditions
V
GS
=0, I
D
=250uA
Reference to 25 : , I
D
=1mA
V
DS
=V
GS
, I
D
=250uA
V
DS
=5V, I
D
=3A
V
GS
= ±20V
V
DS
=60V, V
GS
=0
V
DS
=48V, V
GS
=0
V
GS
=10V, I
D
=3A
V
GS
=4.5V, I
D
=2A
I
D
=3A
V
DS
=48V
V
GS
=4.5V
V
DS
=30V
I
D
=1A
V
GS
=10V
R
G
=3.3
R
D
=30
V
GS
=0V
V
DS
=25V
f=1.0MHz
Gate Threshold Voltage
Forward Transconductance
Gate-Source Leakage Current
Drain-Source Leakage Current(Tj=25 : )
Drain-Source Leakage Current(Tj=70 : )
V
GS(th)
g
fs
I
GSS
I
DSS
Static Drain-Source On-Resistance
Total Gate Charge
2
Gate-Source Charge
Gate-Drain (“Miller”) Change
Turn-on Delay Time
2
Rise Time
Turn-off Delay Time
Fall Time
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
R
DS(ON)
Q
g
Q
gs
Q
gd
T
d(on)
T
r
T
d(off)
T
f
C
iss
C
oss
C
rss
nC
ns
pF
Source-Drain Diode
Parameter
Forward On Voltage
2
Reverse Recovery Time
Reverse Recovery Charge
Symbol
V
SD
T
rr
Q
rr
Min.
-
-
-
Typ.
-
25
26
Max.
1.2
-
-
Unit
V
ns
nC
Test Conditions
I
S
=1.2A, V
GS
=0V
I
S
=3A, V
GS
=0V
dI/dt=100A/ s
Notes: 1. Pulse width limited by Max. junction temperature.
2. Pulse width 300us, duty cycle 2%.
3. Surface mounted on 1 in
2
copper pad of FR4 board;156 : /W when mounted on min. copper pad.
GT2610
Page: 2/4
ISSUED DATE :2006/06/13
REVISED DATE :
Characteristics Curve

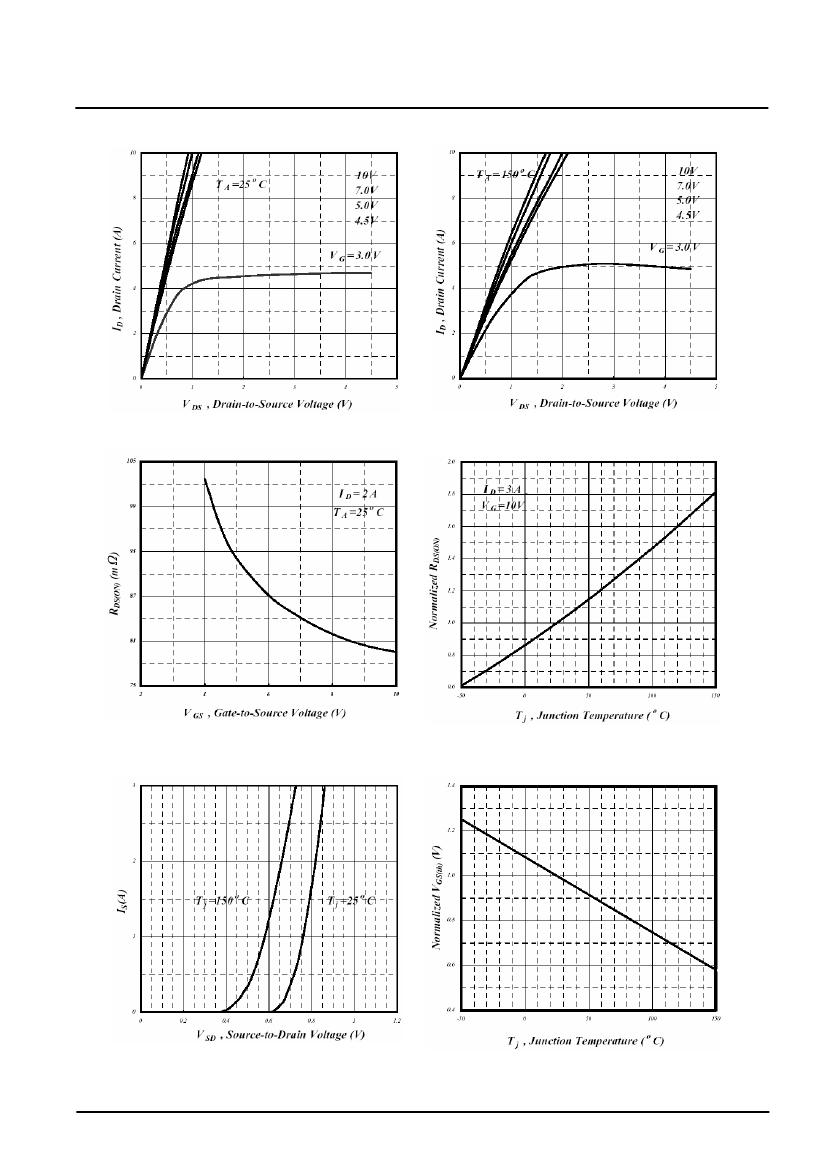

Fig 1. Typical Output Characteristics
Fig 2. Typical Output Characteristics
Fig 3. On-Resistance v.s. Gate Voltage
Fig 4. Normalized On-Resistance
v.s. Junction Temperature
Fig 5. Forward Characteristics of
Reverse Diode
GT2610
Fig 6. Gate Threshold Voltage v.s.
Junction Temperature
Page: 3/4
ISSUED DATE :2006/06/13
REVISED DATE :

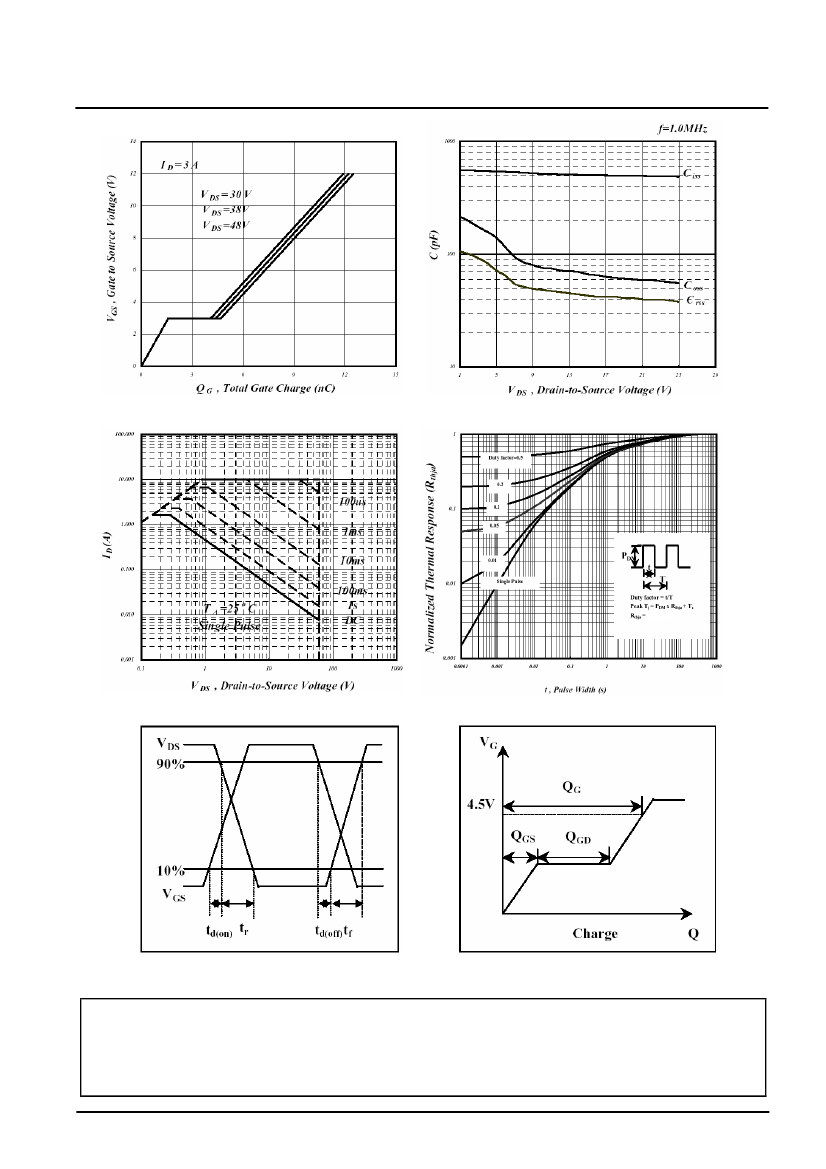

Fig 7. Gate Charge Characteristics
Fig 8. Typical Capacitance Characteristics
156 : /W
Fig 9. Maximum Safe Operating Area
Fig 10. Effective Transient Thermal Impedance
Fig 11. Switching Time Waveform
Fig 12. Gate Charge Waveform
Important Notice:
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of GTM.
GTM reserves the right to make changes to its products without notice.
GTM semiconductor products are not warranted to be suitable for use in life-support Applications, or systems.
GTM assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
Head Office And Factory:
Taiwan:
No. 17-1 Tatung Rd. Fu Kou Hsin-Chu Industrial Park, Hsin-Chu, Taiwan, R. O. C.
TEL : 886-3-597-7061 FAX : 886-3-597-9220, 597-0785
China:
(201203) No.255, Jang-Jiang Tsai-Lueng RD. , Pu-Dung-Hsin District, Shang-Hai City, China
TEL : 86-21-5895-7671 ~ 4 FAX : 86-21-38950165
GT2610
Page: 4/4
