410-99-250-41-105000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 410-99-250-41-105000

410-99-250-41-105000: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,; CategoryThe connector The connector; File Size186KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

410-99-250-41-105000 Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,

410-99-250-41-105000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (200)
Contact completed and terminated	TIN LEAD (200)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	410
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
Base Number Matches	1

Preview

Download Datasheet

View All

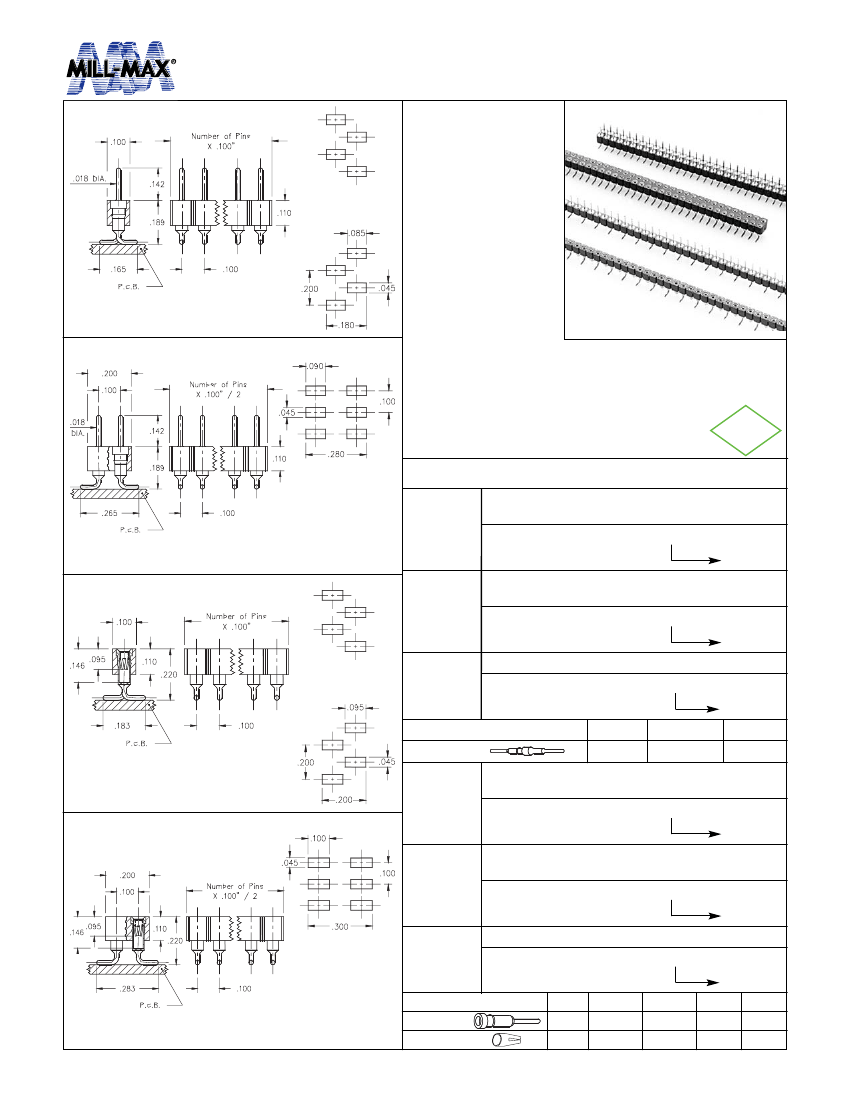

INTERCONNECTS

.018” dia. Pins

Surface Mount Headers and Sockets

Left Hand

Footprint

Series 310, 350

410, 450

•

Headers (350 &

450) use MM# 3404

pins. (See page 170

for details)

Right Hand

Footprint

Coplanarity .005”. For Pin Counts

> 10 Consult Tech Support

Fig. 1

Footprint

•

Sockets (310 & 410)

use MM# 1005

receptacles and

accept pin diameters

from .015-.025. (See

page 135 for details)

•

Coplanarity .005” (Single Row max 10 pins; Double

Row max 20 pins) for higher pin counts contact tech

support.

•

Insulators are high temp. thermoplastic.

Ordering Information

Single Row Header, Left Hand Footprint

Odd or Even # of pins

Fig. 1L

Coplanarity .005”. For Pin Counts

> 20 Consult Tech Support

350-XX-1_ _-00-106000

Specify # of pins

02-64

Single Row Header, Right Hand Footprint

Even # of pins

Fig. 2

Left Hand

Footprint

Fig. 1R

350-XX-1_ _-00-107000

Specify even # of pins

02-64

Double Row Header, Even # of pins

Fig. 2

Right Hand

Footprint

SPECIFY PLATING CODE XX=

450-XX-2 _ _-00-106000

Specify even # of pins

04-72

Pin Plating

Coplanarity .005”. For Pin Counts

> 10 Consult Tech Support

10μ” Au 200μ” Sn/Pb 200μ” Sn

Fig. 3

Footprint

Single Row Socket, Left Hand Footprint

Odd or Even # of pins

Fig. 3L

310-XX-1_ _-41-105000

Specify # of pins

02-64

Single Row Socket, Right Hand Footprint

Even # of pins

Fig. 3R

310-XX-1_ _-41-107000

Specify even # of pins

02-64

Double Row Socket, Even # of pins

Fig. 4

SPECIFY PLATING CODE XX=

Coplanarity .005”. For Pin Counts

> 20 Consult Tech Support

410-XX-2 _ _-41-105000

Specify even # of pins

30µ” Au

04-72

30µ” Au

Sleeve (Pin)

Contact (Clip)

10µ” Au 200µ” Sn/Pb 200µ”Sn/Pb 200µ”Sn 200µ”Sn

200µ”Sn/Pb

30µ” Au 200µ”Sn

Fig. 4

w w w. m i l l - m a x . c o m

516-922-6000
