PA1005.040NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> PA1005.040NL

PA1005.040NL: DescriptionCurrent Sense Transformer, 20A, 1:40, ROHS COMPLIANT; CategoryPower management transformer; File Size215KB，1 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

PA1005.040NL Overview

Current Sense Transformer, 20A, 1:40, ROHS COMPLIANT

PA1005.040NL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	LENGTH AND BREADTH DIMENSION INCLUDES TERMINAL ALSO
high	4.83 mm
length	8.38 mm
Installation features	SURFACE MOUNT
Maximum operating frequency	1000 kHz
Minimum operating frequency	50 kHz
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
method of packing	TRAY
Peak primary current	20 A
physical size	L8.38XB7.21XH4.83 (mm)
primary type	WOUND PRIMARY
secondary inductance	320 µH
surface mount	YES
Transformer type	CURRENT SENSE TRANSFORMER
Turns ratio (Np:Ns)	1:40
width	7.21 mm
Base Number Matches	1

Preview

Download Datasheet

View All

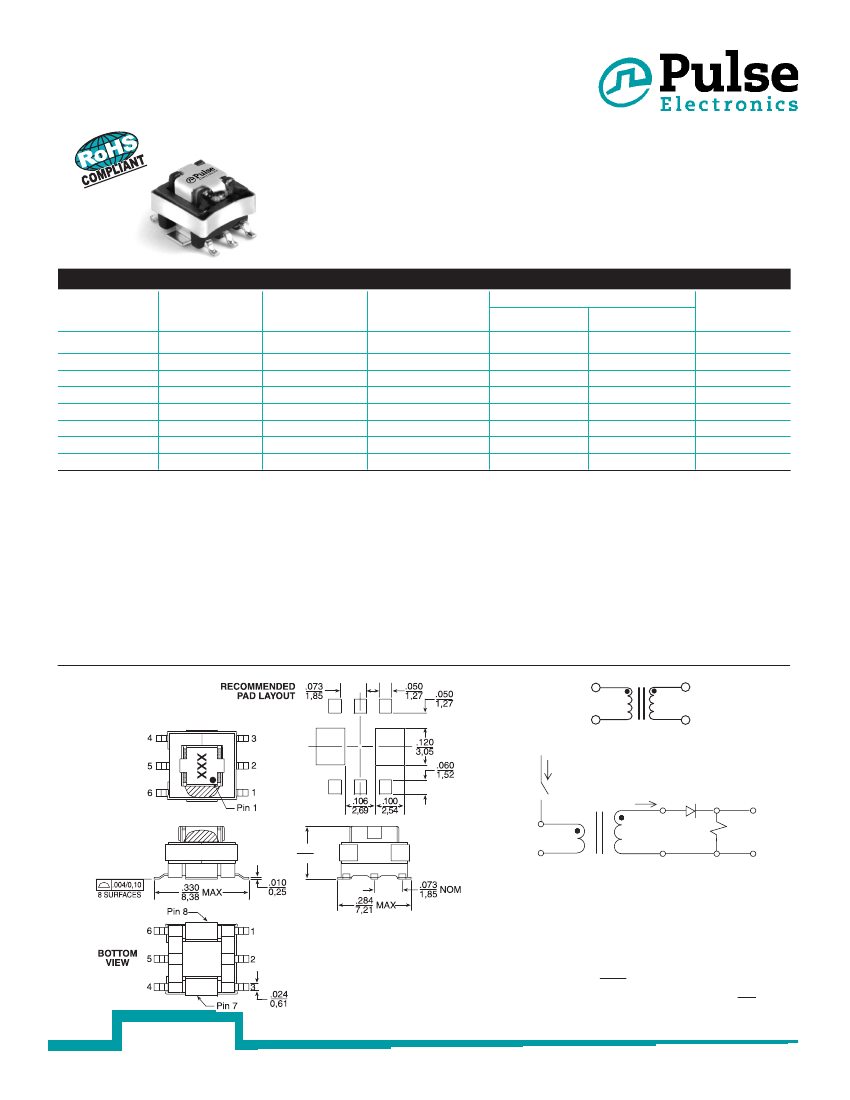

SMT Current Sense Transformers

PA1005.XXXNL Series

Height:

5 .5mm Max

Footprint:

8 .4mm x 7 .2mm Max

Current Rating:

up to 20A

Frequency Range:

50kHz to 1MHz

Low Primary DCR version of P820X

Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C

Part

5,6

Number

PA1005.020NL

PA1005.030NL

PA1005.040NL

PA1005.050NL

PA1005.060NL

PA1005.070NL

PA1005.100NL

PA1005.125NL

Turns

Ratio

1:20

1:30

1:40

1:50

1:60

1:70

1:100

1:125

Current

Rating

(A)

Secondary

Inductance

(mH MIN)

0 .08

0 .18

0 .32

0 .50

0 .72

0 .98

2 .00

3 .00

DCR

(mW MAX)

Primary

Secondary

(8-7)

(1-3)

0 .75

550

870

1140

1500

2250

4750

5500

6500

Hipot

RMS

)

1000

500

NOTES:

1 . The temperature of component (ambient temperature plus temper-ature

rise) must be within the specified operating temperature range .

2 .The maximum current rating is based upon temperature rise of the

component and represents the DC current which will cause a typical

temperature rise of 40°C with no airflow when both one turn windings

connected in parallel .

3 . To calculate value of terminating resistor (Rt) use the following formula:

Rt (W) = V

ref

* N / (Ipeak_primary)

4 . The peak flux density of the device must remain below 2000 Gauss . To

calculate the peak flux density for uni-polar current use following formula:

Bpk = 37 .59 * V

ref

* (Duty_Cycle_Max) * 10

/ (N * Freq_kHz)

* for bi-polar current applications divide Bpk (as calculated above) by 2 .

5 . Optional Tape & Reel packaging can be ordered by adding a “T” suffix

to the part number (i .e . PA1005 .020NL becomes PA1005 .020NLT) . Pulse

complies to industry standard tape and reel specification EIA481 .

6 . The “NL” suffix indicates an RoHS-compliant part number . Non-NL suf-

fixed parts are not necessarily RoHS compliant, but are electrically and

mechanically equivalent to NL versions . If a part number does not have

the “NL” suffix, but an RoHS compliant version is required, please con-

tact Pulse for availability .

Mechanical

Schematic

Iprimary

Isecondary

Vref

.215 MAX

5.50

APPLICATION CIRCUIT

Weight

. . . . . . . . . . . . . . . .0 .34 grams

Tray

. . . . . . . . . . . . . . . . . . . . . 120/tray

Tape & Reel

. . . . . . . . . . . . . . 900/reel

Coplanarity

. . . . . . . . . . .0 .004 inches

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .010

0,25

110

pulseelectronics.com

SPM2007 (02/13)

PA1005.040NL Related Products

	PA1005.040NL	PA1005.020NL	PA1005.030NL	PA1005.060NL	PA1005.125NLT
Description	Current Sense Transformer, 20A, 1:40, ROHS COMPLIANT	Current Sense Transformer, 20A, 1:20, ROHS COMPLIANT	Current Sense Transformer, 20A, 1:30, ROHS COMPLIANT	Current Sense Transformer, 20A, 1:60, ROHS COMPLIANT	Current Sense Transformer, 20A, 1:125, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LENGTH AND BREADTH DIMENSION INCLUDES TERMINAL ALSO	LENGTH AND BREADTH DIMENSION INCLUDES TERMINAL ALSO	LENGTH AND BREADTH DIMENSION INCLUDES TERMINAL ALSO	LENGTH AND BREADTH DIMENSION INCLUDES TERMINAL ALSO	BREADTH DIM INCLUDES TERMINAL ALSO
high	4.83 mm	4.83 mm	4.83 mm	4.83 mm	4.83 mm
length	8.38 mm	8.38 mm	8.38 mm	8.38 mm	7.21 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	1000 kHz	1000 kHz	1000 kHz	1000 kHz	1000 kHz
Minimum operating frequency	50 kHz	50 kHz	50 kHz	50 kHz	20 kHz
Maximum operating temperature	130 °C	130 °C	130 °C	130 °C	130 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	TRAY	TRAY	TRAY	TRAY	TAPE & REEL
Peak primary current	20 A	20 A	20 A	20 A	20 A
physical size	L8.38XB7.21XH4.83 (mm)	L8.38XB7.21XH4.83 (mm)	L8.38XB7.21XH4.83 (mm)	L8.38XB7.21XH4.83 (mm)	L7.21XB8.38XH4.83 (mm)
primary type	WOUND PRIMARY	WOUND PRIMARY	WOUND PRIMARY	WOUND PRIMARY	WOUND PRIMARY
secondary inductance	320 µH	80 µH	180 µH	720 µH	3000 µH
surface mount	YES	YES	YES	YES	YES
Transformer type	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER
Turns ratio (Np:Ns)	1:40	1:20	1:30	1:60	1:125
width	7.21 mm	7.21 mm	7.21 mm	7.21 mm	8.38 mm
Maker	-	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
