TSA6060T datasheet, PDF - EEWORLD Datasheet

TSA6060T: DescriptionIC PLL FREQUENCY SYNTHESIZER, 200 MHz, PDSO16, 7.50 MM, PLASTIC, MS-013AA, SOT-162-1, SOP-16, PLL or Frequency Synthesis Circuit; CategoryAnalog mixed-signal IC The signal circuit; File Size484KB，16 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

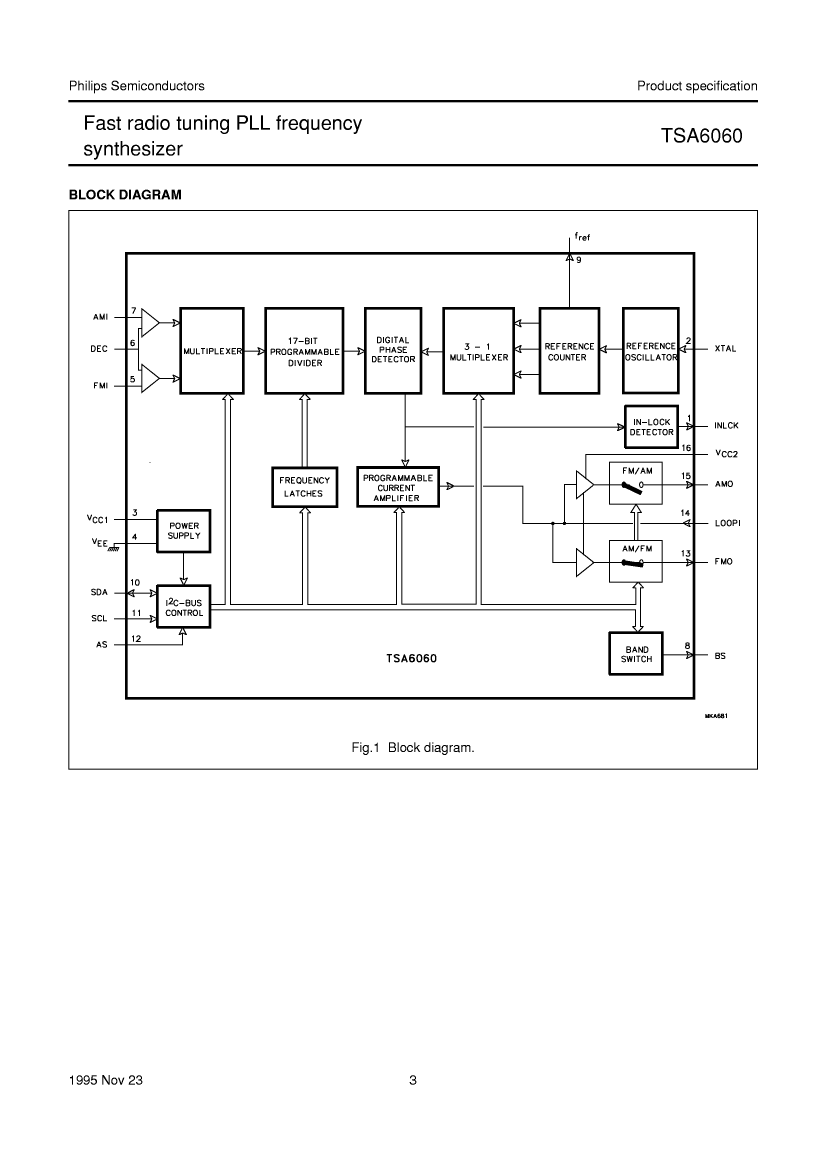

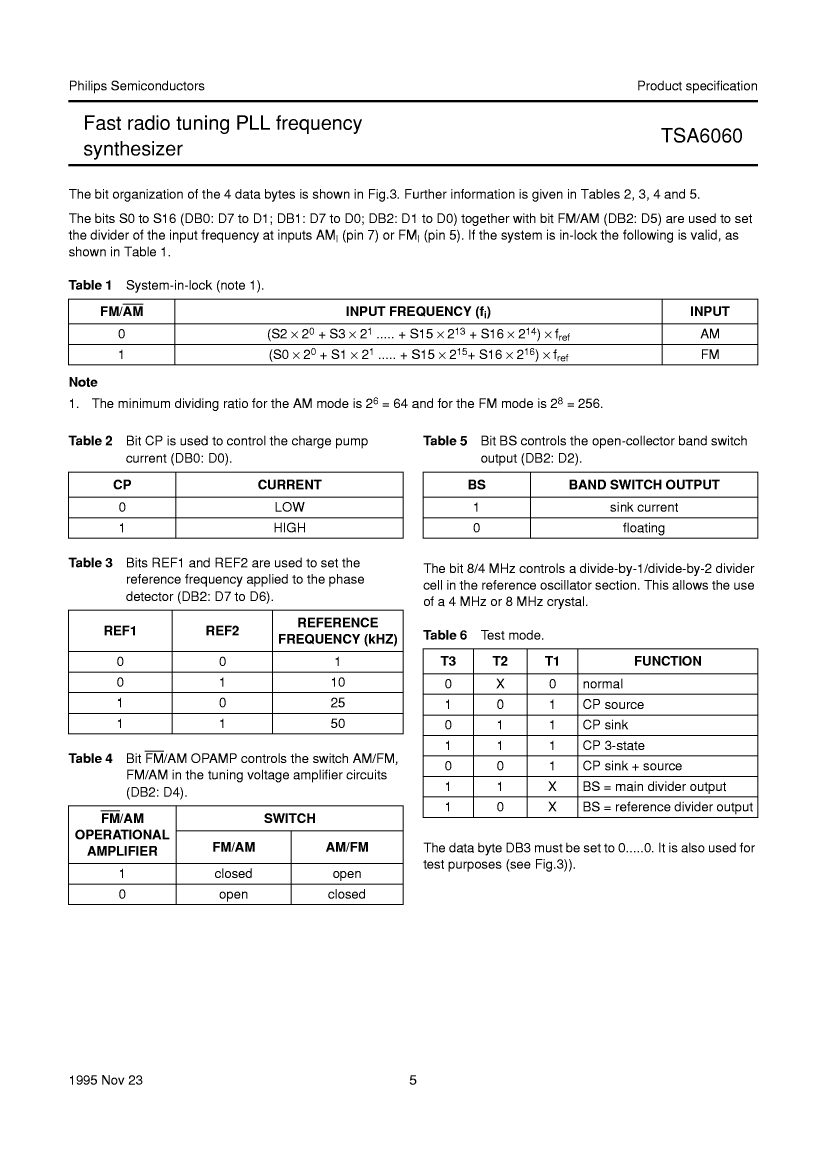

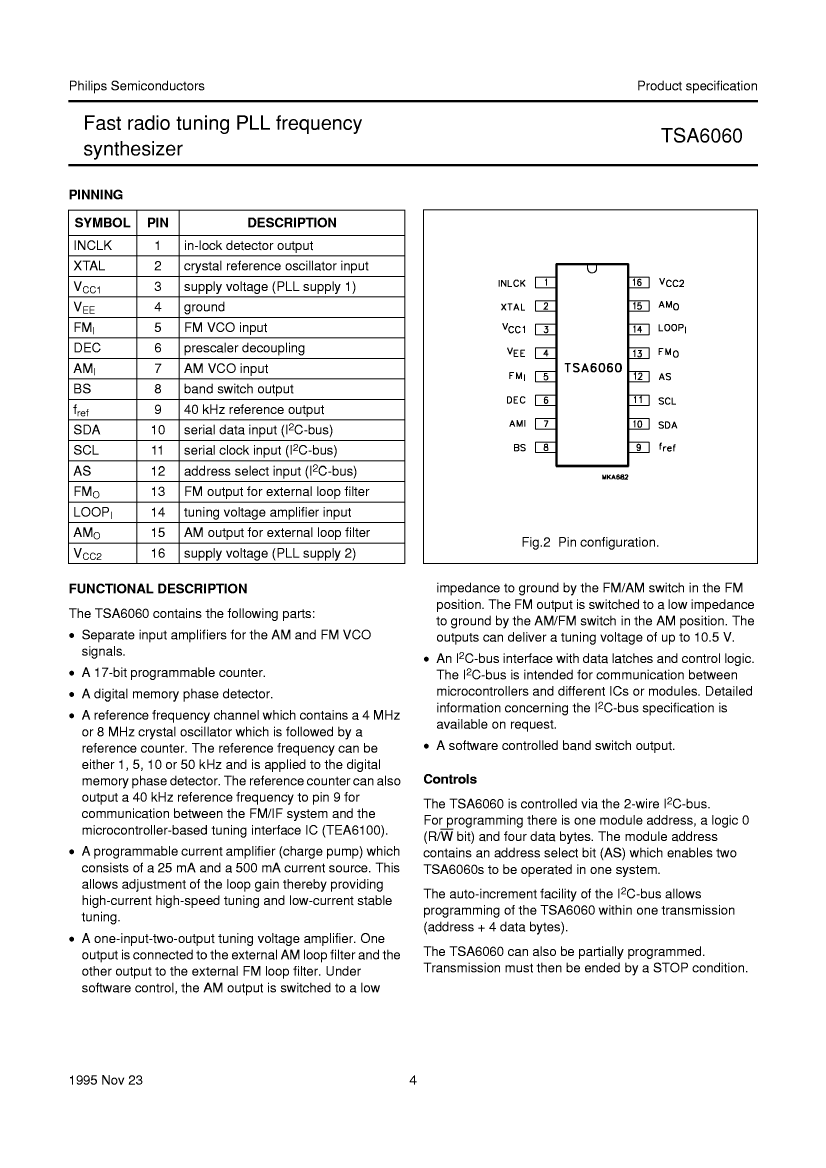

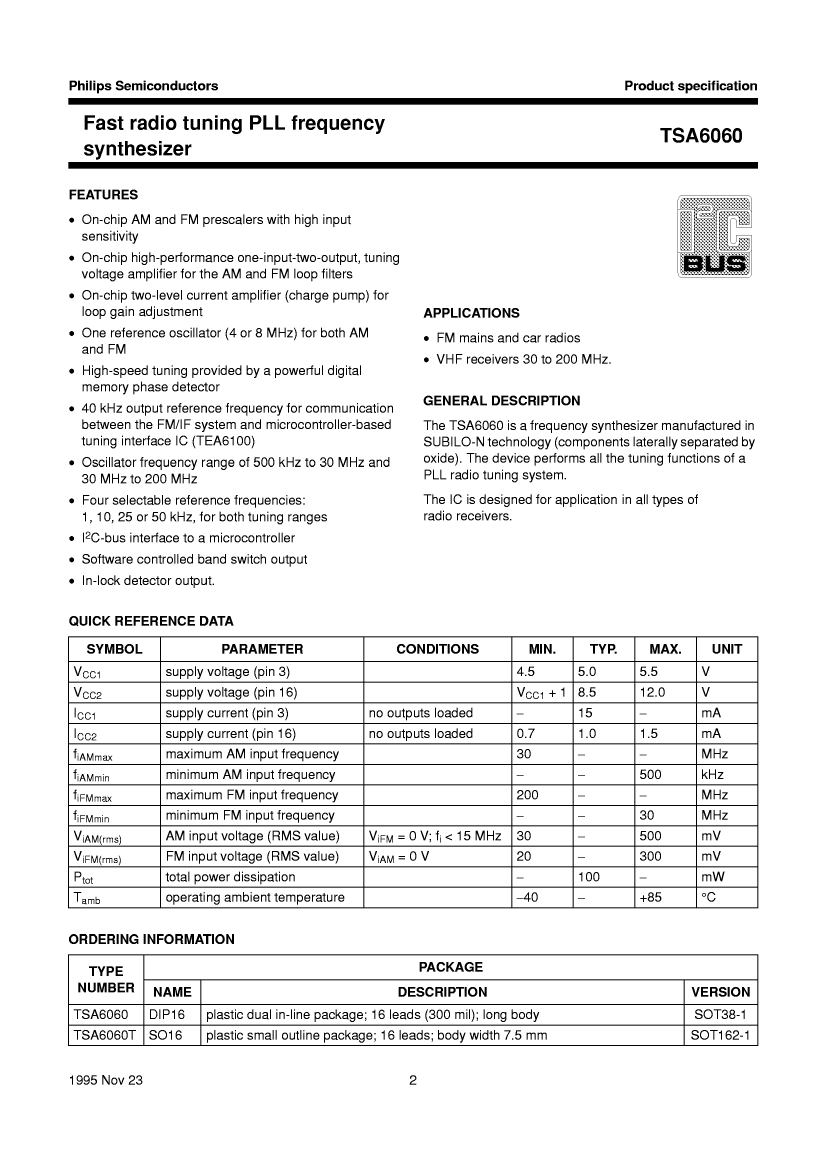

TSA6060T Overview

IC PLL FREQUENCY SYNTHESIZER, 200 MHz, PDSO16, 7.50 MM, PLASTIC, MS-013AA, SOT-162-1, SOP-16, PLL or Frequency Synthesis Circuit

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	PLL FREQUENCY SYNTHESIZER
JESD-30 code	R-PDSO-G16
length	10.3 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm

	TSA6060T	TSA6060
Description	IC PLL FREQUENCY SYNTHESIZER, 200 MHz, PDSO16, 7.50 MM, PLASTIC, MS-013AA, SOT-162-1, SOP-16, PLL or Frequency Synthesis Circuit	IC PLL FREQUENCY SYNTHESIZER, 200 MHz, PDIP16, 0.300 INCH, PLASTIC, MO-001AE, SOT-38-1, DIP-16, PLL or Frequency Synthesis Circuit
Maker	NXP	NXP
Parts packaging code	SOIC	DIP
package instruction	SOP,	DIP,
Contacts	16	16
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER
JESD-30 code	R-PDSO-G16	R-PDIP-T16
length	10.3 mm	21.6 mm
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	4.7 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.5 mm	7.62 mm
