D-XM
Series
1W,FIXED INPUT,1000V ISOLATED & UNREGULATED TWIN OUTPUT DC-DC CONVERTER
SELECTION GUIDE
Input
Order code
Voltage
(V)
Output
Voltage1
(V)
Output
Voltage2
(V)
Output
Current1
(MA)
Output
Current2
(MA)
Efficiency
(%)
MTTF
1
(KHRS)
FEATURES
◆
◆
◆
◆
◆
◆
◆
◆
D050503XM
RD050505XM
D050505XM
D050509XM
D050512XM
D050515XM
RD120505XM
D120505XM
D120509XM
D120512XM
5
5
5
5
5
5
12
12
12
12
12
24
24
24
24
24
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
3.3
5
5
9
12
15
5
5
9
12
15
5
5
9
12
15
100
50
100
100
100
100
50
100
100
100
100
50
100
100
100
100
152
50
100
56
42
34
50
100
56
42
34
50
100
56
42
34
70
70
70
80
80
80
84
70
80
80
80
84
81
82
84
84
1615
146
1615
669
339
187
135
489
343
229
148
130
395
289
186
150
Small footprint
Temperature range: -40℃~+85℃
1KVDC isolation
No Heat sink required
No external component required
Internal SMD Construction
Industry standard pinout
RoHS Compliance
D120515XM
RD240505XM
D240505XM
D240509XM
D240512XM
D240515XM
MODEL SELECTION
D 05 05 05 X M
①
②
③
④
⑤
⑥
①Product
Series
②Input
Voltage
③The
1st Output Voltage
④The
2nd Output Voltage
⑤Fixed
Input
⑥Mini
SIP Package Style
COMMON SPECIFICATIONS
Item
Storage humidity range
Operating temperature
Storage temperature
Lead temperature
Temp. rise at full load
Short circuit protection*
Cooling
Case material
MTBF
Weight
*Supply voltage must be discontinued at the end of short circuit duration.
3500
1.4
1.5mm from case for 10 seconds
15
-40
-55
Test Conditions
Min.
Typ.
Max.
95
85
125
℃
300
25
1
Free air convection
Plastic(UL94-V0)
K hours
g
S
Units
%
APPLICATIONS
The D-XM Series are specially designed for
applications where a group of polar power
supplies are isolated from the input power
supply in a distributed power supply system on
a circuit board.
These products apply to:
1) Where the voltage of the input power
supply is fixed (voltage variation ≤±10%);
2) Where isolation is necessary between
input and output(isolation voltage ≤1000VDC);
3) Where the regulation of the output voltage
and the output ripple noise are not demanding.
Such as:purely digital circuits, ordinary low
frequency analog circuits,and IGBT power
device driving circuits.
MICRODC R ESERVES THE COPYRIGHT
http://www.microdc.cn
Technical Enquiries-Email:tech@microdc.cn Tel:0086-20-86000646
Page 1 of 3
D-XM
Series
TYPICAL CHARACTERISTICS
ISOLATION SPECIFICATIONS
Item
Test Conditions
Min.
Typ.
Max.
Units
Isolation voltage (Vin/Vout)
Isolation voltage (Vo1/Vo2)
Isolation resistance (Vin/Vout)
Isolation resistance (Vo1/Vo2)
Isolation capacitance(Vin/Vout)
Isolation capacitance(Vo1/Vo2)
Tested for 1 minute and 1mA max
Tested for 1 minute and 1mA max
Test at 500VDC
Test at 500VDC
1000
1000
1000
1000
30
30
VDC
VDC
MΩ
MΩ
pF
pF
OUTPUT SPECIFICATIONS
Item
Output power
Line regulation
Load regulation
Load regulation
Output voltage accuracy
Temperature drift
Ripple & Noise*
Switching frequency
100% full load
20MHz Bandwidth
Full load, nominal input
75
130
For Vin change of 1%
10% to 100% load (3.3V output)
10% to 100% load(5V output)
15
12.8
Test Conditions
Min.
0.1
Typ.
Max.
1
±1.5
20
15
±0.03
100
Units
W
%
%
%
%/℃
mVp-p
KHz
RECOMMENDED CIRCUIT
See tolerance envelope graph
*Test ripple and noise by "Parallel cable"method. See detailed operation
Converter section, application notes.
instructions at Testing of Power
APPLICATION NOTE
Requirement on output load
To ensure this module can operate efficiently and reliably, During operation, the minimum output load
could not be less than 10% of the full load. If the actual output power is very small, please connect a
resistor with proper resistance at the output end in parallel to increase the load , or use our company
products with a lower rated output power.
Recommended circuit
If you want to further decrease the input/output ripple , an "LC" filtering network may be connected to
the input and output ends of the DC/DC converter, see (Figure 1).
It should also be noted that the inductance and the frequency of the "LC" filtering network should be
staggered with the DC/DC frequency to avoid mutual interference. However , the capacitance of the output
filter capacitor must be proper. If the capacitance is too big,a startup problem might arise. For every channel
of output , provided the safe and reliable operation is ensured , the recommended capacitance of its filter
capacitor sees (Table 1).
Output Voltage Regulation and Over-voltage Protection Circuit
The simplest device for output voltage regulation, over-voltage and over-current protection is a linear
voltage regulator with overheat protection that is connected to the input or output end in series (Figure 2).
It's not
recommended to connect any external capacitor in the
application field with less than 0.5 watt output.
Overload Protection
Under normal operating conditions, the output circuit of these products has no protection against
overload.The simplest method is to connect a self-recovery fuse in series at the input end or add a circuit
breaker to the circuit.
No parallel connection or plug and play
http://www.microdc.cn
Technical Enquiries-Email:tech@microdc.cn Tel:0086-20-86000646
Page 2 of 3
D-XM
Series

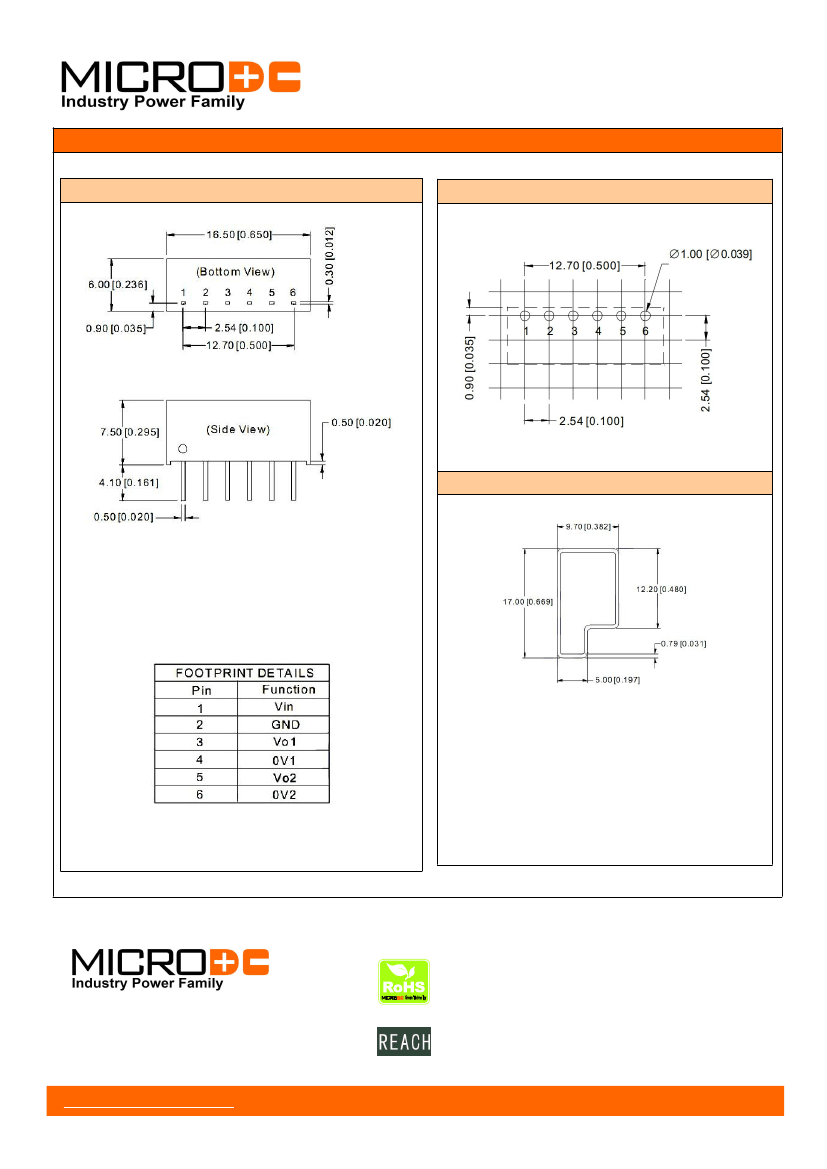

OUTLINE DIMENSIONS
＆
FOOTPRINT DETAILS
MECHANICAL DIMENSIONS
RECOMMENDED FOOTPRINT
TUBE OUTLINE DIMENSIONS
Note:
Unit:mm[ inch]
Pin sect ion tolerances:±0.10mm[±0.004inch]
General tolerances:±0.25mm[±0.010inch]
Note:
Unit :mm[inch]
General tolerances:
±
0.50mm[
±
0.020inch]
L=530mm[20.866inch]
L=220mm[8.661inch]
Tube Quantity: 30pcs
Tube Quantity: 11pcs
RoHS COMPLIANT INFORMATION
This series is compatible with RoHS soldering systems with a peak wave solder temperature
of 300°C for 10 seconds.
The pin termination finish on the SIP package type is Tin Plate, Hot Dipped over Matte Tin
with Nickel Preplate. The DIP types are Matte Tin over Nickel Preplate. Both types in this
series are backward compatible with Sn/Pb soldering systems.
REACH COMPLIANT INFORMATION
This series has proven that this product does not contain harmful chemicals, it also has
harmful chemical substances through the registration, inspection and approval.
Microdc Professional Power Module,Inc.
Tel:0086-20-86000646
E-mail:tech@microdc.cn
Website:http://www.microdc.cn
http://www.microdc.cn
Technical Enquiries-Email:tech@microdc.cn Tel:0086-20-86000646
Page 3 of 3
