SR002 thru SR010
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Low forward voltage drop
- Low power loss, high efficiency
- Guardring for overvoltage protection
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Schottky Barrier Rectifier
MECHANICAL DATA
Case:
DO-204AL (DO-41)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Weight:
0.33g (approximately)
DO-204AL (DO-41)

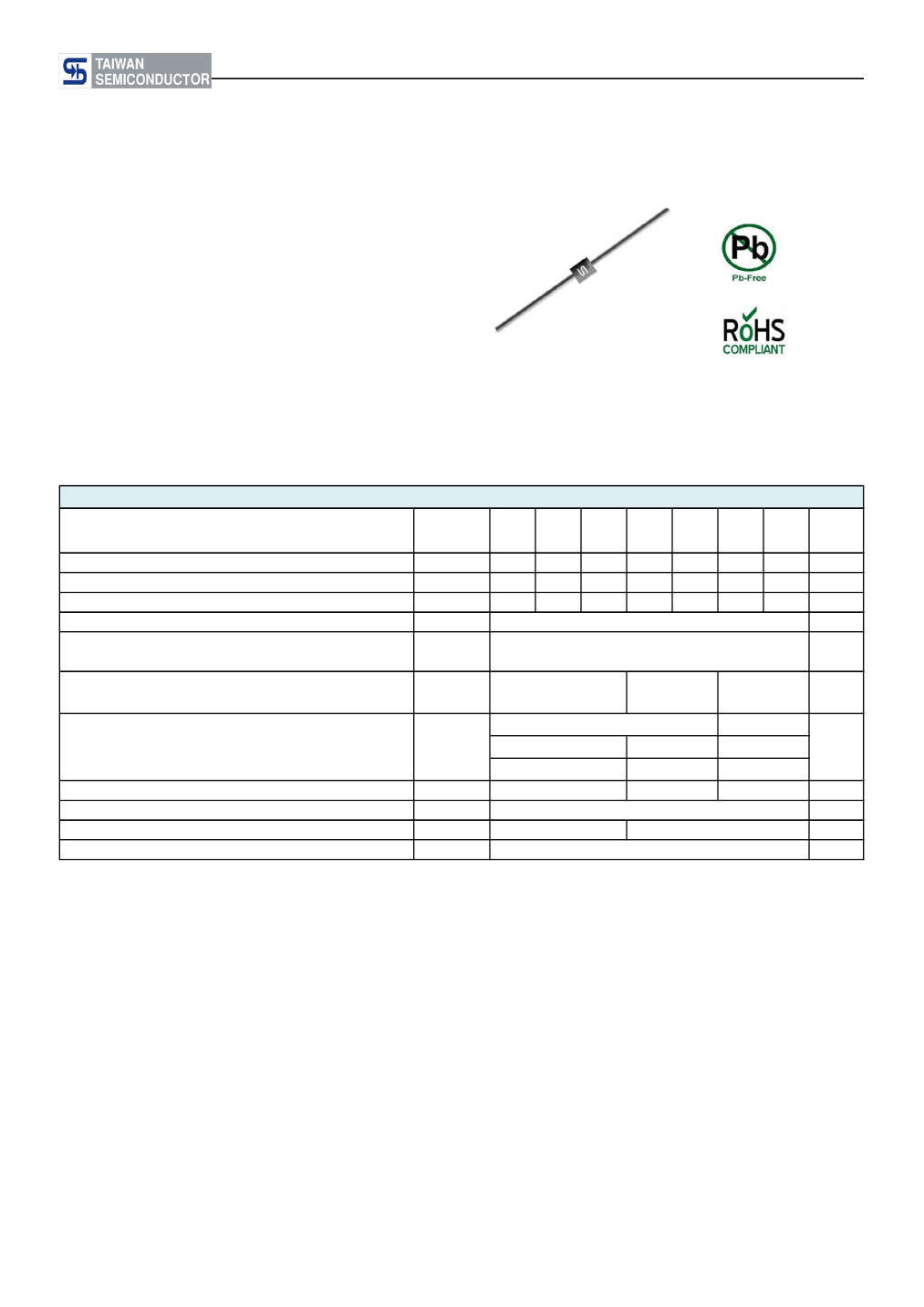

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@ 0.5 A
Maximum reverse current @ rated VR
T
J
=25
℃
T
J
=100℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
0.55
0.5
I
R
Cj
R
θJA
T
J
T
STG
- 55 to +125
- 55 to +150
10
-
110
50
- 55 to +150
5
-
80
SR
002
20
14
20
SR
003
30
21
30
SR
004
40
28
40
SR
005
50
35
50
0.5
30
0.70
0.85
0.1
-
2
65
O
SR
006
60
42
60
SR
009
90
63
90
SR
010
100
70
100
UNIT
V
V
V
A
A
V
mA
pF
C/W
O
O
Typical junction capacitance (Note 2)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
C
C
Note 2: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Document Number: DS_D1308043
Version: F13
SR002 thru SR010
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
PACKING CODE
A0
SR0xx
(Note 1)
A1
R0
R1
B0
Note 1: "xx" defines voltage from 20V (SR002) to 100V (SR010)
Suffix "G"
GREEN COMPOUND
CODE
DO-41
DO-41
DO-41
DO-41
DO-41
3,000 / Ammo box (52mm taping)
3,000 / Ammo box (26mm taping)
5,000 / 13" Paper reel
5,000 / 13" Paper reel (Reverse)
1,000 / Bulk packing
PACKAGE
PACKING
EXAMPLE
PREFERRED P/N
SR006 A0
SR006 A0G
PART NO.
SR006
SR006
PACKING CODE
A0
A0
G
Green compound
GREEN COMPOUND
CODE
DESCRIPTION

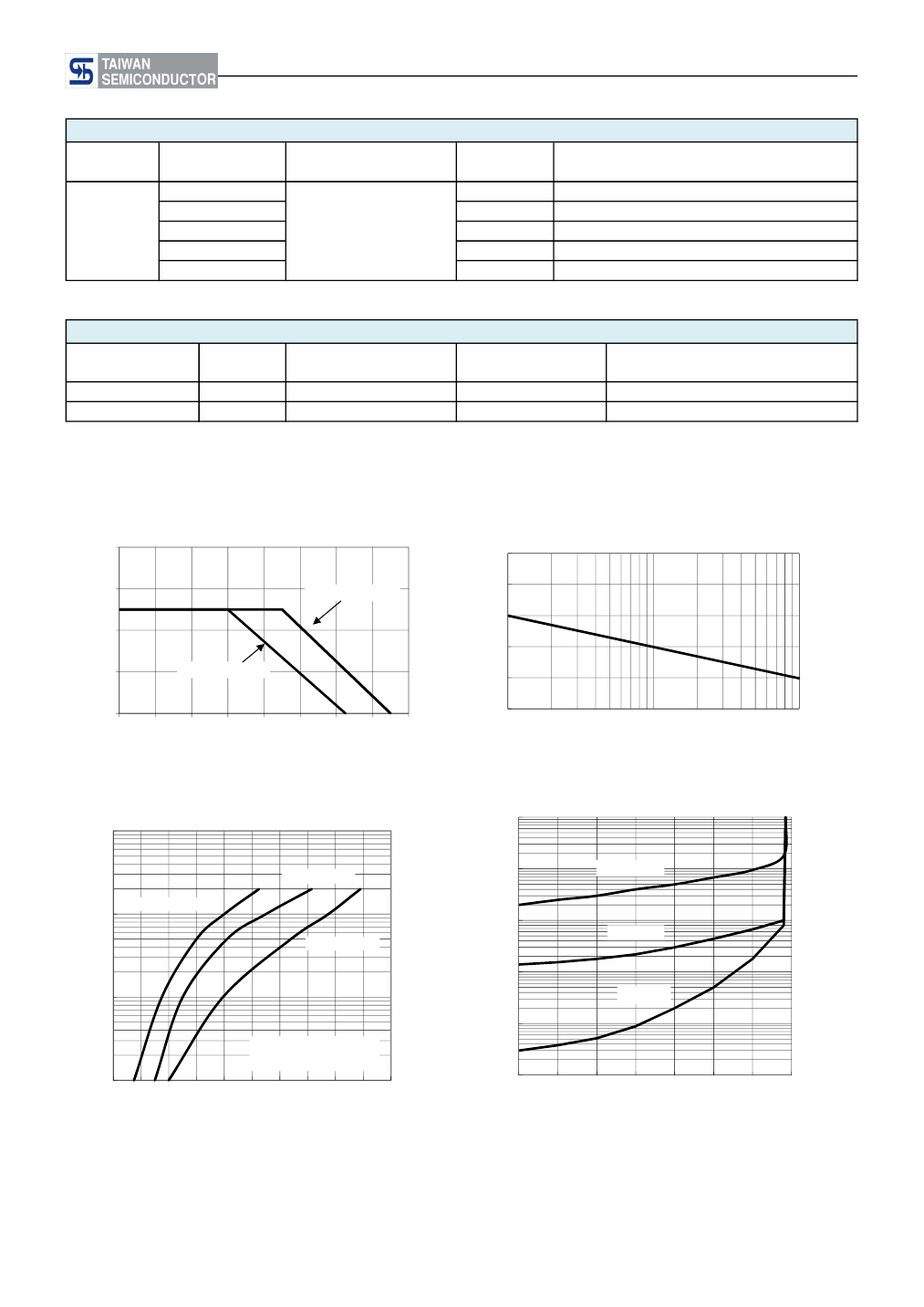

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1- FORWARD CURRENT DERATING CURVE
0.8
AVERAGE FORWARD CURRENT (A)
50
40
FIG. 2- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
0.6
SR005 - SR010
0.4
CURRENT (A)
30
20
10
0
0.2
SR002 - SR004
0
0
20
40
60
80
100
120
140
160
LEAD TEMPERATURE (
o
C)
1
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 3- TYPICAL FORWARD CHARACTERISTICS
100
100
INSTANTANEOUS REVERSE CURRENT. (mA)
INSTANTANEOUS FORWARD CURRENT (A)
10
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
SR005-SR006
10
SR002-SR004
TJ=125℃
1
TJ=75℃
0.1
TJ=25℃
0.01
SR009-SR010
1
Pulse Width=300μs
1% Duty Cycld
0.1
0.3
0.5
0.7
0.9
1.1
1.3
1.5
1.7
1.9
2.1
0.1
FORWARD VOLTAGE (V)
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE.(%)
Document Number: DS_D1308043
Version: F13
SR002 thru SR010
Taiwan Semiconductor
CREAT BY ART

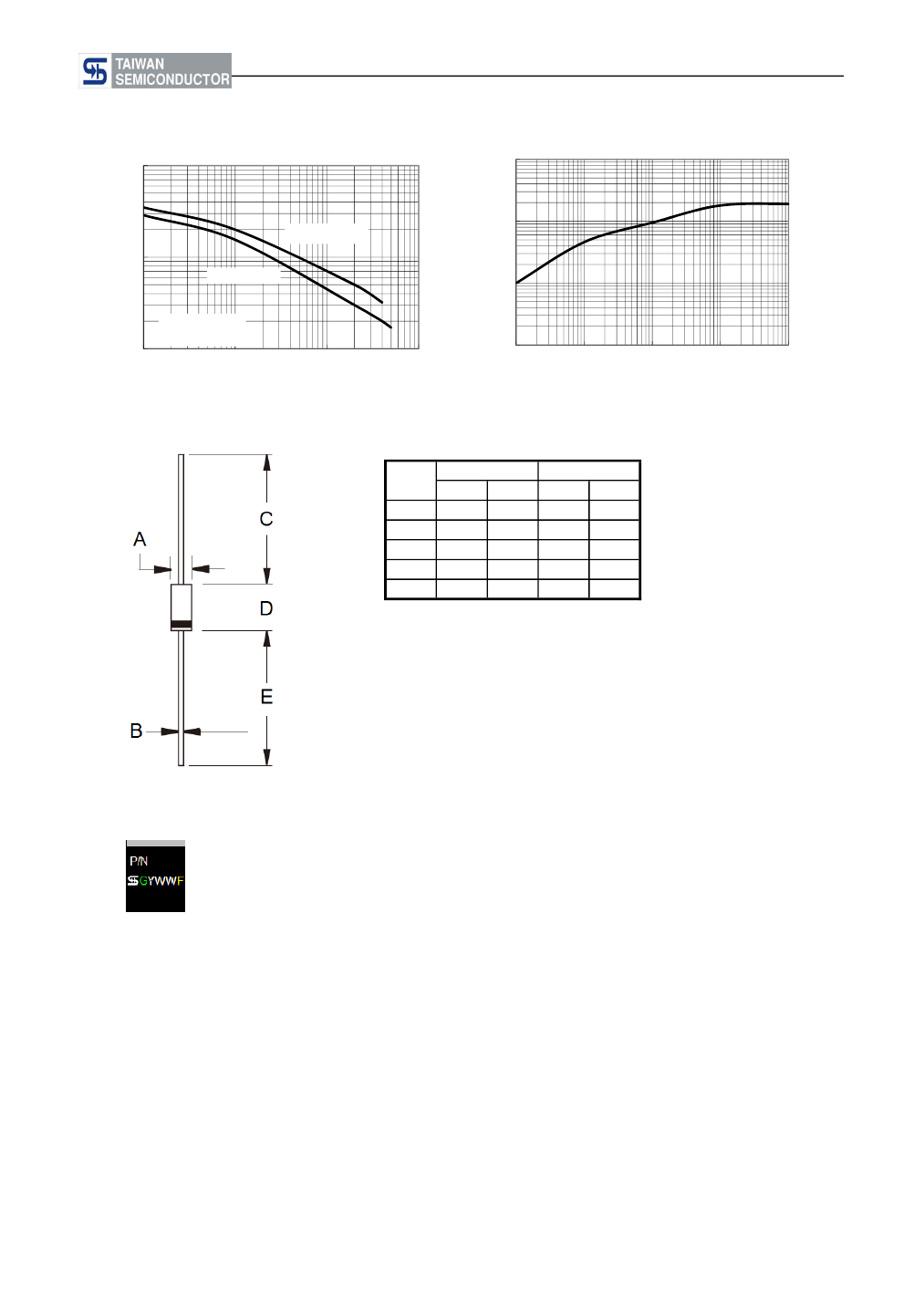

FIG. 5- TYPICAL JUNCTION CAPACITANCE
1000
JUNCTION CAPACITANCE (pF)
100
FIG. 6- TYPICAL TRANSIENT THERMAL
CHARACTERISTICS
SR002-SR004
100
SR005-SR010
TRANSIENT THERMAL
IMPEDANCE (℃/W)
10
1
f=1.0MHz
Vsig=50mVp-p
10
0.1
1
10
100
REVERSE VOLTAGE (V)
0.1
0.01
0.1
1
PILSE DURATION, (sec)
10
100
PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
2.00
0.71
25.40
4.20
25.40
Max
2.70
0.86
-
5.20
-
Unit (inch)
Min
0.079
0.028
1.000
0.165
1.000
Max
0.106
0.034
-
0.205
-
DIM.
A
B
C
D
E
MARKING DIAGRAM
P/N =
G=
F=
Specific Device Code
Green Compound
Factory Code
YWW = Date Code
Document Number: DS_D1308043
Version: F13
SR002 thru SR010
Taiwan Semiconductor
CREAT BY ART
