Meder Electronic
MK6 Series
Reed Sensors for
PCB Mounting
DESCRIPTION
MK6 sensors are magnetically operated Reed
proximity switches for direct PCB mounting. The
sensor should be mounted on a fixed surface with
the actuating magnet on the moving surface.
Introduction or removal of the magnetic field
determines the closing and opening of the Reed
Switch. (2.54 mm PCB pin spacing, available with
different distances)
APPLICATIONS
•
Telecommunications
Telephone hook switch, keyboard applications
•
Domestic appliances
Door switch for washing machines, dishwashers,
microwave ovens, baking ovens, refrigerators
•
Limit switch for low-power signals
Garage door controls, lever hoists, conveyors
•
Lifts / elevators
Position indicators
FEATURES
•
Form A, B, C and E (Latching) available
•
High power switches available
•
Various case sizes available
•
Five operate sensitivities available
ORDER INFORMATION
SERIES
PACKAGING
SIZE
MAGNETIC
SENSITIVITY
MAGNETIC SENSITIVITY
SENSITIVITY
CLASS
A
B
C, H
D, I
E, K
PULL IN
AT RANGE
5 - 10
10 - 15
15 - 20
20 - 25
25 - 30
MK6 -
X -
4
5
X
B, C, D, E
B, C
A, B, C, D, E
A, B, C, D, E
A, B, C, D, E
H, I, K
OPTIONS
6
7
8 (Form A)
8 (Form C)
Part Number Example
MK6 - 4 - C
4
is the packaging size
C
is the magnetic sensitivity
Part Number Example
MK6 - 10 - E
E
selects the latching option
SERIES
CONTACT
FORM
MK6 - 10 -
OPTIONS
X*
B
E
* See footnote on following page.
www.willow.co.uk
Tel. +44 (0) 1342 835234
Fax. +44 (0) 1342 834306
MK6 Series
Reed Sensors for
PCB Mounting
Meder Electronic

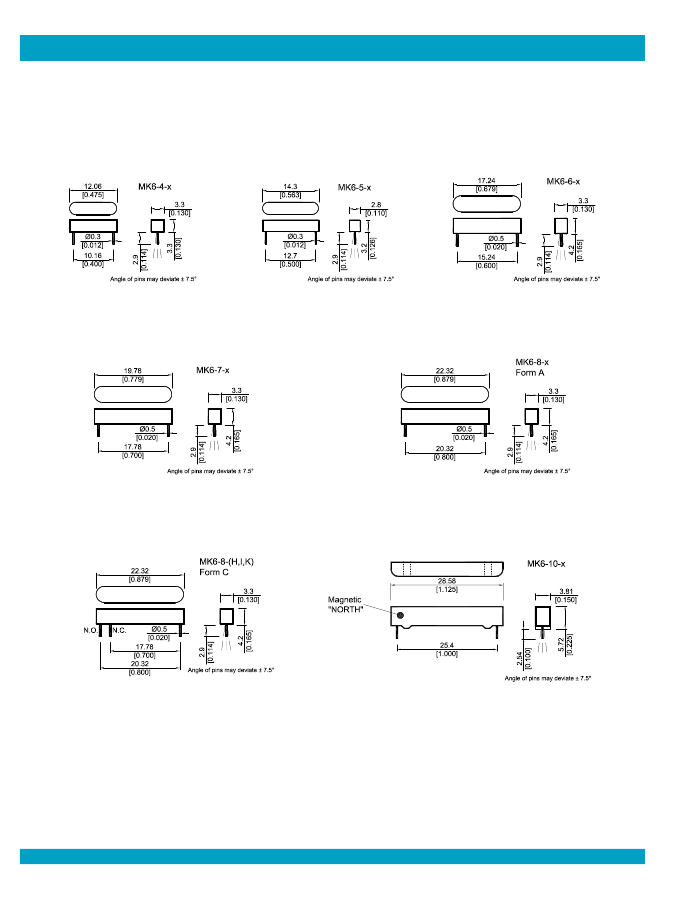

DIMENSIONS
All dimensions in mm [inches]
* MK6-10-E
is a magnetic latching sensor which is opened or closed by a passing magnet and remains in that state until a magnet
of opposite polarity or direction passes by again. The E refers to a latching sensor and does not represent the magnetic
sensitivity.
MK6-10-B
is a normally closed sensor. The B refers to a latching sensor and does not represent the magnetic sensitivity.
www.willow.co.uk
Tel. +44 (0) 1342 835234
Fax. +44 (0) 1342 834306
Meder Electronic
MK6 Series
Reed Sensors for
PCB Mounting
CONTACT DATA
All data at 20
0
C
Contact Ratings
Contact Rating
Switch Model -->
Contact Form -->
Packaging styles -->
Conditions
Any DC combination of V & A
not to exceed their individual
max.'s
DC or peak AC
DC or peak AC
DC or peak AC
w/ 0.5V & 10mA
Measured w/ 0.5V & 50mA
1.5 ms after closure
100 Volts applied
Voltage applied for 60 sec.
min.
Measured w/ 100% overdrive
Measured w/ no coil
suppression
@ 10kHz across contact
Contact 71
Form A, B, E
6, 7, 8, 10
Min.
Typ.
Max.
Contact 80
Form A
4
Min.
Typ.
Max.
Units
10
10
W
Switching Voltage
Switching Current
Carry Current
Static Contact Resistance
Dynamic Contact Resistance
Insulation Resistance across
Contacts
Breakdown Voltage
Operate Time, incl. Bounce
Reset Time
Capacitance
200
0.5
1.25
150
200
170
0.5
0.5
200
250
V
A
A
mΩ
mΩ
Ω
10
10
*
10
9
225 *
0.5
0.1
0.2
210
0.6
0.1
0.2
VDC
ms
ms
pF
Contact Operation **
Must Operate Condition
Must Reset Condition
Steady state field
Steady state field
10
4
30
27
10
4
30
27
AT
AT
Environmental Data
Shock Resistance
Vibration Resistance
Ambient Temperature
Storage Temperature
Soldering Temperature
1/2 sine wave duration 11ms
From 10 - 2000 Hz
10
0
C/ minute max. allowable
10
0
C/ minute max. allowable
5 sec. dwell
-20
-35
50
20
85
85
260
-20
-35
50
20
85
85
260
g
g
0
C
C
C
0
0
Please note: The indicated electrical data are maximum values and can vary downwards when using a more sensitive switch.
* Insulation resistance of 10
12
and breakdown voltage of 480 VDC is available.
** These ranges refer to the uncut / unmodified Reed Switches described in our Reed Switch section. Consult factory if more
detail is required.
www.willow.co.uk
Tel. +44 (0) 1342 835234
Fax. +44 (0) 1342 834306
MK6 Series
Reed Sensors for
PCB Mounting
Meder Electronic
CONTACT DATA
All data 20
0
C
Contact Ratings
Contact Rating
Switch Model -->
Contact Form -->
Packaging styles -->
Conditions
Any DC combination of V & A
not to exceed their individual
max.'s
DC or peak AC
DC or peak AC
DC or peak AC
w/ 0.5V & 10mA
Measured w/ 0.5V & 50mA
1.5 ms after closure
100 Volts applied
Voltage applied for 60 sec.
min.
Measured w/ 100% overdrive
Measured w/ no coil
suppression
@ 10kHz across contact
Contact 81 *
Form A
6, 7, 8
Min.
Typ.
Max.
Contact 87
Form A
5
Min.
Typ.
Max.
Contact 90
Form C
8
Min.
Typ.
Max.
Units
5
10
3
W
Switching Voltage
Switching Current
Carry Current
Static Contact Resistance
Dynamic Contact Resistance
Insulation Resistance across
Contacts
Breakdown Voltage across
Contacts
Operate Time, incl. Bounce
Reset Time
Capacitance
90
0.5
1.0
200
200
200
0.5
0.5
150
200
175
0.25
1.2
150
250
V
A
A
mΩ
mΩ
Ω
10
9
10
9
10
9
100
0.5
0.1
0.2
230
0.6
0.1
0.2
200
0.7
1.5
1.0
VDC
ms
ms
pF
Contact Operation **
Must Operate Condition
Must Reset Condition
Steady state field
Steady state field
5
2
10
9
10
4
20
18
15
6
30
27
AT
AT
Environmental Data
Shock Resistance
Vibration Resistance
Ambient T
emperature
Storage Temperature
Soldering Temperature
1/2 sine wave duration 11ms
From 10 - 2000 Hz
10
0
C/ minute max. allowable
10
0
C/ minute max. allowable
5 sec. dwell
-20
-35
30
10
85
85
260
-20
-35
50
20
85
85
260
-20
-35
50
20
85
85
260
g
g
0
C
C
C
0
0
Please note: The indicated electrical data are maximum values and can vary downwards when using a more sensitive switch.
* Switch model 81 is used for sensitivity range A only.
** These ranges refer to the uncut / unmodified Reed Switches described in our Reed Switch section. Consult factory if more detail is required.
