T6J05(UCM) datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> T6J05(UCM)

Preview

T6J05(UCM): DescriptionIC LIQUID CRYSTAL DISPLAY DRIVER, UUC148, TCP-148, Display Driver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size300KB，9 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

T6J05(UCM) Overview

IC LIQUID CRYSTAL DISPLAY DRIVER, UUC148, TCP-148, Display Driver

T6J05(UCM) Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	DIE
package instruction	DIE,
Contacts	148
Reach Compliance Code	unknown
ECCN code	EAR99
data entry mode	PARALLEL
display mode	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-XUUC-N148
Multiplex display function	NO
Number of functions	1
Number of segments	128
Number of terminals	148
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	5 V
Supply voltage 1-max	40 V
Mains voltage 1-minute	16 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	NO LEAD
Terminal location	UPPER

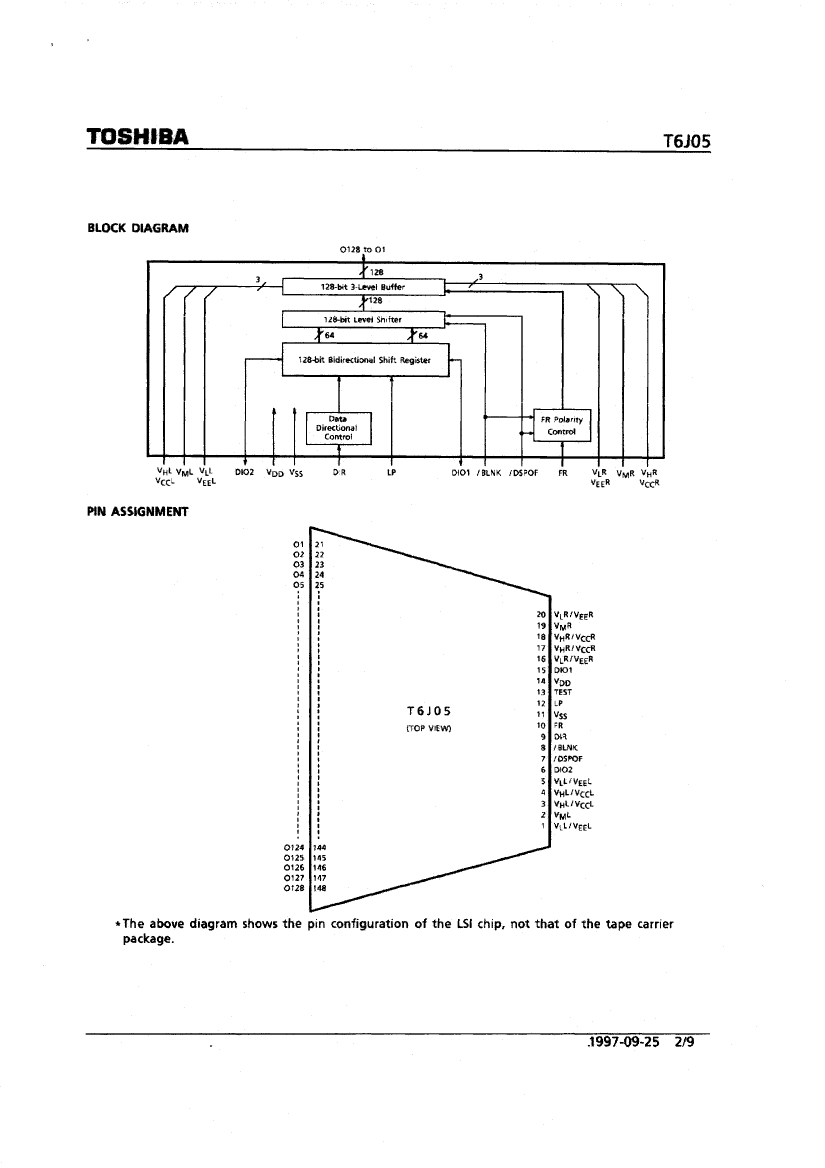

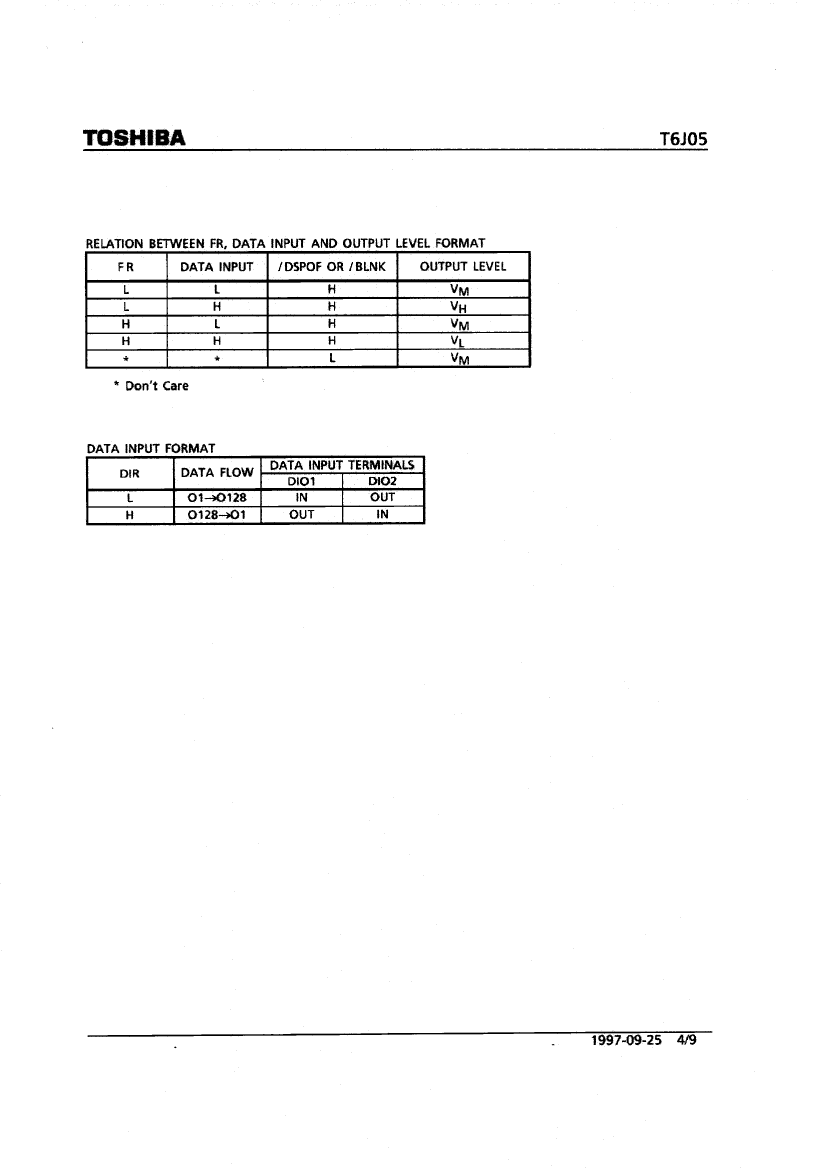

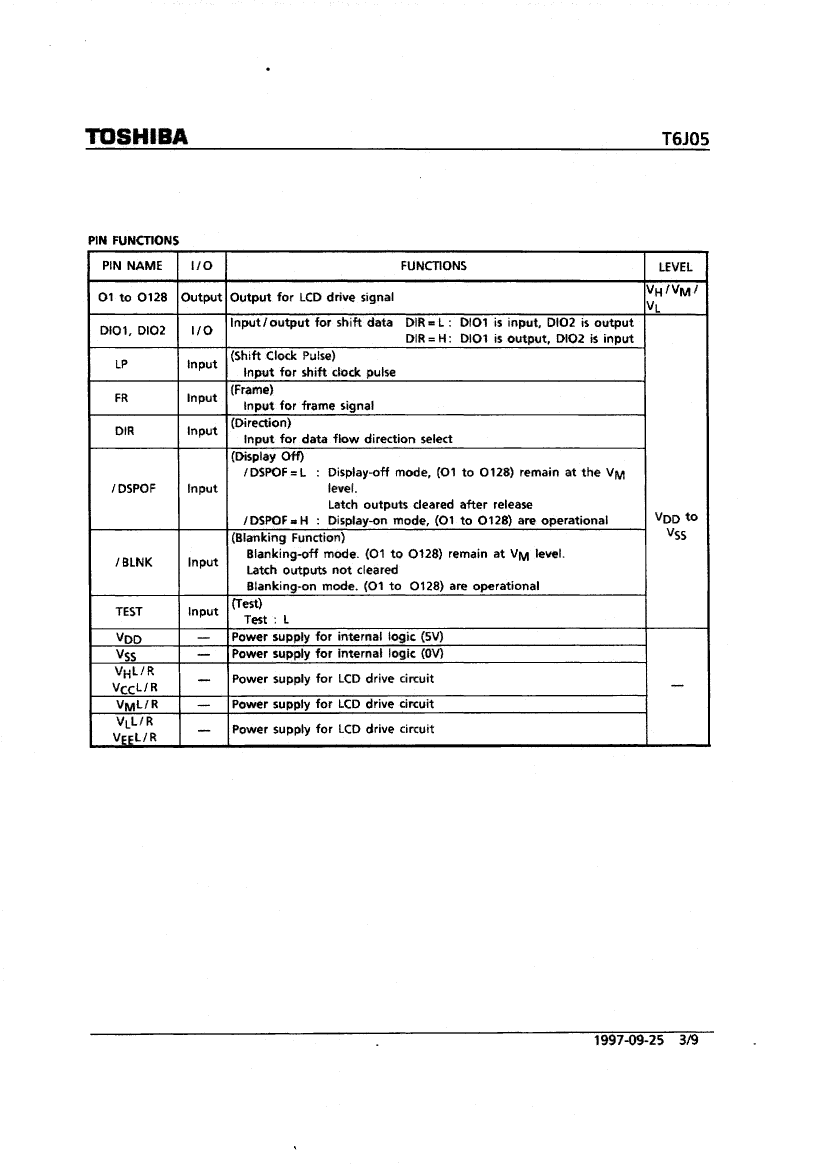

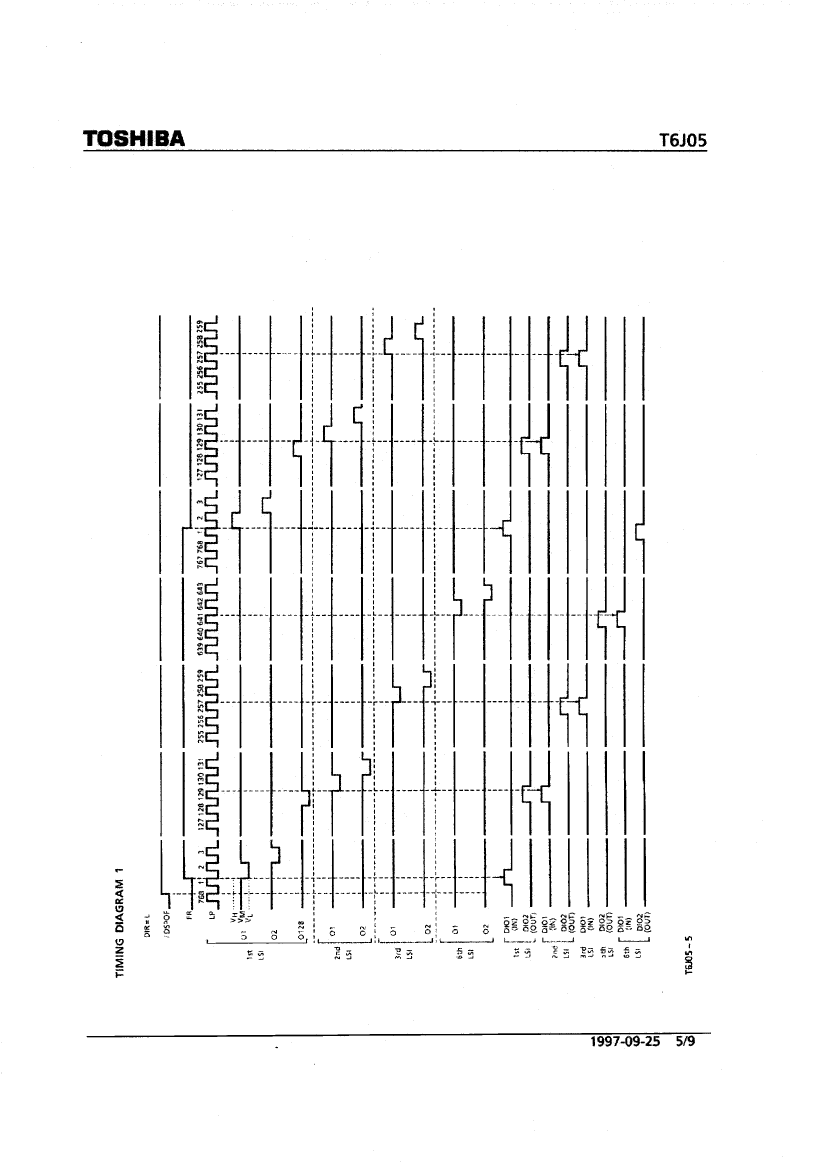

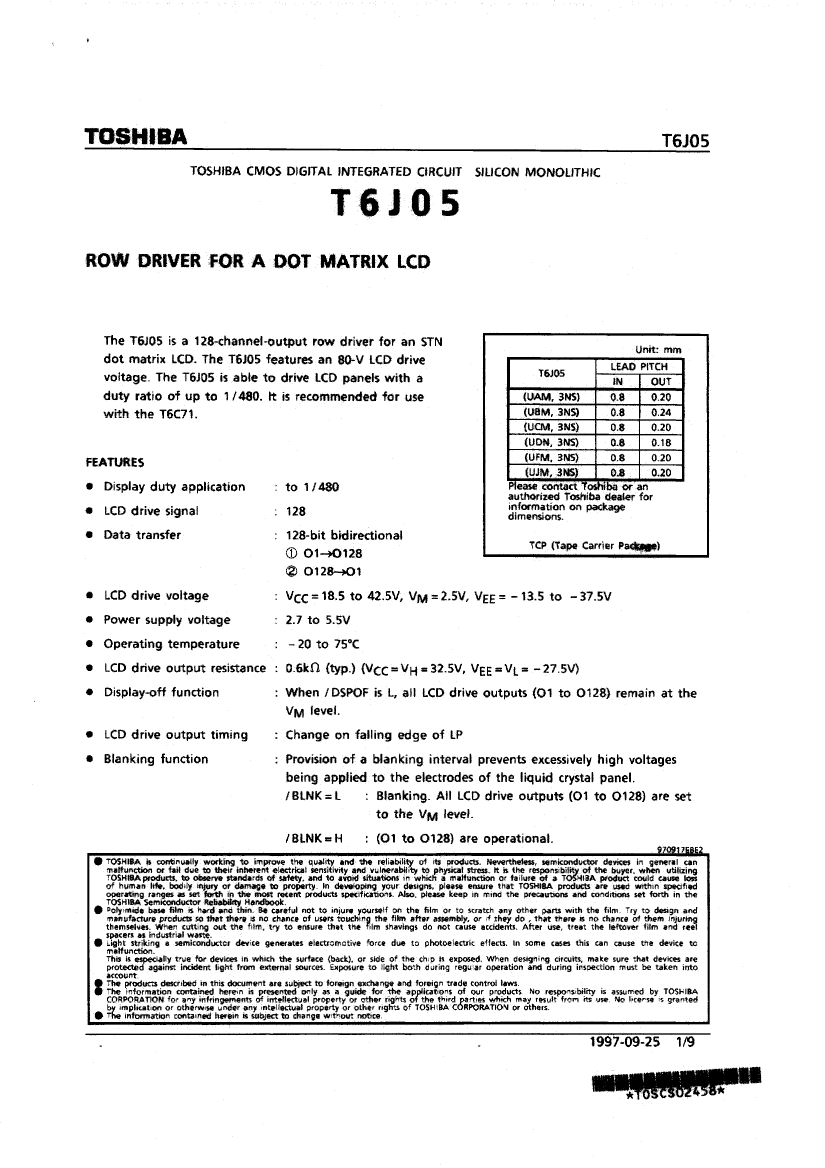

T6J05(UCM) Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

T6J05(UCM) Related Products

	T6J05(UCM)	T6J05(UJM)	T6J05(UDN)	T6J05(UBM)	T6J05(UFM)	T6J05(UAM)
Description	IC LIQUID CRYSTAL DISPLAY DRIVER, UUC148, TCP-148, Display Driver	IC LIQUID CRYSTAL DISPLAY DRIVER, UUC148, TCP-148, Display Driver	IC LIQUID CRYSTAL DISPLAY DRIVER, UUC148, TCP-148, Display Driver	IC LIQUID CRYSTAL DISPLAY DRIVER, UUC148, TCP-148, Display Driver	IC LIQUID CRYSTAL DISPLAY DRIVER, UUC148, TCP-148, Display Driver	IC LIQUID CRYSTAL DISPLAY DRIVER, UUC148, TCP-148, Display Driver
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	DIE	DIE	DIE	DIE	DIE	DIE
package instruction	DIE,	DIE,	DIE,	DIE,	DIE,	DIE,
Contacts	148	148	148	148	148	148
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
data entry mode	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
display mode	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-XUUC-N148	R-XUUC-N148	R-XUUC-N148	R-XUUC-N148	R-XUUC-N148	R-XUUC-N148
Multiplex display function	NO	NO	NO	NO	NO	NO
Number of functions	1	1	1	1	1	1
Number of segments	128	128	128	128	128	128
Number of terminals	148	148	148	148	148	148
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIE	DIE	DIE	DIE	DIE	DIE
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
Supply voltage 1-max	40 V	40 V	40 V	40 V	40 V	40 V
Mains voltage 1-minute	16 V	16 V	16 V	16 V	16 V	16 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
