ASA-FREQ-E-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> ASA-FREQ-E-T

ASA-FREQ-E-T: DescriptionHCMOS/TTL Output Clock Oscillator, 1MHz Min, 80MHz Max, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size1MB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASA-FREQ-E-T Overview

HCMOS/TTL Output Clock Oscillator, 1MHz Min, 80MHz Max, ROHS COMPLIANT PACKAGE-4

ASA-FREQ-E-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TRI-STATE; TAPE AND REEL
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	ASA
Installation features	SURFACE MOUNT
Maximum operating frequency	80 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS/TTL
Output load	2 TTL, 15 pF
physical size	2.0mm x 1.6mm x 0.7mm
longest rise time	10 ns
Maximum supply voltage	3.66 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

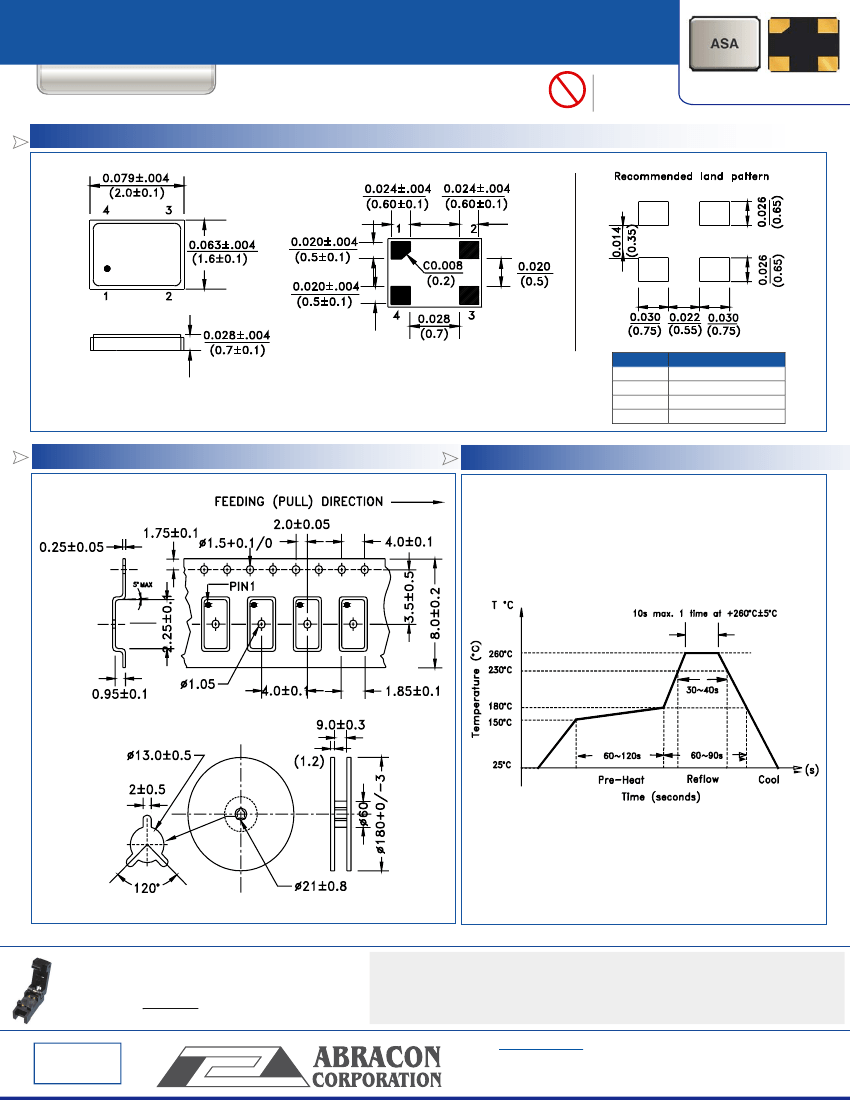

HCMOS SURFACE-MOUNT CRYSTAL CLOCK OSCILLATOR

ASA SERIES

FEATURES:

• Smallest industry package

2.0 x 1.6 x 0.7mm

•

Tri-state function

• Suitable for high density SMT

• Suitable for RoHS compliant

reflow process

• Seam sealed package assures

high reliability

APPLICATIONS:

RoHS

Compliant

2.0 X 1.6 X 0.7m m

| | | | | | | | | | | | |

| |

• CCD clock for

VTR camera

• Computers and peripherals

• Portable electronics

• Mobile communication, PDA

STANDARD SPECIFICATIONS:

Parameters

Frequency Range

Operating Temperature

Storage Temperature

Overall Frequency Stability*

Supply Voltage (Vdd)

Supply Current (I

)

Output Load

Output Voltage

Tri-state function

Aging

Symmetry @1/2Vdd

Start-up Time

Rise/Fall Time (Tr/Tf)

Minimum

1.0

-10

-40

-50

2.97

2.25

1.62

-----

0.9*Vdd

-----

2.4

-----

-3.0

-----

Typical

-----

3.3

2.5

1.8

5.0

8.0

-----

Maximum

+60

+85

+50

3.66

2.75

1.98

-----

0.1*Vdd

-----

0.4

+3.0

10.0

Units

MHz

°C

ppm

TTL

Notes

See options

Standard

Option 1 (CMOS )

Option 2 (CMOS)

20 MHz @3.3V

50 MHz @3.3V

"1" (VIH≥0.7*Vdd) : Oscillation

"0" (VIH<0.3*Vdd) : Hi Z

ppm

CMOS

TTL

Pin 1 must be pulled

“high” for oscillation

@+25°C First year

Standard

Option S

*Overall frequency stability includes initial frequency tolerance @+25°C and stability over the operating temperature.

(Left blank if standard)

OPTIONS AND PART IDENTIFICATION:

ASA

MHz -

Packaging

Blank: Bulk

T: Tape & Reel

Supply Voltage

Blank: 3.3±0.1V

1: 2.5±0.1V

2: 1.8±0.1V

Frequency in MHz

Please specify the

frequency in MHz.

e.g. 14.31818MHz

Operating Temp.

Blank: -10°C ~ +60°C

E: -20°C ~ +70°C

L: -40°C ~ +85°C

Overall Freq. Stability

Blank: ±50ppm

R**: ±25ppm

K***: ±30 ppm

Blank: 40/60% @1/2Vdd

S: 45/55% @1/2Vdd

Symmetry

**Available for -10 to +60°C only

***Available for -10 to +60°C, option E only

Contact Abracon for tighter frequency stability options

ABRACON IS

ISO9001:2008

CE RTIFIED

Revised: 01.11.11
