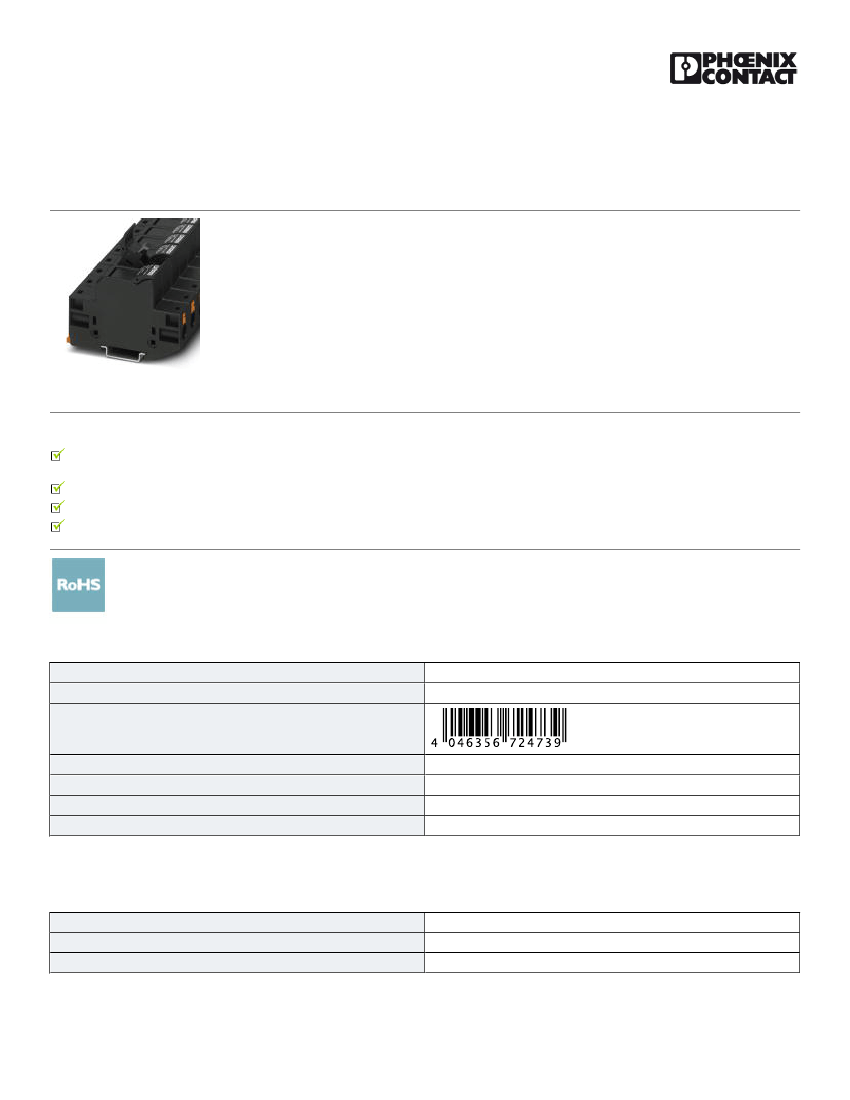

Fuse modular terminal block - PT 10,3-HESILED 1000V - 3062143
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Fuse modular terminal block, Connection method: Push-in connection, Cross section: 1.5 mm²- 10 mm²,
AWG: 16 - 6, Nominal current: 20 A, Nominal voltage: 1000 V, Width: 17.6 mm, Fuse type: Midget / 10.3 x 38,
Mounting type: NS 35/7,5, NS 35/15, Color: black
The illustration shows the version
without LED/light indicator
Why buy this product
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring
of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Dielectric strength up to 1000 V DC
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4046356724739
54.000 g
85369095
China
1 STK
10 STK
Technical data
General
Number of levels
Number of connections
Nominal cross section
1
2
10 mm²
02/10/2017 Page 1 / 15
https://www.phoenixcontact.com/us/products/3062143
Fuse modular terminal block - PT 10,3-HESILED 1000V - 3062143
Technical data
General
Color
Insulating material
Flammability rating according to UL 94
Fuse
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation
LED voltage range
Connection in acc. with standard
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
black
PA
V0
Midget / 10.3 x 38
6 kV
3
III
IIIa
3 W (Fuse insert)
250 V AC ... 1000 V AC
IEC 60269-1/-2
20 A (the current is determined by the fuse used)
20 A (the current is determined by the fuse used)
1000 V (the voltage is determined by the fuse used)
No
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
17.6 mm
87 mm
63 mm
70.5 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Connection method
Stripping length
1.5 mm²
10 mm²
1.5 mm²
10 mm²
16
6
1.5 mm²
10 mm²
1.5 mm²
10 mm²
Push-in connection
18 mm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60269-1/-2
V0
02/10/2017 Page 2 / 15
https://www.phoenixcontact.com/us/products/3062143
Fuse modular terminal block - PT 10,3-HESILED 1000V - 3062143
Technical data
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141118
27141118
27141118
27141116
27141116
27141116
27141116
27141116
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC000899
EC000899
EC000899
EC000899
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
02/10/2017 Page 3 / 15
https://www.phoenixcontact.com/us/products/3062143
Fuse modular terminal block - PT 10,3-HESILED 1000V - 3062143
Approvals
Approvals
UL Listed
Ex Approvals
Approval details
UL Listed
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
16-6
32 A
1000 V
FILE E 353282
Accessories
Accessories
Bridge
Connection pin - VS-PT 10,3-HESI 16 - 3062157
Connection pin, for combining multiple safety levers. Used with fuse carriers without spacer.
Connection pin - VS-PT 10,3-HESI 20 - 3062158
Connection pin, for combining multiple safety levers. Used with fuse carriers with spacer.
DIN rail
02/10/2017 Page 4 / 15
https://www.phoenixcontact.com/us/products/3062143
Fuse modular terminal block - PT 10,3-HESILED 1000V - 3062143
Accessories

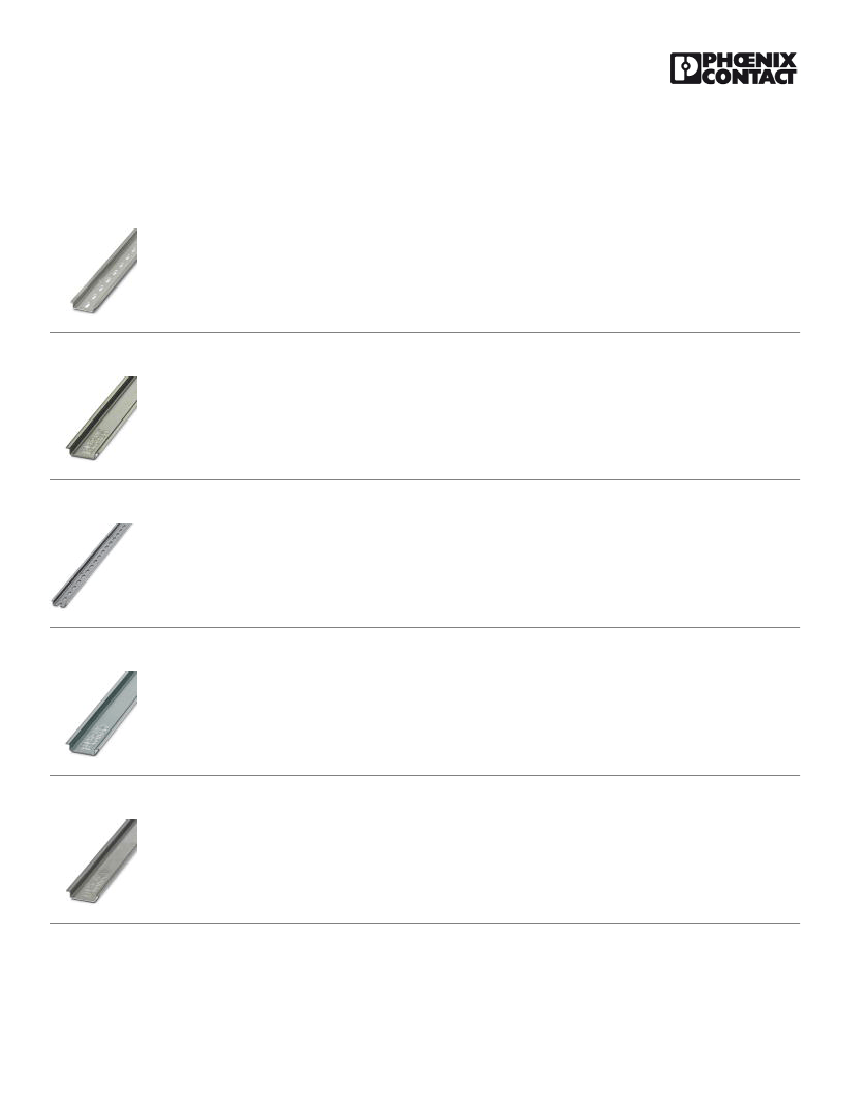

DIN rail perforated - NS 35/ 7,5 PERF 2000MM - 0801733
DIN rail, material: steel galvanized and passivated with a thick layer, perforated, height 7.5 mm, width 35 mm, length:
2000 mm
DIN rail, unperforated - NS 35/ 7,5 UNPERF 2000MM - 0801681
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail perforated - NS 35/ 7,5 WH PERF 2000MM - 1204119
DIN rail 35 mm (NS 35)
DIN rail - NS 35/ 7,5 WH UNPERF 2000MM - 1204122
DIN rail 35 mm (NS 35)
DIN rail, unperforated - NS 35/ 7,5 AL UNPERF 2000MM - 0801704
DIN rail, unperforated, Width: 35 mm, Height: 7.5 mm, Length: 2000 mm, Color: silver
02/10/2017 Page 5 / 15
