tSs-mi-donduckoi ^Pioaucta, One.
20 STERN AVE.
SPRINGFIELD, NEW JERSEY 07081
U.S.A.

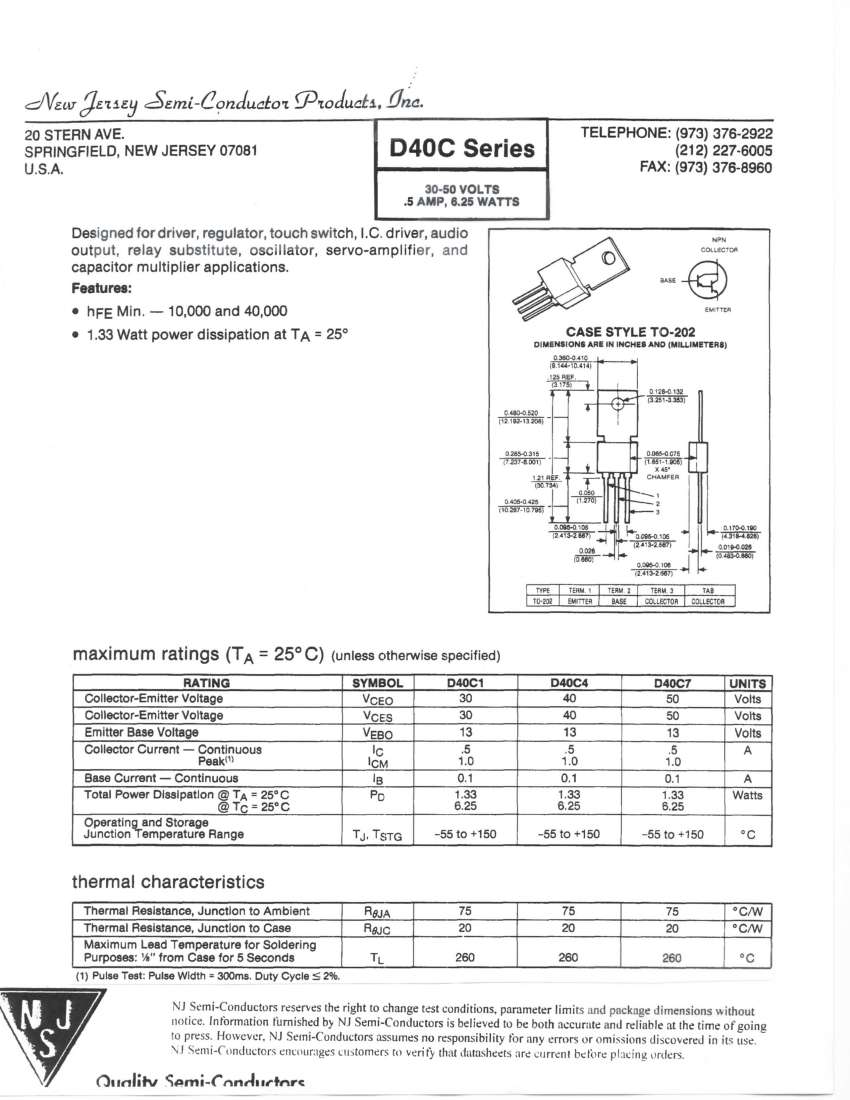

D40C Series
30-50 VOLTS
.5 AMP, 6.25 WATTS
TELEPHONE: (973) 376-2922
(212)227-6005
FAX: (973) 376-8960
Designed for driver, regulator, touch switch, I.C. driver, audio
output, relay substitute, oscillator, servo-amplifier, and
capacitor multiplier applications.
Features:
• hFE Min. — 10,000 and 40,000
NFN
COLLECTOR
• 1.33 Watt power dissipation at TA = 25°
CASE STYLE TO-202
DIMENSIONS ARE IN INCHES AND (MILLIMETER*)
0.360-0.410
TYPE
TO-202
TERM. 1
EMIT^E*
TERM 2
BASE
TE«M. 3
COLLECTOR
TAB
COLLECTOR
maximum ratings (T
A
= 25° C) (unless otherwise specified)
RATING
Collector-Emitter Voltage
Collector-Emitter Voltage
Emitter Base Voltage
Collector Current — Continuous
Peak'
1
>
Base Current — Continuous
Total Power Dissipation @ T^ = 25° C
@T
C
= 25°C
Operating and Storage
Junction Temperature Range
SYMBOL
D40C1
30
30
VCEO
VCES
VEBO
'CM
IB
PD
TJ, TSTG
13
.5
1.0
0.1
1.33
6.25
-55 to +150
D40C4
40
40
13
.5
1.0
0.1
1.33
6.25
-5510+150
040C7
50
50
13
.5
1.0
0.1
1.33
6.25
-55to+150
UNITS
Volts
Volts
Volts
A
A
Watts
°C
thermal characteristics
Thermal Resistance, Junction to Ambient
Thermal Resistance, Junction to Case
Maximum Lead Temperature tor Soldering
Purposes:
W
from Case for 5 Seconds
(1) Pulse Test: Pulse Width = 300ms. Duty Cycle < 2%.
R0JA
RffJC
75
20
260
75
20
260
75
20
260
"C/W
°C/W
°C
T
L
NJ Semi-Conductors reserves the right to change test conditions, parameter limits and package dimensions without
notice. Information furnished b> NJ Semi-Conductors is believed to be both accurate and reliable at the time of going
to press. However, NJ Semi-Conductors assumes no responsibility for any errors or omissions discovered in its use.
NJ Semi-Conductors encourages customers to verify that datasheets are current before placing orders.
Qurtllh/

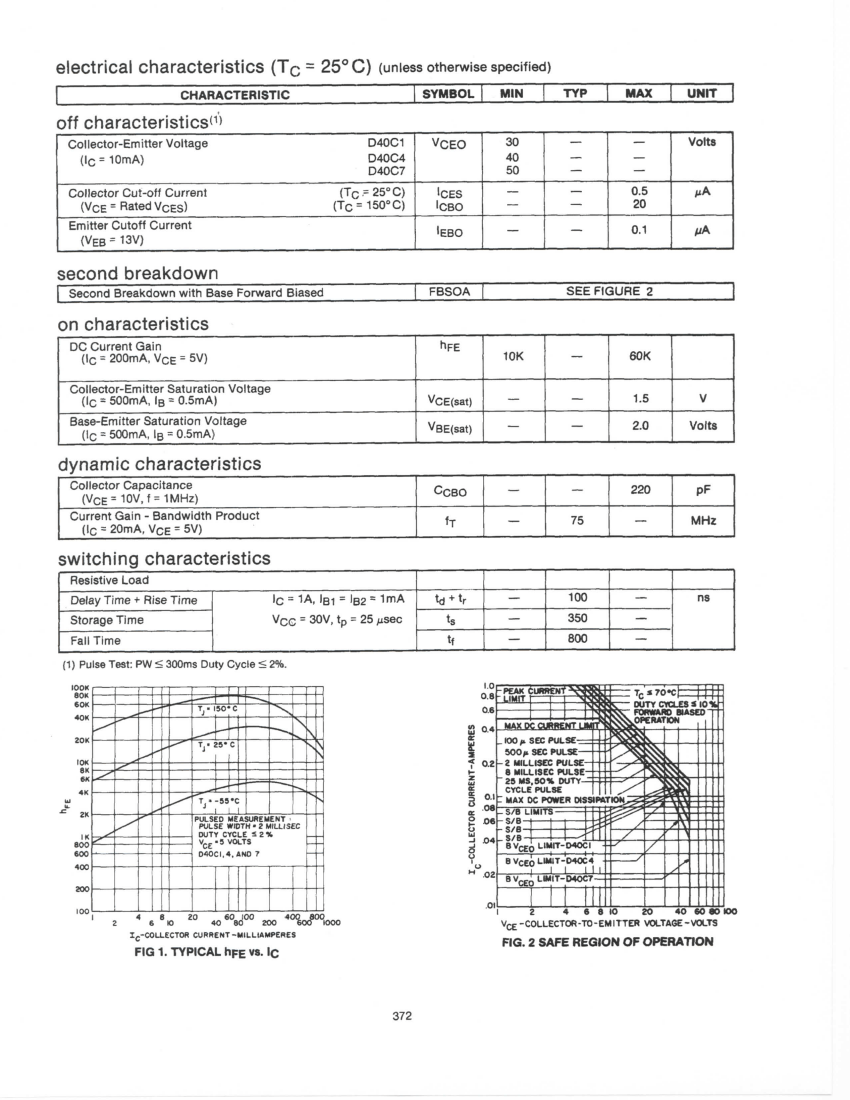

electrical Characteristics (Tc= 25° C) (unless otherwise specified)
CHARACTERISTIC
SYMBOL
WIN
TYP
MAX
UNIT
off characteristics
11
*
Collector-Emitter Voltage
(l
c
= 10mA)
Collector Cut-off Current
(V
C
E = Rated VCES)
Emitter Cutoff Current
(V
E
B=13V)
D40C1
D40C4
D40C7
(Tc = 25° C)
(T
c
= 1 50° C)
VCEO
ICES
ICBO
IEBO
30
40
50
Volts
—
—
—
—
0.5
20
0.1
"A
*A
—
—
second breakdown
| Second Breakdown with Base Forward Biased
FBSOA
SEE FIGURE 2
on characteristics
DC Current Gain
(l
c
= 200mA, VCE = 5V)
Collector-Emitter Saturation Voltage
(lc = 500mA, IB = 0.5mA)
Base-Emitter Saturation Voltage
(l
c
= 500mA, I
B
= 0.5mA)
r»FE
10K
—
60K
VCE(sat)
v
BE(sat)
—
—
—
—
1.5
2.0
V
Volts
dynamic characteristics
Collector Capacitance
(V
C
E = 10V, f =1MHz)
Current Gain - Bandwidth Product
(I
C
= 20mA, VCE = 5V)
CCBO
—
—
—
75
220
—
pF
h
MHz
switching characteristics
Resistive Load
Delay Time + Rise Time
Storage Time
Fall Time
(1) Pulse Test: PW < 300ms Duty Cycle < 2%.
IOOK
80K
6 OK
lc = 1A, IBI = iB2 =
1mA
VCG = 30V, tp = 25
M
sec
td + tr
—
—
—
100
350
800
—
—
—
ns
t.
tf
20K
I OK
8K
6K
IK
800
£00
PULSED MEASUREMENT
PULSE WIOTH •
2
MILLISEC
DUTY CYCLE S 2 %
c£
-5 VOLTS
040CI.4. ANO 7
200
°
2
6O :00
IOC 800
8d
200
^OOIOOO
I
C
-COLLECTOR CURRENT-MILLIAMPERES
6
K>
40
4
6
20
4
6
* tO
20
«0
60 80 100
VCE-COLLECTOR-TO-EMITTER
VOLTAGE-VOLTS
FIG 1. TYPICAL hp
E
vs. lc
FIG. 2 SAFE REGION OF OPERATION
372
