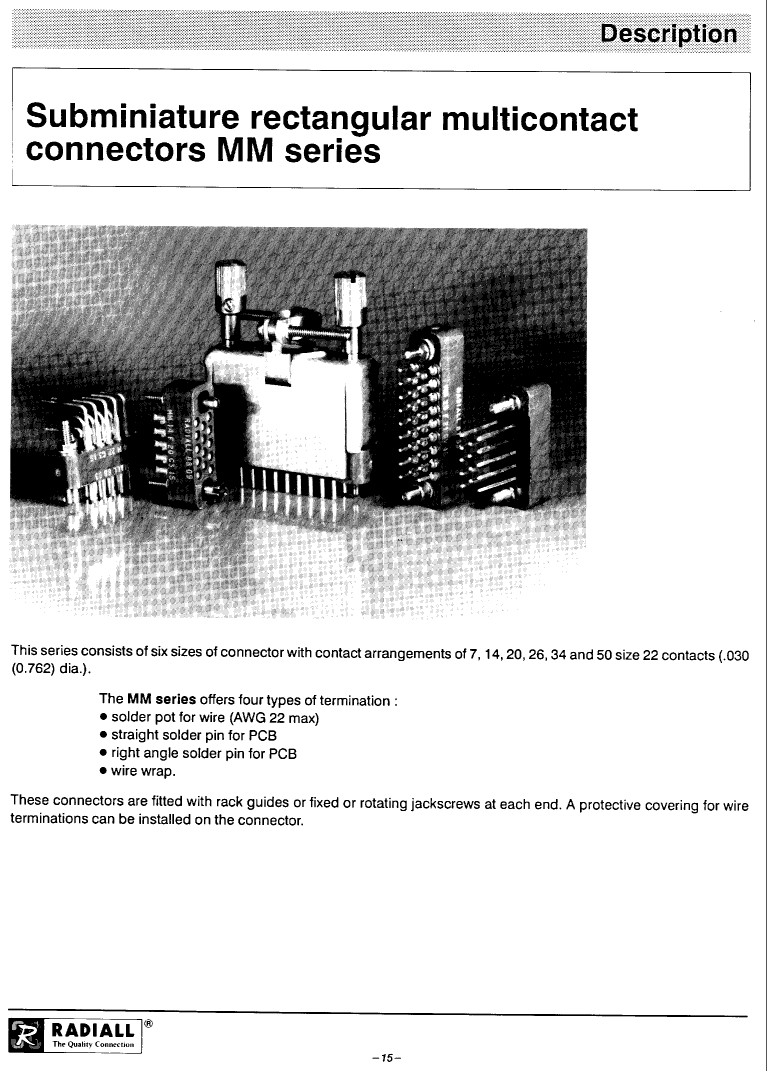

Rectangular Connector, 14 Contact(s), Male, 0.094 inch Pitch, Receptacle
| Parameter Name | Attribute value |
| Maker | Radiall |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | SHORT ROTATING JACKSCREWS |
| Board mount options | HOLE .086-.098 |

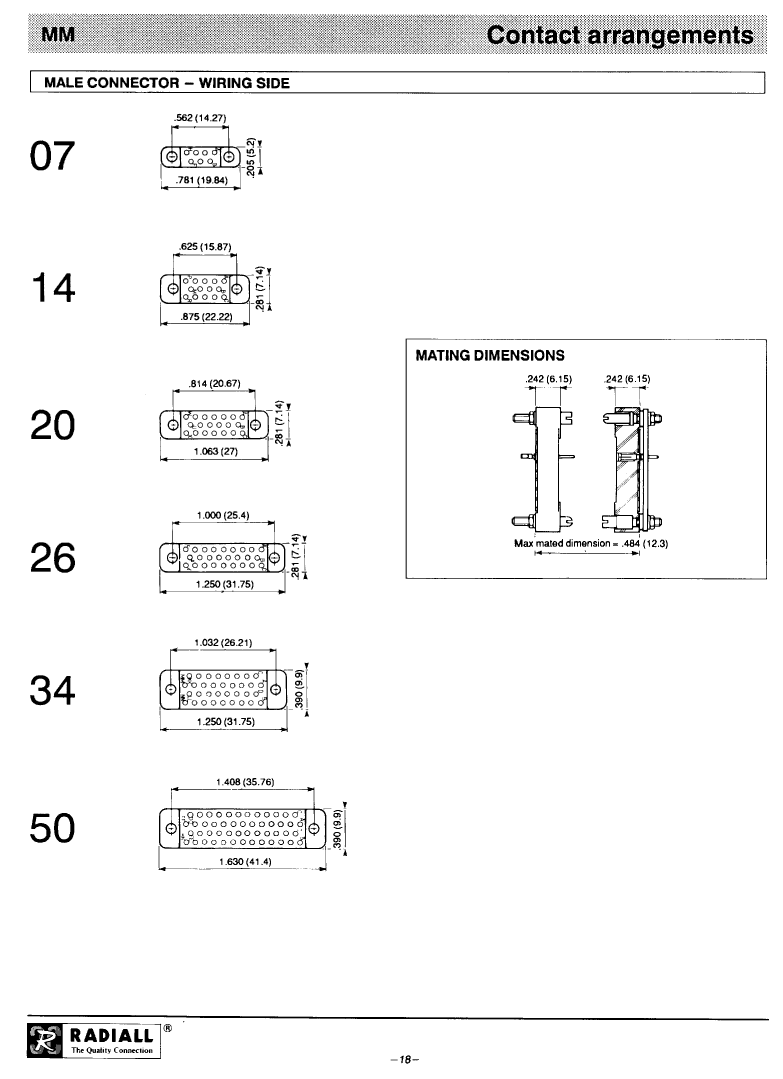

| body width | 0.281 inch |
| subject depth | 0.242 inch |
| body length | 0.875 inch |
| Body/casing type | RECEPTACLE |
| Connector type | RECTANGULAR CONNECTOR |
| Contact to complete cooperation | GOLD OVER NICKEL |
| Contact completed and terminated | GOLD OVER NICKEL |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | STAGGERED |

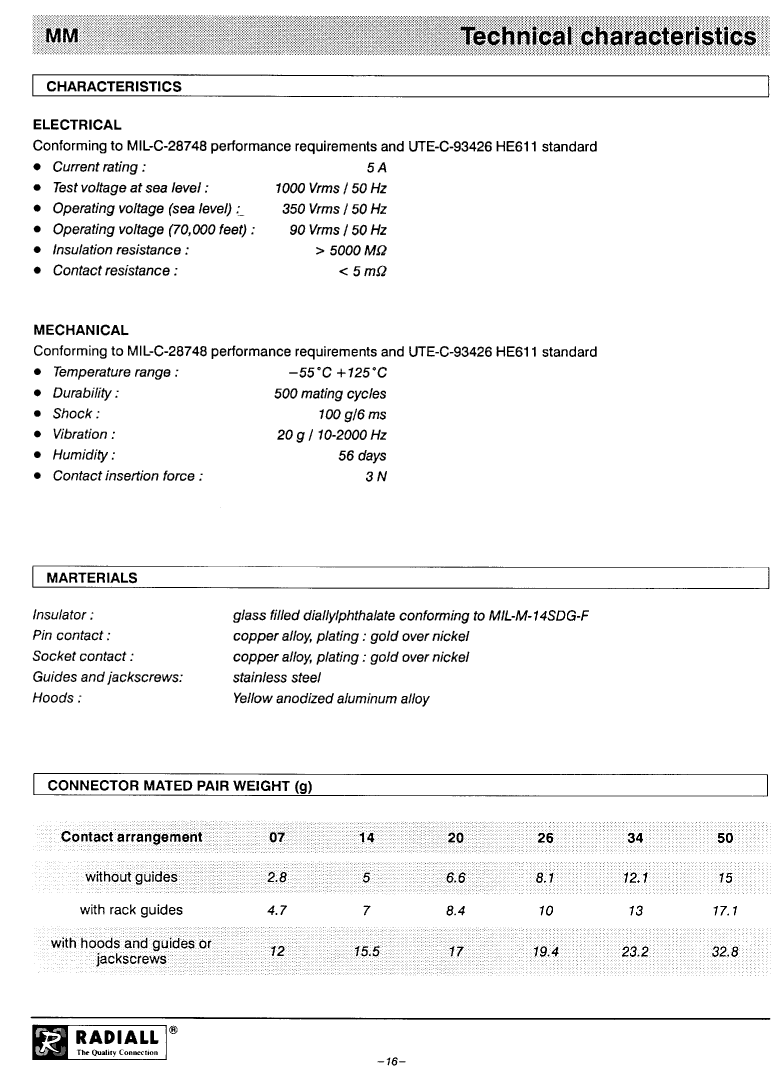

| Contact resistance | 5 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Durability | 500 Cycles |
| IEC compliance | NO |
| Insulation resistance | 5000000000 Ω |
| insulator material | GLASS FILLED DIALLYL PHTHALATE |
| JESD-609 code | e4 |
| MIL compliance | NO |

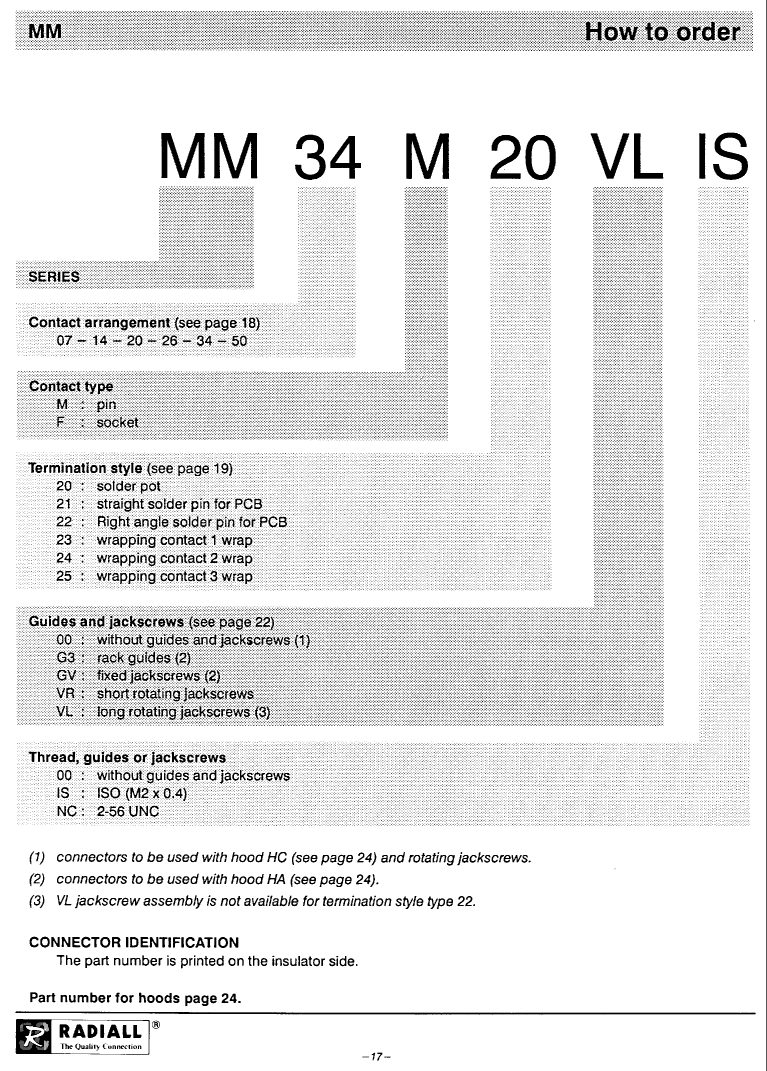

| Manufacturer's serial number | MM |
| Plug contact pitch | 0.094 inch |
| Match contact row spacing | 0.081 inch |
| Installation option 1 | #2-56 |
| Installation option 2 | JACKSCREW |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.0574 mm |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 5 A |
| reliability | MIL-C-28748 |
| Terminal length | 0.571 inch |
| Terminal pitch | 2.3876 mm |

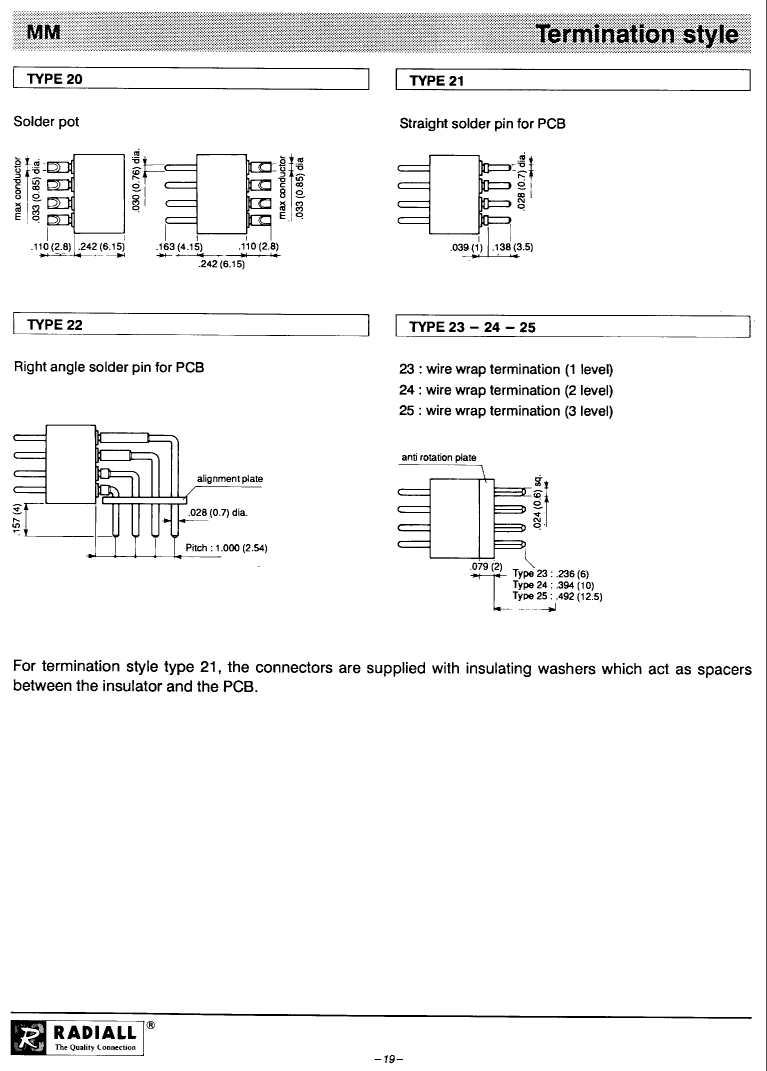

| Termination type | WIRE WRAP |
| Total number of contacts | 14 |
