LQG21C220N00B1: DescriptionGeneral Purpose Inductor, 22uH, 30%, 1 Element, Ferrite-Core, SMD, CHIP, 0805; CategoryPassive components inductor; File Size50KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

LQG21C220N00B1 Overview

General Purpose Inductor, 22uH, 30%, 1 Element, Ferrite-Core, SMD, CHIP, 0805

LQG21C220N00B1 Parametric

Parameter Name	Attribute value
Maker	Murata
package instruction	CHIP, 0805
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.65 Ω
Nominal inductance(L)	22 µH
Inductor Applications	FILTER CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	0.85 mm
Package length	2 mm
Package form	SMT
Package width	1.25 mm
Maximum rated current	0.013 A
self resonant frequency	16 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

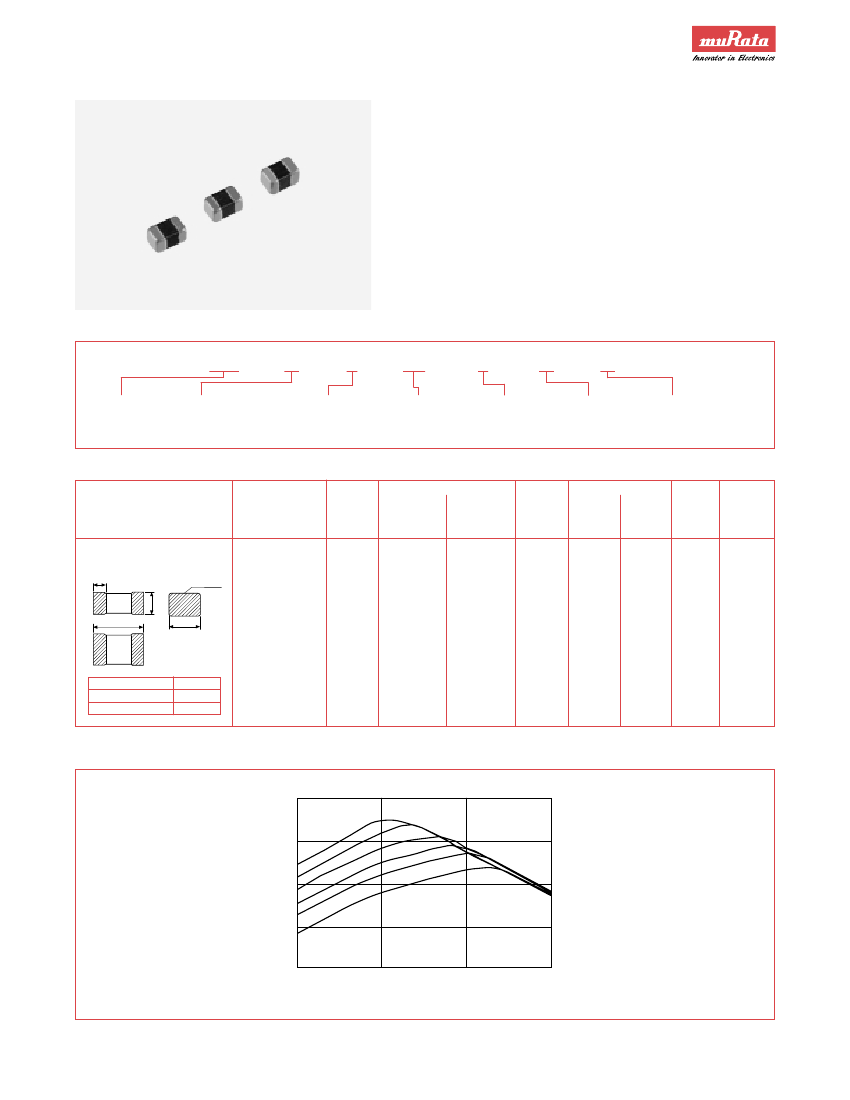

SURFACE MOUNT INDUCTORS

CHIP INDUCTORS

LQG21C Series

The LQG21C Series is a magnetically shielded chip coil developed

with Murata’s expertise in multilayer process technology and magnetic

materials. With less than half the DC resistance of our conventional

monolithic chip coils, it still achieves high inductance values.

FEATURES

The inductor has ultra low DC resistance.

This series covers an inductance range from 1.0 H to 47 H.

Magnetically shielded construction provides excellent

crosstalk characteristics.

Compact (2.0mm x 1.25mm) and light weight

Low inductance drift during soldering, environmental tests, etc.

Outstanding solder heat resistance. Either flow or reflow soldering

APPLICATIONS

Low current power line (for choke use)

PART NUMBERING SYSTEM

LQG

MONOLITHIC

CHOKE

APPLICATIONS

1R0

INDUCTANCE

1R0: 1 H

100: 10 H

TOLERANCE

N: ±30%

ELECTRODE

MATERIAL

AG + Ni + Sn

PACKAGING

T1 = Tape

B1 = Bulk

SIZE

21: 2.0 x 1.25mm (0805)

SPECIFICATIONS

Dimensions: mm

Part Number

Nominal

Value

( H)

Inductance

______________________________

Tolerance

Measurement Resistance

Frequency

(Ohms max.)

(MHz)

Self-resonant Frequency

______________________

Typical

(MHz)

Minimum

(MHz)

Allowable

Current

(mA)

Operating

Temp.

Range

0805

0.5 ± 0.3

Electrode

2.0 ± 0.3

1.25 ± 0.2

LQG21C1R0N00

1.0

____________________________

LQG21C2R2N00

2.2

____________________________

0.10

150

_______________________________________

0.17

100

_______________________________________

±30%

0.30

_______________________________________

0.50

_______________________________________

0.65

_______________________________________

1.20

—

7.5

–40°C

+85°C

4.7

____________________________

LQG21C100N00

____________________________

LQG21C4R7N00

Part Number

LQG21C1R0N~100N

LQG21C220N~470N

0.85 ± 0.2

1.25 ± 0.2

LQG21C220N00

____________________________

LQG21C470N00

Available as standard through authorized Murata Electronics Distributors.

TYPICAL IMPEDANCE FREQUENCY CHARACTERISTICS

10000

1000

Impedance (Ohms)

100

4.7

2.2

1.0

Frequency (MHz)

100

1000

230

CG01-J

LQG21C220N00B1 Related Products

	LQG21C220N00B1	LQG21C100N00T1	LQG21C4R7N00T1	LQG21C4R7N00B1	LQG21C470N00T1	LQG21C2R2N00T1	LQG21C2R2N00B1	LQG21C100N00B1	LQG21C220N00T1	LQG21C1R0N00B1
Description	General Purpose Inductor, 22uH, 30%, 1 Element, Ferrite-Core, SMD, CHIP, 0805	General Purpose Inductor, 10uH, 30%, 1 Element, Ferrite-Core, SMD, CHIP, 0805	General Purpose Inductor, 4.7uH, 30%, 1 Element, Ferrite-Core, SMD, CHIP, 0805	General Purpose Inductor, 4.7uH, 30%, 1 Element, Ferrite-Core, SMD, CHIP, 0805	General Purpose Inductor, 47uH, 30%, 1 Element, Ferrite-Core, SMD, CHIP, 0805	General Purpose Inductor, 2.2uH, 30%, 1 Element, Ferrite-Core, SMD, CHIP, 0805	General Purpose Inductor, 2.2uH, 30%, 1 Element, Ferrite-Core, SMD, CHIP, 0805	General Purpose Inductor, 10uH, 30%, 1 Element, Ferrite-Core, SMD, CHIP, 0805	General Purpose Inductor, 22uH, 30%, 1 Element, Ferrite-Core, SMD, CHIP, 0805	General Purpose Inductor, 1uH, 30%, 1 Element, Ferrite-Core, SMD, CHIP, 0805
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown	unknown	unknown	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.65 Ω	0.5 Ω	0.3 Ω	0.3 Ω	1.2 Ω	0.17 Ω	0.17 Ω	0.5 Ω	0.65 Ω	0.1 Ω
Nominal inductance(L)	22 µH	10 µH	4.7 µH	4.7 µH	47 µH	2.2 µH	2.2 µH	10 µH	22 µH	1 µH
Inductor Applications	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE	FILTER CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rated current	0.013 A	0.015 A	0.03 A	0.03 A	0.007 A	0.04 A	0.04 A	0.015 A	0.013 A	0.06 A
self resonant frequency	16 MHz	24 MHz	35 MHz	35 MHz	7.5 MHz	50 MHz	50 MHz	24 MHz	16 MHz	75 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz
Tolerance	30%	30%	30%	30%	30%	30%	30%	30%	30%	30%
Maker	Murata	-	Murata	Murata	Murata	Murata	Murata	Murata	Murata	Murata
package instruction	CHIP, 0805	-	-	CHIP, 0805	CHIP, 0805	CHIP, 0805	CHIP, 0805	-	CHIP, 0805	CHIP, 0805
Package height	0.85 mm	-	0.85 mm	0.85 mm	0.85 mm	0.85 mm	0.85 mm	0.85 mm	0.85 mm	0.85 mm
Package length	2 mm	-	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Package form	SMT	-	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	1.25 mm	-	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm
