TERMINATION
TAB & COVER 500 WATT
DATA SHEET
FEATURES
Wide Band Response
High Power
Direct Attached
Low VSWR
Easy installation
Excellent Heat Transfer
PART SERIES: 82A3209TCF
APPLICATIONS
Mobile Networks
Broadcast
High Power Amplifiers
Isolators
Military
Instrumentation
SHEET 1 OF 2
Dwg 82A3209TCF
EN 13-3434
Revision-
GENERAL DESCRIPTION

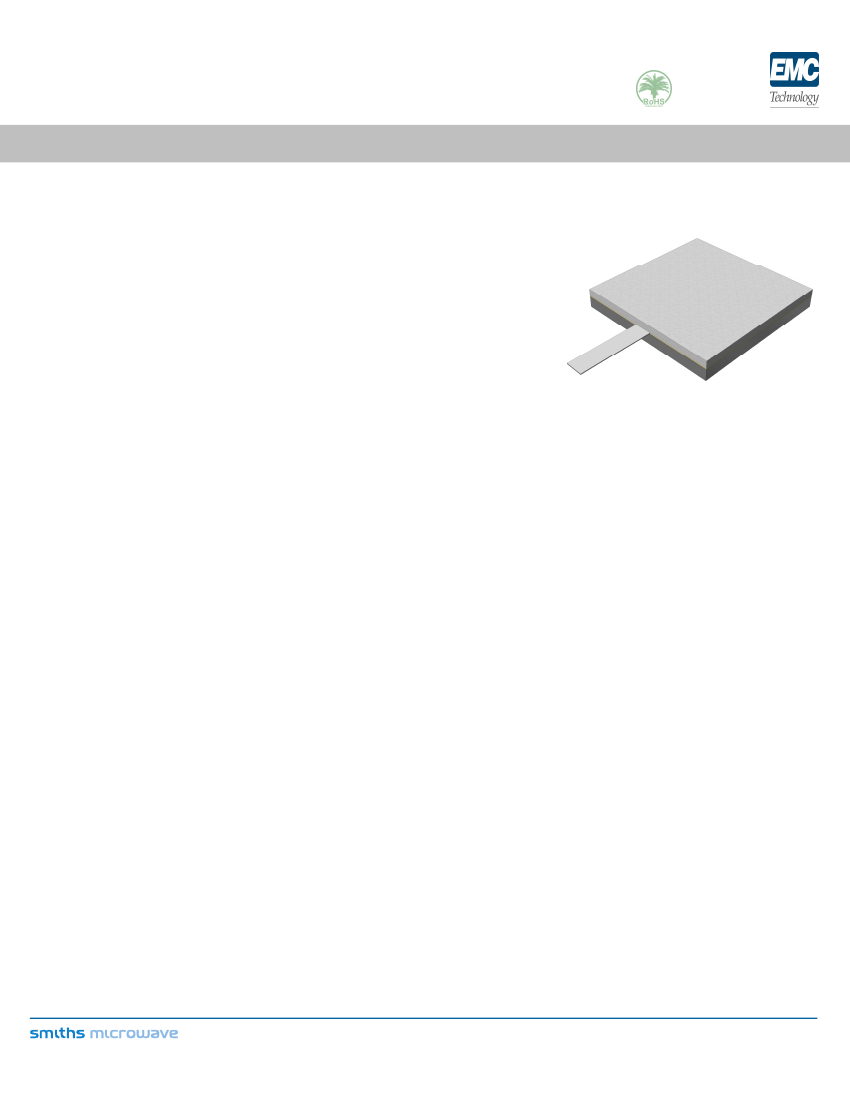

EMC Technology offers the widest selection of flangeless terminations worldwide.
Tab and cover components offer the highest performance of any style of termination
component.
ORDERING INFORMATION
Part Identifier:
82A3209TCF
SPECIFICATIONS
1.0 ELECTRICAL
Nominal Impedance:
Frequency Range:
VSWR:
Input Power CW:
Peak Power:
DC Resistance:
50 ohms
DC - 2.5 GHz
1.25 Max @ DC – 2.0 GHz
1.50 Max @ 2.0 – 2.5 GHz
500
5000
50
Ω
± 5%
2.0 ENVIRONMENTAL
Operating Temperature:
Non-operating Temperature:
Temperature Coefficient:
-55˚C to +150˚C
-65˚C to +150˚C
+/-200 PPM / ˚C max
3.0 MARKING
Unit Marking:
EMC Logo and Part Number
4.0 QUALITY ASSURANCE
Visual and Mechanical Inspection:
DC Resistance Check:
Data Retention:
Per 824W107
100% DC Resistance Check
Standard
5.0 PACKAGING
Standard Packaging:
Tray
Form 423F102 Rev -
Cage Codes: 24602 / 2Y194
Specifications are Subject to Change Without Notice
www.emc-rflabs.com • +1 772-286-9300
AS 9100, ISO 9001 and 14001 Certified
TERMINATION
TAB & COVER 500 WATT
DATA SHEET
PART SERIES: 82A3209TCF
SHEET 2 OF 2
Dwg 82A3209TCF
EN 13-3434
Revision-
6.0 MECHANICAL
Substrate Material:
Resistive Film:
Cover Material:
Tab Material:
Tab Finish:
Metric Dimensions:
Beryllium Oxide
Thin Film
Alumina
Beryllium Copper
Silver
Provided for reference only
100%
RATED
50%
POWER
SAFE OPERATING AREA
0%
-55
0
85
125
150
TEMPERATURE IN °C
.068
[1.72mm]
.500
[12.70mm]
.500
[12.70mm]
.250
[6.35mm]
.040
[1.02mm]
.003
[0.08mm]
.060
[1.52mm]
.220
[5.59mm]
Unless Otherwise Specified:
TOLERANCE: X.XX = ± 0.01
X.XXX = ± 0.005
Form 423F102 Rev -
Cage Codes: 24602 / 2Y194
Specifications are Subject to Change Without Notice
www.emc-rflabs.com • +1 772-286-9300
AS 9100, ISO 9001 and 14001 Certified
