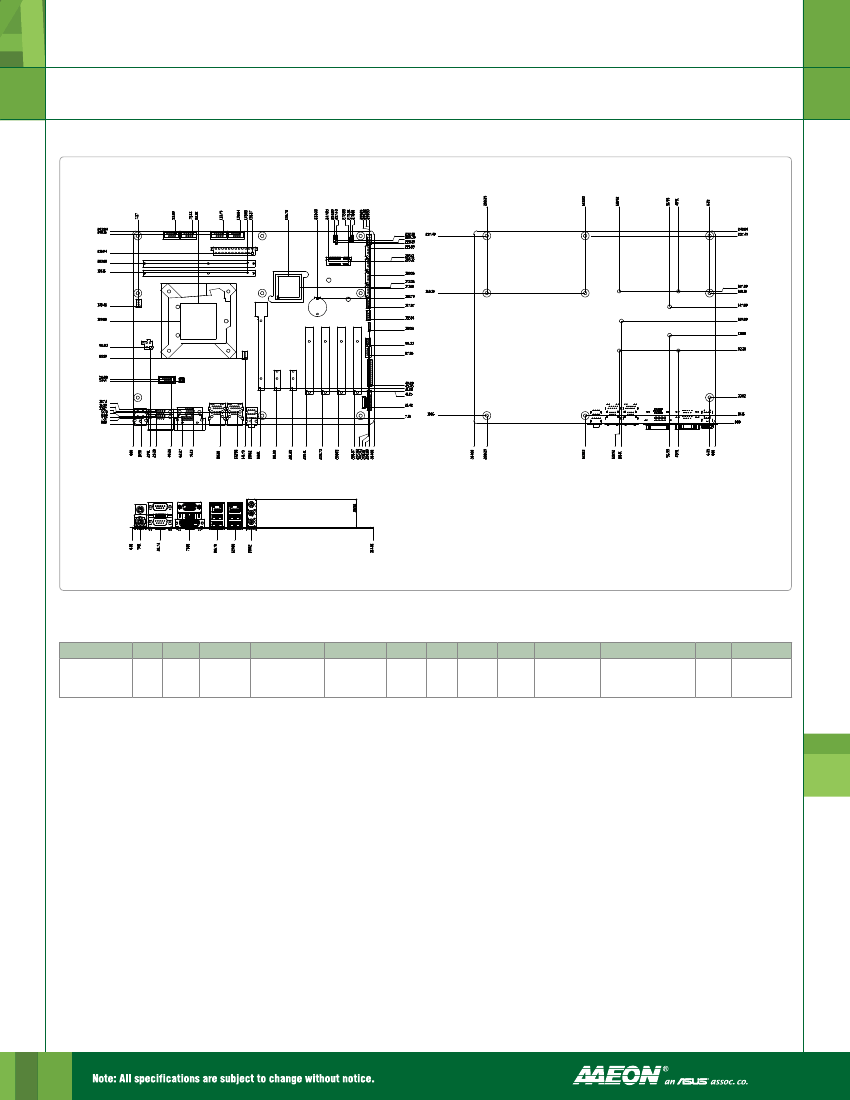

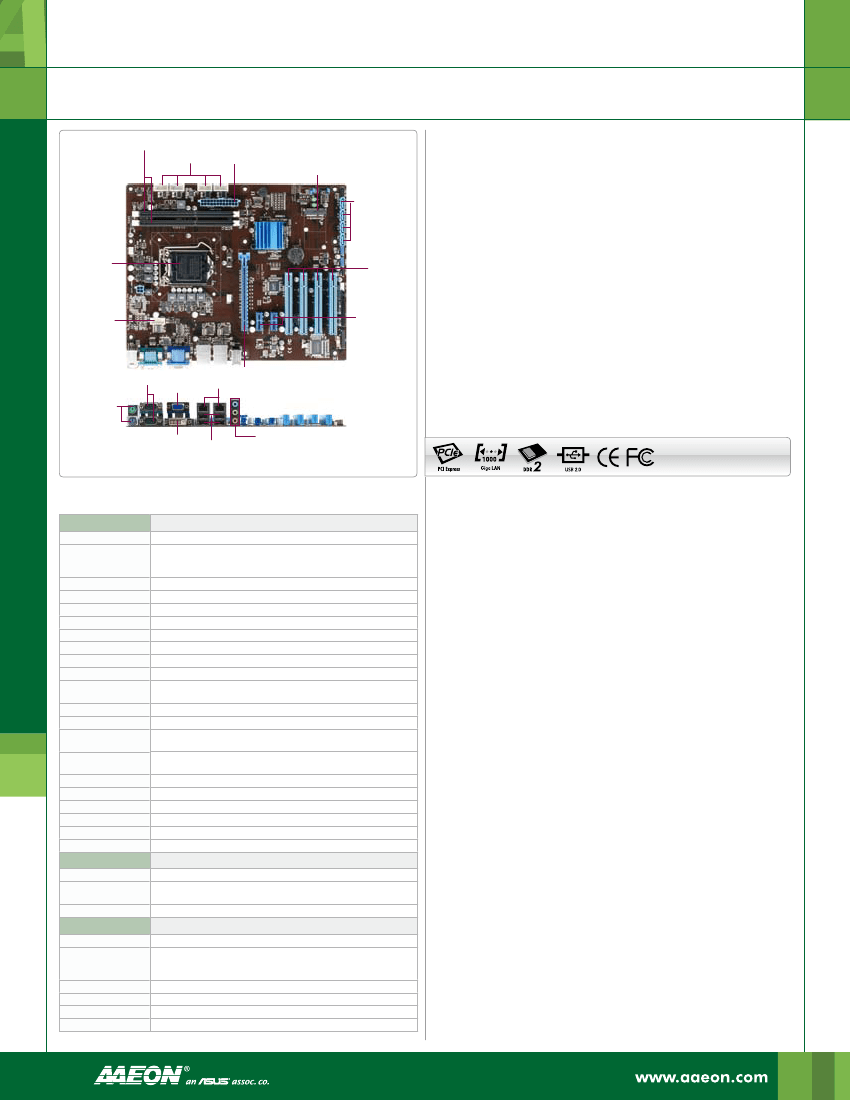

IMBA-H61A
10
Embedded & Industrial Motherboards
ATX Industrial Motherboard with Intel® 2nd/3rd Generation Core™ i7/ i5/ i3/ Pentium® Processor
DDR3 DIMM x 2
COM x 4
ATX Power
Mini Card
Features
■
■
Intel® Socket 1155 for 2nd/3rd Generation Core™ Processor
■
■
Intel® H61 Express Chipset
SATA x 4
■
■
DDR3 1066/1333
PCI x 4
Intel® Socket
1155 for 2nd/3rd
Generation
Core™ Processor
PCI x 4
MHz DIMM x 2, Max. 16GB
■
■
VGA, DVI Dual Independent Display
■
■
Realtek RTL8111F x 2, Gigabit Ethernet x 2
■
■
PCI-E [x16] x 1, PCI-E [x1] x 2, PCI x 4, Mini Card x 1
PCI-Express
[x1] x 2
COM
K/B + Mouse
Mini-Din
VGA
PCI-Express [x16] x 1
RJ-45 x 2
DVI
Audio
USB x 4
Specifications
System
Form Factor
Processor
System Memory
Chipset
I/O Chipset
Ethernet
BIOS
Wake On LAN
Watchdog Timer
TPM
H/W Status Monitoring
Expansion Interface
Battery
Power Requirement
Power Consumption
(Typical)
Board Size
Gross Weight
Operation Temperature
Storage Temperature
Operation Humidity
MTBF (Hours)
ATX
LGA1155 socket for Intel® 2nd/3rd Generation Core™ i7/ i5/ i3/ Pentium®/
Celeron® Processors, Supports Intel® 32 nm CPU up to 35W. (65W CPU
supported without Turbo Boost mode)
DIMM x 2, Max. 16GB, DDR3 1333/1066 MHz Non-ECC, Un-buffered Memory
Intel® H61 Express Chipset
NCT6776F
Realtek 8111F, Gigabit Ethernet, RJ-45 x 2
64Mbit Flash ROM, AMI BIOS
Yes (WOL / PXE)
1~255 steps by software program
Yes, FW3.19
Temperature Monitor on CPU/System,
Voltage Monitor on Vcore/5V/VBAT/12V, Fan Monitor on CPU/ Chassis
PCI-E [x16] x 1, PCI-E [x1] x 2, PCI x 4, Mini Card x 1
Lithium battery
24-pin ATX connector x 1
4-pin ATX 12V Power connector x 1
Intel® Celeron® CPU G460, DDR3 1600 DIMM 8GB
0.52A@12V; 0.97A@5V; 1.13A@3.3V
12”x 9.6” (305mm x 244mm)
1.45 lb (0.66 Kg)
32°F ~ 140°F (0°C ~ 60°C)
-40°F ~ 185°F (-40°C ~ 85°C)
0% ~ 90% RH, non-condensing
136,599
Intel® Graphics Media Accelerator
Up to 1920 x 1200 @60 Hz for VGA
Up to 1920 x 1200 @60 Hz for DVI
VGA, DVI
SATA 3.0Gb/s x 4
RS-232/422/485 x 1 (COM1)(on back panel)
RS-232 x 1 (on back panel)
RS-232 x 4 (internal connector)
USB2.0 x 9 (5 on mid-board, 4 on back panel)
8-bit programmable (4-in/4-out)
Keyboard/Mouse with PS/2 connector x 1
Line-in, Mic-in, Line-out
Packing List
•
I/O Shield
•
SATA Cable x 2
•
COM Cable
•
Product CD
•
IMBA-H61A
Display
Graphic Engine
Resolution
Output Interface
I/O
Storage
Serial Port
Universal Serial Bus
Digital I/O
PS/2 Port
Audio
10-45
