FTE-142-02-G-DH datasheet, PDF

Datasheet> All Categories > The connector> The connector> FTE-142-02-G-DH

FTE-142-02-G-DH: DescriptionBoard Connector, 84 Contact(s), 2 Row(s), Male, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size194KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FTE-142-02-G-DH Overview

Board Connector, 84 Contact(s), 2 Row(s), Male, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

FTE-142-02-G-DH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	84 Position, 0.80 mm Surface Mount Micro Terminal Strip, Horizontal Mount
Other features	LOW PROFILE
body width	0.164 inch
subject depth	0.055 inch
body length	1.323 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	FTE
Plug contact pitch	0.031 inch
Match contact row spacing	0.047 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	84
Evacuation force-minimum value	4.448 N

Preview

Download Datasheet

View All

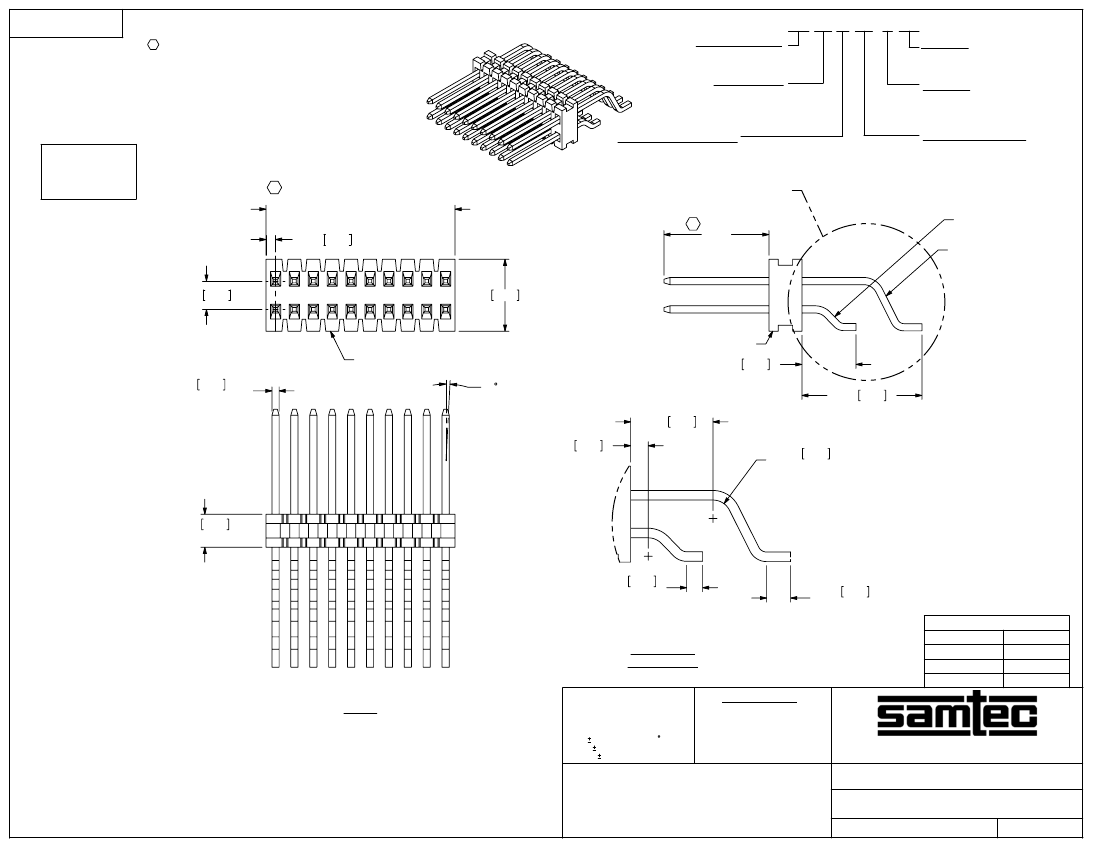

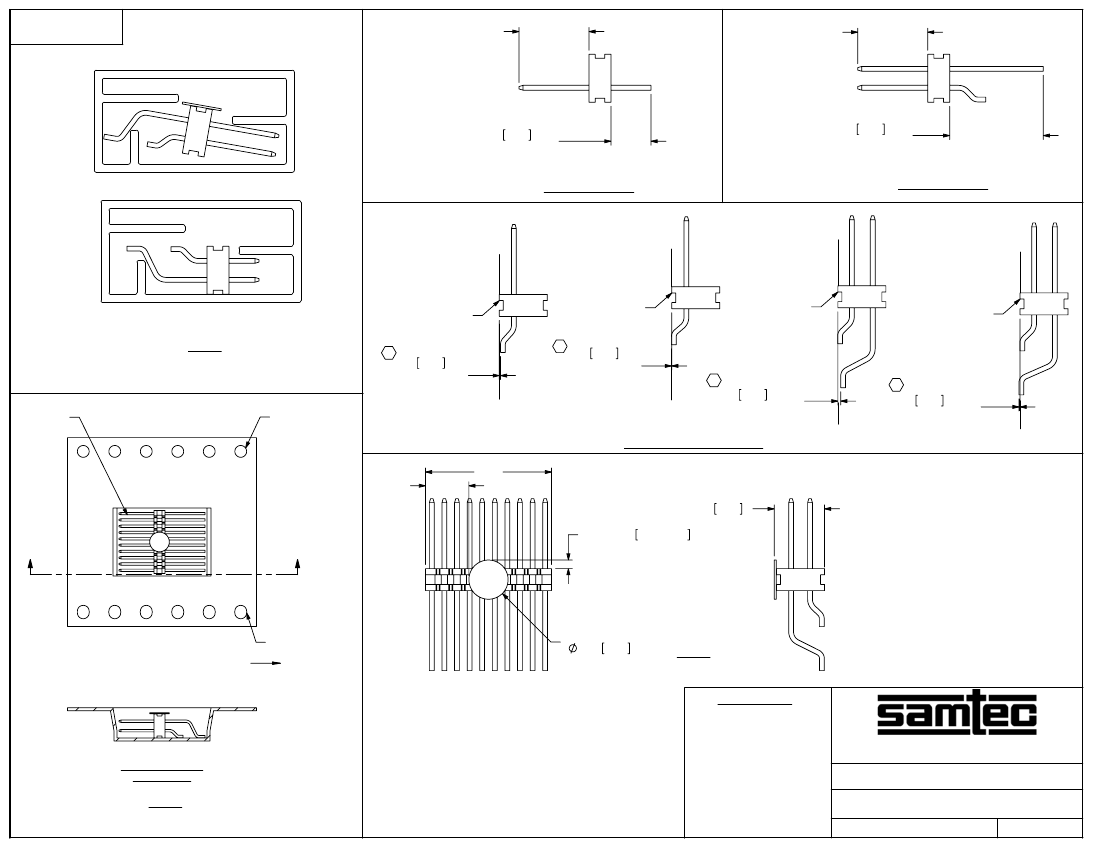

REVISION T

NOTES:

1. C REPRESENTS A CRITICAL DIMENSION.

2. SHEAR TAILS TO DIMENSION SHOWN.

3. MAXIMUM BURR: .003[0.08]

4. MAXIMUM CUT FLASH: .015 [0.38]

5. NO FLASH ALLOWED IN OR AROUND SURFACE MOUNT TAIL AREA.

6. MINIMUM PUSHOUT FORCE: .5 LB.

7. MINIMUM ENDWALL THICKNESS: .008 [0.20].

No OF POSITIONS

-05 THRU -50

(PER ROW)

FTE-1XX-XX-X-DH-X-XX

OPTION 2

-TR: TAPE & REEL PACKGING

(SEE FIG 3, SHEET 2)

OPTION 1

-K: POLYIMIDE FILM PAD

(USE K-500-300,

SEE FIG 4, SHEET 2)

ROW SPECIFICATION

-DH: DOUBLE HORIZONTAL

(USE FTE-90-D)

LEAD STYLE

-01: .075 POST

-02: .175 POST

-03: .120 POST

PLATING SPECIFICATION

-G: 10µ" SELECTIVE GOLD IN CONTACT AREA,

3µ" SELECTIVE GOLD ON TAIL.

DO NOT

SCALE FROM

THIS PRINT

No OF POS x .0315[.800]

[

+.004[0.10]

]

-.010[0.25]

(SEE NOTE 7)

.016 0.40

.047 1.20

.120 3.05 REF

'A'

"A"

T-1S29-02-X-2 (PIN 1)

T-1S29-02-X-2 (PIN 2)

FTE-XX-D

.012 0.30 SQ

REF (TYP)

2 MAX SWAY

(EITHER DIRECTION)

.103 2.62

.022 0.56

SEE NOTE 5

.090 2.29

.200 5.08

R.023 0.58

(TYP)

.055 1.40

REF

.020 0.51

MIN FLAT

.030 0.76

MIN FLAT

TABLE 1

LEAD STYLE

"A"

-01

.075[1.91]

-02

.175[4.45]

-03

.120 [3.05]

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

DETAIL 'A'

SCALE 8 : 1

FTE-110-02-X-DH SHOWN

FIG 1

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

.XX: .01 [0.3]

.XXX: .005 [0.13]

.XXXX: .0020 [0.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 3:1

BODY: LCP, UL 94 V0, COLOR: BLACK

TERMINAL: PHOS BRONZE

c:\enterprisevault\DWG\MISC\MKTG\FTE-1XX-XX-X-DH-X-XX-MKT.SLDDRW

.8MM X 1.2MM C.L. TERMINAL STRIP ASSM

DWG. NO.

DESCRIPTION:

FTE-1XX-XX-X-DH-X-XX

10/13/1998

SHEET

BY:

D. PURVIS
