HDSM-443H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> HDSM-443H

HDSM-443H: DescriptionSmart/Normal 7 Seg Numeric LED Display, 2-Character, Green, 10mm, ROHS COMPLIANT PACKAGE-10; CategoryLED optoelectronic/LED photoelectric; File Size253KB，9 Pages; ManufacturerBroadcom; Environmental Compliance

Download Datasheet Parametric Compare View All

HDSM-443H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HDSM-443H	-	-	View	Buy Now

HDSM-443H Overview

Smart/Normal 7 Seg Numeric LED Display, 2-Character, Green, 10mm, ROHS COMPLIANT PACKAGE-10

HDSM-443H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Broadcom
package instruction	ROHS COMPLIANT PACKAGE-10
Reach Compliance Code	compliant
ECCN code	EAR99
color	GREEN
color@wavelength	Green-Yellow
Configuration	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display height	10 mm
Maximum forward current	0.025 A
Maximum forward voltage	2.1 V
JESD-609 code	e3
Number of characters	2
Number of functions	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	572 nm
Terminal surface	Tin (Sn)

Preview

Download Datasheet

View All

HDSM-441x, HDSM-443x

0.39” (10.0mm)

Dual digit surface mount LED display

Data Sheet

Description

The HDSM-441x/443x is a dual digit display of 0.39”

(10.0mm) height. This device utilizes AlInGaP / GaAs

chips and has a grey top surface with white segments.

Features

•

0.39” digit height

•

Low current operation

•

Excellent characters appearance

•

Available in CA and CC

•

500 pieces per reel

•

Moisture sensitivity level: Level 3

•

RoHS compliant

Ordering Information

Red

HDSM-441C

HDSM-443C

Green

HDSM-441H

HDSM-443H

Yellow

HDSM-441F

HDSM-443F

Orange

HDSM-441L

HDSM-443L

Description

Common Anode, Right Hand Decimal

Common Cathode, Right Hand Decimal

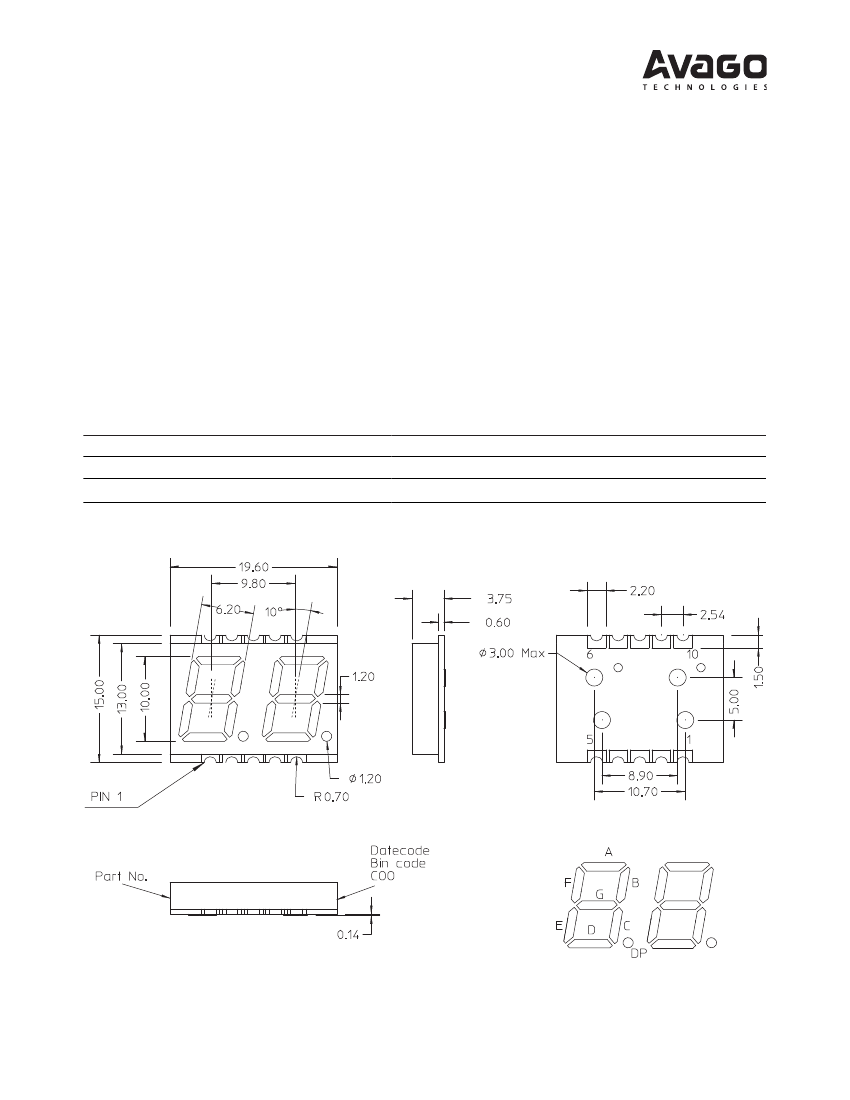

Package Dimensions

Note:

1. All dimensions are in millimeters.

2. Tolerance are +/- 0.25mm unless otherwise specified.

HDSM-443H Related Products

	HDSM-443H	HDSM-441B	HDSM-443L	HDSM-443B	HDSM-443C	HDSM-441F	HDSM-441L	HDSM-441H	HDSM-441C	HDSM-443F
Description	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Green, 10mm, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Blue, 10mm, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Orange, 10mm, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Blue, 10mm, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Red, 10mm, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Yellow, 10mm, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Orange, 10mm, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Green, 10mm, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Red, 10mm, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Yellow, 10mm, ROHS COMPLIANT PACKAGE-10
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT PACKAGE-10	ROHS COMPLIANT PACKAGE-10	ROHS COMPLIANT PACKAGE-10	ROHS COMPLIANT PACKAGE-10	ROHS COMPLIANT PACKAGE-10	ROHS COMPLIANT PACKAGE-10	ROHS COMPLIANT PACKAGE-10	ROHS COMPLIANT PACKAGE-10	ROHS COMPLIANT PACKAGE-10	ROHS COMPLIANT PACKAGE-10
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
color	GREEN	BLUE	ORANGE	BLUE	RED	YELLOW	ORANGE	GREEN	RED	YELLOW
color@wavelength	Green-Yellow	Blue	Amber	Blue	Orange-Red	Amber	Amber	Green-Yellow	Orange-Red	Amber
Configuration	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display height	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm
Maximum forward current	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A
Maximum forward voltage	2.1 V	4 V	2.1 V	4 V	2 V	2.1 V	2.1 V	2.1 V	2 V	2.1 V
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
Number of characters	2	2	2	2	2	2	2	2	2	2
Number of functions	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	572 nm	462 nm	611 nm	462 nm	632 nm	591 nm	611 nm	572 nm	632 nm	591 nm
Terminal surface	Tin (Sn)	Matte Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Maker	Broadcom	-	Broadcom	-	-	Broadcom	Broadcom	Broadcom	Broadcom	Broadcom
