HDSM-543F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> HDSM-543F

HDSM-543F: DescriptionSmart/Normal 7 Seg Numeric LED Display, 2-Character, Yellow, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10; CategoryLED optoelectronic/LED photoelectric; File Size223KB，9 Pages; ManufacturerBroadcom; Environmental Compliance

Download Datasheet Parametric Compare View All

HDSM-543F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HDSM-543F	-	-	View	Buy Now

HDSM-543F Overview

Smart/Normal 7 Seg Numeric LED Display, 2-Character, Yellow, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10

HDSM-543F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Broadcom
package instruction	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10
Reach Compliance Code	compliant
ECCN code	EAR99
color	YELLOW
color@wavelength	Amber
Configuration	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display height	14.22 mm
Maximum forward current	0.025 A
Maximum forward voltage	2.6 V
JESD-609 code	e3
Number of characters	2
Number of functions	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	591 nm
Terminal surface	Tin (Sn)

Preview

Download Datasheet

View All

HDSM-541x, HDSM-543x

0.56” (14.22mm)

Dual digit surface mount LED display

Data Sheet

Description

The HDSM-541x/543x is a dual digit display of 0.56”

(14.22mm) height. This device utilizes AlInGaP / GaAs

chips and has a grey top surface with white segments.

Features

•

0.56” digit height

•

Low current operation

•

Excellent characters appearance

•

Available in CA and CC

•

500 pieces per reel

•

Moisture sensitivity level: Level 3

•

RoHS compliant

Ordering Information

Red

HDSM-541C

HDSM-543C

Green

HDSM-541H

HDSM-543H

Yellow

HDSM-541F

HDSM-543F

Orange

HDSM-541L

HDSM-543L

Description

Common Anode, Right Hand Decimal

Common Cathode, Right Hand Decimal

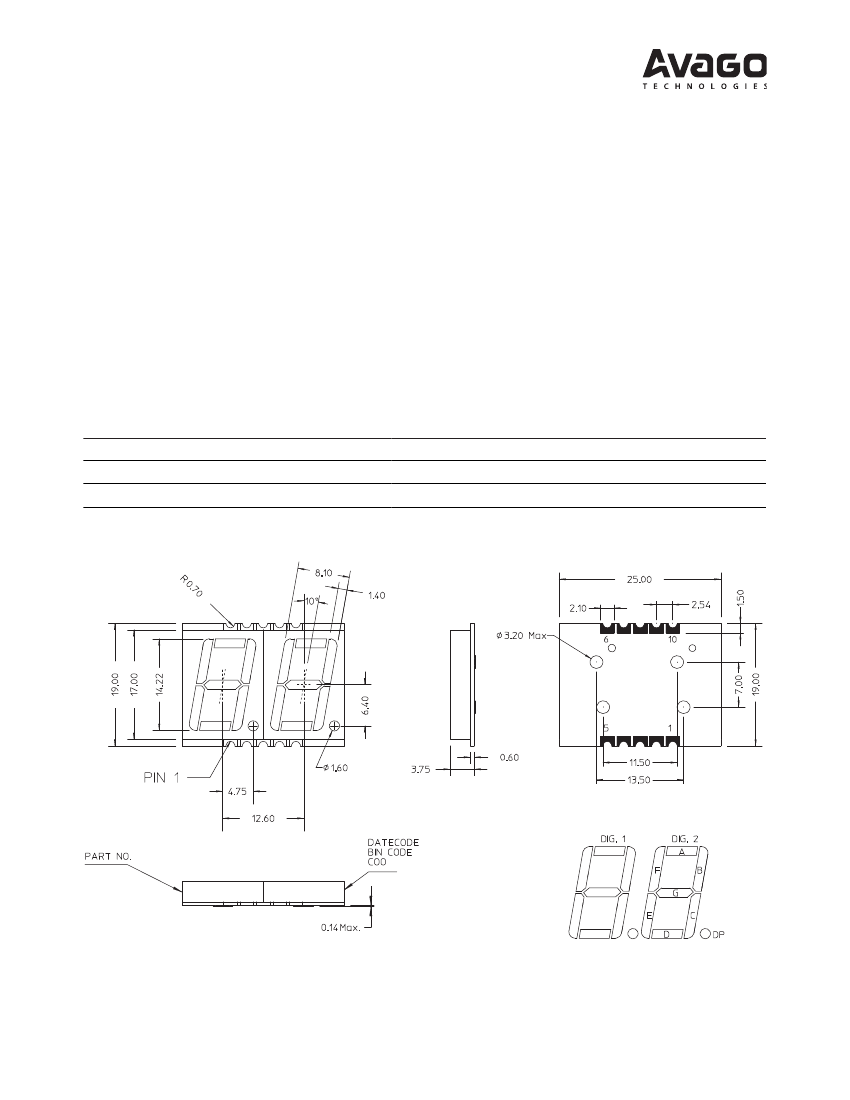

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance are 0.25 mm (0.01”) unless otherwise noted.

HDSM-543F Related Products

	HDSM-543F	HDSM-543B	HDSM-543H	HDSM-541B	HDSM-541L	HDSM-541F	HDSM-543C	HDSM-543L	HDSM-541H
Description	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Yellow, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Blue, 14.22mm, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Green, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Blue, 14.22mm, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Orange, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Yellow, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Red, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Orange, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 2-Character, Green, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	ROHS COMPLIANT PACKAGE-10	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	ROHS COMPLIANT PACKAGE-10	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
color	YELLOW	BLUE	GREEN	BLUE	ORANGE	YELLOW	RED	ORANGE	GREEN
color@wavelength	Amber	Blue	Green-Yellow	Blue	Amber	Amber	Orange-Red	Amber	Green-Yellow
Configuration	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display height	14.22 mm	14.22 mm	14.22 mm	14.22 mm	14.22 mm	14.22 mm	14.22 mm	14.22 mm	14.22 mm
Maximum forward current	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A
Maximum forward voltage	2.6 V	4 V	2.6 V	4 V	2.6 V	2.6 V	2.6 V	2.6 V	2.6 V
Number of characters	2	2	2	2	2	2	2	2	2
Number of functions	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	591 nm	462 nm	572 nm	462 nm	611 nm	591 nm	632 nm	611 nm	572 nm
Maker	Broadcom	-	Broadcom	-	-	Broadcom	Broadcom	Broadcom	Broadcom
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	-	e3
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	-	Tin (Sn)
