384217 datasheet, PDF - EEWORLD Datasheet

384217: DescriptionMesserleiste C/2 48 THR; File Size49KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet View All

384217 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	384217	-	-	View	Buy Now

384217 Overview

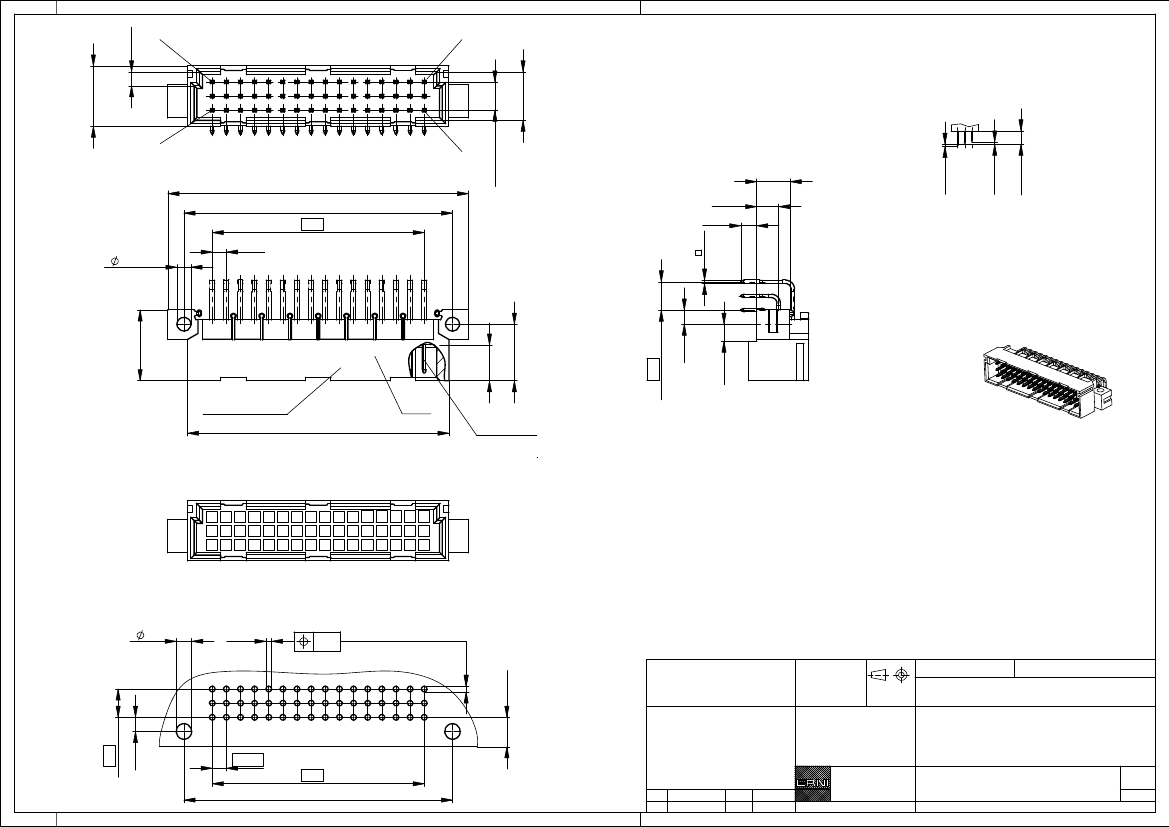

Messerleiste C/2 48 THR

Preview

Download Datasheet

View All

2,5

-0,2

c16

11,1 max.

8,7

+0,1

Stecklänge / mating length

ESL

a16

53,9 max.

48,26

15 x 2,54 (=38,1)

2x2,54=5,08

±0,1

3,95

-0,4

0,6

E =

early mate, late break

/ voreilend

S = standard

L = late mate, early break / nacheilend

2,5

+0,1

2,54

2 x 2,54 (=5,08)

12,7

10,2

-0,2

6,4

-0,1

ERNI

Anforderungsstufe

class

Datum

date

Stecklänge

mating length

Bestückungsplan /

contact layout

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S

THR =

through hole reflow

Bauart 4 / t

ype 4

Anforderungsstufe 2 = 400 Steckzyklen

/ performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

+0,1

XXXXXXX

RC 2

2,54

a b c

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Leiterplatten- Lochbild / PCB drillhole pattern

2,8

+0,1

±0,1

0,05

alle Löcher /

all holes

2x 2,54 =5,08

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2,54

15 x 2,54 (=38,1)

48,26

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

5,3

±0,1

2:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

09.09.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste C/2 48 THR

Male Con.C/2 48 THR

www.ERNI.com

Class

384217

STVC/2

4,8

±0,2

0,8

±0,1

0,8

±0,1
