384248: Description32 CONTACT(S), MALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

384248 Overview

32 CONTACT(S), MALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER

384248 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.339 inch
subject depth	0.612 inch
body length	3.701 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9174 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.2 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

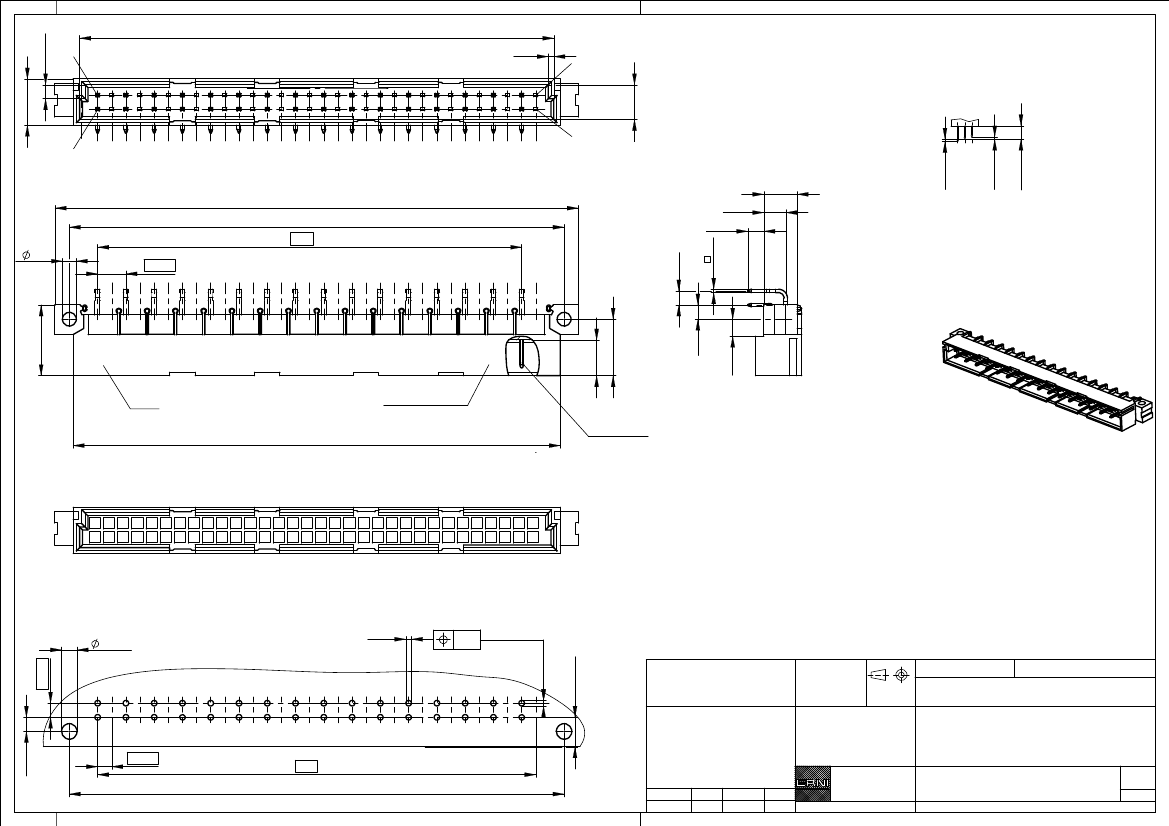

2,5

-0,2

85,2

b32

+0,2

-0,1

Stecklänge / mating length

6,2

+0,1

8,6 max.

ESL

a32

4,8

±0,2

0,8

±0,1

0,8

±0,1

2:1

±0,1

94 max

88,9

2,5

+0,1

3,95

-0,4

0,6

2,54

E =

early mate, late break

/ voreilend

S = standard

L = late mate, early break / nacheilend

15 x 5,08 = (76,2)

5,08

12,7

10,2

-0,2

2,54

Datum

date

87,5

Bestückungsplan /

contact layout

Anforderungsstufe

class

Stecklänge

mating length

+0,1

XXXXXXX

ERNI

RC 1

6,4

-0,1

a b c

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

Lötanschluss 0,6x0,6mm

/ solder terminal 0,6x0,6mm

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

Anforderungsstufe 1 = 500 Steckzyklen

/ performance class 1 = 500 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Leiterplatten- Lochbild / PCB drillhole pattern

±0,1

alle Löcher /

5,3

±0,1

Information:

Bedruckung siehe Zeichnung 294905

marking see drawing 294905

2,8

2,54

+0,1

0,05

all holes

Proprietary notice pursuant to ISO 16016 to be observed.

Tolerances

All Dimensions

in mm

Scale

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2,54

31 x 2,54 = (78,74)

88,9

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

10.11.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste B 32 Löt

Male Connector B 32 solder

www.ERNI.com

Class

384248

STVB
