384275 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 384275

Preview

384275: Description20 CONTACT(S), MALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

384275 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	384275	-	-	View	Buy Now

384275 Overview

20 CONTACT(S), MALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER

384275 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compli
ECCN code	EAR99
Samacsys Descripti	ERNI ERNIPRESS Series 20 Way 2.54mm Pitch, Type B/3 Class C2, 2 Row a/b, Right Angle DIN 41612 Connector, Plug, Solde
body width	0.339 inch
subject depth	0.612 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9174 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20

Preview

Download Datasheet

View All

29,3

2,5

-0,2

b10

+0,2

1

-0,1

b1

+0,1

Stecklänge / mating length

6,2

ESL

8,6 max.

2,54

a10

a1

6

±0,1

33,02

9 x 2,54 (=22,86)

2,5

+0,1

3,95

3

-0,4

0,6

2,54

E =

early mate, late break

/ voreilend

S = standard

L = late mate, early break / nacheilend

2,54

12,7

10,2

-0,2

2,54

6,4

-0,1

ERNI

Anforderungsstufe

class

Datum

date

Stecklänge

mating length

31,7

Bestückungsplan /

contact layout

10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S

c

b

a

Lötanschluss 0,6x0,6mm

/ solder terminal 0,6x0,6mm

Isolierwerkstoff

/ housing material : PBT GF 30

Bauart 4 / t

ype 4

3

+0,1

XXXXXXX

RC 2

a b c

Anforderungsstufe 2 = 400 Steckzyklen / performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Leiterplatten- Lochbild / PCB drillhole pattern

1

±0,1

2,8

+0,1

Berduckung siehe Zeichnung 294905

marking see drawing 294905

0,05

all holes

alle Löcher /

Information:

Tolerances

All Dimensions

in mm

b

a

10 9 8 7 6 5 4 3 2 1

2,54

9 x 2,54 (=22,86)

33,02

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

2,54

5,3

±0,1

Scale

2:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

-

Index

07.07.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

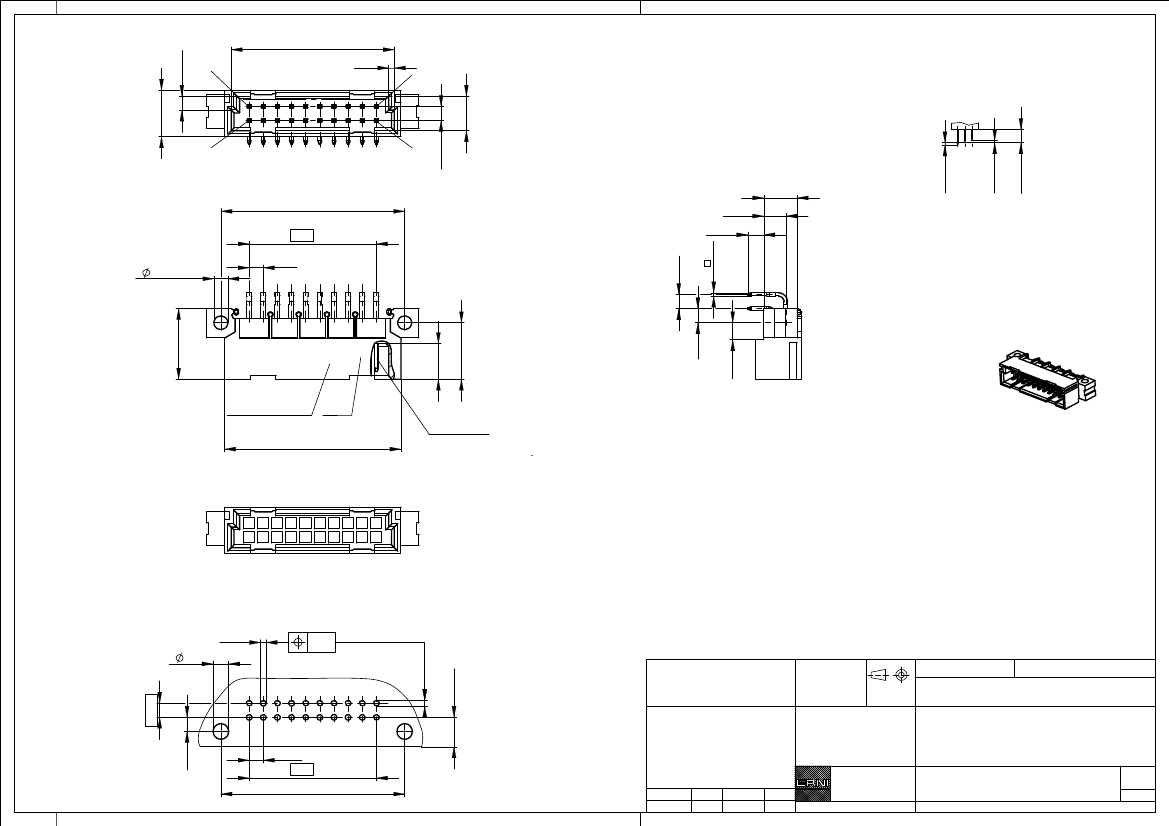

Messerleiste B/3 20 Löt

Male Connector B/3 20 solder

www.ERNI.com

Class

384275

STVB/3

4,8

±0,2

0,8

±0,1

0,8

±0,1

I

A3
