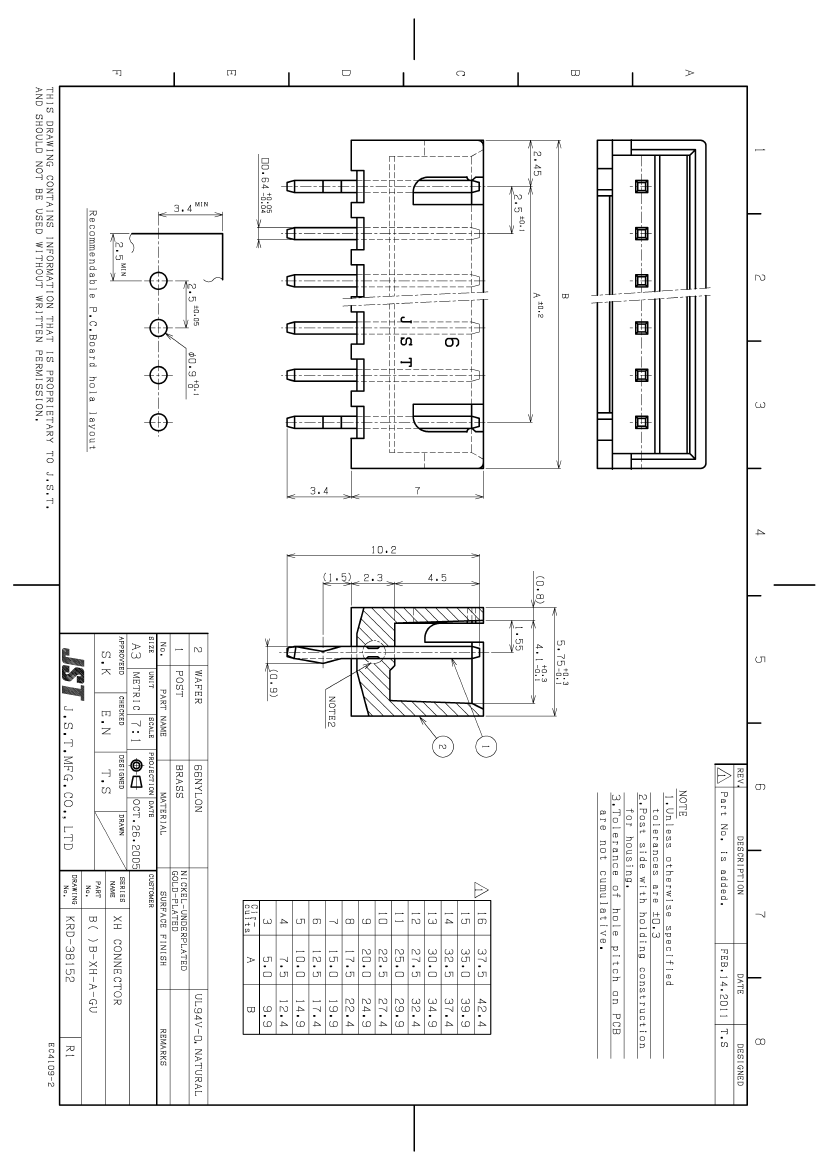

B8B-XH-A-GU Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	JST
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

	B8B-XH-A-GU	B7B-XH-A-GU	B12B-XH-A-GU	B13B-XH-A-GU
Description	Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,
Maker	JST	JST	JST	JST
Reach Compliance Code	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD OVER NICKEL	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	7	12	13
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Is it Rohs certified?	conform to	-	conform to	conform to
Contact material	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
