1.75X3.5mm BI-COLOR RECTANGULAR SOLID
LAMP
Part Number: L-283A9NGWT
Pure Orange
Green
Features
UNIFORM LIGHT OUTPUT.
LOW POWER CONSUMPTION.
LEADS WITH ONE COMMON LEAD.
3
COMPATIBLE.
I.C.
LONG LIFE - SOLID STATE RELIABILITY.
RoHS COMPLIANT.
Description
The Pure Orange source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Pure
Orange Light Emitting Diode.
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAE8426
APPROVED: WYNEC
REV NO: V.5
CHECKED: Allen Liu
DATE: JUL/09/2007
DRAWN: Y.H.CHEN
PAGE: 1 OF 6
ERP: 1101003233
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
Pure Orange (GaAsP/GaP)
L-283A9NGWT
Green (GaP)
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. Luminous intensity/ luminous Flux: +/-15%.
Viewing
Angle [1]
2θ1/2
120
°
Typ.
15
10
7
WHITE DIFFUSED
4
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Pure Orange
Green
Pure Orange
Green
Pure Orange
Green
Pure Orange
Green
Pure Orange
Green
Pure Orange
Green
Typ.
607
565
610
568
35
30
15
15
2.05
2.2
2.5
2.5
10
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Pure Orange
62.5
25
145
5
Green
62.5
25
140
Units
mW
mA
mA
V
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
SPEC NO: DSAE8426
APPROVED: WYNEC
REV NO: V.5
CHECKED: Allen Liu
DATE: JUL/09/2007
DRAWN: Y.H.CHEN
PAGE: 2 OF 6
ERP: 1101003233
L-283A9NGWT

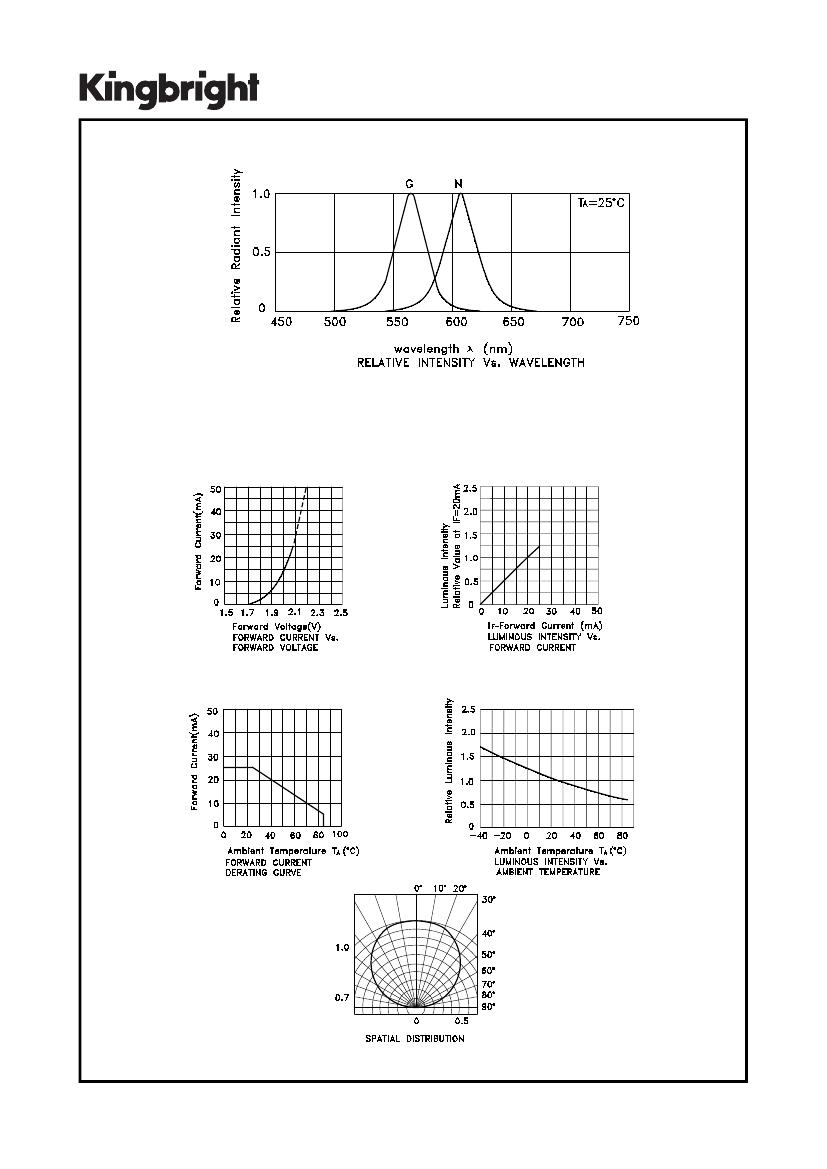

Pure Orange
SPEC NO: DSAE8426
APPROVED: WYNEC
REV NO: V.5
CHECKED: Allen Liu
DATE: JUL/09/2007
DRAWN: Y.H.CHEN
PAGE: 3 OF 6
ERP: 1101003233

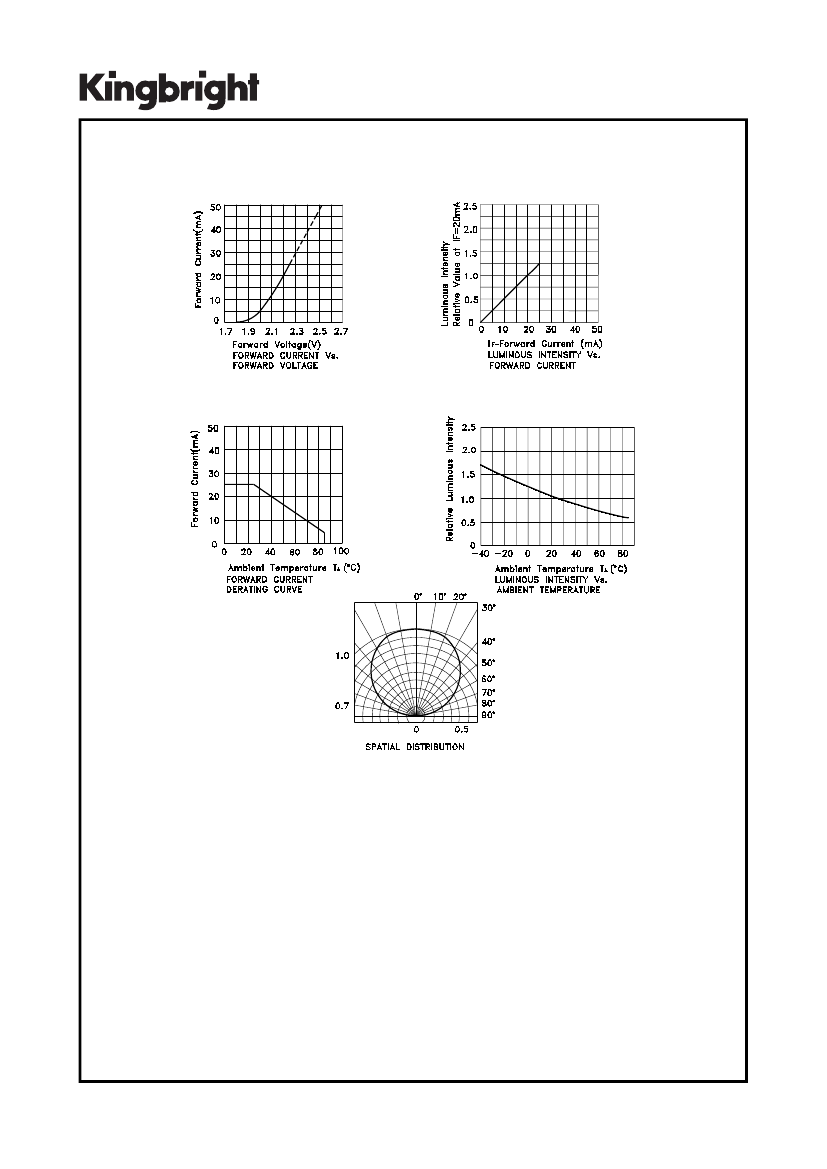

Green
SPEC NO: DSAE8426
APPROVED: WYNEC
REV NO: V.5
CHECKED: Allen Liu
DATE: JUL/09/2007
DRAWN: Y.H.CHEN
PAGE: 4 OF 6
ERP: 1101003233

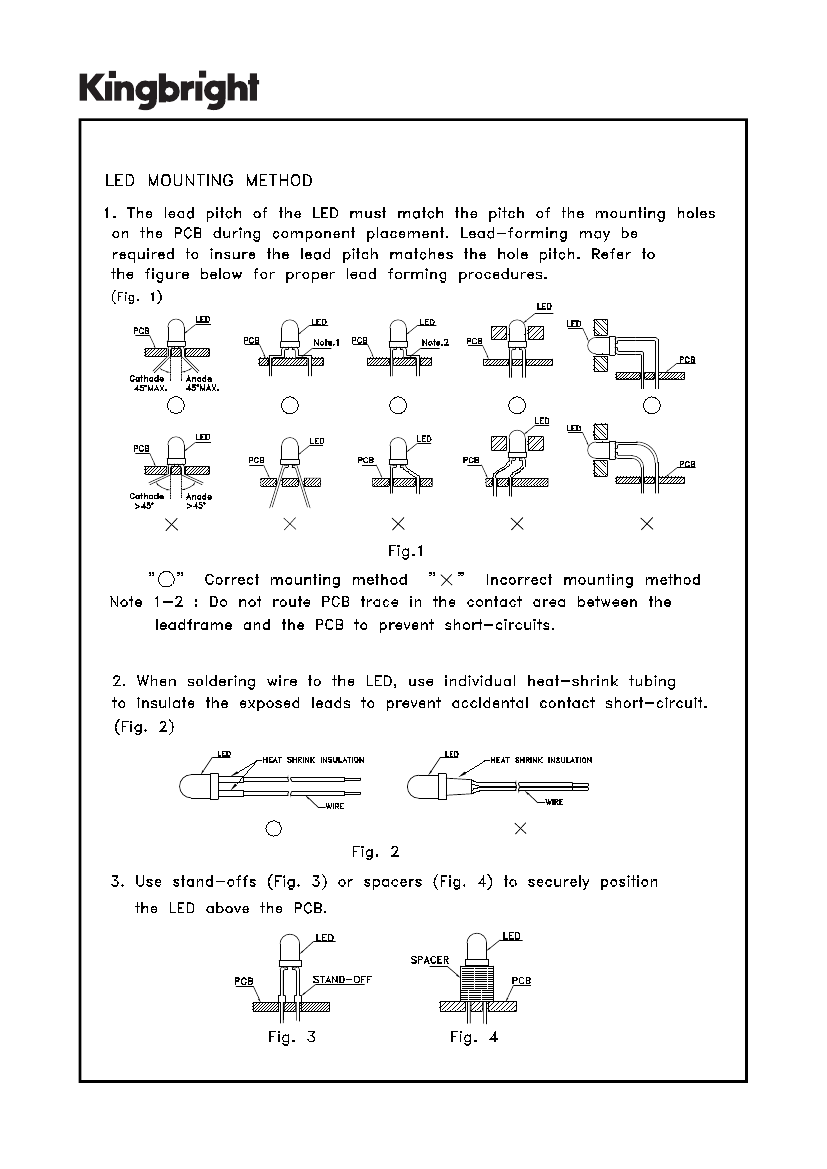

SPEC NO: DSAE8426
APPROVED: WYNEC
REV NO: V.5
CHECKED: Allen Liu
DATE: JUL/09/2007
DRAWN: Y.H.CHEN
PAGE: 5 OF 6
ERP: 1101003233
