SCID-120-01-S-D-4-RA1: DescriptionTelecom and Datacom Connector, 40 Contact(s), Female, Right Angle, Solder Terminal, Socket, LEAD FREE; CategoryThe connector The connector; File Size399KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SCID-120-01-S-D-4-RA1 Overview

Telecom and Datacom Connector, 40 Contact(s), Female, Right Angle, Solder Terminal, Socket, LEAD FREE

SCID-120-01-S-D-4-RA1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	LEAD FREE
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Other features	TIGER EYE CONTACT
Body/casing type	SOCKET
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	SCID
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	40

Preview

Download Datasheet

View All

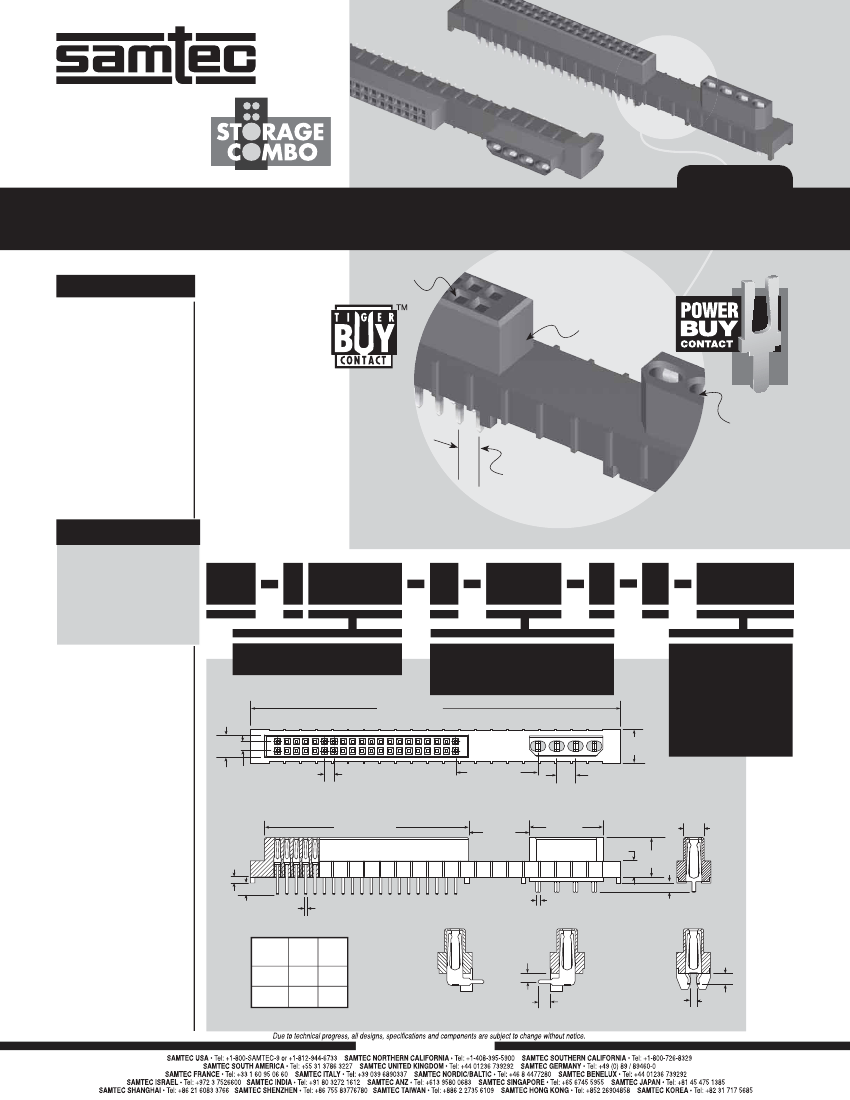

F-214

SUPPLEMENT

SCID–120–01–S–D–4–TH1

SCID–120–01–S–D–4–EM

SCID SERIES

IDE STORAGE COMBO SOCKET

Forty Tiger Buy™

signal contacts

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?SCID

Insulator Material:

Black Liquid

Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

or Au over

50µ" (1,27 µm) Ni

Operating Temp Range:

-55°C to +125°C

Lead–Free Solderable:

Yes

Vertical,

Right Angle

and Edge Mount

Power

pins on

(5,08 mm)

.200" pitch

Signal pins on

(2,54 mm) .100"

pitch

APPLICATIONS

Mates with Fujitsu,

IBM, Quantum,

Seagate

and

Samsung

IDE, EIDE,

ATA and Ultra ATA

disk drive interfaces.

Call for Maxtor and Western

Digital IDE interfaces.

SCID

SIGNAL PINS

PER ROW

PLATING

OPTION

TAIL

OPTIONS

(100,33)

3.950

–S

= 30µ" (0,76 µm) Gold on contact,

Matte Tin on tail

–TH1, –TH2

= Vertical

–RA1, –RA2

= Right Angle

(6,10)

.240

(2,54)

.100

(2,54)

.100

(22,33) .879

(5,08)

.200

(9,20)

.362

–EM

= Edge Mount

(55,37) 2.180

(1,65)

.065

(0,64)

.025

(17,07)

.672

(19,86)

.782

(4,32)

.170 (10,67)

.420

(5,54)

.218

(1,27)

.050

–TH1, –TH2

LEAD

STYLE

– TH1

– TH2

Note:

Some

lengths, styles

and options are non-standard,

non-returnable.

(2,29)

.090

(3,17)

.125

(2,54) (3,18)

.100

.125

(3,81) (4,95)

.150

.195

– RA1

(3,18)

.125

(1,57)

.062

–RA2

–EM

WWW.SAMTEC.COM

SCID-120-01-S-D-4-RA1 Related Products

	SCID-120-01-S-D-4-RA1	SCID-20-01-S-D-4-TH1	SCID-120-01-S-D-4-RA2	SCID-120-01-S-D-4-TH2
Description	Telecom and Datacom Connector, 40 Contact(s), Female, Right Angle, Solder Terminal, Socket, LEAD FREE	Telecom and Datacom Connector, 40 Contact(s), Female, Straight, Solder Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 40 Contact(s), Female, Right Angle, Solder Terminal, Socket, LEAD FREE	Telecom and Datacom Connector, 40 Contact(s), Female, Straight, Solder Terminal, Socket, LEAD FREE
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC
package instruction	LEAD FREE	ROHS COMPLIANT	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant
Factory Lead Time	2 weeks	2 weeks	2 weeks	2 weeks
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)	NOT SPECIFIED	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	YES	NO	NO
Installation method	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	40	40	40	40
Is it lead-free?	Lead free	-	Lead free	Lead free
Other features	TIGER EYE CONTACT	-	TIGER EYE CONTACT	TIGER EYE CONTACT
Body/casing type	SOCKET	-	SOCKET	SOCKET
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	-	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)
insulator material	LIQUID CRYSTAL POLYMER	-	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
JESD-609 code	e3	-	e3	e3
Manufacturer's serial number	SCID	-	SCID	SCID
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
