SEAM-15-03.5-S-04-2-A-K-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> SEAM-15-03.5-S-04-2-A-K-TR

SEAM-15-03.5-S-04-2-A-K-TR: DescriptionBoard Stacking Connector, 60 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

SEAM-15-03.5-S-04-2-A-K-TR Overview

Board Stacking Connector, 60 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

SEAM-15-03.5-S-04-2-A-K-TR Parametric

Parameter Name	Attribute value
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	SEARRAY, LOW INSERTION/EXTRACTION FORCE
Board mount options	PEG
body width	0.278 inch
subject depth	0.28 inch
body length	0.946 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	CENTRONIC
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
Rated current (signal)	2.7 A
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	60

SEAM-15-03.5-S-04-2-A-K-TR Preview

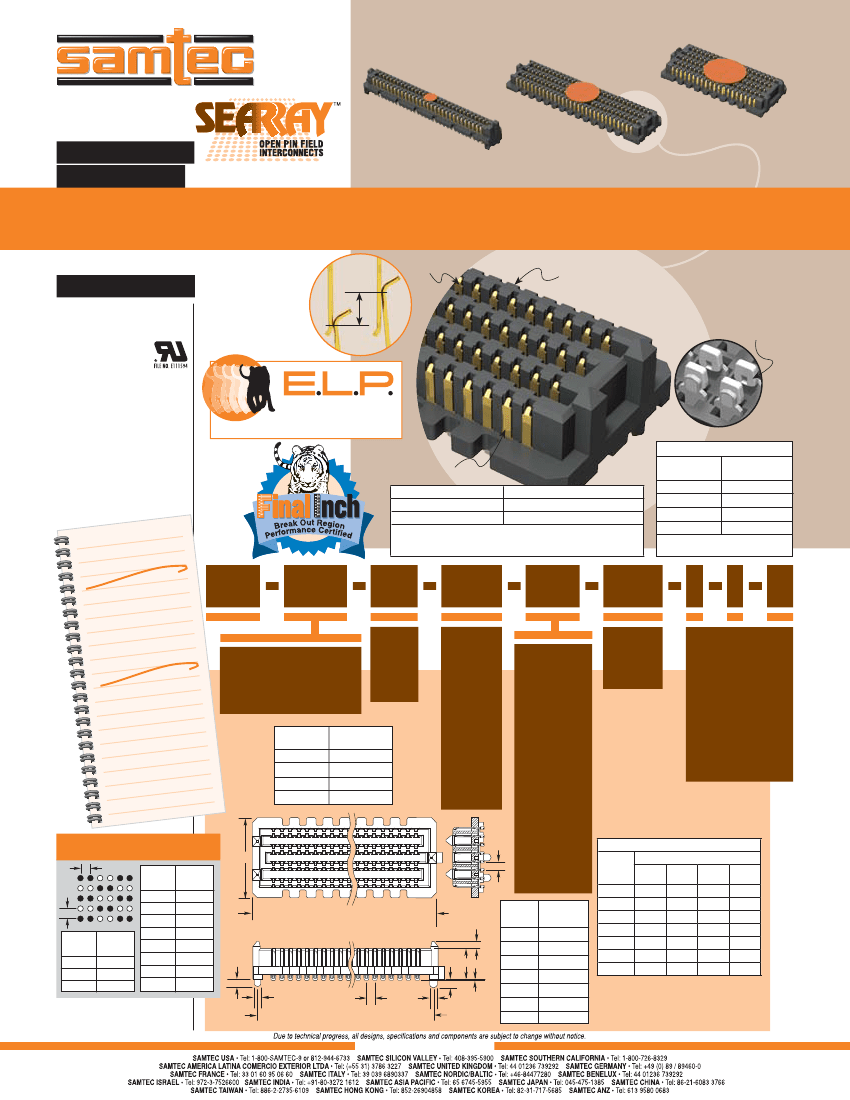

F-211-2

SEAM–20–02.0–S–10–2–A–K–TR

(1,27mm) .050"

SEAM SERIES

SEAM–30–03.5–S–04–2–A–K–TR

SEAM–30–02.0–S–08–2–A–K–TR

HIGH SPEED/HIGH DENSITY OPEN PIN FIELD

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?SEAM

Insulator Material:

Black LCP

Contact Material:

Copper Alloy

Solder Charge:

95.5% Sn, 3.8% Ag, 0.7% Cu

(Tin/Lead also available.

Call Samtec.)

Operating Temp Range:

-55°C to +125°C

Plating:

Au or Sn over 50µ" (1,27µm) Ni

Contact Resistance:

5.5 mΩ

Working Voltage:

240 VAC

RoHS Compliant:

Yes

Lead-Free Solderable:

Yes

Mates with:

SEAF, SEAFP

(1,15mm)

.045"

NOMINAL

WIPE

Up to

500 Pins

5, 8 and 10 row footprint compatible

with SamArray

. Samples recommended.

Solder

charges

10 year Mixed Flowing Gas with 30μ" Gold

Call Samtec for maximum cycles mated with SEAF

CURRENT RATING

Low Insertion/

Extraction Forces

dust ds

tand

ols

otoc ted

Pr or

Supp

nel

Fibre Chan

Rapid I/O

PCI Expres

SATA

Infiniband

PISMO 2

VITA 47

VITA 57

fina

nch.com

7mm Stack Height

Rated @ 3dB Insertion Loss

Single-Ended Signaling

9.5 GHz / 19 Gbps

Differential Pair Signaling

10.5 GHz / 21 Gbps

Performance data for other stack heights and

complete test data available at www.samtec.com?SEAM

or contact sig@samtec.com

AMBIENT

SEAM/SEAF

TEMP

2.3A

20°C

40°C

1.75A

60°C

1.14A

95°C

30 ADJACENT

POSITIONS POWERED

SEAM

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

NO. OF

ROWS

SOLDER

TYPE

–A

–L

= 10µ"

(0,25µm)

Gold on

contact area,

Matte Tin on

solder tail

–2

– 04

=Four Rows

(–06.5 not

available)

= Lead-Free

Solder

Charge

–10, –15, – 20,

– 30, –40, –50

(–10 only available in 04 row)

(–15 only available in 10 row)

NO. OF

ROWS

–04

–05, –06

–08

–10

= Alignment Pins

(Required. Arrays

will not self-center

on solder pads)

(7,06) .278

(9,60) .378

(12,14) .478

(14,68) .578

–S

= 30µ"

(0,76µm)

Gold on

contact area,

Matte Tin on

solder tail

– 05

=Five Rows

(–06.5 not

available)

–K

= Polyimide ﬁlm

Pick & Place Pad

notes at

Download app ppnote

om/a

www.samtec.c mtec.com

@ sa

Contact SIG n protocols

for questions

– TR

=Tape & Reel

– 06

=Six Rows

(–06.5 not

available)

DIFFERENTIAL

(1,27) .050

(1,27)

.050

(1,27)

.050

– 08

=Eight Rows

PAIR

ARRAY COUNT

40x8

40x6

30x10

30x8

30x6

20x10

20x8

20x5

– 10

=Ten Rows

No. of positions x (1,27) .050 + (4,98) .196

(1,02)

.040

(1,27)

.050

(0,86)

(1,12)

(1,27)

.034

.044

.050

DIA

No. of positions x (1,27) .050 + (3,58) .141

LEAD

STYLE

–02.0

–03.0

–03.5

–06.5

–07.0

–09.0

–11.0

(4,60) .181

(5,59) .220

(6,10) .240

(6,40) .252

(9,60) .378

(11,60) .457

(13,60) .535

PAIR

ARRAY COUNT

50x10

50x8

40x10

125

100

(1,02)

.040

SEAM

LEAD

STYLE

–02.0

–03.0

–03.5

–06.5

–07.0

–09.0

–11.0

MATED HEIGHTS

SEAF LEAD STYLE

–05.0 –06.0 –06.5 –07.5

7mm

8mm

9mm

8.5mm 9.5mm

9.5mm 10.5mm

11mm

14mm

8.5mm 9.5mm 10mm

11.5mm 12.5mm 13mm

12mm

14mm

16mm

13mm 13.5mm 14.5mm

15mm 15.5mm 16.5mm

17mm 17.5mm 18.5mm

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(0,10)

.004

WWW.SAMTEC.COM

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SEAM-15-03.5-S-04-2-A-K-TR Related Products

	SEAM-15-03.5-S-04-2-A-K-TR	SEAM-15-03.0-S-04-2-A-K-TR	SEAM-15-03.5-L-04-2-A-K-TR	SEAM-15-07.0-L-04-2-A-K-TR	SEAM-15-07.0-S-04-2-A-K-TR	SEAM-15-09.0-L-04-2-A-K-TR	SEAM-15-09.0-S-04-2-A-K-TR	SEAM-15-11.0-L-04-2-A-K-TR	SEAM-15-11.0-S-04-2-A-K-TR
Description	Board Stacking Connector, 60 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Stacking Connector, 60 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Stacking Connector, 60 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Stacking Connector, 60 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Stacking Connector, 60 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Stacking Connector, 60 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Stacking Connector, 60 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Stacking Connector, 60 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Stacking Connector, 60 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	SEARRAY, LOW INSERTION/EXTRACTION FORCE	SEARRAY, LOW INSERTION/EXTRACTION FORCE	SEARRAY, LOW INSERTION/EXTRACTION FORCE	SEARRAY, LOW INSERTION/EXTRACTION FORCE	SEARRAY, LOW INSERTION/EXTRACTION FORCE	SEARRAY, LOW INSERTION/EXTRACTION FORCE	SEARRAY, LOW INSERTION/EXTRACTION FORCE	SEARRAY, LOW INSERTION/EXTRACTION FORCE	SEARRAY, LOW INSERTION/EXTRACTION FORCE
Board mount options	PEG	PEG	PEG	PEG	PEG	PEG	PEG	PEG	PEG
body width	0.278 inch	0.278 inch	0.278 inch	0.278 inch	0.278 inch	0.278 inch	0.278 inch	0.278 inch	0.278 inch
subject depth	0.28 inch	0.26 inch	0.28 inch	0.417 inch	0.417 inch	0.496 inch	0.496 inch	0.575 inch	0.575 inch
body length	0.946 inch	0.946 inch	0.946 inch	0.946 inch	0.946 inch	0.946 inch	0.946 inch	0.946 inch	0.946 inch
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	4	4	4	4	4	4	4	4	4
Number of rows loaded	4	4	4	4	4	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Plating thickness	30u inch	30u inch	10u inch	10u inch	30u inch	10u inch	30u inch	10u inch	30u inch
Rated current (signal)	2.7 A	2.7 A	2.7 A	2.7 A	2.7 A	2.7 A	2.7 A	2.7 A	2.7 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	60	60	60	60	60	60	60	60	60
