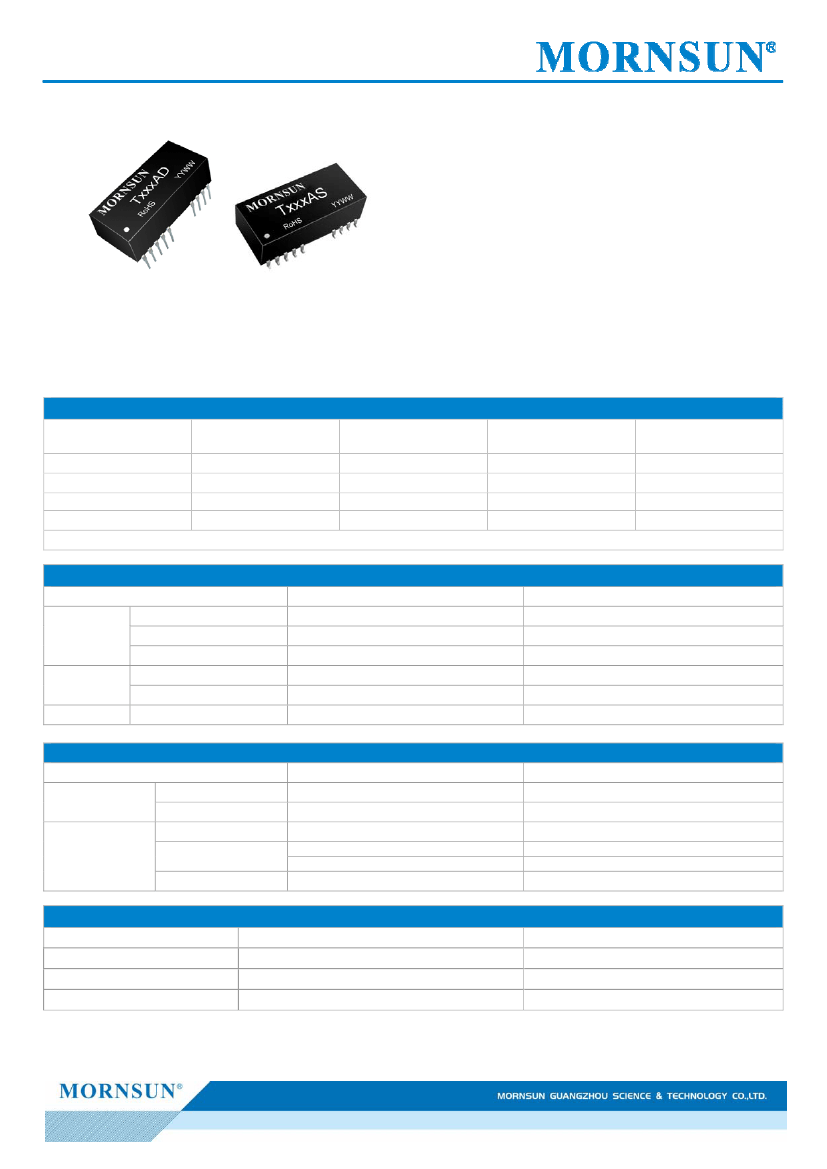

Isolated Transmitter
TxxxxAD Series
Active high precision isolated transmitter
FEATURES
Four-port isolation(Signal input, Signal output,
power supply and Isolation power output)
High accuracy (0.1% F.S.)
High linearity (0.1% F.S.)
Isolation voltage(2.5KVDC/60S)
Extremely low temperature drift (35PPM/
℃
)
Industry standard(Operating Temperature Range:
-25 ~ 71
℃
)
High reliability(MTBF>500,000 hours)
The TxxxAD series is a high integration, high efficiency linear active isolation amplifier module, with current signal input and current signal
output. These modules, with a high efficient isolated micro-power source built-in, can provide energy for inner signal processing circuit and
a isolation power out for front-end circuit. In the two-wire, three-wire and four-wire applications, our products largely predigest customers’
design and helpfully improve the using room ratio of PCB. Adopting electromagnetism isolation technology, it is available to keep higher
accuracy and extremely lower temperature drift more than photocoupler isolation. These modules have four-port isolation(input, output,
power supply and Isolation power output).
Selection Guide
Part No.
TS13AD-2
TS23AD-2
TS53AD-2
TS63AD-2
Power Supply input (VDC)
24
24
24
24
Input Signal
0-2V
0-2V
0-2V
0-2V
Output Signal
4-20mA
0-20mA
0-10V
0-5V
Isolation Power
Output (VDC)
±6.8
±6.8
±6.8
±6.8
Notes: Customization products are available if required.
Input Specifications
Item
Input Power
Supply
Input voltage
Input power
Power supply protection
Input signal
Input impedance
Overload
In case of max. input of current signal
Signal, power full load
Operating Conditions
Value
(Nominal value of power supply input) ±5%
≤2W
Reverse polarity protection
See selection guide
≥
10M
Ω
≤50mA
Input
Input
Output Specifications
Item
Output of Isolated Output voltage
Power Supply
Output current
Output signal
Output
Load capacity
Load regulation
Voltage output
Current output @ 20mA
Operating Conditions
Power, current full load
Value
(Nominal value) ±10%
≤25mA
See selection guide
≥
1KΩ
≤500Ω
0.050%
Transmission Specifications
Item
Zero Offset
Precision
Temperature Drift
Operating temperature range of -25 to +71℃
Operating Conditions
Value
0.1%F.S.
0.1%F.S.
≤
35ppm/℃
2014.03.17-A/3
Page 1 of 3
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
Isolated Transmitter
TxxxxAD Series
General Specifications
Item
Electric Isolation
Degree of Isolation
Insulation Resistance
Operating Temperature
Transportation and Storage
Temperature
Max. Operating Temperature
for Casing
Application Environment
testing for 1 minute, leakage
current <1mA, humidity <70%
Operating Conditions
Value
Four-terminal isolation (signal input, signal output, input power supply and
output of isolated power supply are mutually isolated)
2.5KVDC (note: isolated power supply provided; the isolation voltage
between the terminal of isolated power supply and the input terminal is
500VDC)
100M
Ω
, 500VDC (signal input terminal, signal output terminal, power
supply terminal and output terminal of isolated power supply)
-25~+71℃
-50~+105℃
Ta=25℃
≤50℃
The presence of dust, fierce vibration, impulsion and corrosive gas may
cause damage to the product
Physical Specifications
Casing Material
Package
Weight
Cooling method
WH8100-F [1]
DIP24/SOIC24
10g(Typ.)
Free air cooling
Application Precautions
1.
2.
3.
4.
Please read the instructions carefully before use; contact our technical support if you have any problem.
Do not use the product in hazardous areas.
Use DC power supply for the product and 220V AC power supply is prohibited.
Do not dismount and assemble the product without permission to avoid failure or malfunction of equipment.
After-sales service
1. Ex-factory inspection and quality control have been strictly conducted for the product; if there occurs abnormal operation or possibility
of failure of internal module, please contact the local representative or our technical support.
2. The warranty period for the product is 3 years as calculated from the date of delivery. If any quality problem occurs under normal use
within the warranty period, the product can be repaired or changed for free.

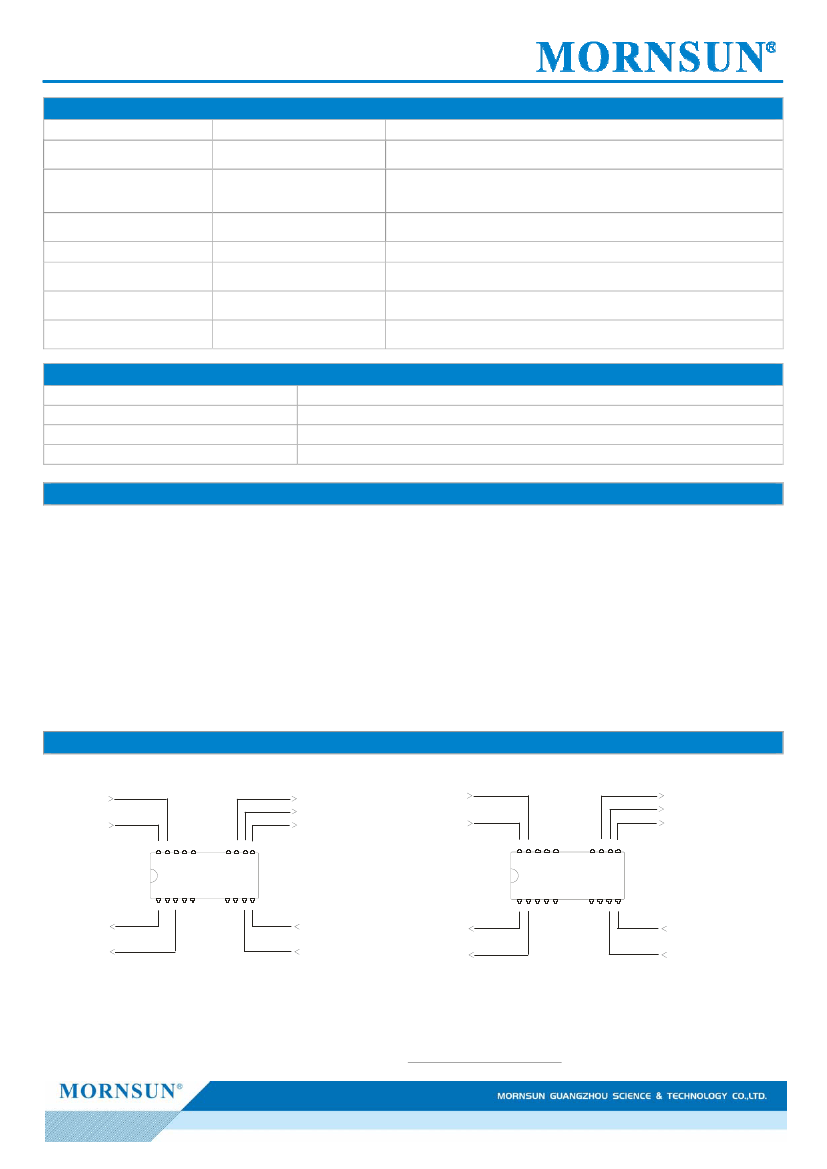

Applied circuit
See
Application Notes for Isolated Transmitter
for details.
Design Reference
1.
Typical application
＋
Isolation Power Output GND
＋
Isolation Power Output+
－
Isolation Power Output-
＋
Isolation Power Output GND
＋
Isolation Power Output+
－
Isolation Power Output-
Power Supply
－
Power Supply
－
24 23 22 21 20
Pin-
Pin+
NC
NC
NC
16 15 14 13
NC
GND
Pout+
Pout-
24 23 22 21 20
Pin+
NC
NC
NC
16 15 14 13
NC
GND
Pout+
Pout-
Pin-
Sout-
NC
Sout+
NC
NC
Sout-
Sout+
NC
NC
NC
Voltage output
TxxxAD
4 5
Current output
TxxxAD
4 5
NC
NC
Sin+
Sin-
1 2 3
－
9 10 11 12
－
1 2 3
－
NC
NC
Sin+
Sin-
9 10 11 12
－
Signal Output
＋
Signal Input
＋
Signal Output
＋
Signal Input
＋
Fig. 1
Notes:①
②
③
Pins 13, 14 and 15 are NC pins in case of no power output.
In case of positive and negative power output, Pin 13 is power output negative, Pin 14 power output positive, Pin 15 reference ground.
In case of single power output, Pin 13 is power output negative, Pin 14 power output positive, Pin 15 NC.
2.
For more information please find the application notes on www.mornsun-power.com
2014.03.17-A/3
Page 2 of 3
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
Isolated Transmitter
TxxxxAD Series

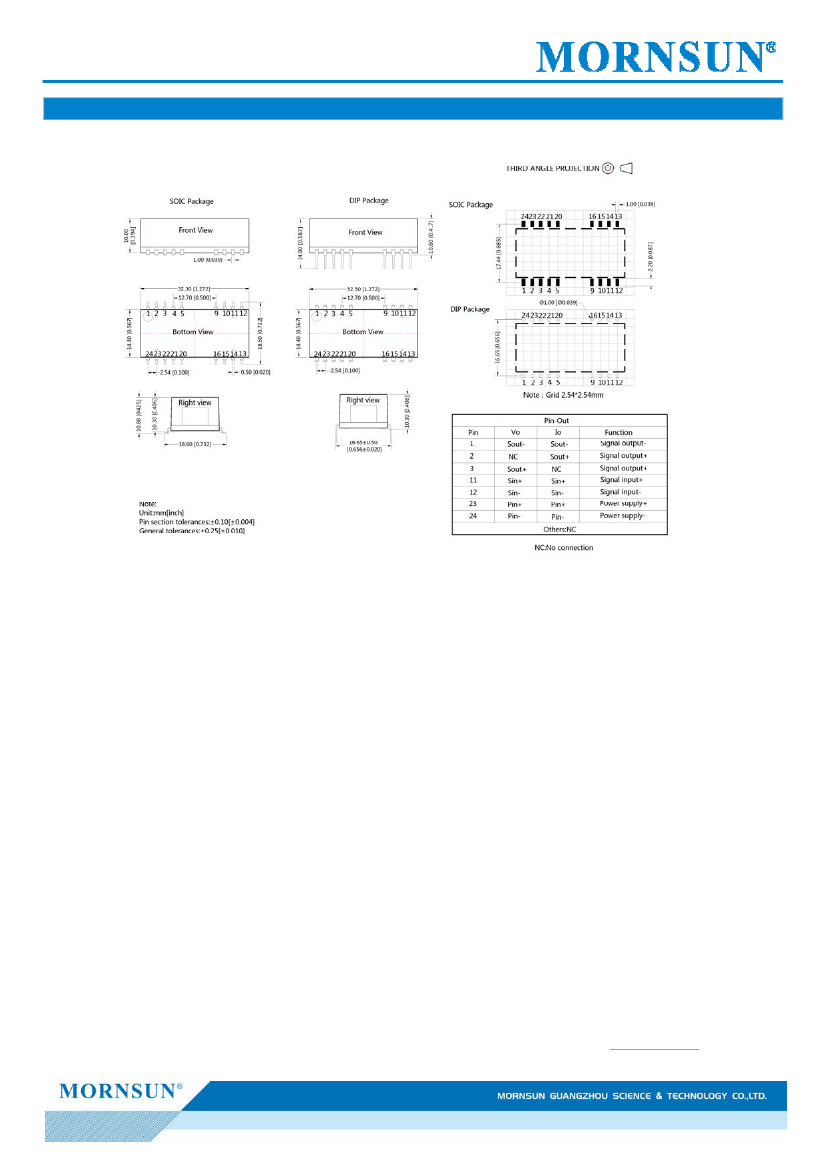

Dimensions and Recommended Layout
Note:
1.
2.
3.
4.
5.
6.
Packing Information please refer to 'Product Packing Information'. Packing bag number:58200017;
Unless otherwise specified, data in this datasheet should be tested under the conditions of Ta=25
℃
, humidity<75% when inputting
nominal voltage and outputting rated load;
All index testing methods in this datasheet are based on our Company’s corporate standards;
The performance indexes of the product models listed in this manual are as above, but some indexes of non-standard model products
will exceed the above-mentioned requirements, and please directly contact our technician for specific information;
We can provide product customization service;
Specifications of this product are subject to changes without prior notice.
Address: No. 5, Kehui St. 1, Kehui Development Center, Science Ave., Guangzhou Science City, Luogang District, Guangzhou, P. R. China
Tel: 86-20-38601850-8801
Fax: 86-20-38601272
E-mail: info@mornsun.cn
Mornsun Guangzhou Science & Technology Co., Ltd.
2014.03.17-A/3
Page 3 of 3
MORNSUN Guangzhou Science & Technology Co., Ltd. reserves the copyright and right of final interpretation
