T1
T1 MINI TRIM
SWITCHES
T1 MINI TRIM SWITCHES
2-WAY MINI TRIM, COMMERCIAL & MILITARY GRADES
The T1 Mini Trim is a single pole, double throw, center off,
momentary contact (self return to center off) switch. Numerous
button styles are available on both the Commercial and Military
grade switch versions. Mini Trims are typically press fit into
control grips or panel mounted using versions with an 11/16”
threaded case. Mini Trims are also available with multiple
sealing levels to fit all applications.

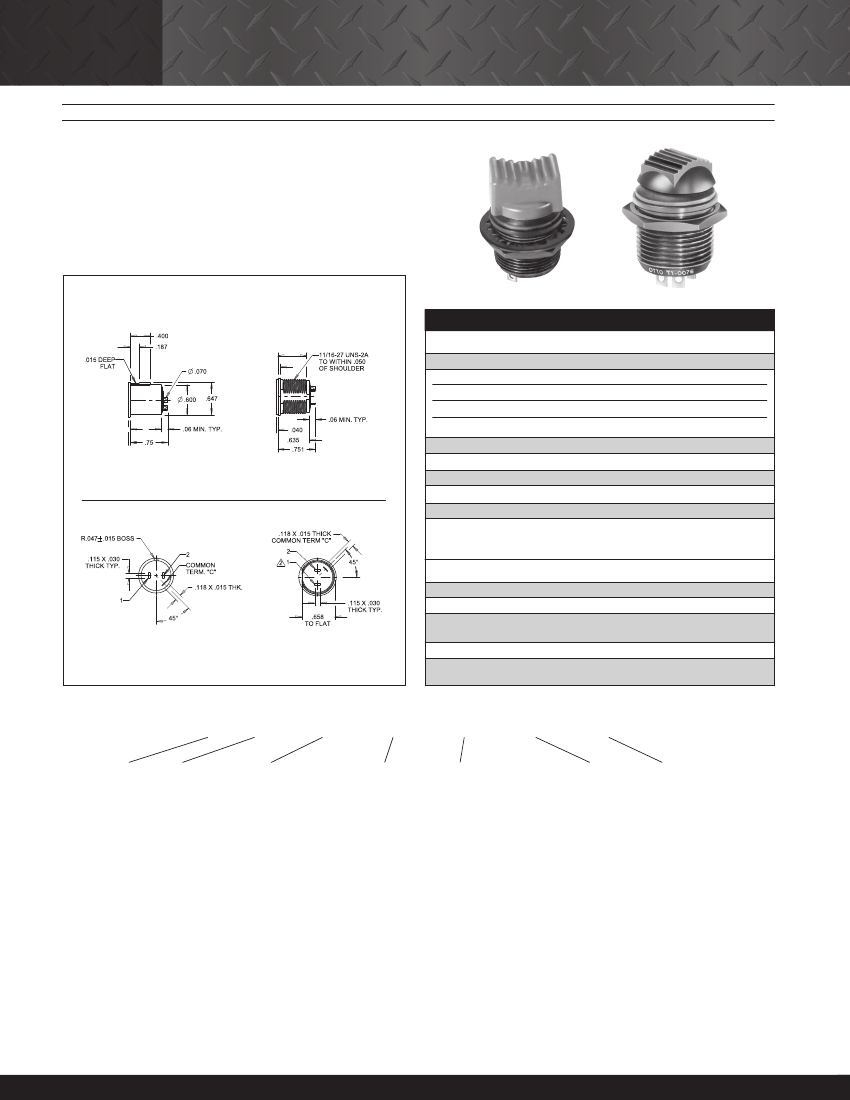

Typical Dimensions
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Resistive
Inductive
DWV
Logic Level
Electrical Life:
Press Fit
Threaded Body
Lever Travel:
Seal:
Operating Temp Range:
Operating Force:
Lever Pivot & Stop Strength:
Rating
10mA @ 5VDC (logic level)
1A @ 28VDC
1050Vrms
10mA Resistive @ 5VDC
100,000 cycles 1A Inductive @ 28VDC
15° max from center OFF
IP64 or IP68S or MIL-PRF-8805 Design 3
-55°C to +85°C
16 oz +/- 6 oz
Switch is capable of withstanding a force of 25.0 lbs.
applied to the actuating button. The button also
withstands 15.0 lbs. minimum pull force.
T1
MATERIALS:
Case:
Button:
Terminals:
Press Fit
Threaded Body
Terminal Hardware:
Mounting Hardware:
Aluminum alloy or thermoplastic
Thermoplastic
Silver over brass
Gold over silver over brass for logic level
None provided
Hex nut, tooth lockwasher and panel gasket
where applicable
T1
Series
T1.
2-Way
–
X
Button Style
T1 MINI TRIM PART NUMBER CODE
X
X
X
X
X
Current Rating
Button Color*
1.
Red
2.
Black
8.
Gray
N.
Not Applicable**
* Contact factory for additional
button colors.
** Use when specifying button
styles L, M, N and P.
Grade
C.
Commercial
M.
Military
Case Style
1.
Press Fit
2.
Threaded
Seal Level
A.
2-Way Jog
B.
Tall Jog
C.
Rocker
D.
Cone
E.
LRUD Hat
F.
IOUD Hat
G.
Hat
H.
Stadium
J.
Castle
K.
4-Way Jog
L.
Short Bat
M.
Bat
N.
Post
P.
4-40 Threaded Post
Q.
Rotated Stadium
1.
IP64 Dusttight
1.
Standard
2.
IP68S Watertight
2.
Logic Level
3.
Design Symbol 3 Watertight
per MIL-PRF-8805 and Meets
Environmental Testing per
MIL-DTL-9419

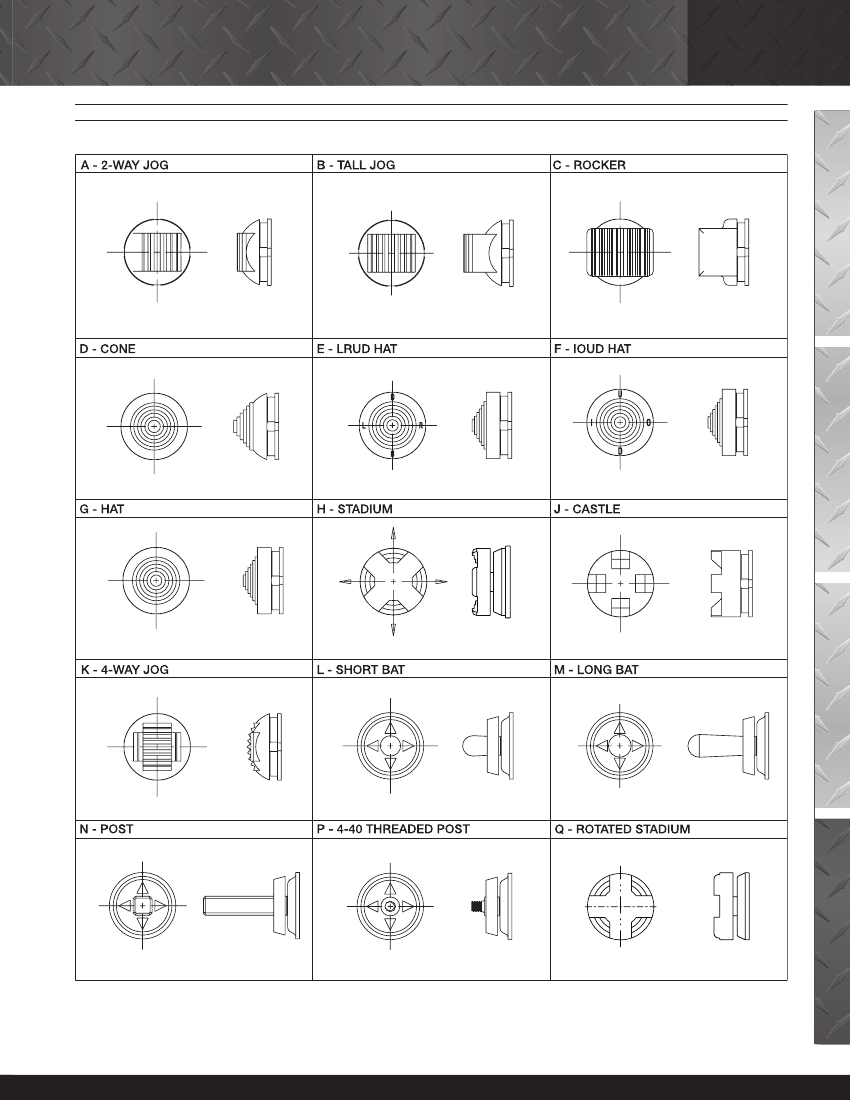

T1 Mini Trim Button Styles are shown on the Button Styles page and in the appendix.
220
OTTO Full Line Catalog
Specifications Subject To Change Without Notice
