374606 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 374606

374606: Description64 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER; CategoryThe connector The connector; File Size62KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

374606 Overview

64 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER

374606 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compli
Other features	ROHS COMPLIANT
body width	0.437 inch
subject depth	0.457 inch
body length	3.74 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9174 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYAMIDE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64

Preview

Download Datasheet

View All

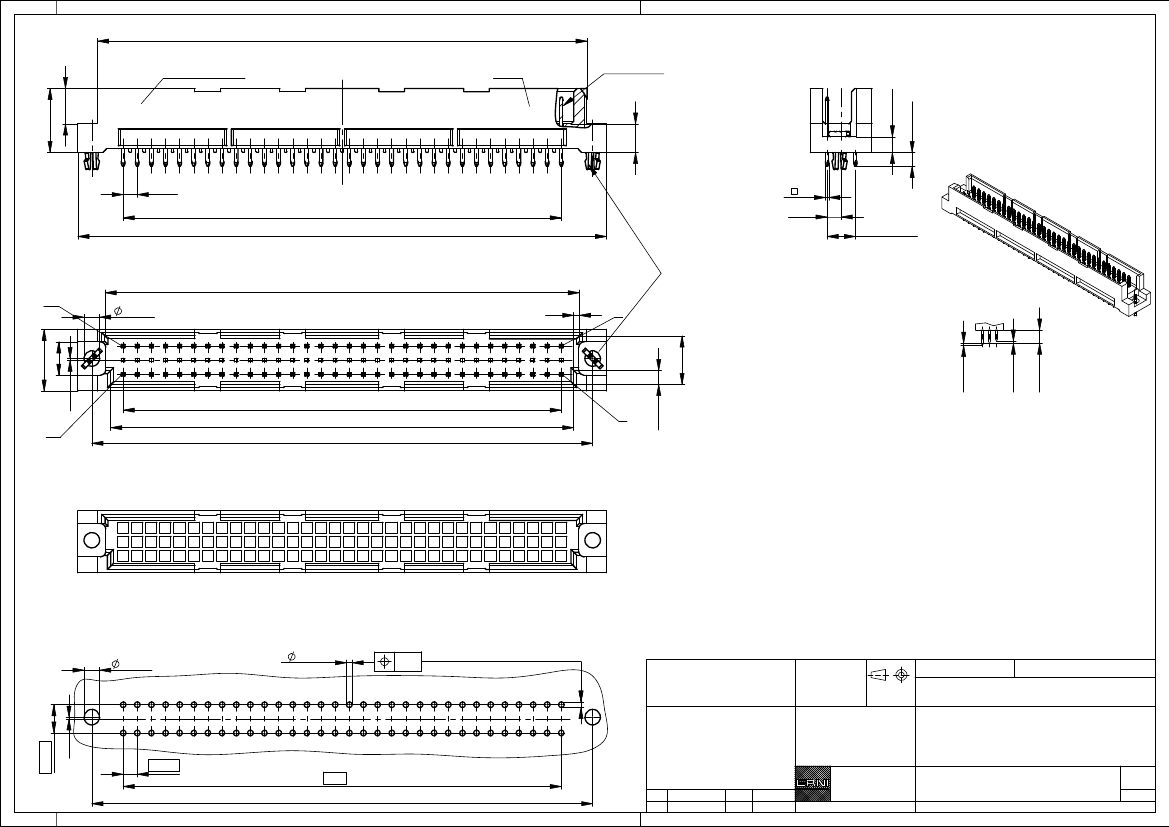

-0,2

Anforderungsstufe

class

Datum

date

ERNI

Stecklänge

mating length

2,9

-0,3

5,2

-0,1

a b c

0,6

2,54

2x2,54=5,08

Befestigungsclip

max.11,6

6,4

-0,1

2,54

78,74

max.95

85,2

a32

2,8

+0,1

+0,2

2,5

±0,2

Stecklänge / mating length

ESL

max.11,1

8,7

+0,1

0,3

2,5

-0,2

31x2,54=78,74

83,2

+0,4

E =

early mate, late break

/ voreilend

S = standard

L = late mate, early break / nacheilend

c32

±0,1

Bestückungsplan /

contact layout

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S

THR =

through hole reflow

Bauart 4 / t

ype 4

Anforderungsstufe 2 = 400 Steckzyklen

/ performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

+0,1

±0,1

0,05

alle Löcher

Proprietary notice pursuant to ISO 16016 to be observed.

all holes

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2,54

31x 2,54 =78,74

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

06.11.2013

Date

Designation

0,3

5,08

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste R 64 THR+Clip

Male Connector R 64 THR+Clip

www.ERNI.com

Class

374606

STVR

4,8

±0,2

0,8

±0,1

0,8

±0,1

RC 2

XXXXXXX

Retentive clip
