374852 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 374852

374852: Description48 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER; CategoryThe connector The connector; File Size47KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

374852 Overview

48 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER

374852 Parametric

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.437 inch
subject depth	0.457 inch
body length	2.165 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9174 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48
Base Number Matches	1

Preview

Download Datasheet

View All

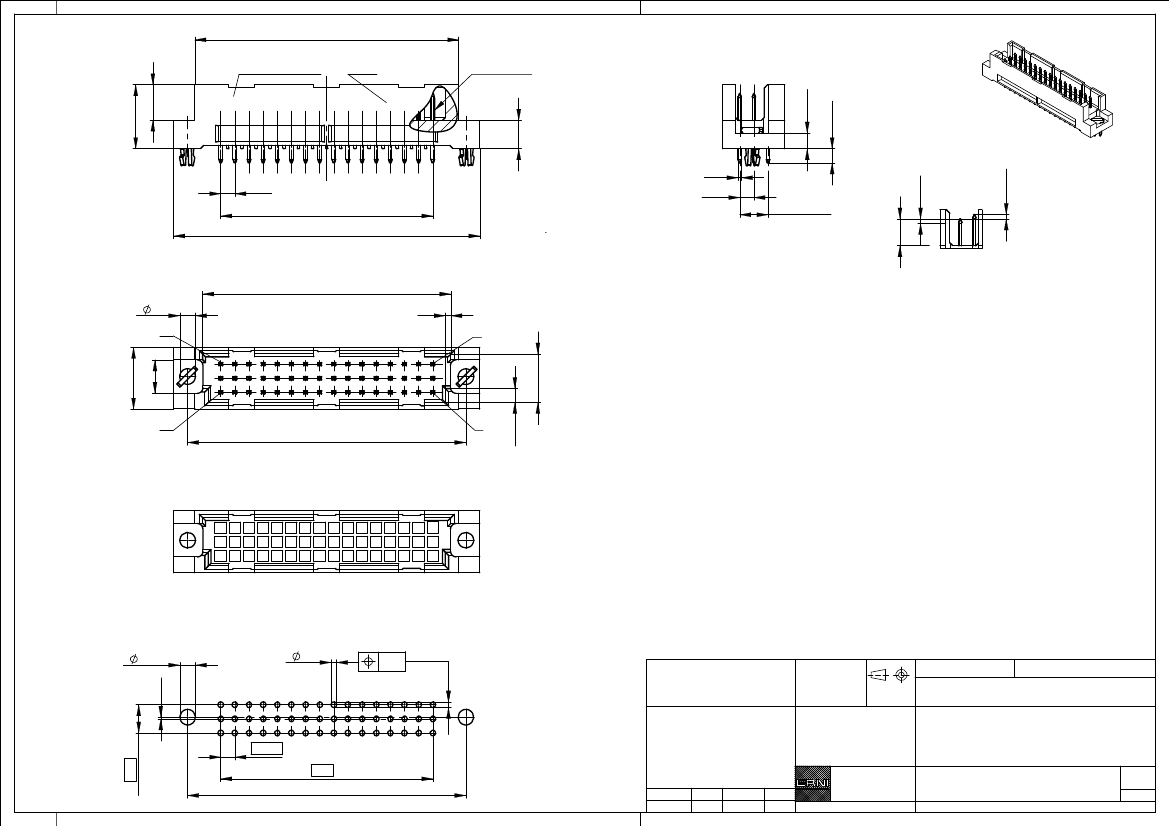

47,4

-0,2

Anforderungsstufe

class

6,4

-0,1

max.11,6

RC 2

Datum

date

Stecklänge

mating length

XXXXXXX

5,2

-0,1

2,9

-0,3

a b c

Stecklänge /

mating length

0,8

±0,1

0,6

2,5

±0,2

2,54

15x2,54=38,1

max.55

2,54

2x2,54=5,08

4,8

+0,2

0,8

±0,1

2,8

+0,1

a16

max11,1

8,7

+0,1

c16

2,5

-0,2

Bestückungsplan /

contact layout

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S

Bedruckung siehe Zeichnung 294905

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

+0,1

±0,1

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

Proprietary notice pursuant to ISO 16016 to be observed.

0,3

2x 2,54 =5,08

2,54

15x 2,54 =38,1

ERNI

44,6

+0,2

L S E

E =

early mate, late break

/ voreilend

S = standard

L =

late mate, early break

/ nacheilend

THR =

through hole reflow

Isolierwerkstoff

/ housing material : PA46 GF 30

Bauart 4 / t

ype 4

Anforderungsstufe 2 = 400 Steckzyklen

/ performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Marking see drawing 294905

Alle Löcher

0,05

all holes

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

27.04.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste R/2, 48 THR+Clip

Male Con. R/2, 48 THR+Clip

www.ERNI.com

Class

374852

STVR/2
