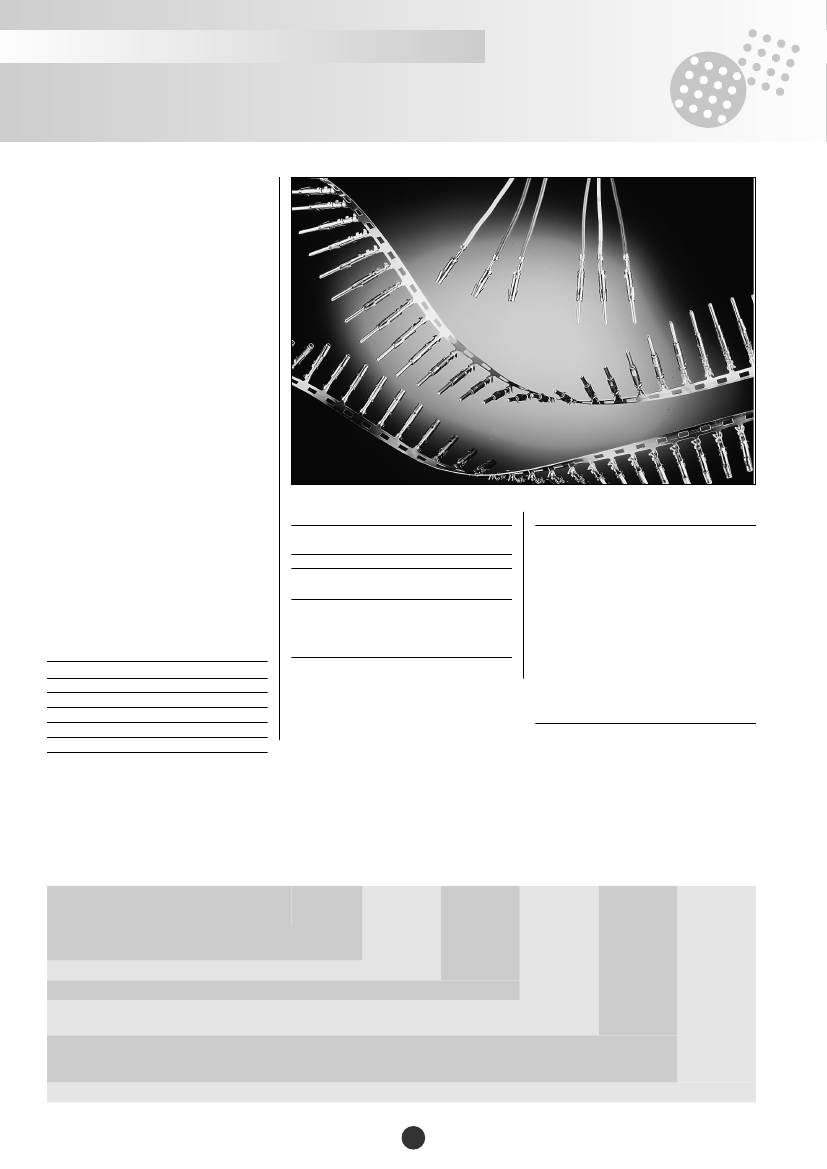

SM/SC-M
Size 16 stamped and
formed contacts for
TRIM TRIO
connectors
Description
Size 16 SM/SC .063” (1.6mm) diameter
contacts are two piece strip formed crimp
snap-in pin and sockets.
These contacts consist of a crimp body
made of high conductive copper alloy, and
a stainless steel retaining spring featuring
retention in the housing cavity and a closed
entry socket to prevent probe damage.
The contact with its open barrel is standard
available on srtip and packaged with 3000
pcs on reel. This reel packaging combined
with semi or even full automatic crimp
tooling provides the added advantage of a
lower installed cost.
Features and benefits
• Made from high conductive copper alloy
with gold or tin over nickel plate finish.
• Two piece construcion with dual purpose
spring which serves for contact retention
and protects the body against damage.
• Contacts available on reel (standard) and
in bulk packing (100 pcs).
• Suitable for high volumes and lower
installation cost.
Construction
Contact body: High conductive copper
alloy.
Outer spring: Stainless steel
Connector accommodation
Any TRIM TRIO size 16 contact can
be used in any contact position in any
connector in the TRIM TRIO size 16
interconnection system.
• MS-M / MSG / MB
• SMS Qikmate
• UTG
• UTP
• UT0
• MBG
Note:
Reeled contacts are for applicator with left
side feeding.
Plating table
S6 = 0.75m Gold min. in contact area,
flash on crimp barrel over Nickel.
D70 = Gold flash all over, over Nickel.
TK6 = Preplated Tin all over.
Performance characteristics
Current rating:
Contact resistance:
1 Amp
3
6 mΩ
Contact retention in body: 65 N min.
Individual insertion force: 3.5 N max.
Individual withdrawal force: 0.55 N min.

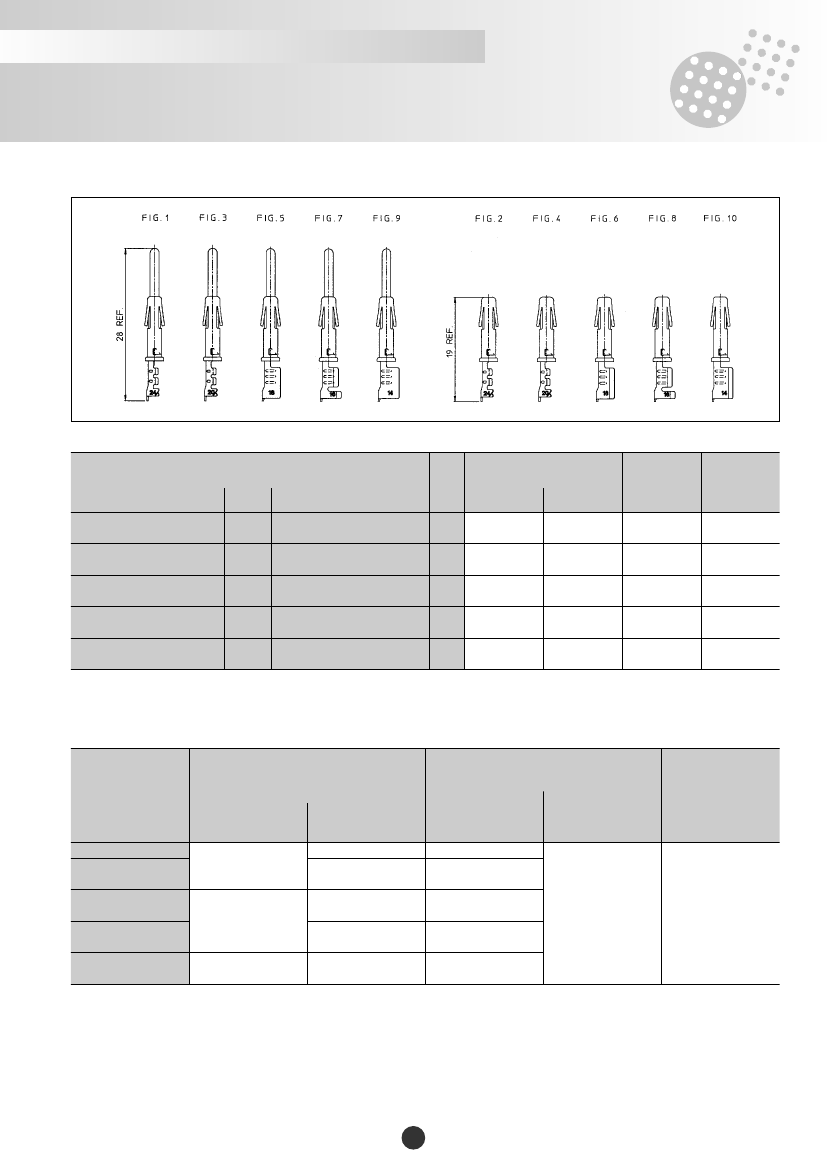

How to order
SM
SC
Contact type:
AWG Size:
SM:
Male contact
SC :
Female contact
1 16, 20, 24
4,
1
6
1
6
M
M
(L)
(L)
1
1
S6
S6
Type of crimp barrel:
American open crimp barrel
Packing:
Design variation
No digit:
Contacts on strip (qty 3000 per reel)
L:
Preformed loose piece contacts
1 :
Only wire crimp for size 1 and 16
4
:
Wire + insulation crimp for sizes 20 and 24
1 :
Wire + insulation crimp for size 16
1
See plating table
Plating indication:
106
