27.602.6553.0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 27.602.6553.0

27.602.6553.0: DescriptionBarrier Strip Terminal Block, 8A, 1.5mm2, 1 Row(s), 2 Deck(s), GREEN; CategoryThe connector terminals; File Size418KB，2 Pages; ManufacturerWieland Electric GmbH; Websitehttps://www.wieland-electric.com/

Download Datasheet Parametric View All

27.602.6553.0 Overview

Barrier Strip Terminal Block, 8A, 1.5mm2, 1 Row(s), 2 Deck(s), GREEN

27.602.6553.0 Parametric

Parameter Name	Attribute value
package instruction	GREEN
Reach Compliance Code	compli
ECCN code	EAR99
Other features	PA6.6
Fastening method	SCREW
Manufacturer's serial number	27.602
Installation type	PANEL
Number of layers	2
Rows	1
Number of channels	5
Rated current	8 A
Rated voltage	300 V
safety certificate	UL; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Conductor cross section	1.5 mm2
Base Number Matches	1

Preview

Download Datasheet

View All

wiecon

type 8142 Z

PC board terminal, pluggable

crew connection with rising cage technology

Mates with pinstrip style header

5.0 mm spacing

ifferent versions available:

142 Z: standard version mates with pinstrip header

8142 Z RF: Mounting flanges at block base to attach to housing

142 Z F2: Lateral mounting flanges to attach block to housing

Pin header also available in THR design

– 12-poles, can be adjacently mounted without

loss of pole position

Standard color black (similar to RAL 9005)

Advantages

Screw connection with rising cage technology

deal for snap-on cover housing applications thanks

to its innovative mounting flange options

Reference to Wieland 8142

Can be snapped together without loss of pole position

Pin headers for wave and reflow soldering available

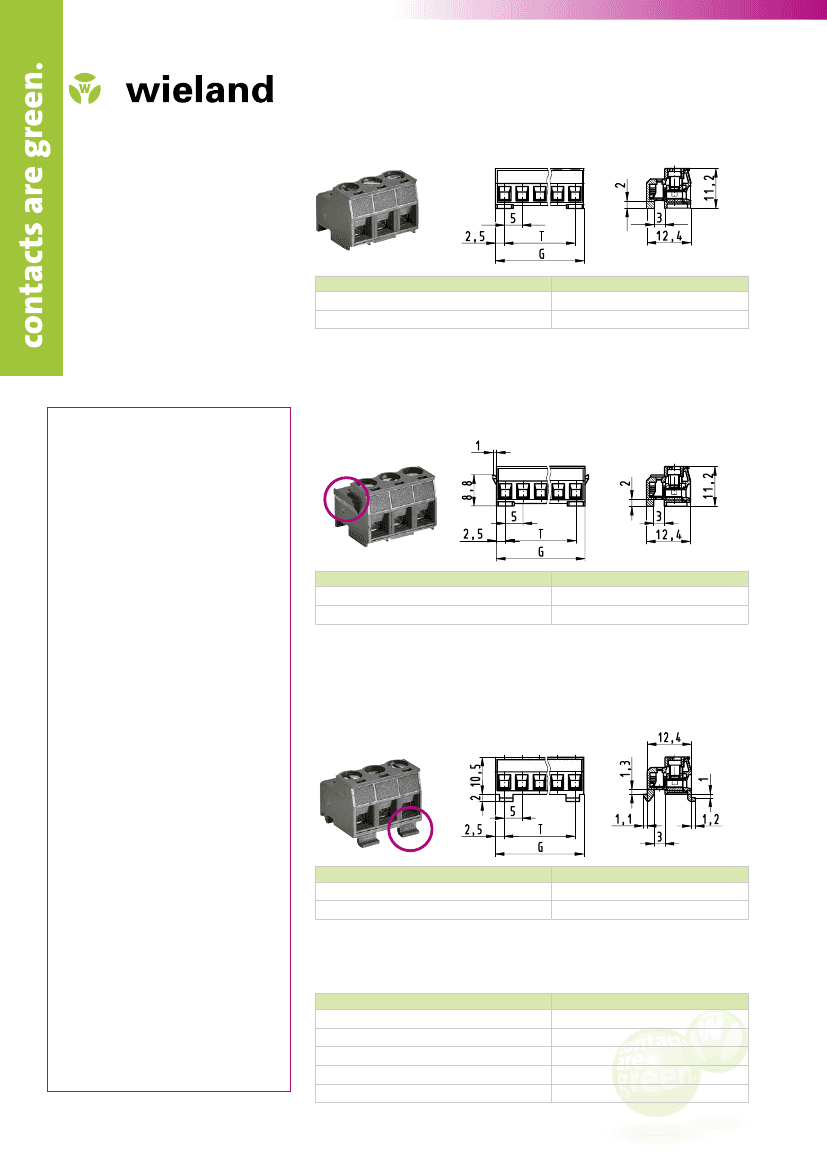

Description

wiecon Type 8142 Z

wiecon Type 8142 Z / RF

Mounting flange: base

wiecon Type 8142 Z / F2

Mounting flange: lateral

Spacing

Number of poles

Rated cross section

Insulation strip length

Packaging units

Rated current on the basis of 60999-1

5 mm

2 – 12

1.5 mm²

6 mm

Dependent on the number of poles

8 A (ambient temperature 40 °C)

3 A (ambient temperature 70 °C)

8 A (UL), 5 A (CSA)

Rated voltage

Rated impulse voltage

Pollution degree

Material: Plastic

– CTI

– Halogen-free

– RoHS

Temperature range

Flammability according to UL 94

Approvals

Material: screw

Dimension:

Tightening torque

Material: Clamping body

Material: Contact spring

Pin header, wave soldering (packaging: box)

Pin header THR (packaging: tape on reel)

250 V

300 V (UL, CSA)

2.5 kV

PA 6.6

> 600

yes

compliant

- 40° C to + 100° C (temporarily 140 °C)

UL, CSA

Steel, tin-plated and passivated

max 0.5 Nm

Tin-plated brass

Tin-plated copper alloy

Z5.530.XX25.0 (XX = number of poles)

Z5.550.7214.0 (2-poles) – Z5.550. 8214.0 (12-poles)

0143.5 MC 11/09
