Types MCM and MIN
SMT Clad RF Capacitors
Multilayer High Power, High Temperature Mica and PTFE Capacitors

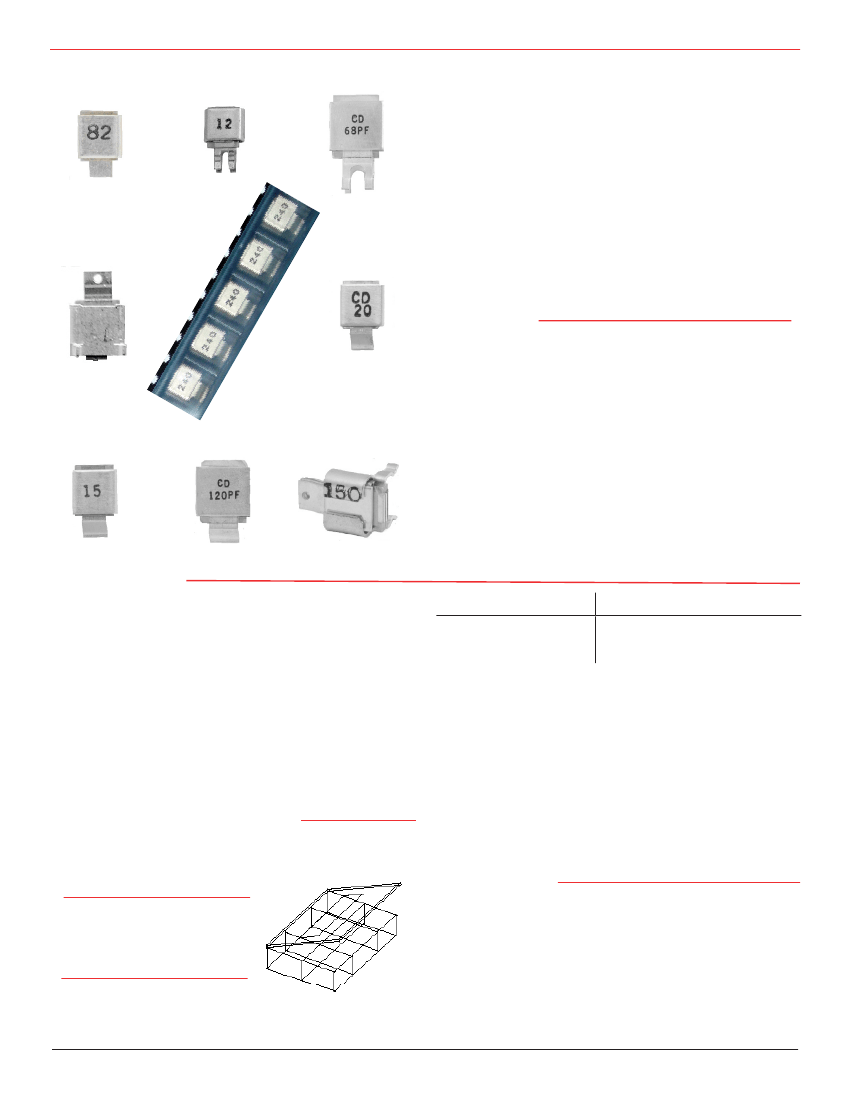

Types MCM and MIN SMT clad PTFE and mica ca-
pacitors are top performers for high power applications
requiring low inductance at high frequencies and can
operate at temperatures up to 200 ºC and voltages to
1000 Vdc. Choosing from 16 different configurations
offers easy mounting with options for surface mount as
well as through-hole and mechanical assembly. To
assure high current capability in the smallest capaci-
tors, low-capacitance ratings use polytetrafluorethylene
(PTFE) that has ultra-low dielectric absorption - better
than polypropylene, polystyrene and NPO ceramic.
l si
ze
Highlights
Specifications
Capacitance Range:
Voltage Ratings:
Temperature Range:
Capacitance Tolerance:
Dielectric Strength:
Insulation Resistance:
Aging Rate:
Marking:
• 200 ºC rated with no voltage derating
• Wave solderable
• No cracking or delaminating
• CTE
≈
18 ppm/ºC compatible with FR4 PCBs
• Highly thermal conductive package
• Gull-wing terminal minimizes stress
• Typical 100 pF ESR, <11 mΩ @ 100 MHz
• Nonmagnetic for minimal RF loss
• Very low ESL for excellent by-pass action
• Ultra stable: no change with (t), (V) and (f)
• Exact capacitance with tolerances from ±0.25 pF
RoHS Compliant
MCM
MIN
1 to 1500 pF
1 to 350 pF
300 to 1000 Vdc
300 Vdc
–55 ºC to +200 ºC with no voltage derating
act
ua
±0.25pF, ±0.5 pF, ±1 pF, ±0.5%, ±1%, ±2%, ±5%
200% of rated voltage for 5 seconds
1000 MΩ•µF Need not exceed 100,000 MΩ at 25 ºC
None
MIN
- Capacitance in pF and ID letters CD
MCM
- Capacitance, ID letters CD and voltage if
other than 500 when space permits
RoHS Compliant - marked in green inkMIN
Design Kits for Engineers
MIN300VKIT1 300 Vdc
5 pieces each
13 ratings 3.3 – 150 pF
MCM500VKIT2
Nonmagnetic to 500 Vdc
5 pieces each
10 ratings 10 – 1000 pF
MCM1000VKIT3 1 kVdc
5 pieces each
7 ratings 100 – 750 pF
Applications
RF Power Amplifiers
Lasers
Mobile Radio
Plasma generators
MRI Coils
RF Medical Equipment
Land Mobile antennas 27 to 900 MHZ
1
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Types MCM and MIN
SMT Clad RF Capacitors
Ratings Available
Capacitance
(pF)
300
1 - 2.9
3 - 9.9
10 - 60
61 - 120
121 - 180
181 - 240
241 - 300
301 - 350
1-7
8 - 32
33 - 250
251 - 500
501 - 750
751 - 1000
1001 - 1280
1281 - 1500
X
X
X
X
X
X
X
X
X
MCM01
X
X
X
X
X
X
X
X
X
X
X
X
PTFE
PTFE or Mica
Mica
Mica
Mica
Mica
Mica
Mica
*1000 V available in MCM01-001 and -009 style
Voltage
Ratings
(Vdc)
500
MIN02
PTFE
PTFE or Mica
Mica
Mica
Mica
Mica
Mica
Mica
*1000
Dielectric
Part Numbering System
MCM01
or
MIN02
Type
Terminal
Temperature
(mica only)
C
MCM01
▲
—
001
C
D
Rated
Voltages
(Vdc)
C = 300 Vdc
D = 500 Vdc
F = 1000 Vdc
101
J
Capacitance
—
T
F
RoHS
"dash"
Configuration Coefficient *
Capacitance
(pF)
090 = 9
9R2 = 9.2
100 = 10
101 = 100
(751) = 751
102 = 1000
Tolerance*
( pF or %)
A = ±1 pF 2 - 200 pF
B = ±0.25 pF 1 - 50 pF
D = ±0.5 pF 1 - 100 pF
E = ±0.5 % > 100 pF
F = ±1 %
G = ±2%
J = ±5%
> 33 pF
> 11 pF
> 11 pF
Packaging
Compliant
–T
= Tape
Blank = Bulk
Blank = Not
specified
F = Compliant
MIN02
▲
D
E
001
010
2
1,2
002
1
▲
▲
▲
009
Most Popular Series, other's
available, consult factory
1
2
Surface mount and T&R
1kV
Capacitance
Style
C
D
E
Range
1 pF to 20 pF
21 pF to 56 pF
Temperature
Characteristic
±200 ppm/ºC
±100 ppm/ºC
K = ±10% > 11 pF
57 pF to 1500 pF –20 to +100 ppm/ºC
*TC code letter is left blank for PTFE items
Measured at 1 MHz
for ≤1000 pF and
1 kHz for >1000 pF
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
2
Types MCM and MIN
SMT Clad RF Capacitors

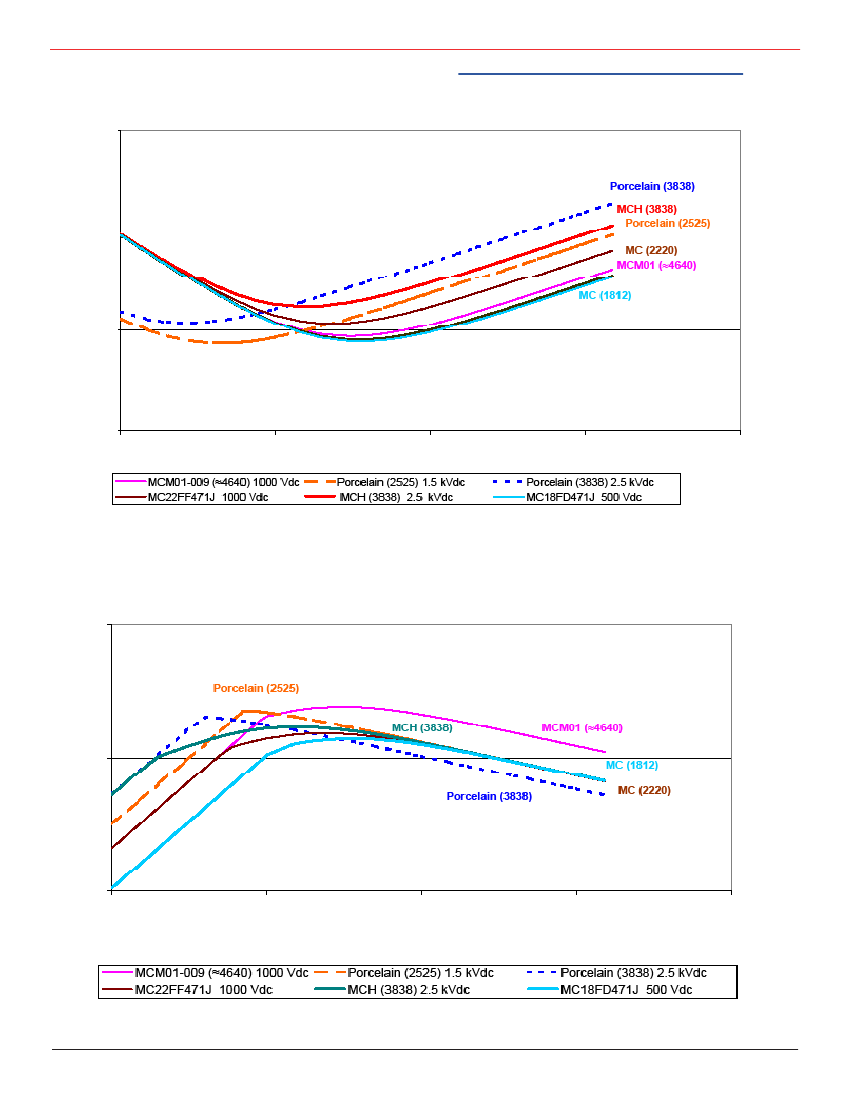

Q vs. Frequency 470 pF @ 25 ºC
100000
Porcelain (2525)
10000
1000
MC (1812)
MCM01 (≈4640)
MC (2220)
Q
Q
100
Porcelain (3838)
MCH (3838)
10
1
1
10
100
1000
10000
f (MHz)
MCM01-009 (½4640) 1000 Vdc
MC22FF471J 1000 Vdc
Porcelain (2525) 1.5 kVdc
MCH (3838) 2.5 kVdc
Porcelain (3838) 2.5 kVdc
MC18FD471J 500 Vdc

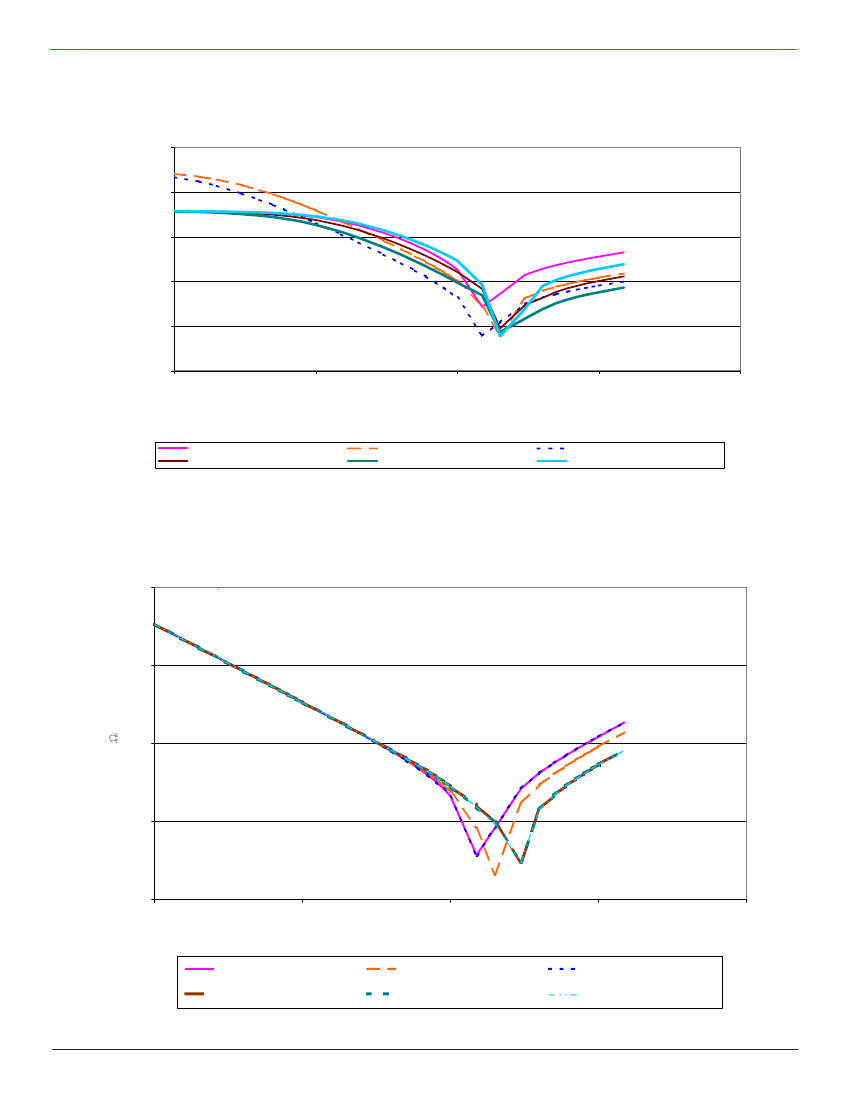

Impedance Z vs. Frequency for 470 pF @ 25 ºC
1000
100
1
Porcelain (3838)
MCM01 (½4640)
MC (1812)
MCH (3838)
Z (
½
)
10
MC (2220)
1
0.1
1
10
Porcelain (2525)
100
1000
10000
f (MHz)
MCM01-009 (½4640) 1000 Vdc
MC22FF471J 1000 Vdc
Porcelain (2525) 1.5 kVdc
MCH (3838) 2.5 kVdc
Porcelain (3838) 2.5 kVdc
MC18FD471J 500 Vdc
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
4
Types MCM and MIN
SMT Clad RF Capacitors
Outline Drawings for Popular Items
MIN02-002
.
MCM01-001
.093” DIA.
.312”
.187”
.207”.163”
.218"
.218”
.100”
.203”
.042”
.400”
“T”
.312”
.604” MAX.
.460”
MAX
.365”
.010”
±.001
“T”
.020”
.010”
±.001”
.400”
“T” (thickness) depending on capacitance value = .065 to .125±.015
“T”
MCM01-009
“T” (thickness) depending on capacitance value= .110 to .165±.015
MCM01-010
.400”
±.010
.156”
REF
.605”
.365”
MAX
.400”
.203”
“T”
.500” MAX
Terminal A
.138” REF
.010”
.001”
.460”
MAX
.145”
MAX
45º
.400”
“T”
.010”
±.001”
.100”
.200”
.170”
.090”
.020”
.001”
.210”
.173”
.150”
.062” DIA. 2 Holes
For Terminal “A”
.081” DIA. 2 Holes
.185”
For single plate
construction
270 pF or less
“T”
“T” (thickness) depending on capacitance value= .110 to .165±.015
“T” (thickness) depending on capacitance value= .110 to .165±.015
“T” varies with capacitance
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
