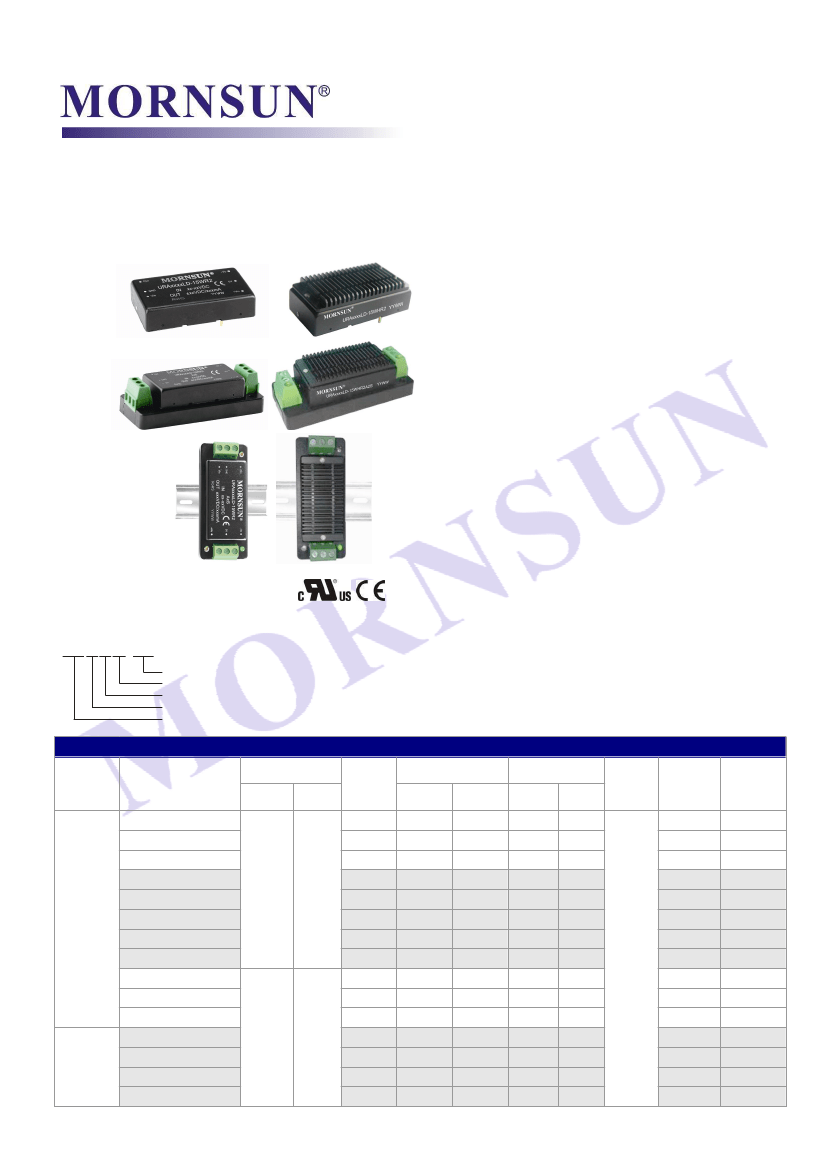

FEATURES
●
Efficiency up to 90%
●
4:1 wide input voltage range
15W,ULTRA-WIDE
INPUT, ISOLATED & REGULATED
●
Output over current and over voltage
protection,Short circuit protection
DUAL/SINGLE OUTPUT DIP PACKAGING,
●
1.5KVDC isolation
DC-DC CONVERTER
●
Operating temperature range:
-40°C ~ +85°C
●
Six-sided metal shield
●
Industry standard pinout
●
Meet CISPR22/EN55022 CLASS A
●
Meet UL60950 and EN60950
●
Inverse polarity protection for A2S(chassis
mounting)andA4S(DIN-Rail mounting)
URA_LD-15WR2 &
URB_LD-15WR2
SERIES
Patent Protectied
RoHS
PART NUMBER SYSTEM
URA2405LD-15WR2
Rated Power
Package Style
Output Voltage
Input Voltage
Product Series
APPLICATION
URA_LD-15WR2 & URB_LD-15WR2 series are applied to
wide voltage range input situation such as data transmission
device,battery power supply device, telecommunication device,
distributed power supply system, remote control system,
industrial robot system etc.
SELECTION GUIDE
Input Voltage(VDC)
Approval
Model
①
URA2405LD-15WR2
URA2412LD-15WR2
URA2415LD-15WR2
URB2403LD-15WR2
URB2405LD-15WR2
CE
URB2412LD-15WR2
URB2415LD-15WR2
URB2424LD-15WR2
URA4805LD-15WR2
URA4812LD-15WR2
URA4815LD-15WR2
URB4803LD-15WR2
UL/CE
URB4805LD-15WR2
URB4812LD-15WR2
URB4815LD-15WR2
48
(18-75)
80
24
(9-36)
40
Nominal
(Range)
Max.
②
Output
Voltage
(VDC)
±5
±12
±15
3.3
5
12
15
24
±5
±12
±15
3.3
5
12
15
Output Current (mA)
Max.
±1500
±625
±500
4000
3000
1250
1000
625
±1500
±625
±500
4000
3000
1250
1000
Min.
±75
±32
±25
200
150
63
50
31
±75
±32
±25
200
150
63
50
Input Current
(mA)(typ.)
@Max.
@No
Load
Load
727
710
710
633
695
703
703
695
363
355
351
316
351
355
347
20
15
15
45
45
15
15
20
20
15
15
35
35
10
10
30
Reflected
Efficiency
④
Max.
Ripple
(%, typ.)
Capacitive
Current
@Max.
Load
③
(µF)
(mA,typ.)
Load
4800
800
500
10200
4020
1035
705
470
4800
800
500
10200
4020
1035
705
86
88
88
87
90
89
89
90
86
88
89
87
89
88
90
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
URA_LD-15WR2 & URB_LD-15WR2
2013.11.29-A/3 Page 1of 9
Note:
①Series
with suffix
“H”
are heat sink mounting; series with suffix
“A2S”
are chassis mounting，
with suffix
“A4S”
are DIN-Rail mounting, for example URB2405LD-
15WHR2A2S is chassis mounting of with heat sink,URB2405LD-15WR2A4S is DIN-Rail mounting of without heat sink;If the application has a higher
requirement for heat dissipation, you can choose modules with heat sink;
②Absolute
maximum rating without damage on the converter;
③For
dual-output-converters the given value is for one output (for both outputs the same value);
④The
efficiency of "A2S" and "A4S" is approx. 2% lower for the protection of inverse polarity.
INPUT SPECIFICATIONS
Item
Input Surge Voltage (1sec.max.)
Test Conditions
24VDC input
48VDC input
24VDC input
48VDC input
24VDC input
48VDC input
Nominal input& constant resistance load
Models ON
Ctrl*
Models OFF
Input current (Models OFF)
Input Filter
Note: *The
Ctrl
control pin voltage is refer to GND.
Min.
-0.7
-0.7
--
--
7.5
16
--
Typ.
--
--
--
--
--
--
10
Max.
50
100
9
17.8
--
--
--
Unit
Start-up Voltage
Under Voltage Shutdown
Start-up Time
VDC
ms
Ctrl open or connect TTL high level (2.5-12VDC)
Ctrl connect GND or low level (0-1.2VDC)
--
1
--
mA
Pi Filter
OUTPUT SPECIFICATIONS
Item
Positive Voltage Accuracy
Negative Voltage Accuracy
Output Voltage Balance
Line Regulation
Load Regulation
Cross Regulation
Transient Recovery Time
Transient Response Deviation
Temperature Drift
Ripple & Noise*
Trim
3.3VDC output
5VDC output
Output Over Voltage Protection
12VDC output
15VDC output
24VDC output
Over Current Protection
Short Circuit Protection
Input voltage range
Dual output, balanced loads
Full load, input voltage from low to high
5% to 100% load
Dual output, main output 50% load,
Supplement output from 10% to 100% load
25% load step change
Full load
20MHz bandwidth
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Test Conditions
Min.
Typ.
±1
±0.5
±0.2
±0.5
--
300
±3
±0.02
70
±10%
3.9
6.2
15
18
30
160
Max.
±3
±1
±0.5
±1
±5
500
±5
--
100
--
--
--
--
--
--
--
%
VDC
µs
%
%/°C
mVp-p
%
Unit
Hiccup, Continuous, automatic recovery
Note: * Ripple and noise tested by
“parallel
cable” method. See detailed operation instructions at
DC-DC Application Notes
.
COMMON SPECIFICATIONS
Item
Isolation Voltage
Isolation Resistance
Isolation Capacitance
Switching Frequency
MTBF
Safety approvals
Case Material
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
URA_LD-15WR2 & URB_LD-15WR2
Test Conditions
Input-Output,tested for 1 minute and leakage current less than 1 mA
Input-Output,test at 500VDC
Input-Output,100KHz/0.1V
PWM mode
MIL-HDBK-217F@25℃
URB48XXLD-15WR2
Others
24VDC output
Others
Min.
1500
1000
--
--
--
1000
Typ.
--
--
2000
1000
300
--
Max.
--
--
--
--
--
--
Unit
VDC
MΩ
pF
KHz
K hours
UL60950, EN60950
EN60950
Aluminum Alloy
2013.11.29-A/3 Page 2of 9

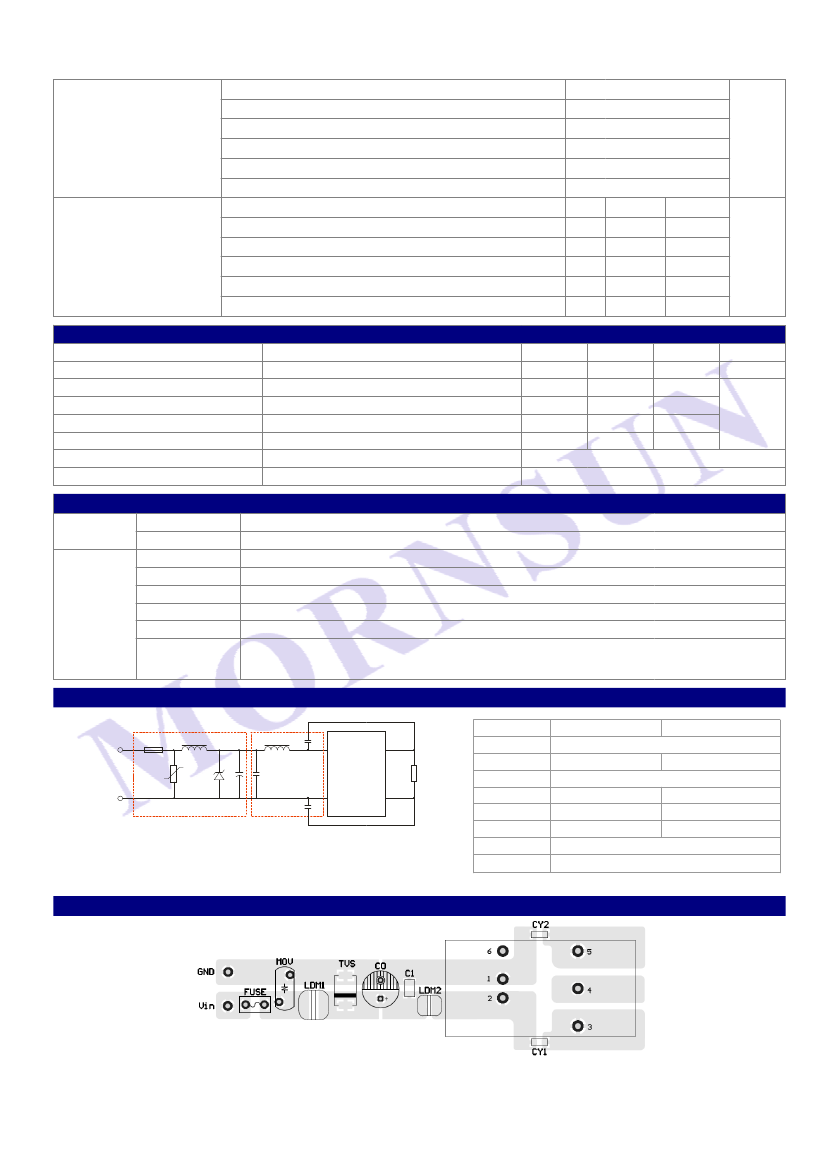

PCB mounting（Without heat sink）
PCB mounting（With heat sink）
Size
A2S Chassis mounting（Without heat sink）
A2S Chassis mounting（With heat sink）
A4S DIN-Rail mounting（Without heat sink）
A4S DIN-Rail mounting（With heat sink）
PCB mounting（Without heat sink）
PCB mounting（With heat sink）
Weight
A2S Chassis mounting（Without heat sink）
A2S Chassis mounting（With heat sink）
A4S DIN-Rail mounting（Without heat sink）
A4S DIN-Rail mounting（With heat sink）
--
--
--
--
--
--
50.80×25.40×11.80
50.80×25.40×16.30
76.00×31.50×21.20
76.00×31.50×25.10
76.00×31.50×25.80
76.00×31.50×29.70
28
36
50
58
70
78
--
--
--
--
--
--
g
mm
ENVIRONMENTAL SPECIFICATIONS
Item
Storage Humidity
Operating Temperature
Storage Temperature
The Max. Case Temperature
Lead Temperature
Cooling
Vibrating
Operating Temperature curve range
1.5mm from case for 10 seconds
Test Conditions
Non condensing
See Temperature Derating Curve（Figure 3）
Min.
5
-40
-55
--
--
Typ.
--
--
--
--
--
Max.
95
85
125
105
300
°C
Unit
%
Free air convection
10-55Hz, 10G, 30 Min. along X, Y and Z
EMC SPECIFICATIONS
EMI
CE
RE
ESD
RS
EFT
EMS
Surge
CS
Voltage dips、
short
and interruptions
immunity
CISPR22/EN55022
CISPR22/EN55022
IEC/EN61000-4-2
IEC/EN61000-4-3
IEC/EN61000-4-4
IEC/EN61000-4-5
IEC/EN61000-4-6
IEC/EN61000-4-29
CLASS A（Without External Circuit）/ CLASS B（External Circuit Refer to Figure1-②）
CLASS A（Without External Circuit）/ CLASS B（External Circuit Refer to Figure1-②）
Contact
10V/m
±2KV（External
Circuit Refer to Figure1-①）
±2KV（External
Circuit Refer to Figure1-①）
3 Vr.m.s
0%-70%
±4KV
perf. Criteria B
perf. Criteria A
perf. Criteria B
perf. Criteria B
perf. Criteria A
perf. Criteria B
EMC RECOMMENDED CIRCUIT
Recommended external circuit parameters:
FU S E
V in
+
MO V
G ND
TV S
C0
C1
LD M1
LD M2
C Y1
V in
+Vo
Model
FUSE
MOV
EUT
G ND
-Vo
( 0V)
LO A D
Vin:24V
S14K35
56μH
SMCJ48A
330μF/50V
1μF /50V
4.7μH
1nF /2KV
Vin:48V
S14K60
SMCJ90A
330μF/100V
1μF /100V
Choose according to practical input current
LDM1
TVS
C0
C1
LDM2
CY1、CY2
①
②
C Y2
(Figure 1)
Note: 1.In Figure 1,part
①is
EMS recommended external circuit, part
②is
EMI
recommended external circuit. Choose according to requirements.
EMC RECOMMENDED CIRCUIT PCB LAYOUT
(Figure 2)
Note: The pad space between input and output (CY1/CY2) must
≥2mm.
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
URA_LD-15WR2 & URB_LD-15WR2
2013.11.29-A/3 Page 3of 9

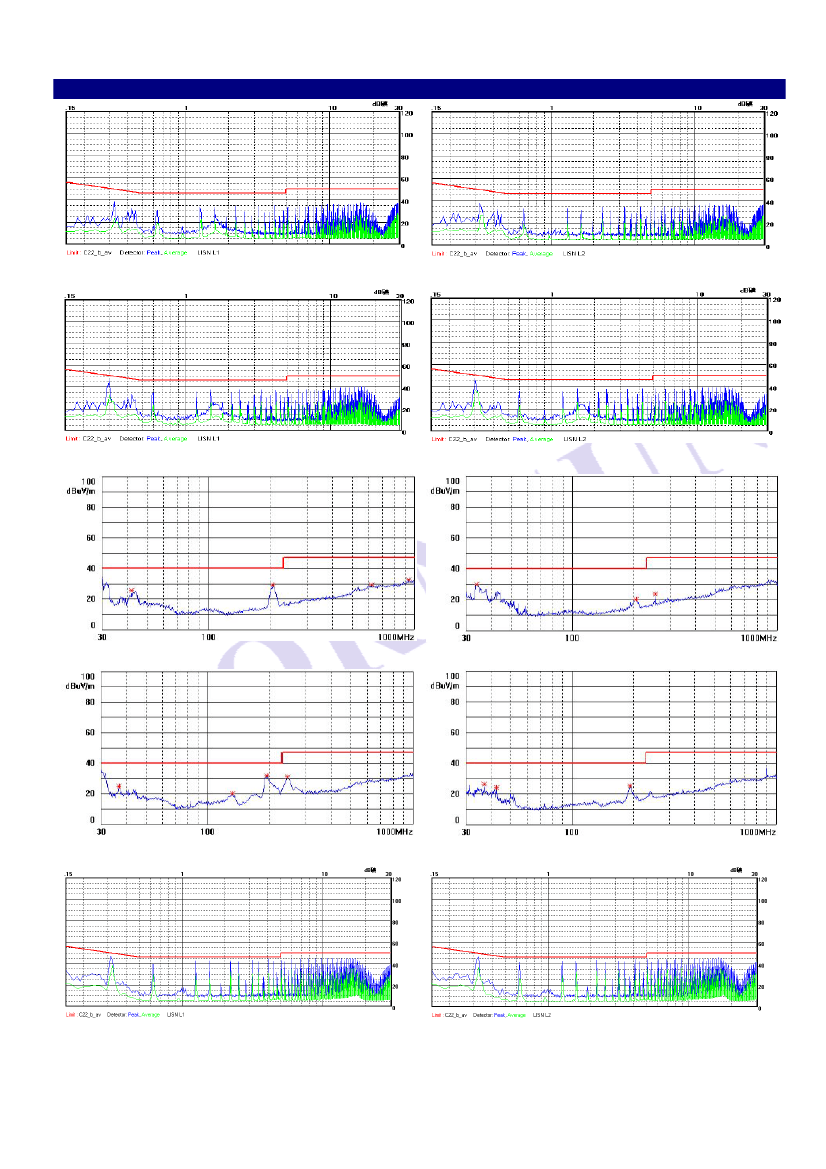

EMC TEST WAVEFORM(CLASS B APPLY CIRCUIT)
URA2405LD-15WR2 CE (Positive line)
URA2405LD-15WR2
CE (Negative line)
URA4815LD-15WR2 CE (Positive line)
URA4815LD-15WR2
CE (Negative line)
URA2405LD-15WR2
RE(Horizontal)
URA2405LD-15WR2
RE(Vertical)
URA4815LD-15WR2
RE(Horizontal)
URA4815LD-15WR2
RE(Vertical)
URB2405LD-15WR2
CE (Positive line)
URB2405LD-15WR2
CE (Negative line)
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
URA_LD-15WR2 & URB_LD-15WR2
2013.11.29-A/3 Page 4of 9

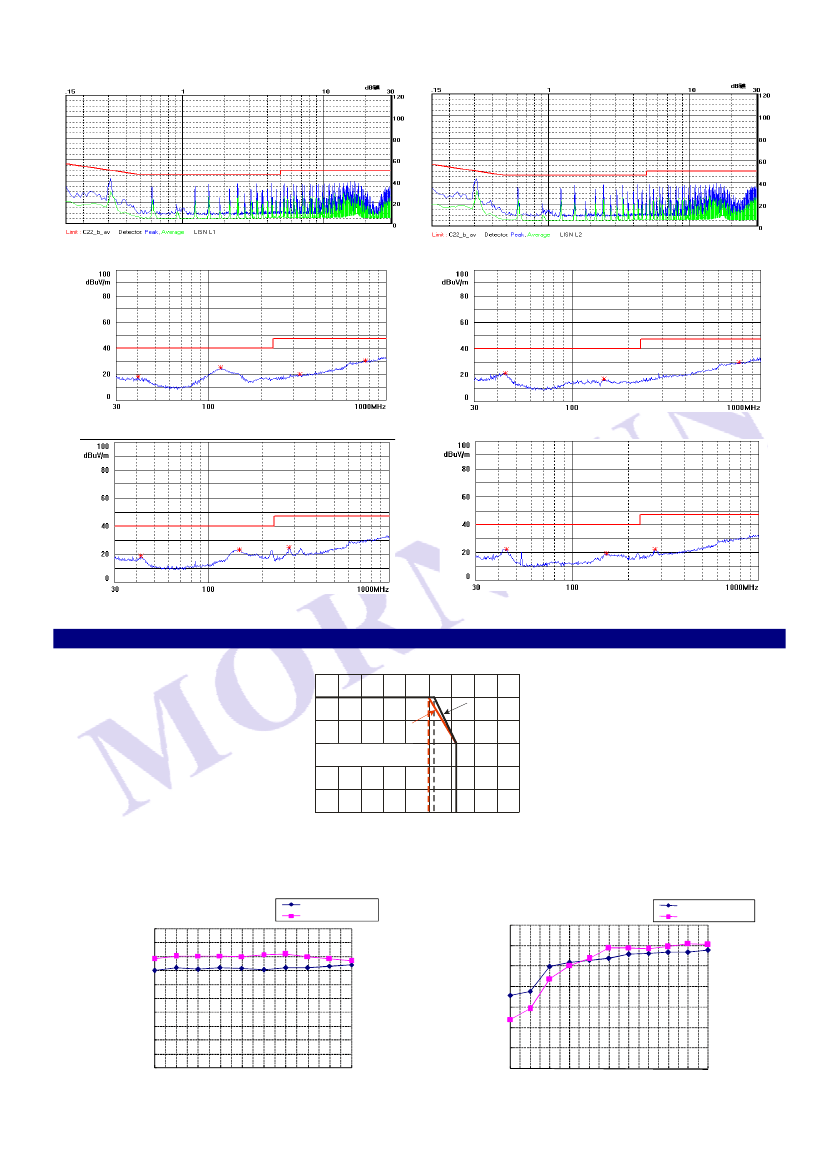

URB4815LD-15WR2
CE (Positive line)
URB4815LD-15WR2
CE (Negative line)
URB2405LD-15WR2
RE(Horizontal)
URB2405LD-15WR2
RE(Vertical)
URB4815LD-15WR2
RE(Horizontal)
URB4815LD-15WR2
RE(Vertical)
PRODUCT TYPICAL CURVE
Temperature Derating Curve
120
Output Power Percent (%)
100
80
60
40
20
0
-40
0
40
Without heatsink
Safe Operating Area
With heatsink
65 8085
120
Operating Temp(°C)
(Figure 3)
Efficiency VS Input Voltage curve
URA2405LD-15W R2
(Full Load)
URB2405LD-15W R2
Efficiency VS Output Load curve
URA2405LD-15WR2
(Vin=Vin-nominal)
URB2405LD-15WR2
100
95
90
100
90
Efficiency(%)
85
80
75
70
65
60
55
50
9
12
15
18
21
24
27
30
33
36
Efficiency(%)
80
70
60
50
40
30
5
10
20
30
40
50
60
70
80
90 100
Input Voltage(V)
Total Output Current (%)
2013.11.29-A/3 Page 5of 9
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
URA_LD-15WR2 & URB_LD-15WR2
