SFSD-30-28-G-98.43-DR-NDX datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> SFSD-30-28-G-98.43-DR-NDX

SFSD-30-28-G-98.43-DR-NDX: DescriptionCable Assembly, 28AWG,; CategoryThe connector Connector bracket; File Size740KB，5 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SFSD-30-28-G-98.43-DR-NDX Overview

Cable Assembly, 28AWG,

SFSD-30-28-G-98.43-DR-NDX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Factory Lead Time	3 weeks
conductor material	TINNED COPPER
Connector bracket type	CABLE ASSEMBLY
insulator material	POLYVINYL CHLORIDE
shield	NO
Wire gauge	28 AWG

Preview

Download Datasheet

View All

REVISION AW

DO NOT

SCALE FROM

THIS PRINT

(No OF POS x .050[1.27])

+ .015[0.38] REF

-T: FEP (LEAVE BLANK FOR

STANDARD PVC INSULATION)

No OF POSITIONS

-02 THRU -50

(PER ROW)

WIRE GAUGE (AWG)

-28, -30

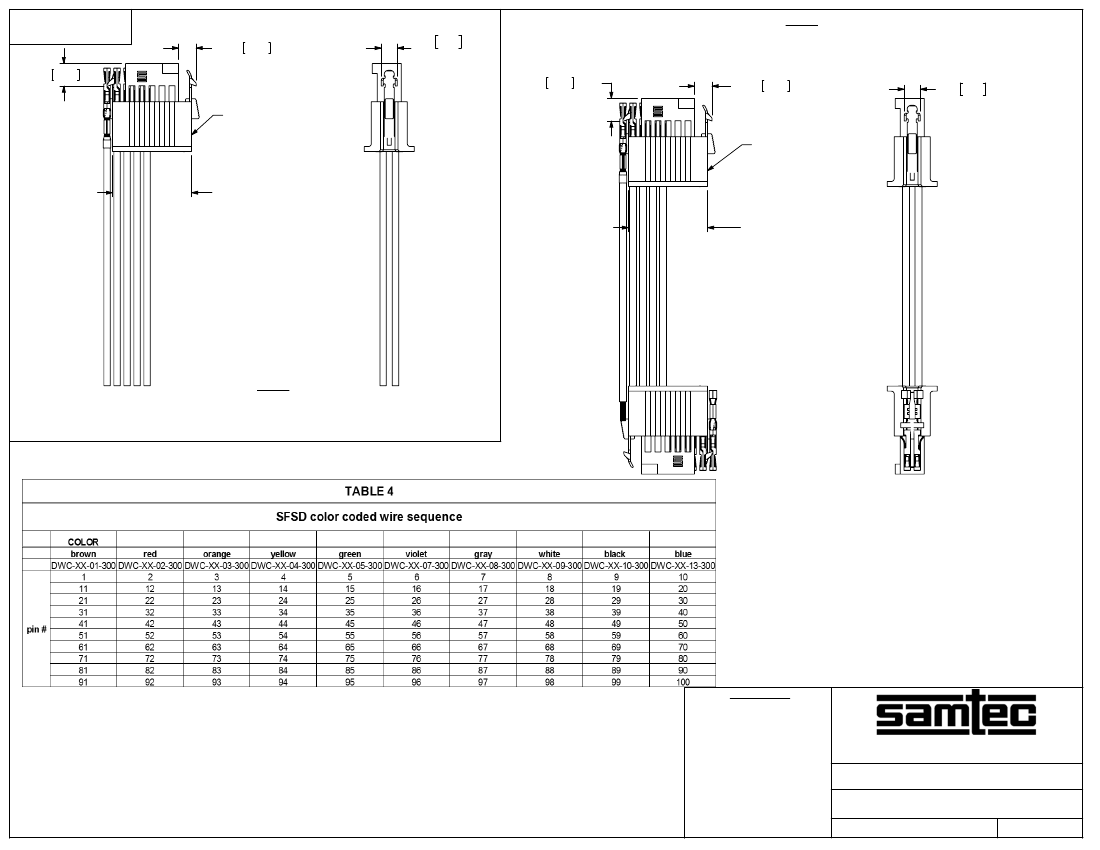

COLOR CODE:

LEAVE BLANK FOR ALL BLACK WIRE

C: COLOR CODED WIRE

(SEE TABLE 4, SHT 3)

(NOT AVAILABLE WITH FEP OPTION)

FEP CABLE OPTION

SFSDX-XX-XXX-XX-XX.XX-XX-XXX

.250 6.35

REF

.120 3.05 REF .145 3.68 REF

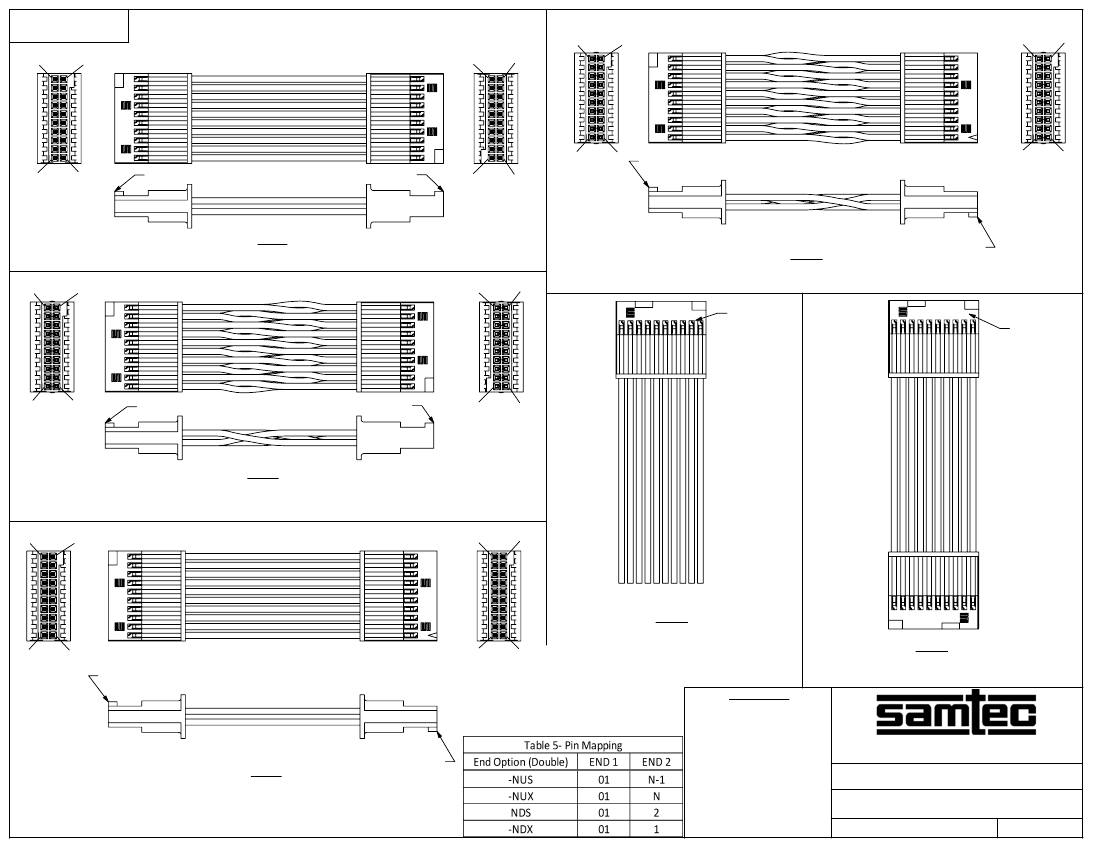

-NXX OPTION (END 2)

(ONLY AVAILABLE WITH -D, -DL, -DR & -DS)

-NUS: NOTCH UP, STRAIGHT

(PIN 1 TO PIN N-1)

-NDS: NOTCH DOWN, STRAIGHT

(PIN 1 TO PIN 2)

-NUX: NOTCH UP, CROSSED

(PIN 1 TO PIN N)

-NDX: NOTCH DOWN, CROSSED

(PIN 1 TO PIN 1)

.050 1.27

REF

.080 2.03 REF

ISDF-XX-D

-S: SINGLE END

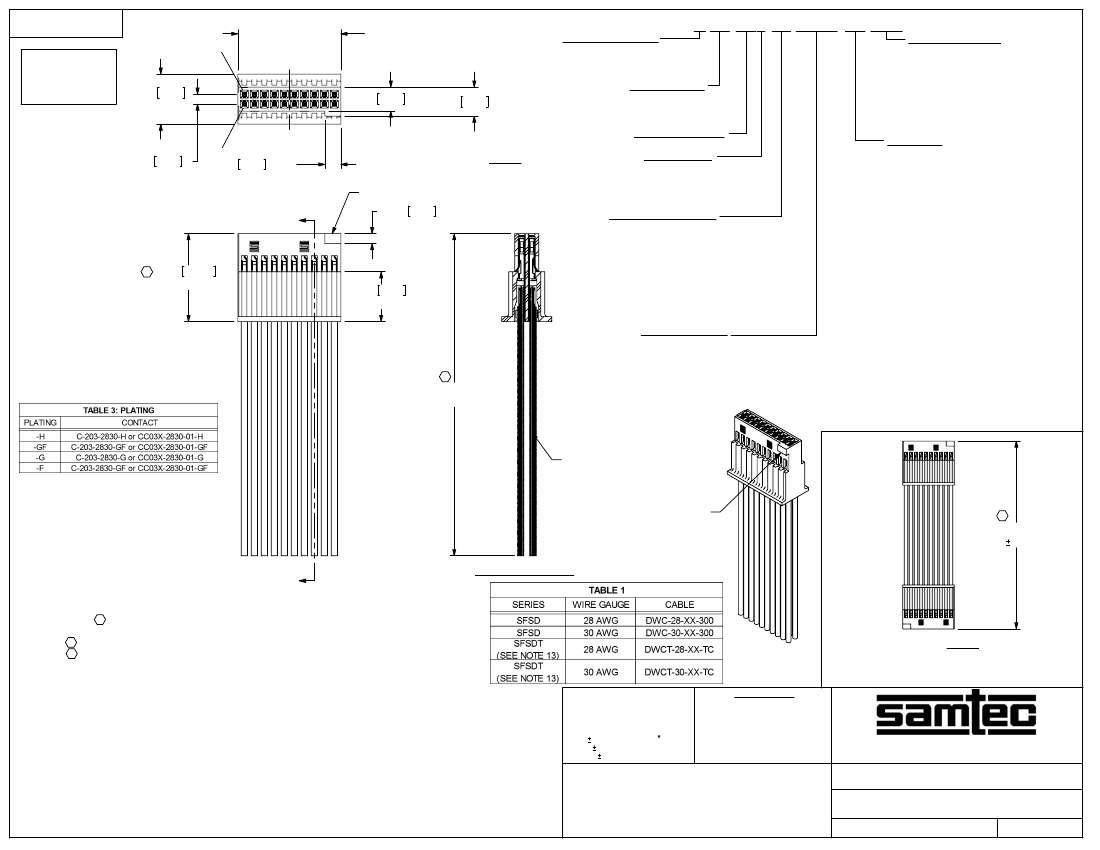

SFSD-10-28-XX-XX.XX-S SHOWN

FIG 1

END OPTION

(END OPTION COMBINATIONS NOT AVAILABLE)

"A"

.050 1.27 REF

.440 11.18

REF

.249 6.32

REF

ASSEMBLED LENGTH:

(SEE NOTE 8)

PLATING SPECIFICATION

-H: 30µ" HEAVY GOLD IN CONTACT AREA,

3µ" GOLD ON TAIL

-G: 10µ" LIGHT GOLD IN CONTACT AREA,

3µ" GOLD ON TAIL

-F: 3µ" FLASH GOLD IN CONTACT AREA,

3µ" GOLD ON TAIL

-GF: 3µ" FLASH SELECTIVE IN CONTACT AREA,

3µ" GOLD ON TAIL

(ONLY AVAILABLE TO EXISTING

CUSTOMERS; SEE -F PLATING)

(SEE TABLE 3, SHEET 1)

ASSEMBLED LENGTH

SPECIFY IN INCHES

(SINGLE END: 03.00 INCH [76.2mm]

MINIMUM,

DOUBLE END: 03.25 INCH [82.6mm]

MINIMUM)

-S: SINGLE END

-D: DOUBLE END

(MUST CHOOSE FROM -NXX OPTIONS)

-SL: SINGLE ENDED WITH FRICTION LOCK

(SEE SHEET 2, FIG 3)(ONLY AVAILABLE ON

*5,*7, 10 THRU 50 POSITION)

-DL: DOUBLE ENDED WITH FRICTION LOCK

(SEE SHEET 2, FIG 4) (ONLY AVAILABLE

ON *5,*7, 10 THRU 50 POSITION)

(MUST CHOOSE FROM -NXX OPTIONS)

-SR: SINGLE ENDED WITH RETENTION LATCH

(SEE SHEET 3, FIG 5)

(ONLY AVAILABLE ON -02 THRU -50 POS)

-DR: DOUBLE ENDED WITH RETENTION LATCH

(SEE SHEET 3, FIG 6)

(ONLY AVAILABLE ON -02 THRU -50 POS)

(MUST CHOOSE FROM -NXX OPTIONS)

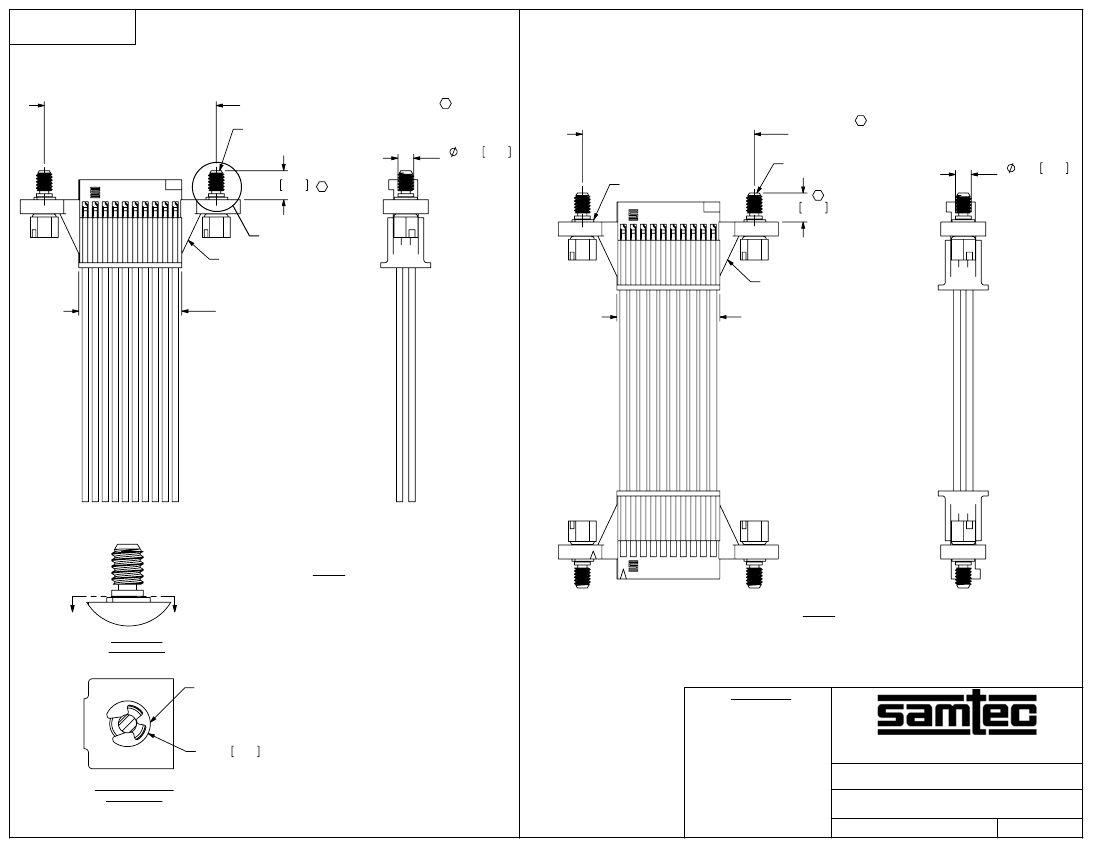

-SS: DUAL SCREW DOWN, SINGLE ENDED CABLE

(SEE SHT 4, FIG 7) (SEE NOTE 15)

(NOT AVAILABLE WITH OPTIONS SL, DL, SR & DR

USES ISDF-XX-D-DS, CPS-RR-XX-XX-X & ACCRT-01)

-DS: DUAL SCREW DOWN, DOUBLE ENDED CABLE

(SEE SHT 4, FIG 8) (SEE NOTE 15)

(NOT AVAILABLE WITH OPTIONS SL, DL, SR & DR

USES ISDF-XX-D-DS, CPS-RR-XX-XX-X & ACCRT-01,

MUST CHOOSE FROM NXXX OPTIONS)

(* = NOT AVAILABLE WITH POLARIZATION KEY)

DWCX-XX-XX-300

POLARIZATION KEY

ASSEMBLED LENGTH:

XX.XX .125[3.18]

"A"

NOTES:

SECTION "A"-"A"

REPRESENTS A CRITICAL DIMENSION.

2. MINIMUM PULLOUT FORCE: 3.0 LBS [13.3 N].

3. CONTACT MUST BE INSERTED UNTIL RETENTION FEATURE LOCKS INTO PLACE.

4. ALL FINISHED GOODS ARE TO BE ELECTICAL TESTED INCLUDING HI-POT TEST

AT 1000 VOLTS DC. AFTER FINAL ELECTRICAL TEST, LABEL EACH ASSEMBLY

WITH 1 LABEL-ET STAMP ON THE BODY.

5. TINNED COPPER WIRE IS RoHS COMPLIANT.

6. PARTS TO BE LAYER PACKAGED.

7. NOTE DELETED.

8. FOR LENGTHS LESS THAN 12 in, TOLERANCE SHALL BE +/-.125.

FOR OTHER LENGTHS, TOLERANCE SHALL BE +/-2%.

9. NOTE DELETED.

10. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP

DIMENSIONS, TOLERANCES, TOOLING AND ITS REQUIREMENTS.

11. 3LB MIN WIRE CRIMP STRENGTH FOR -30 AWG AND 4.5LB MIN

WIRE CRIMP STRENGTH FOR -28 AWG.

12. NOTE DELETED.

13. -TC TEFLON USE FOR DOUBLE ENDED ASSEMBLIES ONLY,

ALL SINGLE ENDED ASSEMBLIES USE SILVER PLATED DWCT-XX-01.

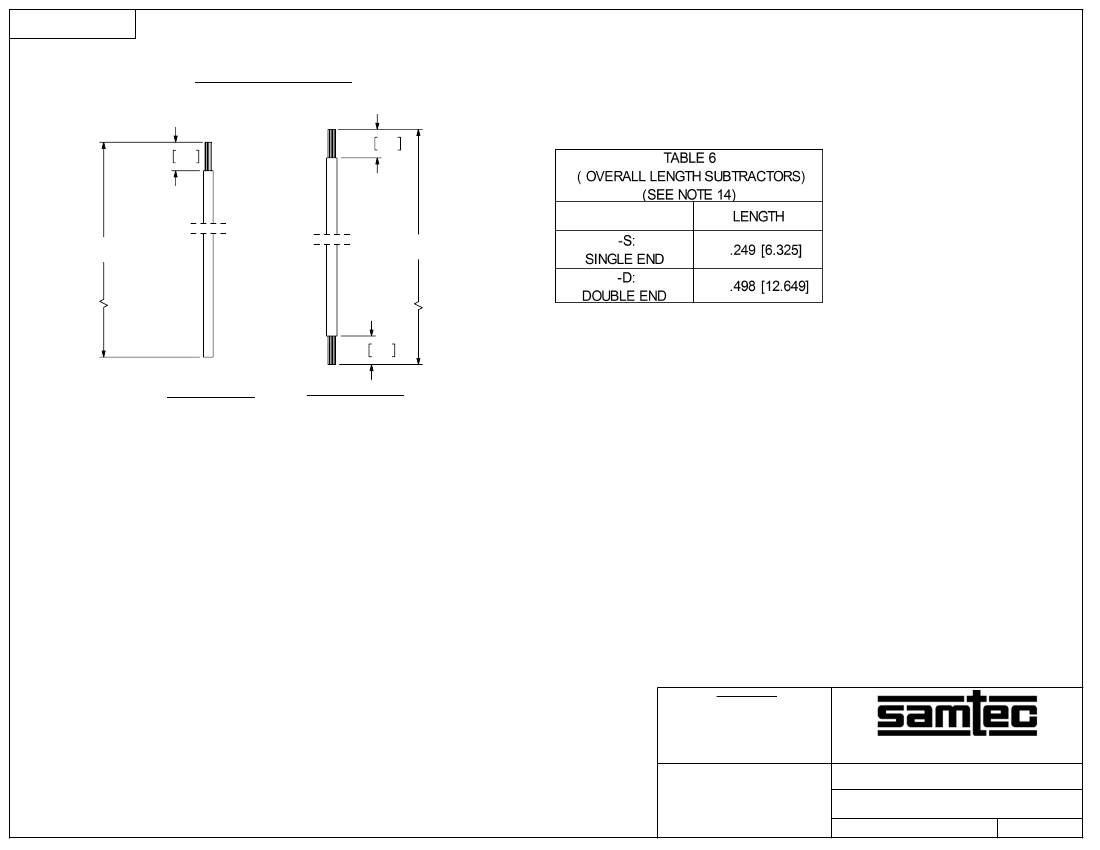

14. CUT LENGTH IS ASSEMBLY LENGTH MINUS OVERALL LENGTH SUBTRACTOR.

15. THE PRODUCTS WITH OPTION -DS AND -SS SHOULD BE PACKAGED IN BUBBLE BAGS.

-D: DOUBLE END

SFSD-10-28-XX-XX.XX-D-NUS SHOWN

(SAME AS FIG 1, UNLESS OTHERWISE STATED)

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

FIG 2

PROPRIETARY NOTE

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

INSULATOR: LCP UL 94V-0, COLOR: BLACK

CONTACT: BeCu

CABLE INSULATION: PVC OR FEP

WIRE: DWC: TINNED COPPER.

.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY

SFSDX-XX-XXX-XX-XX.XX-XX-XXX

SHEET

F:\DWG\MISC\MKTG\SFSDX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW

BY:

BRATCHER 5/5/2005
